eSSL F18 Biometric Fingerprint Attendance System Access control

eSSL F18 Fingerprint Time Attendance System with Access Control System.

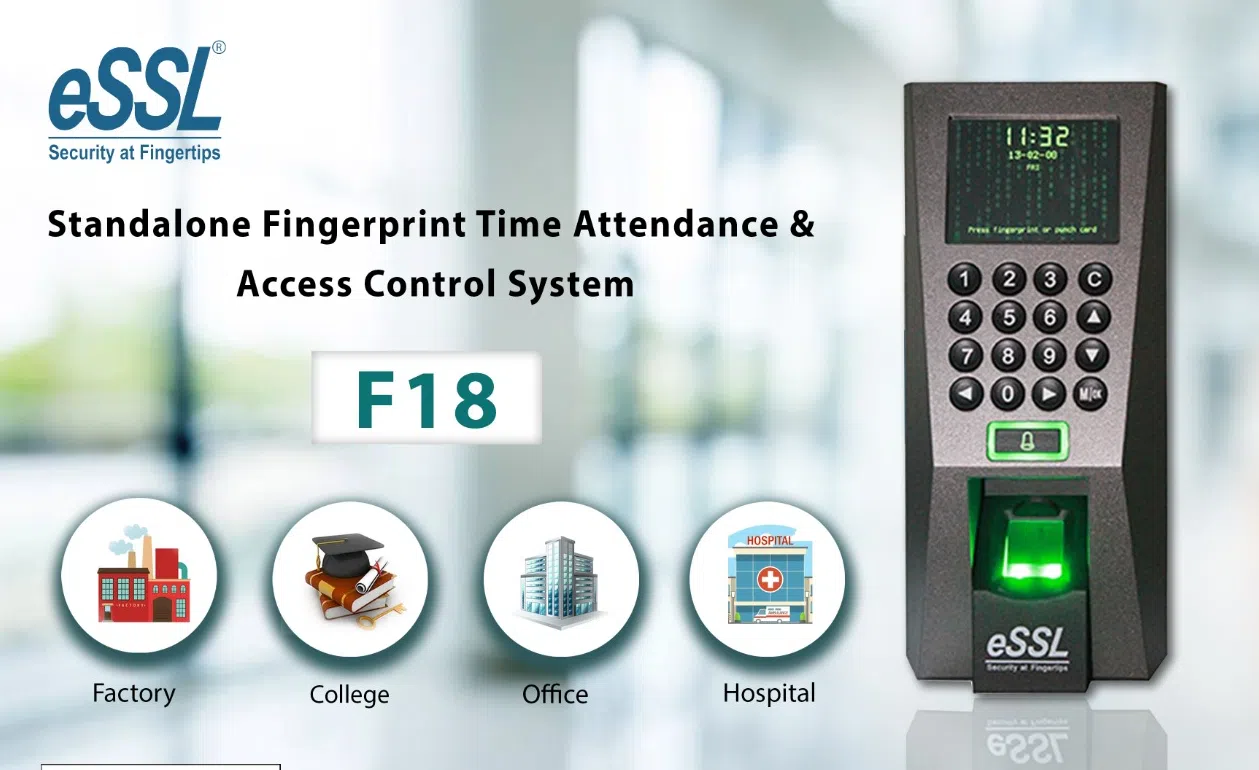

eSSL F18 Fingerprint Time Attendance Machine

Storage Capacity

Fingerprint Capacity: 3000

Card Capacity: 5000

Finger Algorithm: Finger VX10.0

Record Capacity: 30000

CPU: 32 bit Microprocessor

Coreboard: ZLM60

Biometric

Fingerprint sensor: 500 DPI SilkID sensor

FAR: <= 0.0001%

FRR: <= 1%

Identification speed: < 0.5 sec

Algorithm Version: 10

Visual

Display: 2.8-inch TFT Screen

Keypad: Yes

LED Indicator: Green/Red

Communication

Communication: RS232/485, TCP/IP, USB-host, Built-in Wi-Fi

Wiegand: In & Out

Push Data: Yes (supports both static IP and domain server)

Standard Features

Work code, SMS, DLST, Self-service query, Status Switch

Standard Functions

DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback Mifare (Optional)

Power and Environment

Power Supply: DC 12V — 1.5Amp

Operating Temperature: 0°C – 45°C

Operating Humidity: 20% – 80%

Dimension (in mm): (L)158.5 x (W)78.0 x (H)19.4mm

Features

– 2.4-inch TFT color screen and Touch keys

– Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm

– Standard Wi-Fi

– Network interface by TCP/IP or RS485

– Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

– Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Exit Readers

Support exit readers: FR 1200, Push Button, KR500, Notouch, KR503

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Compatible Software and SDK

eTimetracklite Desktop & Web

SDK for desktop applications

Web-based Device Manager – Bio Server helps developers & integrators

Supports 3rd Party Payroll/HRMS/ERP and Other applications

fingerprint access control

F 18 eSSL Biometric Fingerprint Attendance System

Biometrics Time & Attendance Machine eSSL F18 with Access Control System
F 18 eSSL Biometric Fingerprint Attendance System is a biometric fingerprint reader. It is one of the most innovative products for access control applications. It offers unparalleled performance using an advanced algorithm for reliability, precision, and excellent speed. It features the fastest commercial algorithm based on a high-performance fingerprint and high image quality of the fingerprint sensor infrared detection. The device offers the flexibility to install the standard Wiegand signal. The entire operation can be performed on the color display TFT-LCD and the fingerprint image is displayed on it. It will guide the user to put the finger in the correct position and increase the recognition rate. Their communication is via TCP / IP and RS485. The device can be used in different networks. Contact us for Essl F18 price and get a quotation in your email.

Fingerprint Access Control+T&A F18+ID eSSL

F18 runs on a 32-bit high-end microprocessor and has a built-in mini speaker for voice-based instructions or messages. With the support of standard push data technology; this device has a storage and recognition capacity of 3000 fingerprints and 3000 cards.
[su_highlight]F18+id
Fingerprint Capacity: 3000
Card Storage: 3000
Transaction Storage: 30,000 [/su_highlight]

[su_button url=”https://ampletrails.com/wp-content//uploads/2017/05/F-18-eSSL-ZK-Biometric-Fingerprint-Attendance-System-Presentation.ppt” target=”blank” center=”yes” text_shadow=”0px 0px 0px #000000″ desc=”F18 Presentation”]Download Biometric Fingerprint Attendance System Presentation[/su_button]

Biometric access control system

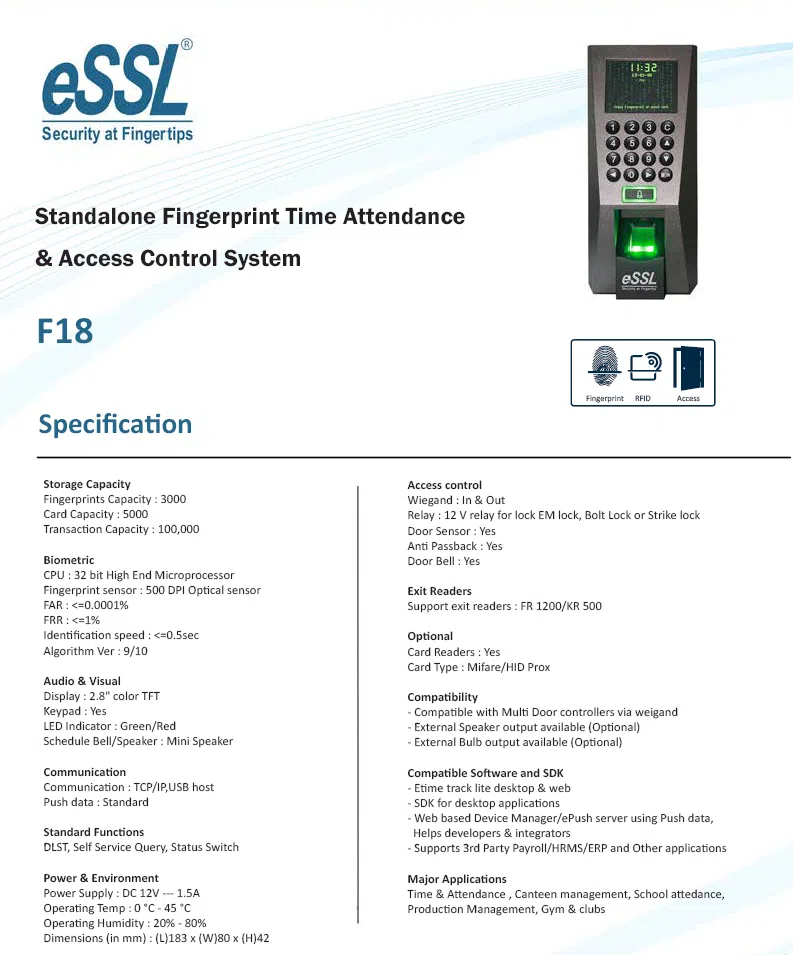

essl F18

Biometrics & RFID, Time & Attendance + Access control, Fingerprint

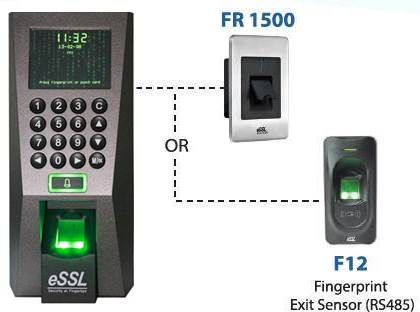

Biometric Fingerprint Attendance Machine F18 With F12 and FR1500

Featues of Biometric Attendance Recording System F18

[su_list icon=”icon: check”]

Color screen TFT-LCD
Audio Visual indication for acceptance and rejection of invalid fingerprints
simple and conventional operation
Slim, stylish design
sleek and slim design for small spaces
Algorithm fast and accurate fingerprint
Stores 3000 fingerprint templates and 30000 transactions
Easy installation and connectivity
Wiegand input and output
Interface TCP / IP network or RS485
Control features full access
Web server
The 3rd party electric lock, door sensor, exit button and alarm
Easy operation and management
Working with computer
Beeper 4 × 4 keyboards and timbre
Built in serial ports and Ethernet
Built in USB port allows for manual data transfer

[/su_list]

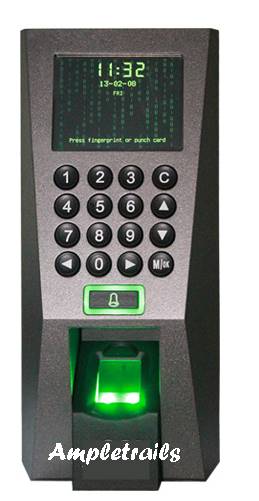

F 18 eSSL ZK Biometric Fingerprint Attendance System

For more information about biometric fingerprint and RFID Time Attendance and Access, Control Machine call us now at 9315441078 WhatsApp 9315441053, 9034757673

Email us at info@ampletrails.com or call us now at 9034757673, 09034757673, 09315441078 WhatsApp 9315441053 for pricing and installation of this machine.

[su_button url=”https://ampletrails.com/wp-content//uploads/2016/04/F-18-eSSL-ZK-Biometric-Fingerprint-Attendance-System.pdf” target=”blank” style=”soft” center=”yes” text_shadow=”0px 0px 0px #000000″ desc=”F18 Brochure”]Biometric Attendance Recording Machine F18[/su_button]

F18 connection Diagram

F18 User Manual

[su_button url=”https://ampletrails.com/wp-content//uploads/2016/04/F18_User_Manual-1.pdf” target=”blank” center=”yes” text_shadow=”0px 0px 0px #000000″ desc=”F18 User Manual”]F18 User Manual[/su_button]

[su_button url=”https://ampletrails.com/wp-content//uploads/2016/04/f18-connection-Diagram-1.pdf” target=”blank” center=”yes” text_shadow=”0px 0px 0px #000000″ desc=”F18 Connection Diagram F12 EM Lock Push Button”]F18 Connection Diagram F12 EM Lock Push Button[/su_button]
F 18 eSSL ZK Biometric Fingerprint Attendance System
[su_button url=”https://ampletrails.com/wp-content//uploads/2016/04/F18.pdf” target=”blank” center=”yes” text_shadow=”0px 0px 0px #000000″ desc=”F18 Fingerprint Attendance machine brochure Download”]F18 Attendance Access Control Machine Brochure Download[/su_button]

We also have AADHAR ENABLED FINGERPRINT TERMINAL.
