Spectra’s TwinXs 2C is a highly accurate two door access controller suitable for every business vertical. Its super powerful design and simple mechanism make it a favorite among clients. It is easy to install, use and maintain. Its ability to simultaneously control and monitor two doors, allows it to be a cost-efficient alternative for our customers. It is a must-have for areas such as server rooms and research labs, to name just a few.
spectra controller software
2 Door Controller
Multi Door Access Controller
It supports anti-passback. Simply put, it allows entry to a particular door only when the person has exit through the same door. Spectra has the best multi door access controller. Leveraging on smart technology, the system helps to create a group, such that, access to a door within the group is permitted if only, all other doors are closed. Its secure, user-friendly and easy to embed network interface makes it a highly desirable solution indoor access control technology.

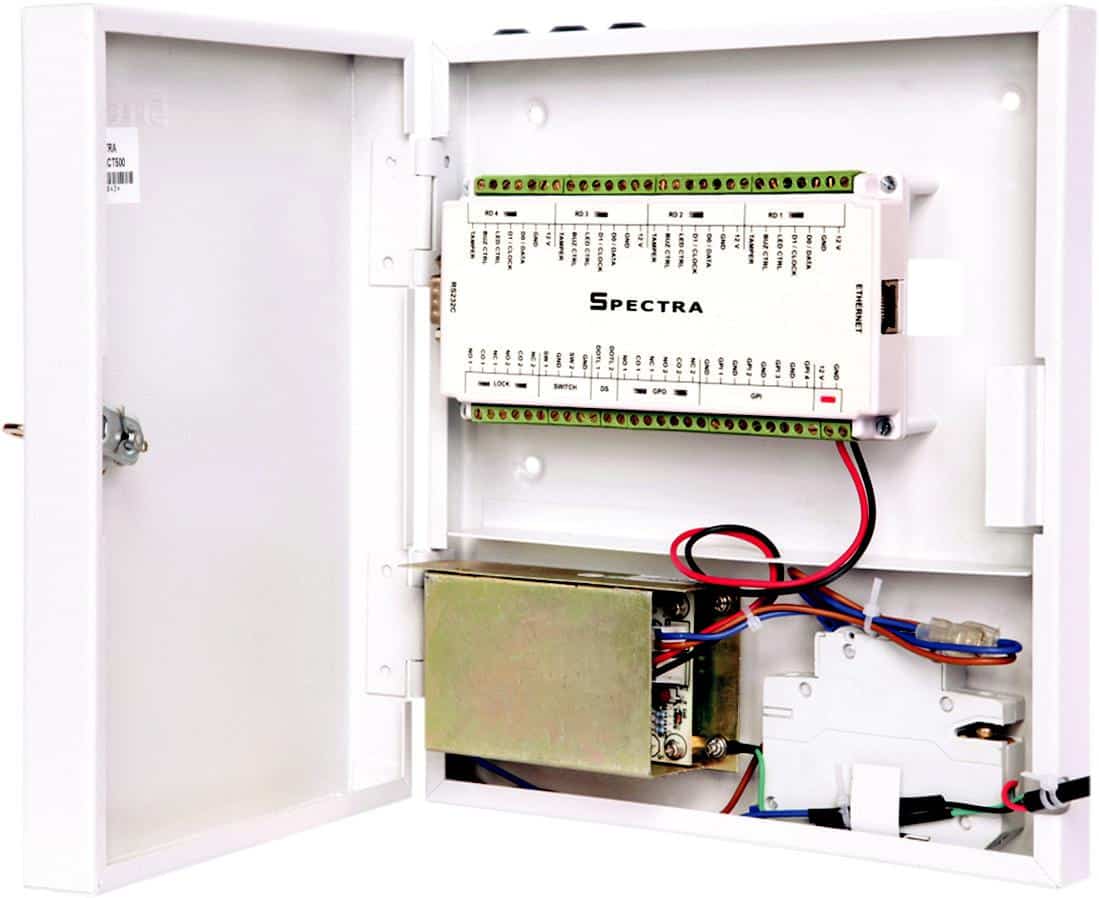

Spectra two Door Controller

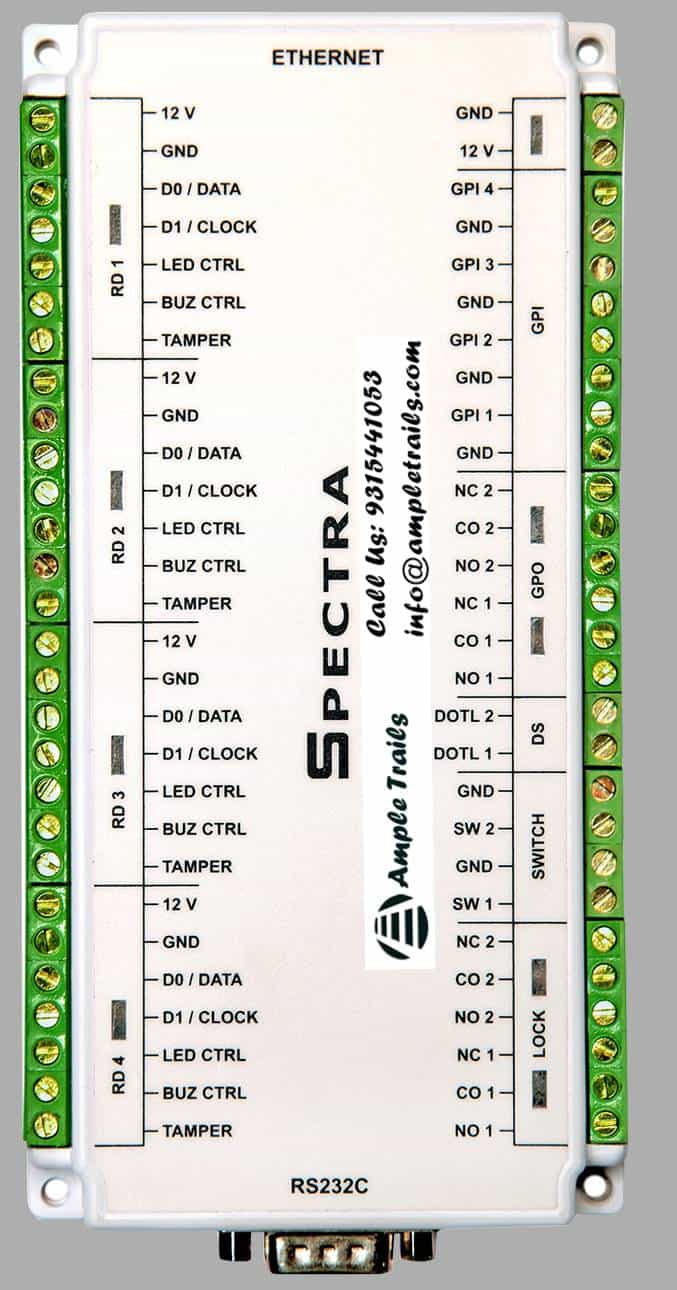

Multi Door Controller Spectra TwinXs 2C
| H A R D W A R E | ||
| Controller | 2 Doors/4 Readers | |
| CPU | 8 bit microcontroller running at 42 MHz | |
| Program Memory | 128 Kbytes | |
| Data Memory | 2 MB flash | |
| Database | 30,000 card holders | |
| Transactions | 55,000 time stamped events storage capacity | |
| RTC | Non volatile real time clock calendar | |
| Display | LED indication for reader and lock activity status | |
| Communication | 10 Base-T RJ45 ethernet interface (TCP/IP) with status LED indications | |
| Reader Interface | Weigand configurable from 26 bits to 40 bits/clock data four reader ports | |
| Reader Control | LED Control, buzzer control & reader tamper switch input | |
| Lock Interface | 2 Potential free changeover relays, contact rating 3A/30V DC, support both fail safe | |
| & fail secure type of lock assemblies | ||
| Digital Inputs | Optically isolated inputs for 2 door sensor, 2 exit switch & 2 general purpose digital input | |
| Watchdog | Inbuilt watchdog supervisor | |
| Supply | 13.8V DC / 2.5 Amp with battery charger, provision to connect 12V/7.2 AH battery | |
| Protection | Miniature circuit breaker (MCB) for over current protection | |
| Power | 2.5 Watts( excluding lock and readers) | |
| Input | 180V AC ~ 230V AC/50 Hz | |
| Humidity | RH 5-95% non-condensing | |
| Weight | 2.65 Kg. | |
| Dimensions | H 230 x W 262 x D 57 | |
| F I R M W A R E | ||
| Time Zone | 30 user defined time zones | |
| Access Groups | 90 access groups | |
| Day Access | Day of the week access | |
| Week o Groups | 30 week o groups | |
| Holiday Groups | 10-holiday groups, 30 holidays per group | |
| Antipassback | Door wise antipassback | |
| Interlocking | Interlocking facility available | |
| Digital Inputs | Programmable general purpose digital inputs for monitoring devices and sensors | |
| Digital Outputs | Programmable general purpose digital output for alarms | |
Technical specifications may be changed from time to time without any prior notice due to continuous enhancements in the product.
Card reader with an option of reading EM prox or Mifare card needs to be connected to a controller.

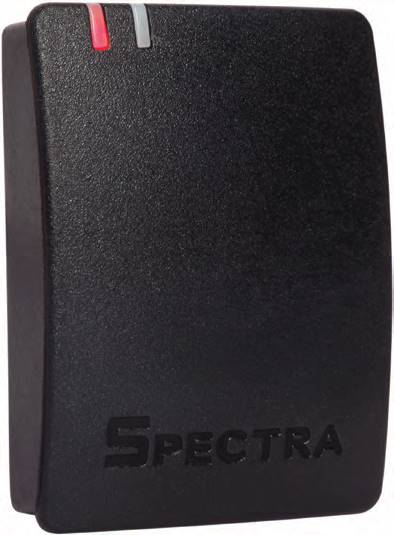

Spectra’s RFID Card reader P20/M20
Spectra’s M20 Mifare reader is built for high performance for Mifare read-only cards with its compact and high on aesthetics build. It offers a consistent read range of 6~8 cm in most conditions. The reader is particularly suited to access control applications, it can be easily mounted on walls and doors. An advance key management for high security its basic unit can be configured to most common output interface formats.
[su_document url=”https://ampletrails.com/wp-content/uploads/2017/10/Spectra-RFID-Card-Reader-P20-M20.pdf”]

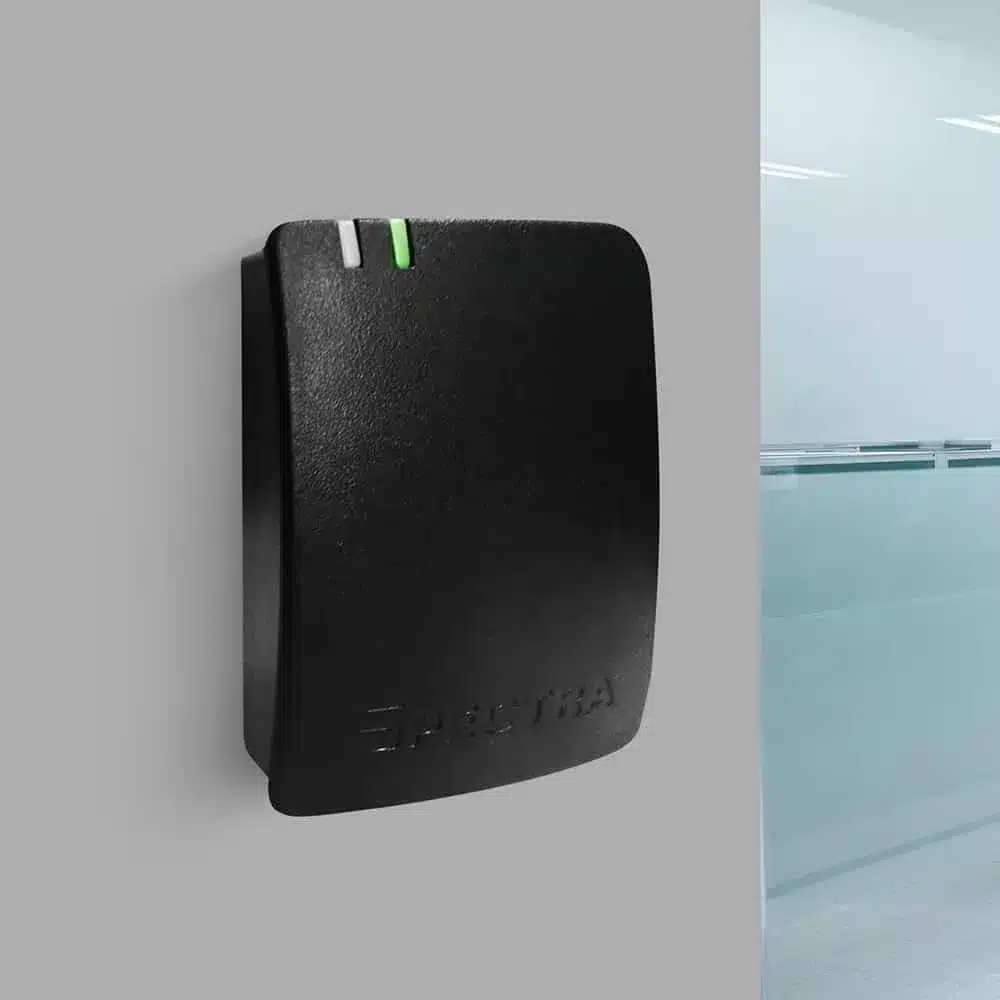

Spectra Card reader M20 P20
Spectra RFID Card Reader P20 M20
For more information on Spectra TwinXs 2C multi-door access controller contact us at 09034757673, 09315441078 WhatsApp 9315441053 or email us at in**@am*********.com.
