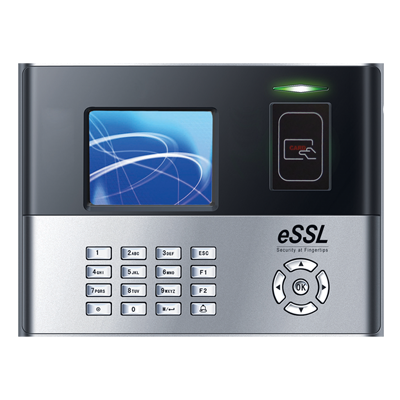

RFID Card Attendance System eSSL S990

RFID Card Attendance System ESSL S990

RFID Card Attendance System ESSL S990

Proximity mi-fare cards ESSL S990A is an RFID identification Time Attendance and access control terminal which has a capacity of 30,000 cards and 1, 00,000 transaction logs with fastest identification speed of less than or equal to 0.1 seconds. The Wiegand-in interface is used to connect the external reader to construct master and slave system. Multi-model communications consisting of RS232/485, TCP/IP, USB host and Wi-Fi/GPRS (optional) allow an extremely easy data management.  It also has optional Wi-Fi and GPRS connectivity. The USB-host is used for data download and upload, including user template and record etc. Optional built-in 2000 mAh battery eliminates the trouble of power failure. It enables the enterprise to manage more employees with less cost. Its a smart card attendance system.

Biometric Fingerprint + RFID Card based time attendance system

Proximity mi-fare cards eSSL S990 A

Card Attendance Machine

RFID Door Lock Access Control System

Card Capacity
Transaction Storage
Card Reader
Inbuilt proximity card reader (Optional Mifare)
800 Mhz 32 bit Microprocessor
Push Data
ESSL RFID Access Control System S990A

RFID Card Attendance Machine eSSL S990A

RFID Card Attendance Machine eSSL S990A


eSSL S990A RFID attendance system

ESSL S-990-A RFID Time and Attendance Acces Control

  • Card Capacity: 30,000 Cards
  • Transactions: 1,00,000 Logs
  • CPU: 32-bit Microprocessor – 800Mhz
  • Display: 2.8” TFT
  • Identification Speed : <=0.1 sec
  • FAR : <=0.0001%
  • FRR : <=1%
  • Communication:: RS232/485, TCP/IP
  • USB-Port for Pendrive
  • Power Supply: 12V DC , 1.5Amp
  • Operating Temperature : 0°C – 45°C
  • Operating Humidity : 20% – 80%
  • Dimension(W x H x D): 210 x 157 x 40 mm

Access Control Interface:
Support: KR500E / Exit Button, 101HE

Optional Features

  • Push Data Technology
  • GPRS
  • Web Server
  • Wi-Fi
  • Battery back up
  • Mifare / HID Prox

Technical Specification

Standalone RFID Time  Attendance and  Access Control System
Storage capacity Card Storage 30000
Transaction storage 1,00,000
Card reader Inbuilt proximity card reader (optional Mifare)
CPU 800 Mhz 32 bit Microprocessor
Biometric FAR <=0.0001%
FRR <=1%
Identification speed <0.5 sec
Algorithm Ver 10
Audio/Visual Display 3″ Color TFT
Keypad Yes
LED Indicator Green/Red
Schedule Bell/Speaker Mini Speaker
Communication Communication TCP/IP, USB, ( Optional : Wifi, GPRS, GPRS+ GPS)
Push data yes (support both static IP and domain server)
Standard features work code, SMS,DLST, Self service query, Status Switch
Power & environment Power Supply DC 12 V : 1.5 Amp
Operating Temperature 0°C to 45°C
Operating Humidity 20% -80%
Dimension 210 x 157 x 40 mm
Access control Wiegand In & Out  both 26 or 34 bit (With or without site code)
Relay 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm Yes
Door Sensor Yes
Anti Passback Yes
Door Bell Yes
Exit Readers Support exit readers 101 HE, Push Button, KR500, No touch
Optional Battery yes
Card readers Mifare
Communication Wifi/GPRS
Compatibility Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Support External Printer
Compatible Software and SDK Smart office suite desktop and web
SDK for desktop applications
Web-based Device Manager / ePush server using Push data. Helps developers & integrators
Supports 3rd Party Payroll / HRMS / ERP and Other applications
Major Applications Time & Attendance , Canteen management, School attendance,Production Management, Gym & clubs

Proximity RFID MIFARE cards S990A

eSSL RFID Identification Time & Attendance Access Control
