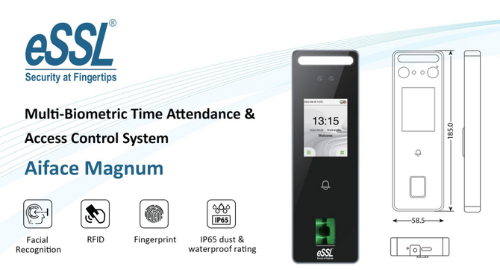

eSSL AIFACE MAGNUM



eSSL AIFACE MAGNUM

• · IP65 water and dust resistance
• · Operating temperature from -5°C to 45°C
• · Support Facial / Fingerprint / RFID
• · Available card modules :12.5 KHz ID card / 13.56MHz IC card
• · Fill Light with adjustable brightness
• · On Board Web Server for system configuration

essl Face Fingerprint Time Attendance Machine

Face with Finger Attendance and Access Control

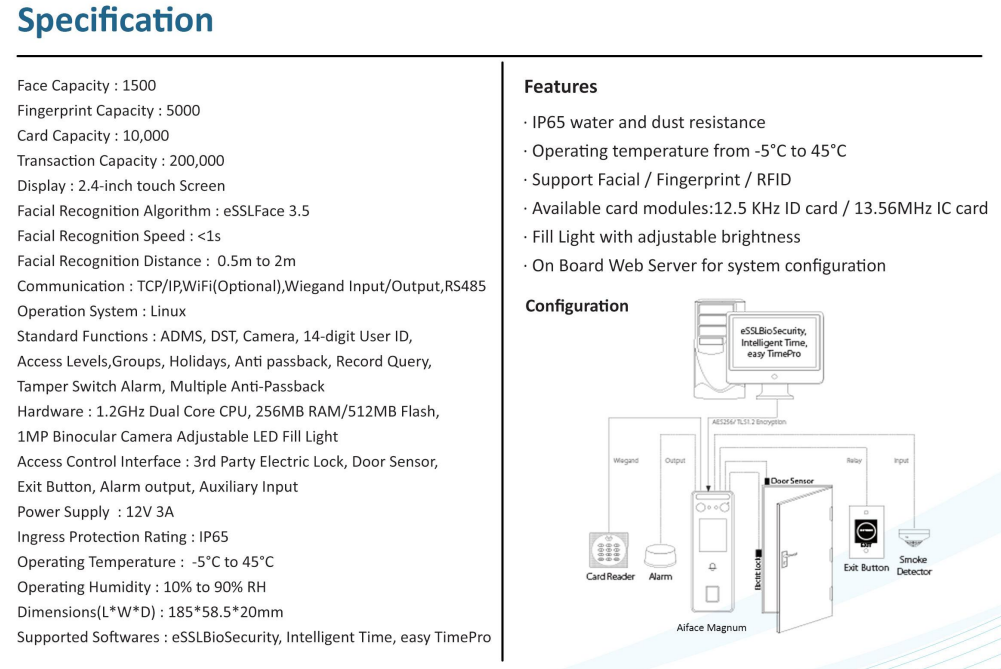

• Face Capacity : 1500
• Fingerprint Capacity : 5000
• Card Capacity : 10,000
• Transaction Capacity : 200,000
• Display : 2.4-inch touch Screen
• Facial Recognition Algorithm : eSSLFace 3.5
• Facial Recognition Speed : < 1s
• Facial Recognition Distance : 0.5m to 2m
• Communication : TCP/IP,WiFi(Optional),Wiegand Input/Output,RS485
• Operation System : Linux
• Standard Functions : ADMS, DST, Camera, 14-digit User ID, Access Levels,Groups, Holidays, Anti passback, Record Query, Tamper Switch Alarm, Multiple Anti-Passback
• Hardware : 1.2GHz Dual Core CPU, 256MB RAM/512MB Flash, 1MP Binocular Camera Adjustable LED Fill Light
• Access Control Interface : 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
• Power Supply : 12V 3A
• Ingress Protection Rating : IP65
• Operating Temperature : -5°C to 45°C
• Operating Humidity : 10% to 90% RH
• Dimensions(L*W*D) : 185*58.5*20mm
• Operating Temperature : -5°C to 45°C

This device is an attendance and access control system that supports facial recognition, fingerprint recognition, and card authentication. It has a capacity of 1500 faces, 5000 fingerprints, and 10,000 cards. The transaction capacity is 200,000, which means it can store a large number of attendance and access control logs.

The device comes with a 2.4-inch touch screen display that enables users to interact with it easily. It uses eSSLFace 3.5 facial recognition algorithm that can recognize faces in less than 1 second, and it can detect faces from a distance of 0.5m to 2m.

The device comes with various communication options, including TCP/IP, WiFi, Wiegand Input/Output, and RS485. It runs on Linux and supports standard functions like ADMS, DST, camera, 14-digit user ID, access levels, groups, holidays, anti-passback, record query, tamper switch alarm, and multiple anti-passback.

The device has a powerful hardware configuration with a 1.2GHz Dual-Core CPU, 256MB RAM, and 512MB Flash. It also has a 1MP binocular camera with adjustable LED fill light that enables it to capture clear images of faces even in low-light conditions.

The device comes with an access control interface that supports third-party electric lock, door sensor, exit button, alarm output, and auxiliary input. It requires a 12V 3A power supply and has an IP65 ingress protection rating, which means it is protected against dust and water.

The device can operate within a temperature range of -5°C to 45°C and a humidity range of 10% to 90% RH. It has compact dimensions of 18558.520mm, making it easy to install in various locations.
