Full Height Turnstile Access Control System — Best Price in India
Access control turnstiles increase the safety of premises by ensuring only authorized persons can enter high-security areas. Specifically, full height security turnstiles are available as single door and double door models — integrated with RFID, fingerprint, or face recognition.
Full Height Turnstile Access Control System
Full height turnstile gates are specifically designed to ensure a high level of security and crowd management at the entrance in areas that require maximum access control and high pedestrian flow. Furthermore, these systems support physical access control using the RFID Card-based system, Face Recognition system, and Fingerprint Access Control system. Consequently, only people with authorized credentials can enter the premises.
Furthermore, full height turnstile access control systems are used for pedestrian entrance control in high-security areas — including stadiums, petrochemical plants, construction sites, offices, and parking areas. Notably, AmpleTrails offers four models of full height turnstiles — two single door and two double door variants.
Full Height Turnstile — Video Demo
Full Height Turnstile — Live Working Demo
Full Height Turnstile — 4 Models Available
AmpleTrails offers four full height turnstile models — two double door configurations and two single door configurations. Furthermore, all models can be integrated with access control systems using RFID cards, smart cards, fingerprints, or face recognition. Consequently, upgrading an existing security perimeter with a full height turnstile is straightforward.

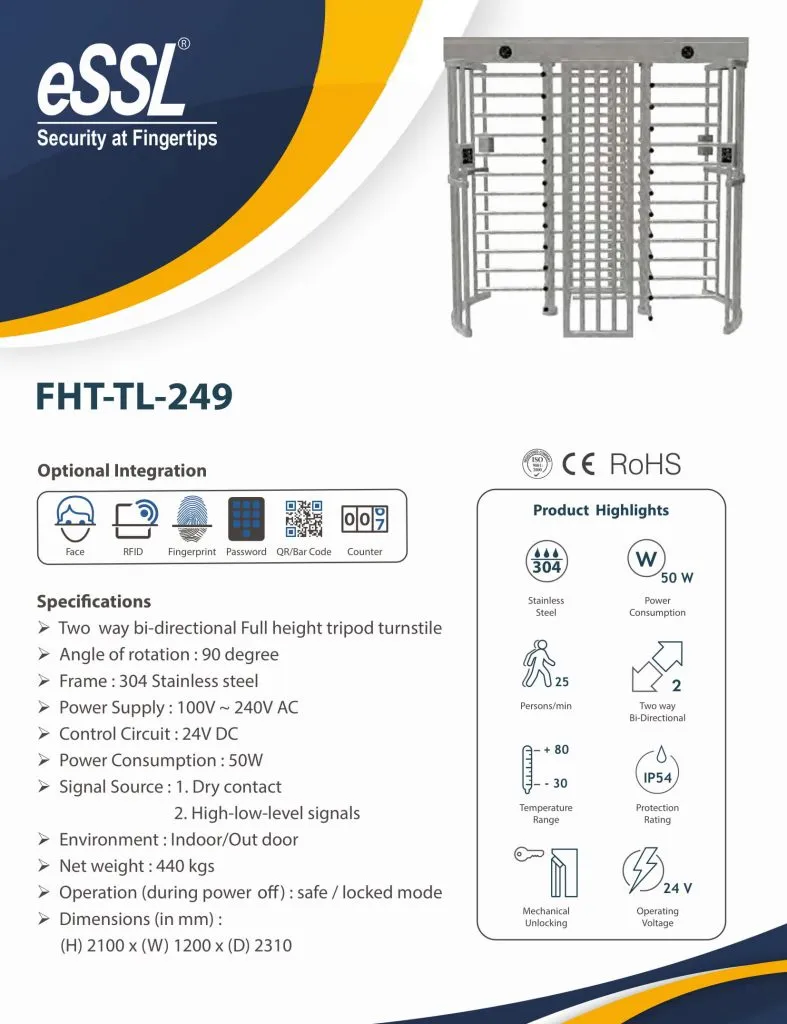

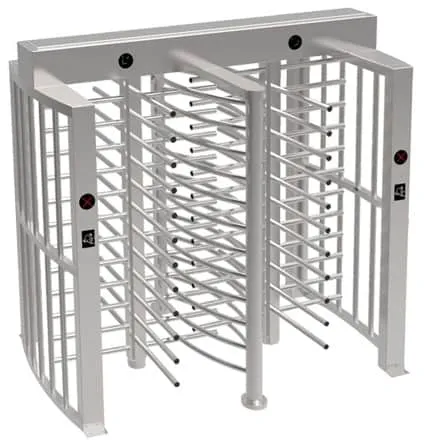

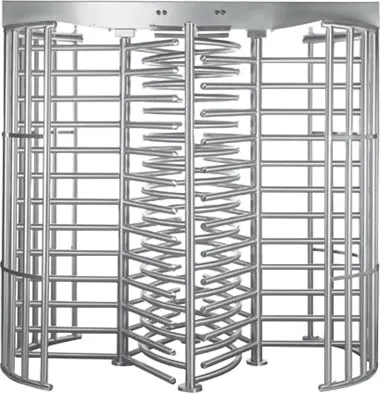

Double Door Full Height Turnstiles

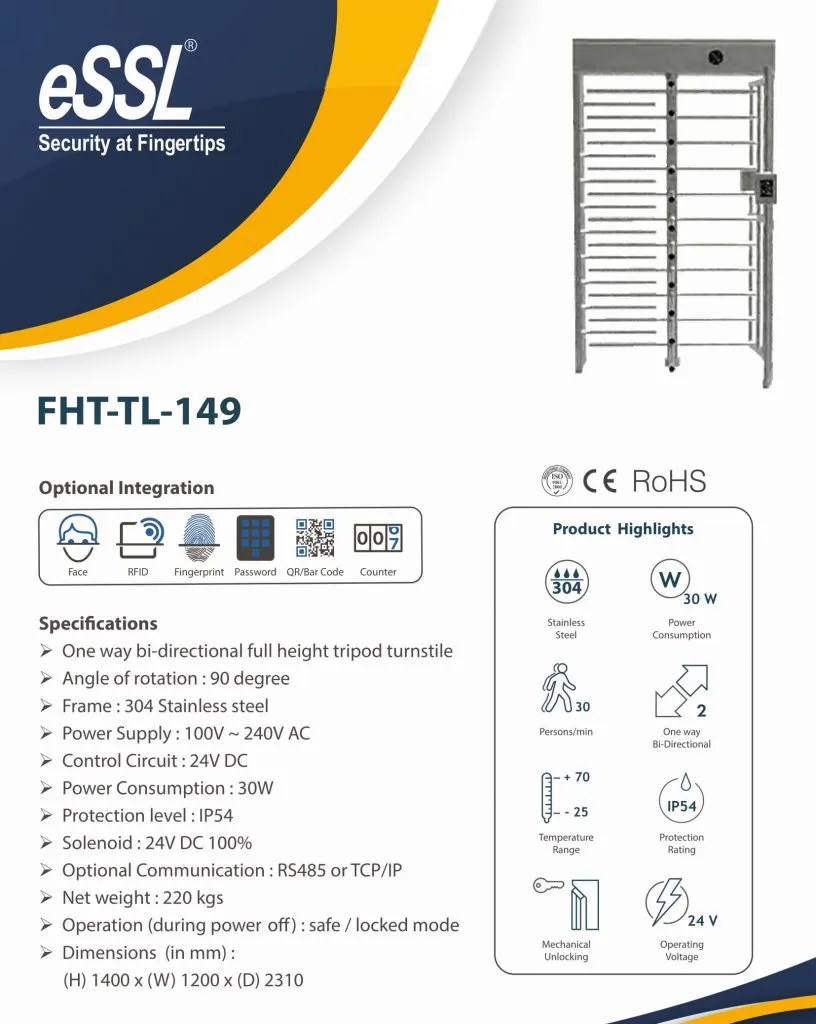

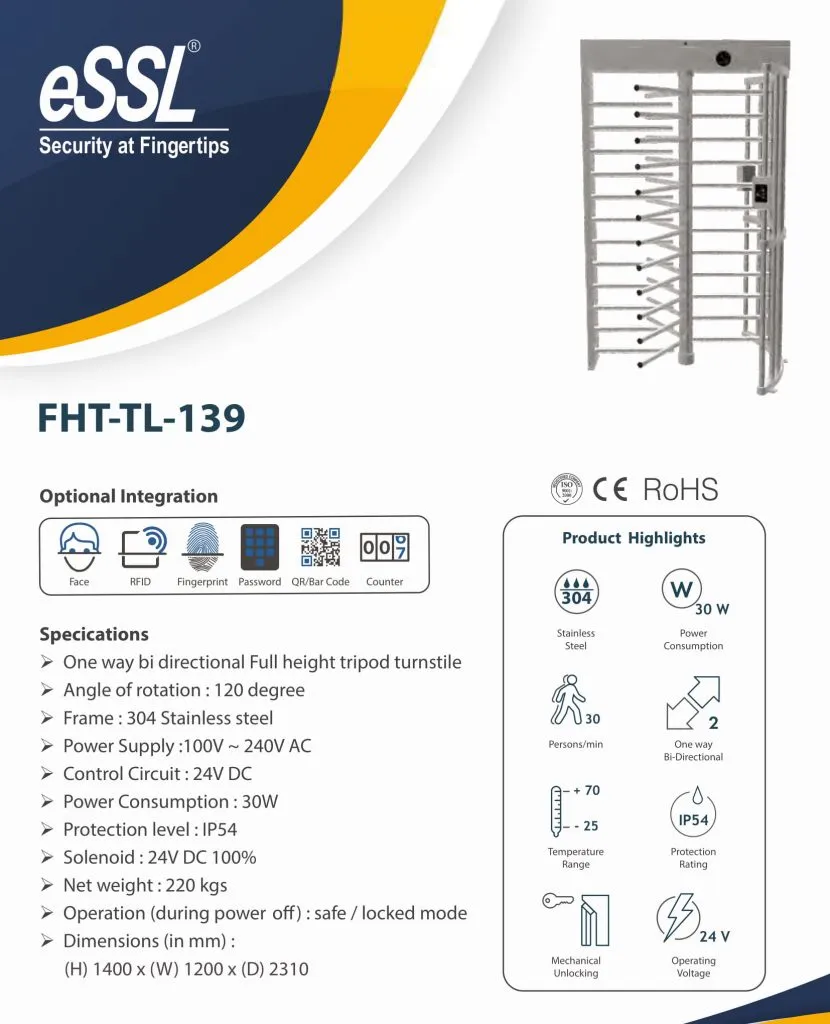

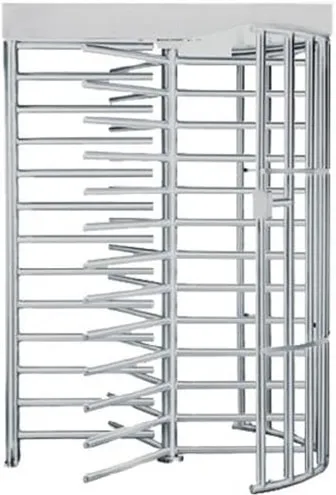

Single Door Full Height Turnstiles

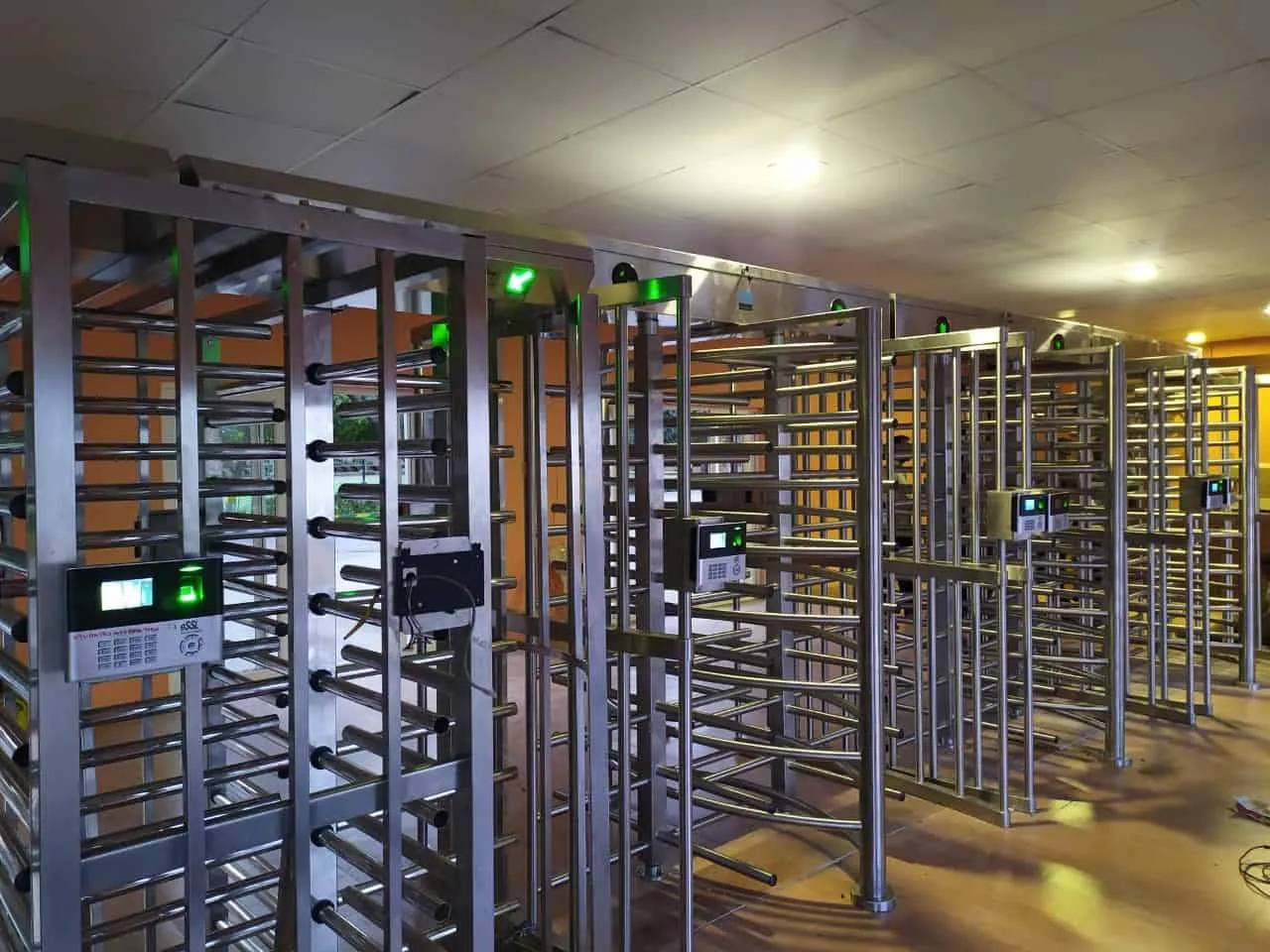

Full Height Turnstile — Installation Pictures

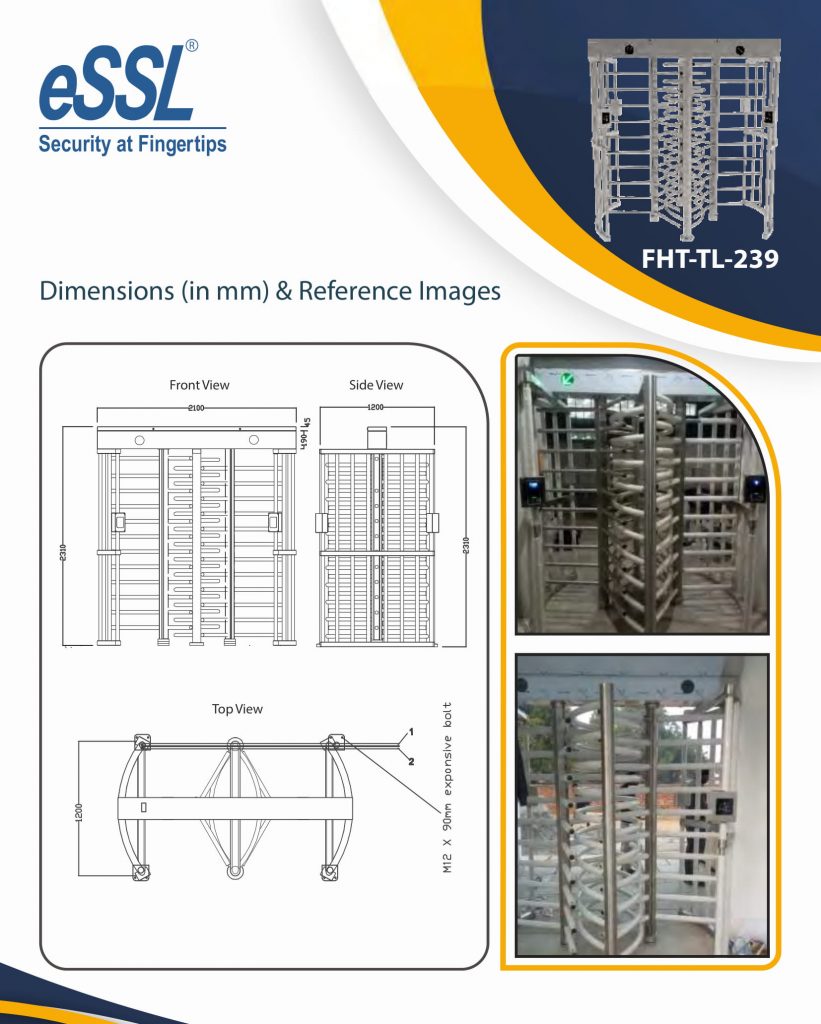

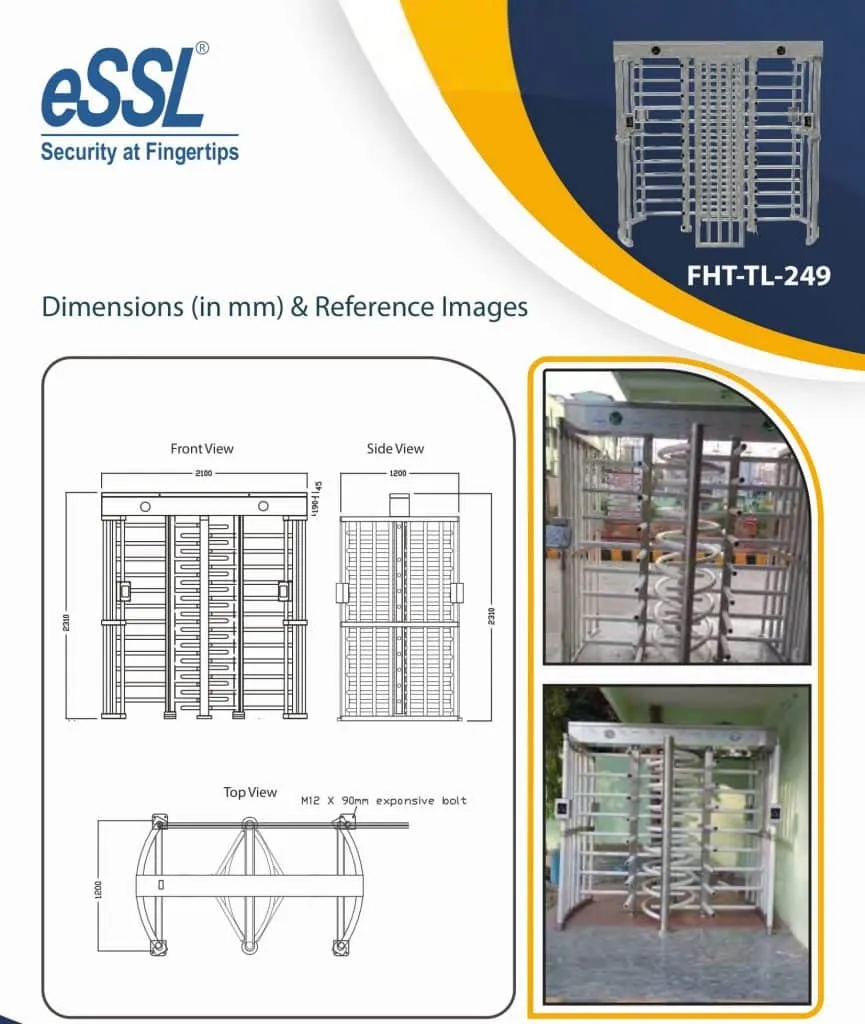

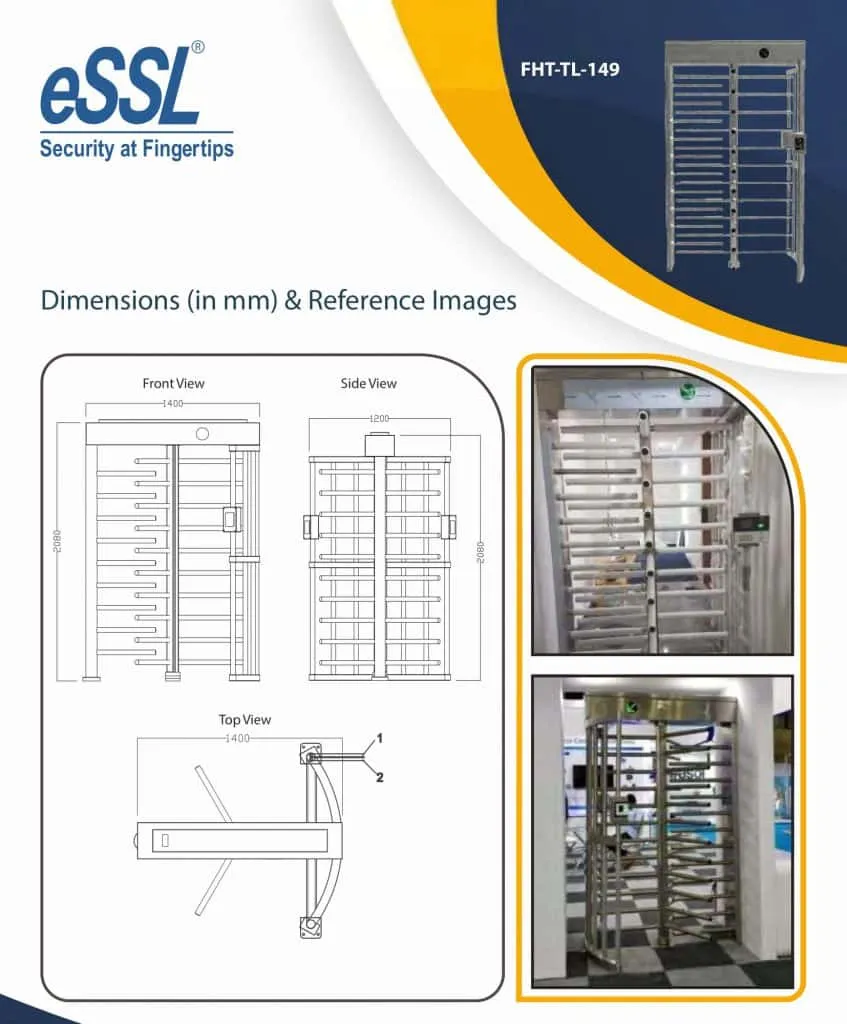

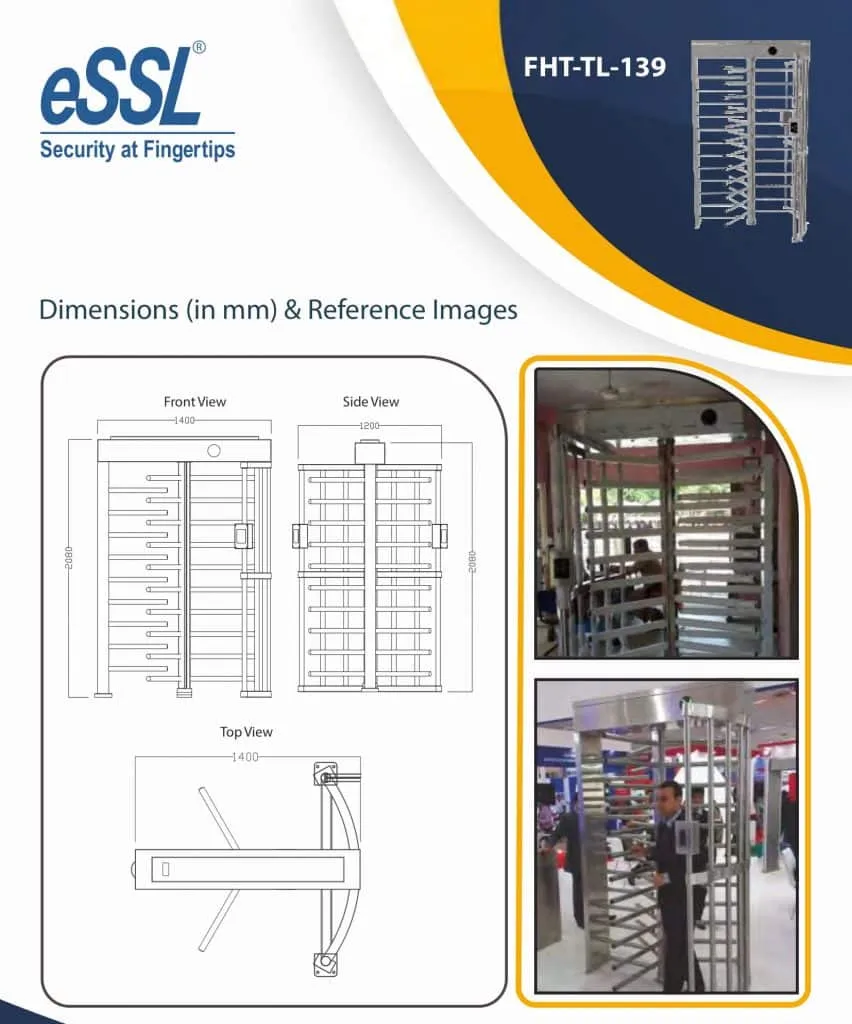

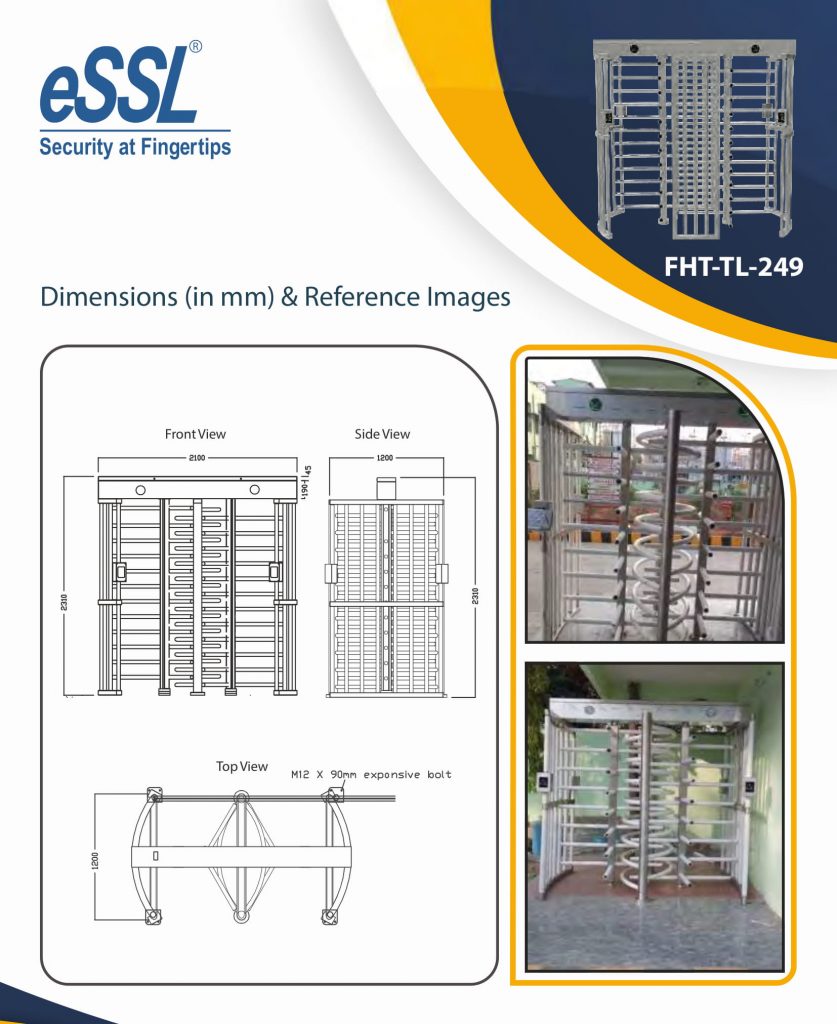

The following images show real installation examples of double door and single door full height turnstiles. In addition, the specifications diagrams illustrate the dimensional drawings and mechanism details for each model variant.

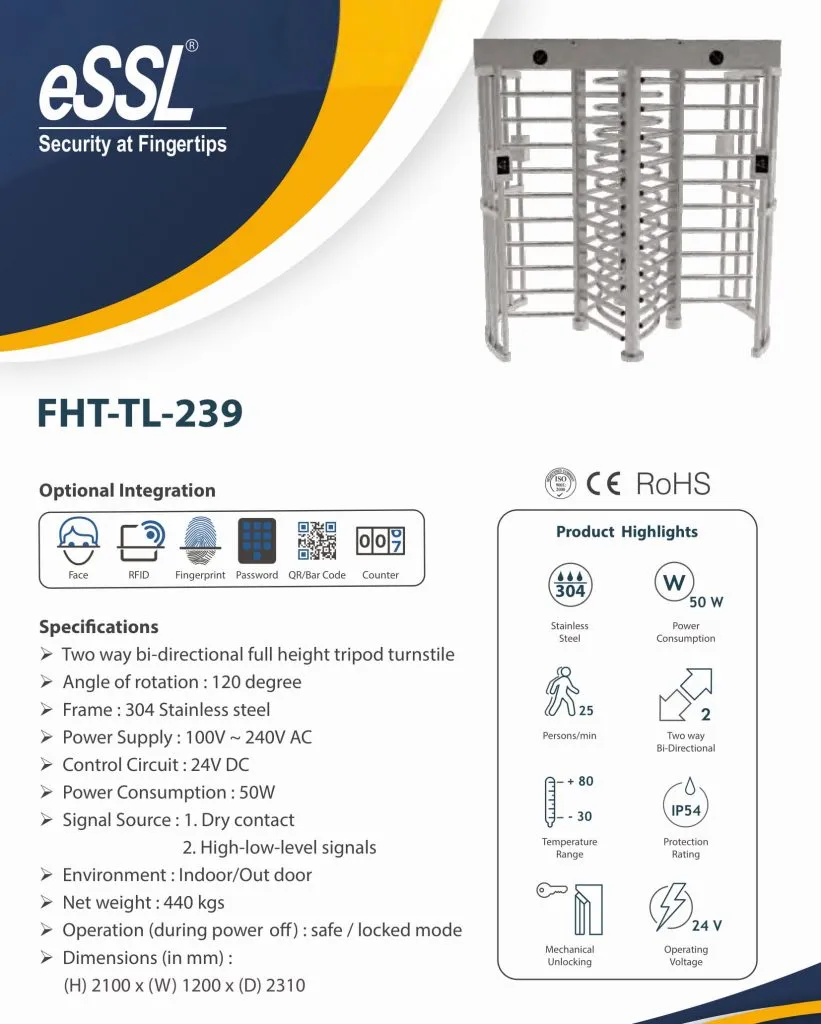

Full Height Barrier — Technical Specifications
The following specifications apply across the full height turnstile range. Specifically, all models share the same core mechanical and electrical architecture — consequently reducing the complexity of integration and spare parts management — consequently making integration with existing access control systems straightforward.
Basic Configuration
| Parameter | Value |
|---|---|
| Frame Material | 304 Stainless Steel |
| Rotation Direction | A. Bi-Directional B. Unidirectional |
| Controller | Micro-computer controller — programmable to customer needs |
| Interface | Standard I/O interfaces for third-party integration systems |
| Signal Source | 1. Dry contact 2. High/Low-level signals |
| Number of Arms | 4 |
| Section Version (Rotation Angle) | 90 degrees |
Power, Environment & Performance
| Parameter | Value |
|---|---|
| Power Supply | AC220V ±10% / DC24V 3A ±10% / DC12V 3A ±10% |
| Roller Working Power | AC220V ±10% |
| Environment | Indoor / Outdoor |
| Operating Temperature | -30°C to +80°C |
| Operating Humidity | 5% to 90% |
| Switching Time | 1 second |
| Traffic Speed | 25 persons per minute |
| Fault Status | Power-safe — provides free exit/entry path on failure |
| Reliability | 500 million trouble-free operations |
| Frame Protection | Waterproof seal |
| Card Reader Locations | 4 |
| Maintenance Portal | 1 |
| Optional Features | IC/ID Reader, Barcode Reader, UPS, Infrared Detector, other R/W equipment |
Where Full Height Turnstiles Are Used
Full height turnstiles are specifically designed for exterior entrance security. Furthermore, they provide a robust physical barrier that prevents tailgating and unauthorized entry. in locations that require maximum access control. Additionally, all models can be integrated with access control systems using RFID cards, smart cards, fingerprints, and face recognition — making them highly adaptable to different security environments. Moreover, they require minimal maintenance and are rated for 500 million trouble-free operations.
🔗 Explore Related AmpleTrails Solutions
Get Full Height Turnstile Price in India
Contact us for pricing, specifications, and installation of Full Height Turnstile and Access Control Turnstile Systems across India.
