ET1000 eSSL Heavy Duty Tripod Turnstile
India’s best-selling heavy duty tripod turnstile — built for factories, warehouses, and high-traffic facilities. Handles up to 35 persons per minute with Face, RFID, Fingerprint, Password, and QR/Barcode access.
Why ET1000 is Our Best-Selling Turnstile
The ET1000 eSSL Heavy Duty Tripod Turnstile is our most recommended and best-selling model — specifically because of its unique design, exceptional build quality, and positive customer feedback across industries.
Furthermore, it is redesigned for factory environments, making it the ideal choice for manufacturing plants, warehouses, construction sites, and high-traffic public facilities. The duties of security personnel are significantly simplified as a result of its fast and reliable authentication.
Specifically, the ET1000 can handle movements of up to 35 persons per minute by scanning any one of the following credentials:
Benefits of Heavy Duty Tripod Turnstiles
Tripod turnstiles are one of the most popular and effective ways to control pedestrian traffic in stadiums, amusement parks, transportation hubs, and factories. Consequently, the ET1000 heavy duty model is specifically designed to withstand harsh environments and heavy usage — making it an ideal solution for high-traffic areas.
🔩 Durability
Constructed from high-quality stainless steel SUS304, the ET1000 is resistant to wear, tear, and corrosion. As a result, it withstands heavy usage in harsh industrial environments without performance degradation.
🔐 Security
Furthermore, the ET1000 includes anti-tailgating sensors and supports biometric scanners — ensuring that only authorized personnel gain access to your premises at all times.
⚙️ Ease of Use
Specifically, the ET1000 is easy to install and maintain. It can be configured with various access control systems and customized to meet the specific needs of any facility.
💰 Cost-Effective
Moreover, heavy duty tripod turnstiles require minimal maintenance and can be easily installed across various facilities — making them the most cost-effective physical access control solution available in India.

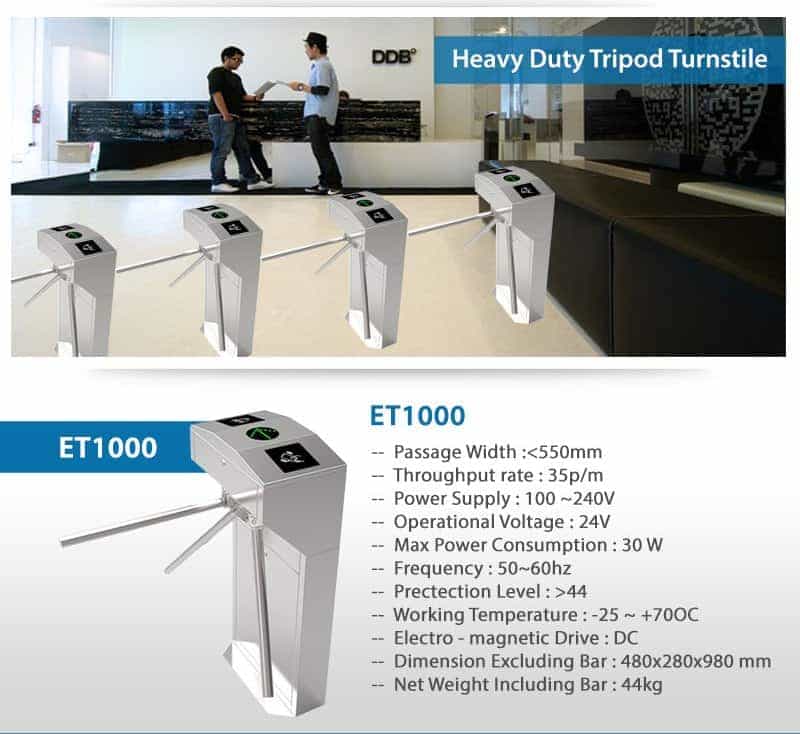

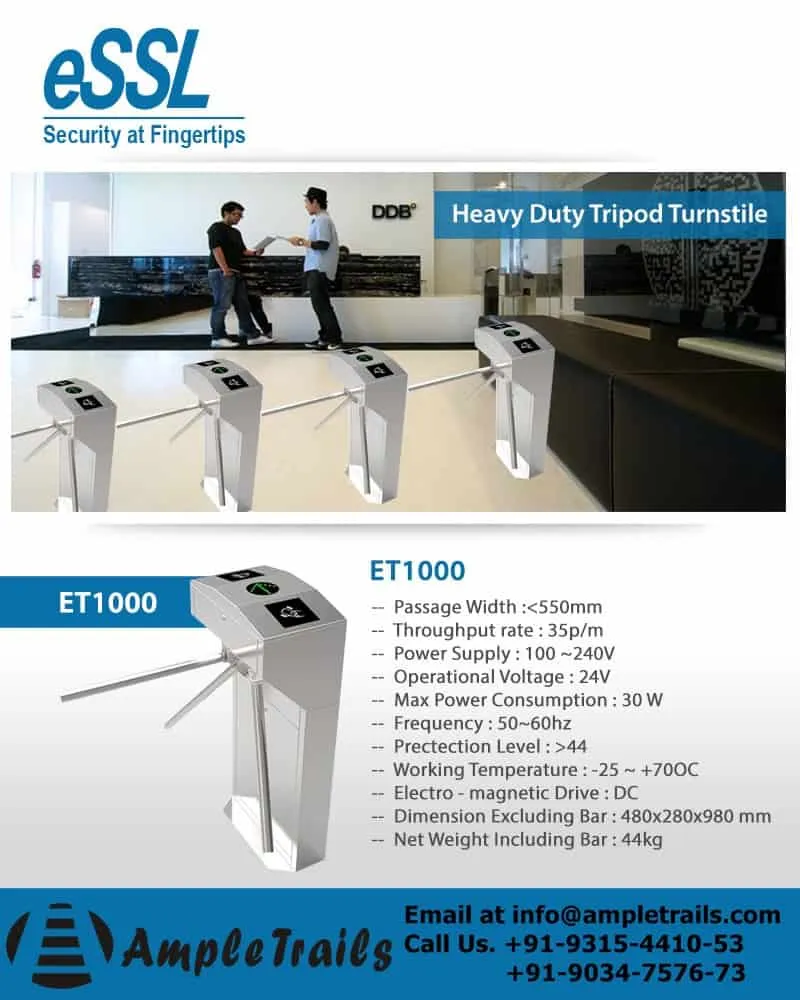

ET1000 — Heavy Duty Tripod Turnstile in Action

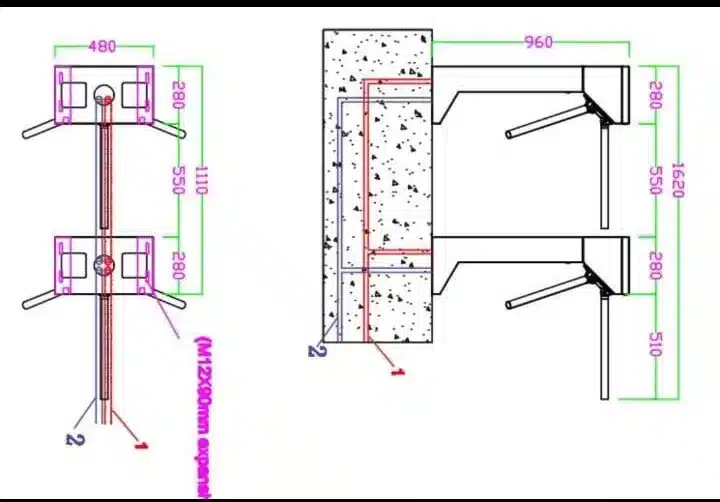

Wiring Diagram & Dimensions
ET1000 Live Demo Video
ET1000 Heavy Duty Tripod Turnstile — Live working demo
ET1000 Technical Specifications
Basic Specifications
| Parameter | Value |
|---|---|
| Type | Heavy Duty Tripod Turnstile |
| Passage Width | 520 mm (≤550 mm) |
| Throughput Rate | 35 persons/minute |
| Power Supply | 100 ~ 240V |
| Operational Voltage | 24V |
| Max Power Consumption | 30W |
| Frequency | 50 ~ 60 Hz |
| Protection Level | IP44 |
| Working Temperature | -25°C ~ +70°C |
| Electromagnetic Drive | DC |
| Dimensions (excl. bar) | 480 × 280 × 980 mm |
| Net Weight (incl. bar) | 44 kg |
Secondary Controller Specifications
| Parameter | Value |
|---|---|
| RFID User Capacity | 30,000 |
| Fingerprint Capacity | 3,000 |
| Transaction Storage | 100,000 records |
| Integrated Controller | Inbio-260 |
| Relay | 12V relay for lock |
| RFID Support | Yes |
| Fingerprint Support | Yes |
| Protocol | RS485 / Mifare / Proxy (Optional) |
| Fire Alarm Support | Yes |
ET1000 Features, Operating Modes & Materials
⚙️ Features
- ✔Semi-Auto mode
- ✔Full-Auto mode
- ✔Pure mechanical mode
- ✔Single or bi-directional function — mechanical and electrical versions
- ✔Automatic reset of barrier arms after each passage
- ✔Adjustable time-out delay
🔄 Operating Modes
- ✔Single passage in the set direction
- ✔Bi-directional passage
- ✔Free passage in the set direction
- ✔Always free or locked
🏗️ Materials & Finish
- ✔Housing: Stainless steel AISI 304 or AISI 316 (heavy duty metal sheet)
- ✔Barrier Arms: Stainless steel
- ✔Lid (Optional): Stainless steel or artificial stone (black/brown)
- ✔High-quality powder coating plus lacquered finish
- ✔Dark grey high-quality powder coating with lacquered finish
- ✔Sandpaper powder coating with pearl mica effect
ET2000 — Heavy Duty Tripod Turnstile eSSL
In addition to the ET1000, AmpleTrails also offers the ET2000 Heavy Duty Tripod Turnstile — specifically designed for larger installations requiring two-lane operation. Furthermore, the ET2000 features an inbuilt primary controller with a 32-bit microprocessor for faster processing and more flexible deployment.
ET2000 Technical Specifications
| Parameter | Value |
|---|---|
| Type | Heavy Duty Tripod Turnstile (2-Lane) |
| Passage Width | ≤550 mm |
| Flow Rate | 25–48 passages/minute |
| Max Arm Tolerance | 80 kg |
| Angle per Rotation | 120° |
| Operation Type | One-way / Bi-directional |
| Power Supply | 100 ~ 240V |
| Operational Voltage | 24V |
| Max Power Consumption | 30W |
| Protection Level | IP44 |
| Working Temperature | -25°C ~ +70°C |
| Dimensions (excl. bar) | 1200 × 280 × 980 mm |
| Net Weight (incl. bar) | 52 kg |
| CPU | 32-bit Microprocessor |
| Housing Material | SUS 304 Stainless Steel |
| Opening Duration | 5s – 60s (adjustable) |
ET2000 Controller Outputs & Inputs

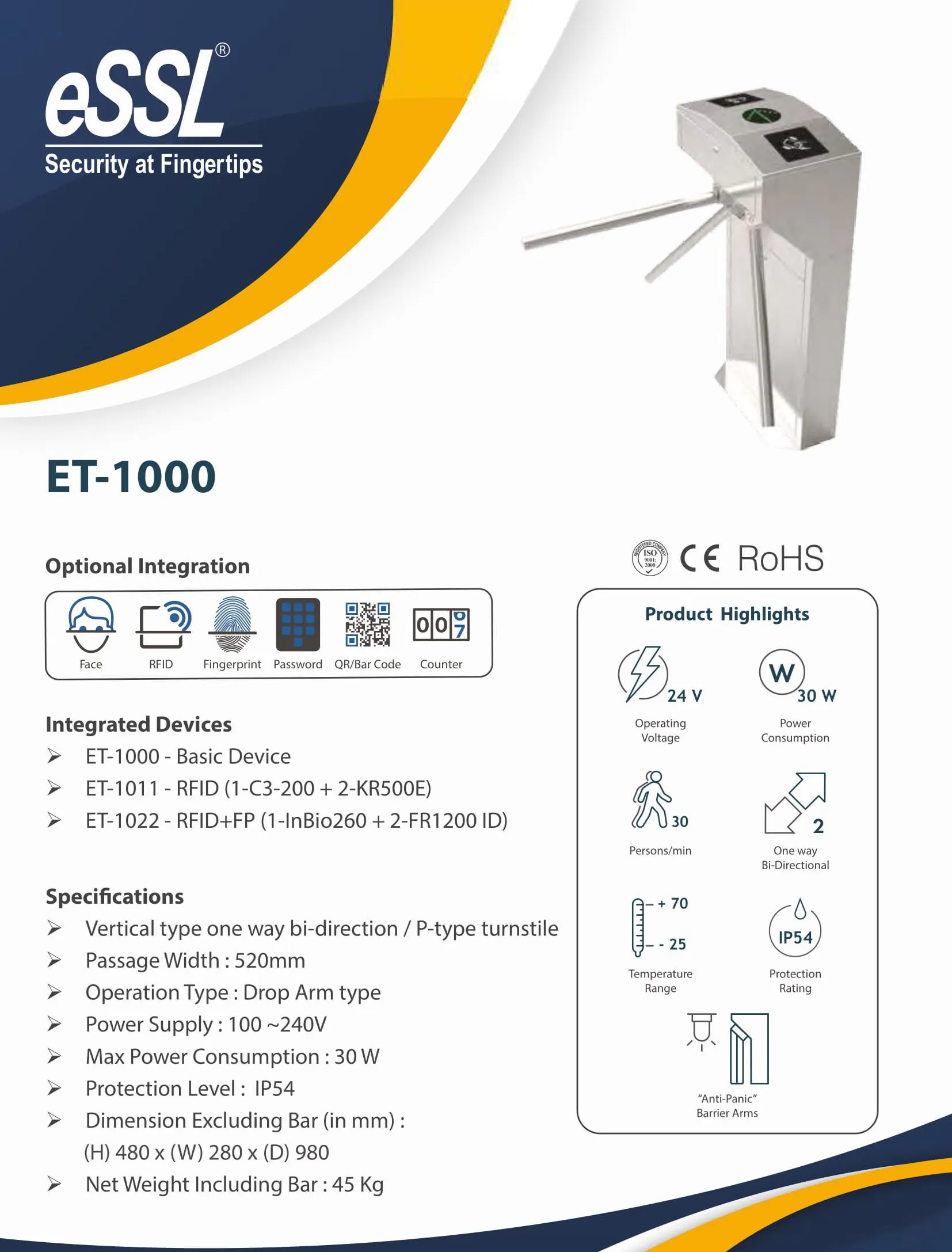

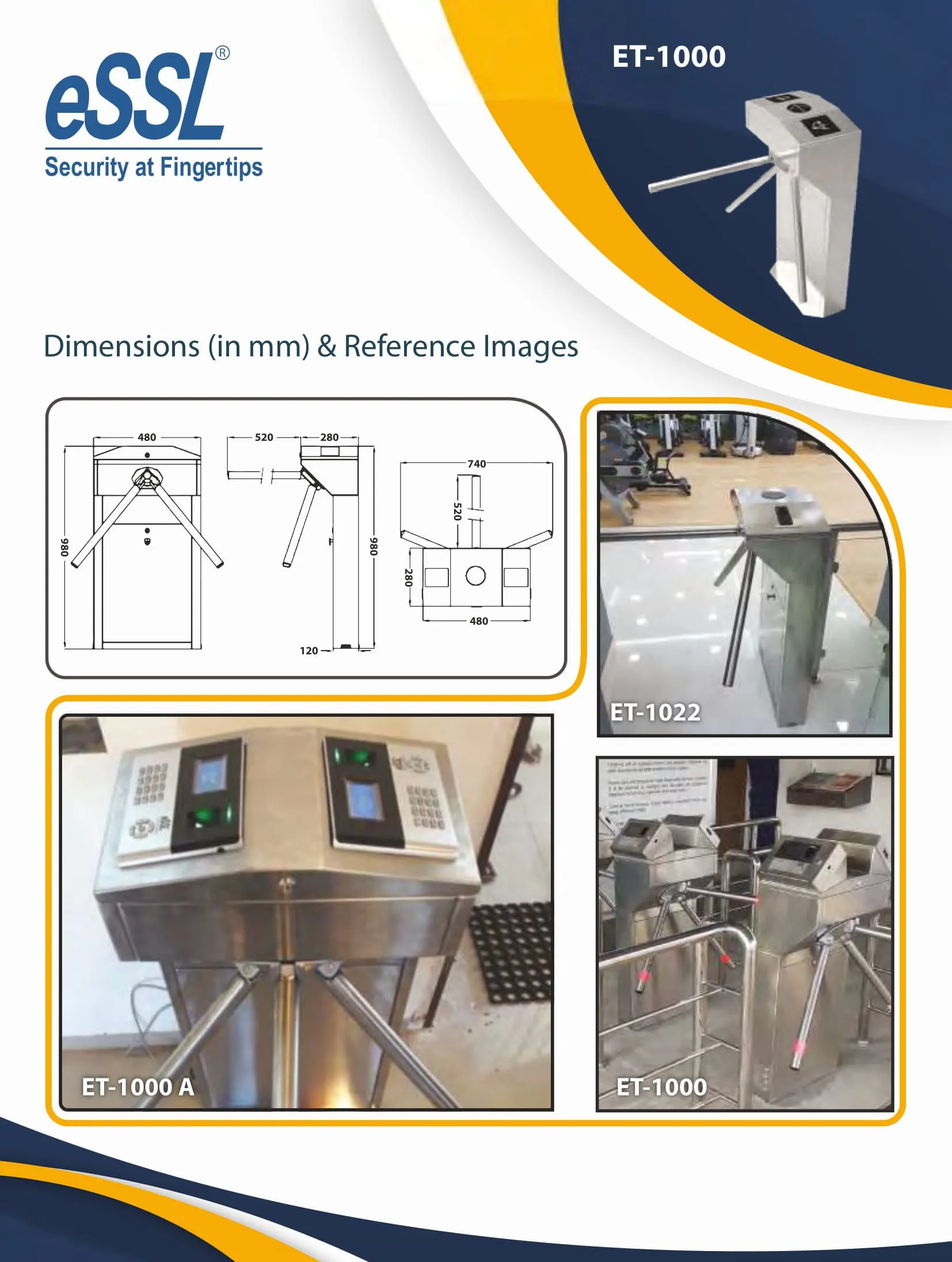

ET1000 Product Brochures & Documentation
Additionally, you can download our full technical brochures to review detailed specifications before placing your order.
🔗 Explore Related AmpleTrails Solutions
Buy ET1000 Heavy Duty Tripod Turnstile
Contact our team for pricing, technical details, and a free installation consultation. We supply across India.
