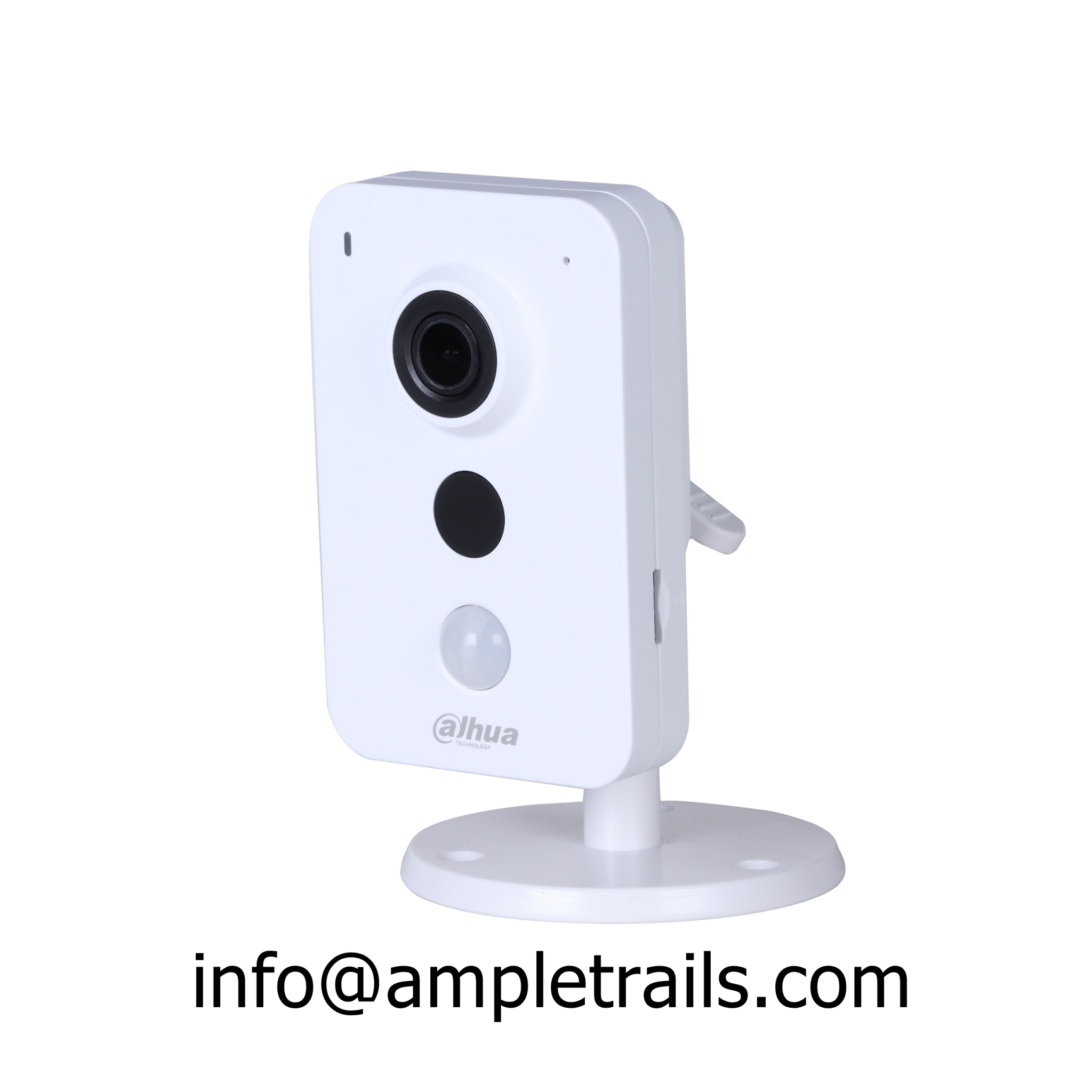

HD Network Security IP Camera
IPC-K35A
3MP K Series PoE Network Camera
> 1/3” 3Megapixel progressive CMOS
> H.264& MJPEG dual-stream encoding
> 20fps@3M(2304×1296)&25/30fps@2M (1920×1080)
> 100° horizontal view angle
> IR Diatance 10m
>Easy4ip cloud support
> Micro SD card slot, up to 128GB
>Alarm in/out,PIR
> DC12V, PoE
> H.264& MJPEG dual-stream encoding
> 20fps@3M(2304×1296)&25/30fps@2M (1920×1080)
> 100° horizontal view angle
> IR Diatance 10m
>Easy4ip cloud support
> Micro SD card slot, up to 128GB
>Alarm in/out,PIR
> DC12V, PoE
Camera | |
Image Sensor | 1/3” 3Megapixel progresive CMOS |
Effective Pixels | 2304(H) x1536(V) |
RAM/ROM | 256MB/16MB |
Scanning System | Progressive |
Minimum Illumination | 0.78Lux/F2.0(Color), 0Lux/F2.0(IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 10m(33ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 1 |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8mm |
Max. Aperture | F2.0 |
Angle of View | H:100°;V:54.5° |
Focus Control | Fixed |
Close Focus Distance | N/A |
PTZ | |
Pan/Tilt Range | Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360° |
Video | |
Compression | H.264/H.264B/H.264H/MJPEG |
Streaming Capability | 2 Streams |
Resolution | 3M(2048×1536)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/VGA(640 ×480)/ QVGA(320×240) |
Frame Rate | 3M(1~20fps)/2M(1~25/30fps) |
VGA/QVGA(1~25/30fps) | |
Bit Rate Control | CBR/VBR |
Bit Rate | H264:32K ~ 10240Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detetion | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image Stabilization (EIS) | N/A |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711A;G.711Mu;AAC |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; |
Interoperability | ONVIF, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users/20 Users |
Edge Storage | NAS(Network Attached Storage)
Local PC for instant recording, Micro SD card 128GB |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS,Easy4ip |
Smart Phone | iPhone, iPad, Android Phone |
Certifications | |
Certifications | CE (EN 60950:2000)
UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Interface | |
Video Interface | N/A |
Audio Interface | Built-in Mic & Speaker |
RS485 | N/A |
Alarm | 1/1,PIR |
Electrical | |
Power Supply | DC12V, PoE(802.3af)(class0) |
Power Consumption | <5W |
Environmental | |
Operating Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
Strorage Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
Ingress Protection | N/A |
Vandal Resistance | N/A |
Construction | |
Casing | Plastic |
Dimensions | Φ78.5mm×127.8mm(3.09’’ x5.03’’) |
Net Weight | 0.31Kg (0.68lb) |
Gross Weight | 0.45Kg (0.99lb) |

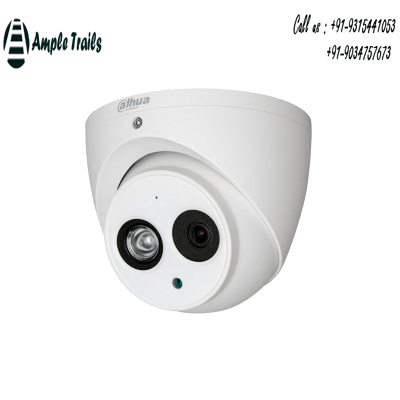

Dahua IP camera 4K HDCVI IR Eyeball Camera
HAC-HDW1801EM/EM-A
4K HDCVI IR Eyeball Camera
> 120dB True WDR, 3D NR
> Max. 4K resolution
> CVI/CVBS/AHD/TVI switchable
> Built-in mic (-A)
> Fixed lens (3.6mm; 6mm optional)
> Max. IR length 50m, smart IR
> IP67, 12V±30%DC
> Max. 4K resolution
> CVI/CVBS/AHD/TVI switchable
> Built-in mic (-A)
> Fixed lens (3.6mm; 6mm optional)
> Max. IR length 50m, smart IR
> IP67, 12V±30%DC

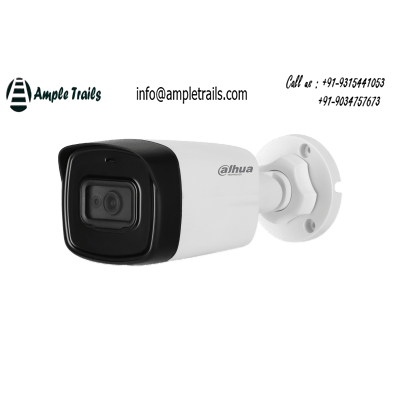

Dahua 4K HDCVI IR Bullet Camera

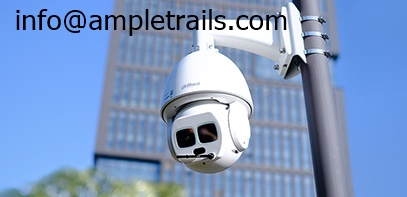

Dahua PTZ Camera
If you have any query or want to place an order please contact us now at 9315441078 9315441053, 9034757673 or email us at in**@am*********.com of filling the below Inquiry Form.
Dahua cameras are known for their exceptional quality and innovative technology, and the price list for these cameras reflects the level of excellence they offer. The range of prices for Dahua cameras is diverse, with options available for both budget-conscious consumers and those who want the latest and greatest in security technology.
