Matrix COSEC PANEL LITE Standalone IP access control
Access Control Panel lite – Matrix Comsec

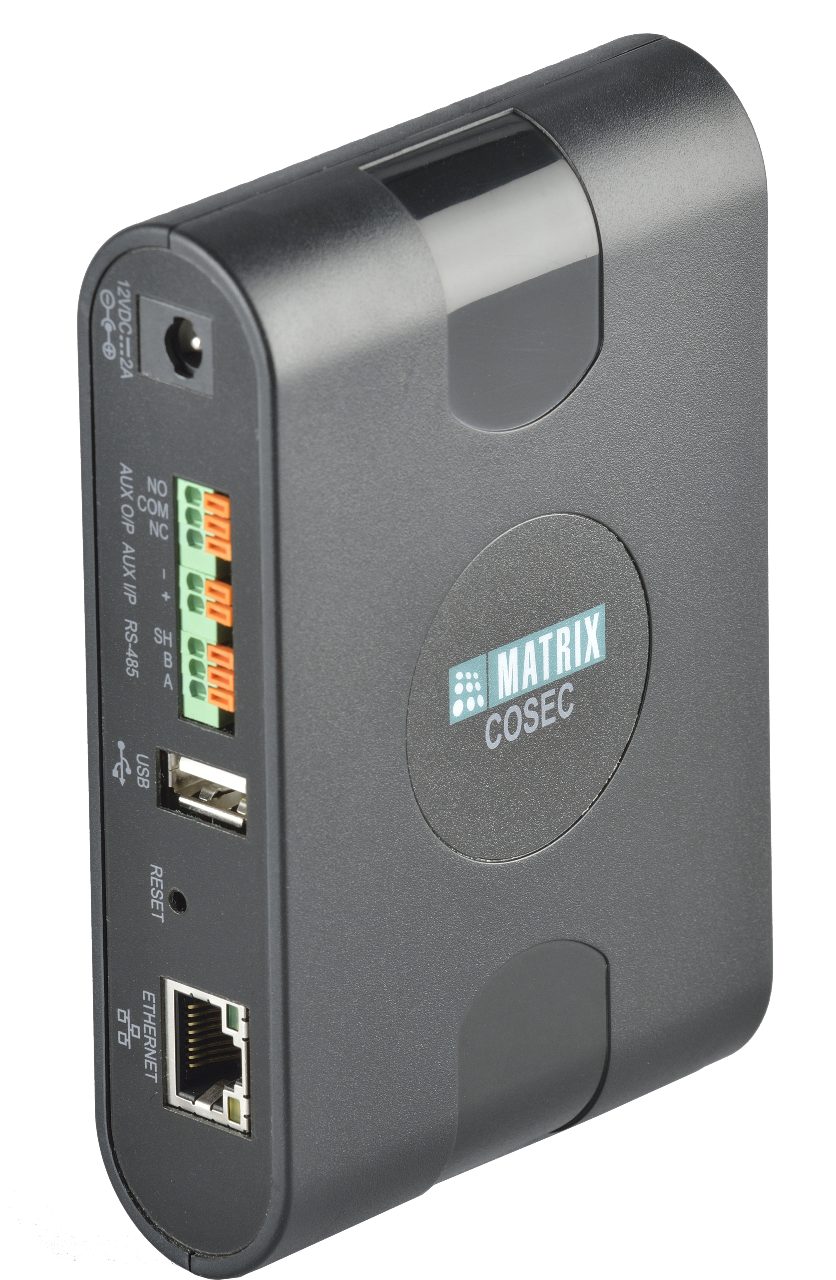

Access Control Site Controller | COSEC PANEL200P
- Site Controller for Multiple Door Controllers
- Controls Up to 255 Door Controllers or IO Controllers
- Ethernet, RS-485, USB, Wiegand Out, Aux Input and Aux Output Port
- Works in Two Operation Modes:
- Standalone Mode with Built-in Software
- Network Mode with COSEC CENTRA
- Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n), Inbuilt Bluetooth
- 25,000 Users Capacity and 500,000 Events Storage
- 800MHz Cortex A8 Processor, 512MB RAM, 256MB Flash and 4GB SD Card
- Secured Socket Layer Certified
Our Advanced COSEC PANEL 200P can works independently without requiring any server and save your cost. Talk to our experts today!
Matrix Cosec Panel Lite at Rs 9715/pack COSEC PANEL200S Matrix
Multi Door Controller
Key Features:
255 Door Controllers
Up to 25,000 Users and 500,000 Events
Real-Time Monitoring and Control
Ethernet and RS-485
Integration with Fire Alarm and Video Surveillance
Advance Access Control Features:
Man-trap
Relative and Dual Occupancy Control
2-Person Rule
Anti-Pass Back
Guard Tour

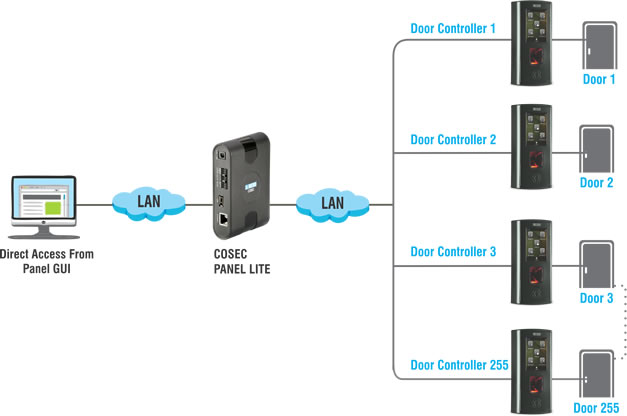

Site Controller for Multiple Door Controllers
Site Controller for Multiple Door Controllers
- Controls Up to 255 Door Controllers or IO Controllers
- Ethernet, RS-485, USB, Wiegand Out, Aux Input, and Aux Output Port
- Works in Two Operation Modes:
- Standalone Mode with Built-in Software
Network Mode with COSEC CENTRA - Wi-Fi and Mobile Broadband Through External (3G/4G) Dongle
- 25,000 Users Capacity and 500,000 Events Storage
- 800MHz Cortex A8 Processor, 512MB RAM, 256MB Flash, and 4GB SD Card
- Secured Socket Layer Certified
Matrix Cosec Panel Lite at Best Price
Matrix COSEC PANEL LITE Standalone IP access control
| CAPACITY | |
| Maximum Door Controllers | 255 |
| Door controller on RS-485 | 32 |
| Max User Capacity | 25,000 |
| Event Buffer | 5,00,000 |
| COMMUNICATION | |
| Wi-Fi | YES (Wifi dongle support) |
| Inbuilt Bluetooth | NO |
| Ethernet | YES (10/100 Mbps) |
| RS-485 | YES |
| USB | One USB Port (For data transfer and 2G-3G-4G /WiFi Dongle) |
| SD Card | YES (8 GB) |
| INTERFACE | |
| Aux-In | YES (4 states – short, open, activated & non-activated) |
| Aux-Out | Form C and SPDT Relay |
| HARDWARE | |
| CPU | Cortex A8 800 MHz |
| Flash memory | 256 MB |
| RAM memory | 256 MB (DDR3 SDRAM @ 800MHz) |
| Operating system | Linux based OS |
| Communication Port | Ethernet & RS-485 |
| Tamper Detection | YES |
| RTC | YES |
| AUDIOVISUAL | |
| LED | Tricolor LED (Power, Status & Alarm) |
| Buzzer | YES (12V) |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Humidity | 5% to 95 % RH Non-Condensing
|
| POWER | |
| Input Power | External Power Adapter 12 VDC @ 2 A |
| MECHANICAL | |
| Dimensions (L x H x D) | 125.25mm X 81.5mm X 30.5mm (4.93” x 3.20” x 1.20”) |
| Weight | 155gm (0.341 lbs) |
| Enclosure material | ABS V0 grade |
| CERTIFICATES | |
| Certificates | FCC, CE, RoHS and UL |
| COMPATIBILITY | |
| System Integration | API for Software integration |
| Architecture | 1) Network Architecture – With COSEC CENTRA/VYOM |
| 2) Standalone Architecture | |
| OTHER Details | |
| Mounting | Wall Mounting or Tabletop |
| Packaging Content | 1) Main unit |
| 2) Adaptor (12VDC, 2A) | |
| 3) SD Card (8 GB) |
