Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller

Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller with support of push data. Biometric Access Control Systems uses face, vein, fingerprint, RFID cards, proximity cards used for physical access control management. Its a 4 door controller. Fingerprint based Access Control System are considered best for physical access control management.

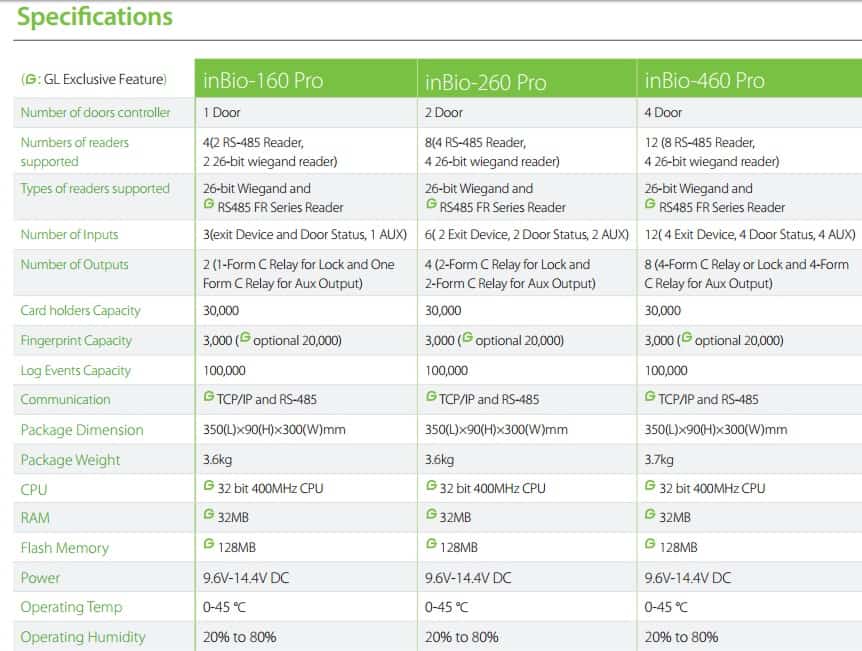

Biometric Access Control Systems Specifications Comparision Between inBio Pro series

Access Control Systems Specifications Comparision Between inBio Pro series

Features Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller
Embedded Fingerprint verification and advance
access control function
It can be installed easily on your network also
support TCP/IP and RS485 communication
1/2/4 Door models can be mixed and matched in
an optimised System Architecture
Data is preserved if power is lost, Controller
continues to operate if data connection is interrupted
Anti-Passback, First-Card Opening, Multi-Card Opening
Duress Password Entry, and Auxilary input/output
linkages are inbuilt into controller firmware

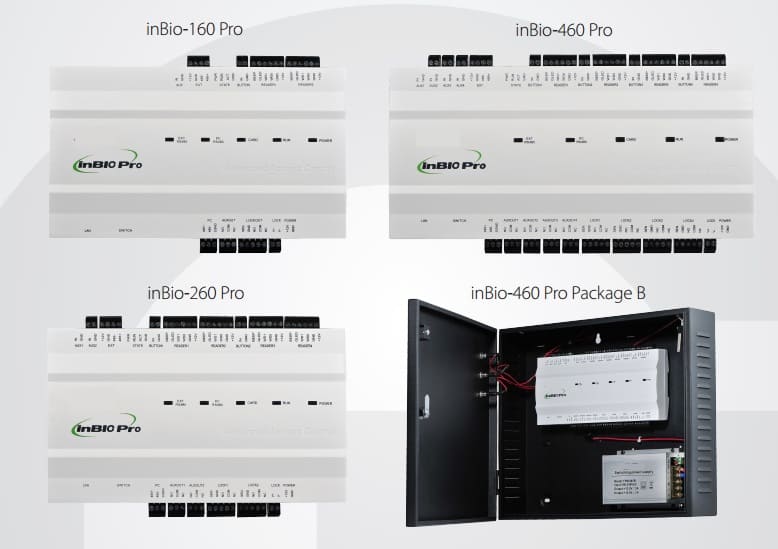

InBio460 Pro Package access control systems Packaging

InBio460 Pro Package access control systems Packaging

Feature of Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller
Fingerprint Capacity 3000
Log Events Capacity 100,000
Card holders Capacity 30,000
Communication TCP/IP and RS-485

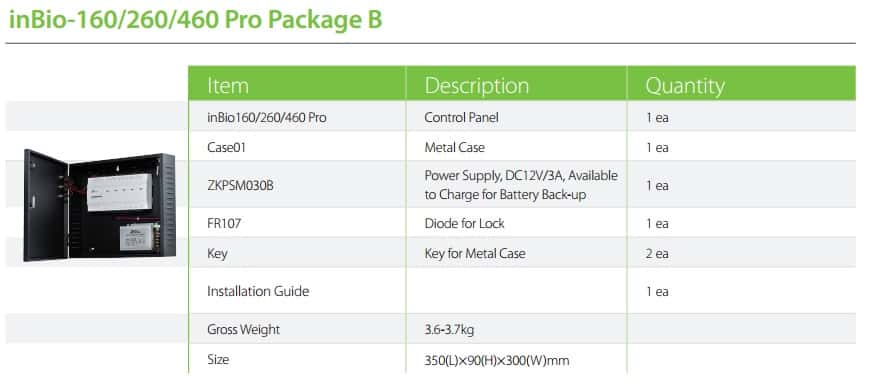

InBio460 Pro Package access control systems india

InBio460 Pro Package access control systems india

Specification
Number of doors controller 4 Door
Numbers of readers supported 12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported 26-bit Wiegand & RS485 FR Series Reader
Number of Inputs 12( 4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs 8 (4-Form C Relay or Lock & 4-Form C Relay for Aux Output)
Card holders Capacity 30,000
Fingerprint Capacity 3,000 ( optional 20,000 )
Log Events Capacity 1,00,000
Communication TCP/IP and RS-485
Package Dimension 350(L)×90(H)×300(W)mm
Package Weight 3.7kg
CPU 32 bit 400MHz CPU



access control systems installation essl multi door access control system

access control systems installation essl multi door access control system
