WIFI Based Biometric Attendance System

WIFI Based Biometric Attendance System

Now save upto 1500-2000 on installation cost by using Wifi Machine. Get the flexibility of changing the location from one to another. With wifi Device you can change the location of Biometric Attendance System as per your requirement.

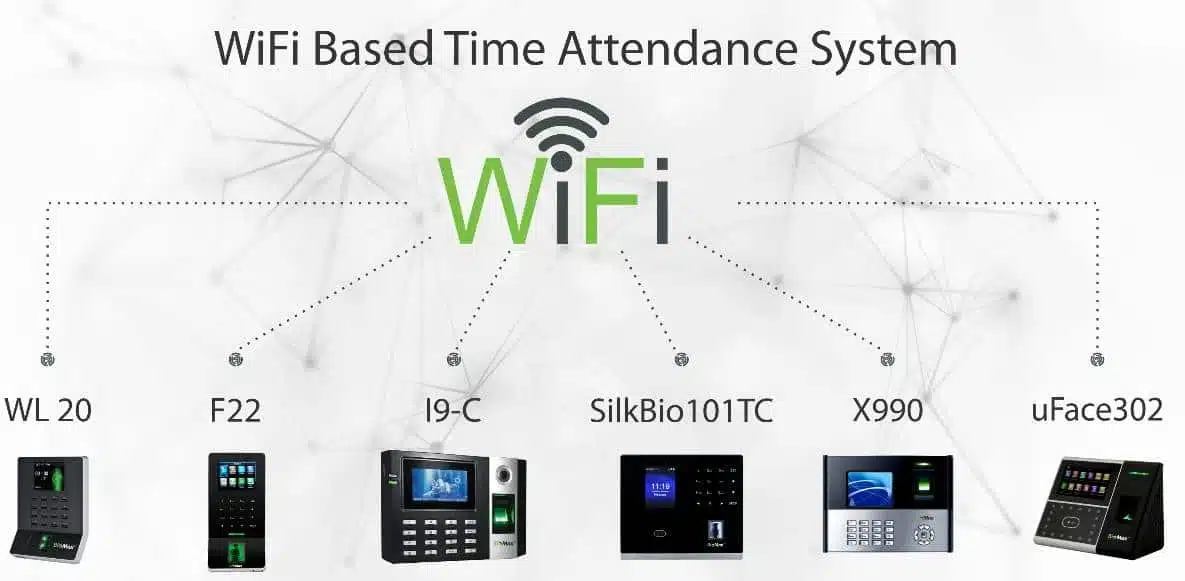

Wifi Based Time Attendance System

Wifi Based Time Attendance System

Wireless Time Attendance Machine WL30

Wireless Time Attendance Machine WL30

Features WIFI Based Biometric Attendance System
Fingerprint Capacity 1000
Finger Algorithm Finger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi , USB-Host
Push Data Yes
E9C eSSL Attendance Machine

E9C eSSL Attendance Machine

Fingerprint Time & Attendance Machine WL 30

Wifi Fingerprint Time Attendance System eSSL_WL20

Wifi Fingerprint Time Attendance System eSSL WL20

WL 30 Wireless Biometric Attendance Machine
Wifi Fingerprint Time Attendance System eSSL WL30

Wifi Fingerprint Time Attendance System eSSL WL30

Email us at info@ampletrails.com or call us at 9315441078, 9818390836 for pricing and installation of this machine.  Get Cloud-based software with this machine.  Don’t wait to fill the following form to get in touch with our experts.

WL30 is Fingerprint Time & Attendance Terminal with Wi-Fi module. With Wi-Fi function, User needn’t wire Ethernet cable, it supports hotspot mode and allow mobile APPs connection and check in/out and download record directly. It’s associated with ZK new fingerprint reader, the operation remains stable under the strong light source and high preciseness of verification of wet and rough fingers. It also has elegant design, it will start a new stage of time attendance.

Multi Bio Time Attendance Access Control Functions

Multi Bio Time Attendance Access Control Functions

Wifi based Time Attendance System WL30

Wifi based Time Attendance System WL30

Special Features of WIFI Based Biometric Attendance System :

  • Easy to set up and use.
  • Low price with good performance.
  • This System keeps records of employees in and out timings.
  • Secure and Easy to Operate.
  • True Accountability and provide the accurate record.
  • Best Product in Quality with Warranty.
  • 1 Yr. Manufacturer Warranty.
Wifi Biometric Attendance Machine Brochure WL20

Wifi Biometric Attendance Machine Brochure WL20

Wireless Time Attendance System
Storage Capacity Fingerprint Capacity 1000
Finger Algorithm Finger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi , USB-Host
Push Data Yes
Standard Functions SSR, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
Optional Functions WL30
Power Supply DC 5V 0.8A
Operating Temperature 0°C to 45°C
Operating Humidity 20%-80%
Dimension 168 x 125 x 37.5 mm
Features
Wi-Fi, USB host
Stable operation under strong light source
Infrared auto-turning on function to save power
Build-in SSR Excel software, Shift and Report management

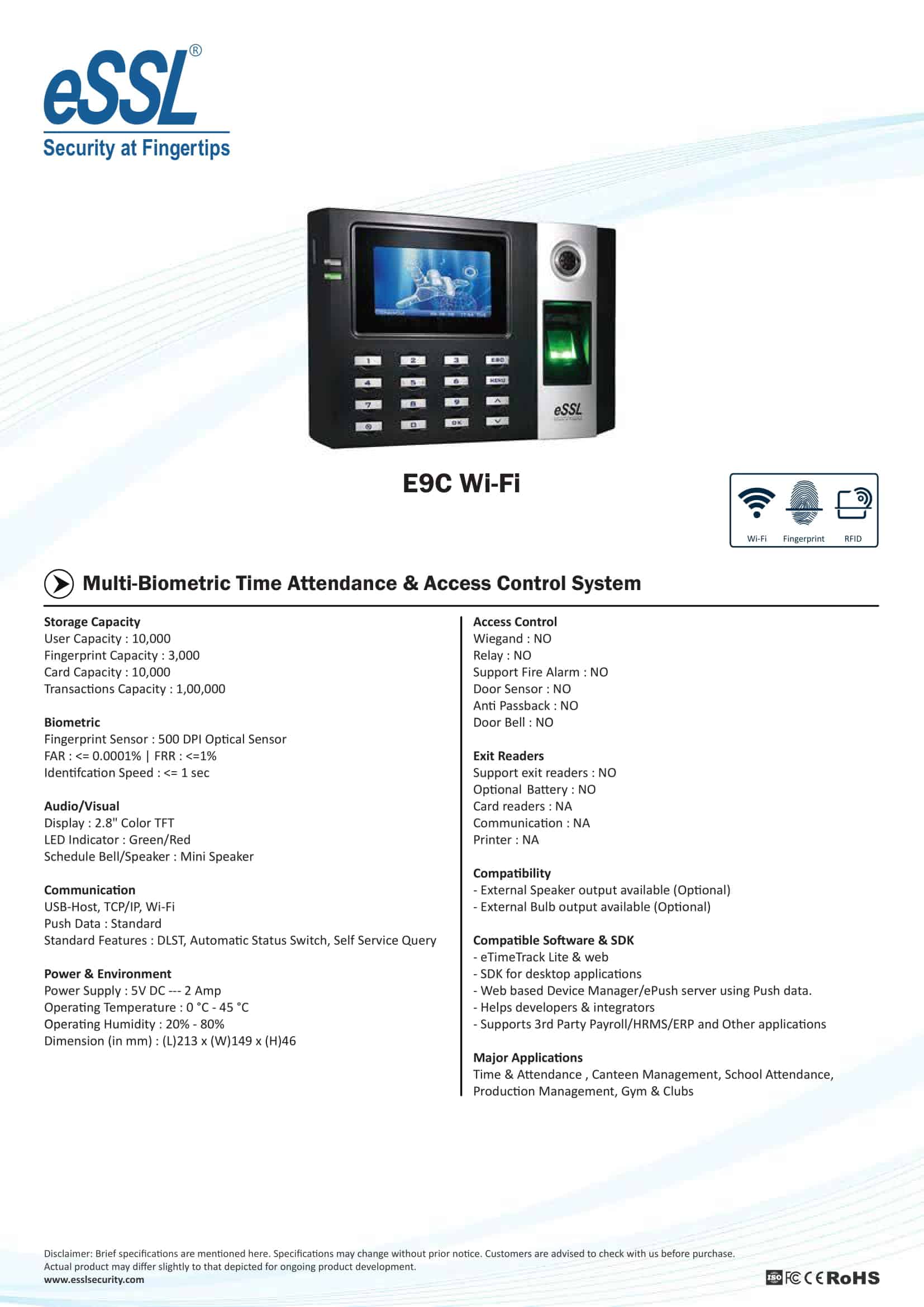

Wifi Attendance Machine RFID Card Fingerprint

Wifi Attendance Machine RFID Card Fingerprint



Wifi Attendance Machine

Wifi Attendance Machine

Product Highlights :-

Fingerprint Capacity
3000
Card Capacity
10,000
Transaction Storage
1,00,000
Push Data Standard
Communication USB- Host, TCP/IP, WiFi
Wifi Attendance Machine i9c

Wifi Attendance Machine i9c

Technical Specification

Standalone Fingerprint Time & Attendance Terminal
Storage capacity Fingerprints templates 3000
Card Capacity 10,000
Transaction storage 1,00,000
Card Capacity 10,000
Card Reader Yes
CPU 32 bit microprocessor – 400 MHz
Biometric Fingerprint sensor 500 DPI Optical sensor
FAR <=0.0001%
FRR <=1%
Identification speed <=1 sec
Algorithm Ver VX10.0
Audio/Visual Display 2.8 inches TFT
Keypad 4×4 Keypad
LED Indicator Green/Red
Schedule Bell/Speaker Mini Speaker
Communication Communication USB Host , TCP-IP
Push data Standard
Standard features DLST, Automatic Status Switch, Self Service Query
Power & environment Power Supply  5 V 2 A
Operating Temperature 0°C to 45°C
Operating Humidity 20% -80%
Dimension 213 x 149 x 46 mm
Access control Wiegand NO
Relay NO
Support Fire Alarm NO
Door Sensor NO
Anti Passback NO
Door Bell NO
Exit Readers Support exit readers NO
Optional Battery NO
Card readers NA
Communication NA
Printer NA
Compatibility External Speaker output available (Optional)
External Bulb output available (Optional)
Compatible Software and SDK Smart office suite desktop



FINGERPRINT TIME & ATTENDANCE TERMINAL i9c wifi

Features of WL30 essl Biomax WIFI Based Biometric Attendance System

Wifi based Time Attendance System WL20

Wifi based Time Attendance System WL20

Most Reliable Wireless Attendance Machine

  • Wi-Fi, USB client & host
  • Stable operation under strong light source
  • Infrared auto-turning on function to save power
  • Quick recognition of dry, wet and rough fingers
  • Time Cube Cloud Solution
  • Mobile phone APP TA Assistant download report and shift Management
  • Build-in SSR Excel software, Shift and Report management
Wifi Attendance Machine WL20 Brochure

Wifi Attendance Machine WL20 Brochure

WL20 Wifi Fingerprint Time Attendance Machine

WL20 Wifi Fingerprint Time Attendance Machine

WIFI Based Biometric Attendance System

WIFI Based Biometric Attendance System

WIFI Based Biometric Attendance System

Wireless Time Attendance System
Storage Capacity Fingerprint Capacity 1000
Finger Algorithm Finger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi, USB-Host
Push Data Yes
Standard Functions SSR, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
Optional Functions WL20
Power Supply DC 5V 0.8A
Operating Temperature 0°C to 45°C
Operating Humidity 20%-80%
Dimension 65 x 133 x 21 mm
Features
Wi-Fi, USB host
Stable operation under strong light source
Infrared auto-turning on the function to save power
Build-in SSR Excel software, Shift and Report management
Features
Fingerprint Capacity 1000
Finger Algorithm Finger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi, USB-Host,
Push Data Yes

Wireless Attendance Machine eSSL F22

Fingerprint Time Attendance Machine F22 Wifi

Fingerprint Time Attendance Machine F22 Wifi

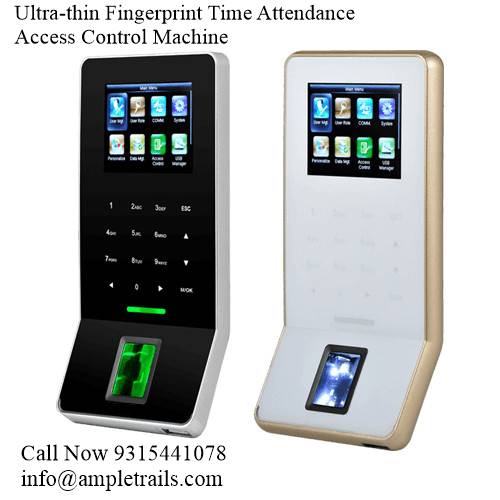

Ultra-thin Fingerprint Time Attendance and Access Control Machine

Wireless Attendance Machine

Wifi Access Control Device

  • Display : 2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity : 3,000 | Card Capacity : 5,000 RFID (Mifare Optional)
  • Transaction Capacity : 30,000 | Sensor : BioID Sensor/ SilkID Sensor (optional)
  • Algorithm Version: Finger VX10.0
  • Communication : RS232/485, TCP/IP, USB-host,Wi-Fi
  • Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand Signal : Input, Output | Aux. Input : 1ea for linkage function
  • Functions : DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID,
  • Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
  • Power Supply : 12V DC,3A | Operating Temperature : 0 °C- 45 °C
  • Operating Humidity : 20%-80% | Dimension(LxWxH) : 159.8×80.7×19.4mm

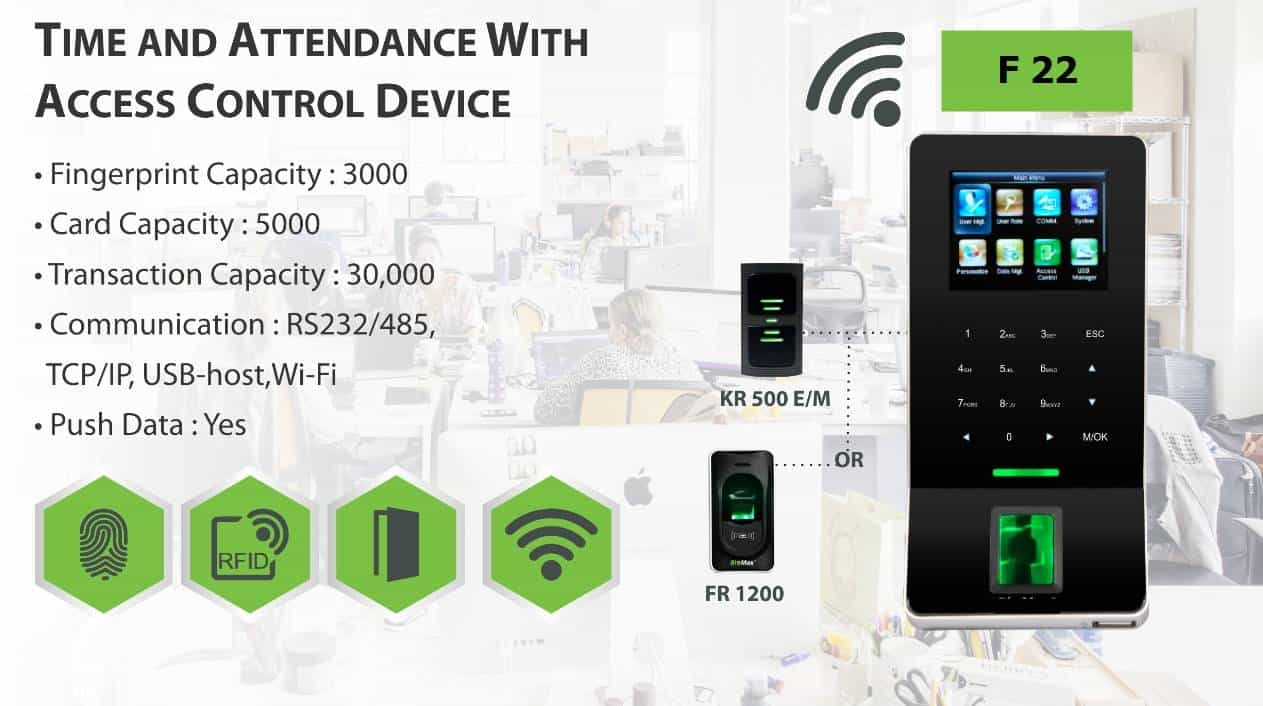

Time Attendance Access Control Device

Time Attendance Access Control Device

eSSL F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with the advanced algorithm for reliability, precision, and excellent matching speed. F22 – Ultra-thin Fingerprint Time Attendance and Access Control Terminal feature the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image-quality infrared detection fingerprint sensor. F22 – Ultra-thin Fingerprint Time Attendance and Access Control Terminal provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard Wiegand signal. TCP/IP, RS485, and Wi-Fi are also available that the device can be used in different networks.

F22 eSSL WIFI Based Attendance System

F22 eSSL WIFI Based Attendance System

Email us at info@ampletrails.com or call us at 9315441078, 9818390836 for pricing and installation of this machine.  Get Cloud-based software with this machine.  Don’t wait to fill the following form to get in touch with our experts.
Ultra Thin Fingerprint Time Attendance & Access Control System
Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity 3000
Card Capacity 5000
Transaction Capacity 30,000
Sensor SilkID Sensor
Communication RS232/485,TCP/IP,USB-host,Wi-Fi
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal  Input, Output
Aux. Input 1ea for linkage function
Functions DST, Automatic Status Switch,
Record query, T9 input, 14 digit user ID,
Anti-passback, Scheduled-Bell, Printer(Optional)
Operating Temperature  0 °C ~ 45 °C
Dimension(LxWxH) 158.5×78.0x19.4mm
Operating Humidity 20%-80%
Function
•    2.4-inch TFT color screen and Touch keys
•    Ultra thin and elegant design
•    Full Access Control Features: Anti-passback,
access control interface for 3rd party electric lock,
door sensor, exit button, alarm
•   Standard Wi-Fi
•   Network interface by TCP/IP or RS485
•   Built-in auxiliary input with enhanced flexibility to
link with wired detector or emergency switch
•   Multiple Verification Modes: Multi-verification
methods (card is optional) providing user various choices
F22.WIFI Based Biometric Attendance System
