ETERNITY PE CARD SLT4

Expansion Card for SLT

• SLT Ports: 4
• Compatible PBX: ETERNITY PENX and PE Series

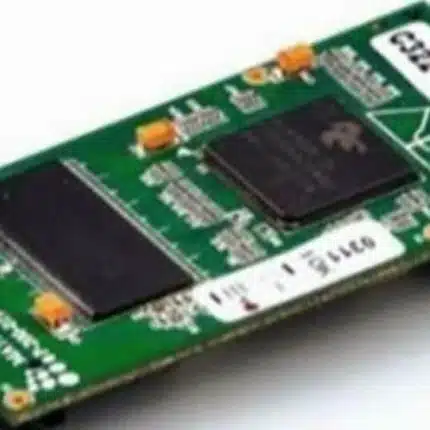

Matrix Eternity Card NE VS VoIP Server Module for ETERNITY NENX

-40%

VoIP Server Module for ETERNITY NENX

Max. Calls: 25
• Max. IP Users: 50
• Max. SIP Trunks: 8
• Max. VoIP Channels: 8

Note: This module is required only in ETERNITY NENX312 and ETERNITY NENX416.

VISIONPRO412 Digital PBX with 4 Trunks and 12 Analog Extensions Parameters Specifications Type of Switching PCM/TDM, Digital Switching, 100% Non-blocking Processor 16-bit DSP Signaling Loop Start Dialing DTMF and Pulse (10/20PPS) Off-Hook AC Impedance 600/900/Complex Off-Hook Current 39mA Max. Loop Limit 1800Ω Max (Excluding Telephone) On-Hook Voltage (Tip/Ring) -48V nominal DTMF detection ITU-T Q.24 Return Loss >18dB Longitudinal Balance >50dB Transmission Level Adjust Tx Gain: -12dB to +6dB, Rx Gain: -12dB to +6dB Ringing Trapezoidal 50VRMS/25Hz and Sinusoidal 52VRMS/25Hz REN 3 CLI Presentation DTMF, FSK ITU-T V.23 and FSK Bellcore 202 Protection Over Voltage Secondary Protection Physical Connector 2.54mm Push Type connector CO (Central Office)/Two-Wire Trunk (TWT) Signaling Loop Start Loop Limit 1200Ω Off-Hook AC Impedance 600/900/Complex Pulse Dialling 10/20 PPS DTMF Dialling and Reception ITU-T Q.23 and Q.24 Return Loss >18dB Longitudinal Balance >50dB Transmission Level Adjust Tx Gain: -15dB to +10dB. Rx Gain: -15dB to + 10dB CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202 Call Maturity Delay and Polarity Reversal Protection Over Voltage and Over Current Secondary Protection Physical Connector Over Voltage Secondary Protection Physical Connector 2.54mm Push Type connector Input External Adapter 12V@2A for VISIONPRO 206, 308, 412 Dimensions (WxHxD) 23.1×16.25×5.5cm (10.5″x11.2″x3.1″) Unit Weight 0.65 kg (1.43lbs) Shipping Weight 3.5 kg (7.7lbs) Installation Wall Mount Operating Temperature 0°C to 45 °C (+32°F to +122°F) Operating Humidity 95% RH, Non-Condensing

-14%

Matrix VISIONPRO412 Matrix Digital PBX with 4 Trunks and 12 Analog Extensions

SOHO Digital PBX with 4 CO, 12 SLT

• CO Line: 4
• Extensions: 12
• Power Supply: 12VDC,2A (Adaptor based)

100% Non-blocking, 1 Port PFT, Auto-Attendant, CLI - DTMF & FSK,
Dual 3-Party Conferences

40+ Value Added Call Attributes
PCM/TDM, Digital Switching, 100% Non-Blocking
16-Bit DSP Processor
DTMF and Pulse Dialing
Over Voltage Secondary Protection
Dimensions (mm): Width 231 x Height 162.5 x Depth 55

Matrix SETU VTEP4P VoIP PRI Gateway with 4 PRI Ports

-15%

Matrix SETU VTEP4P VoIP PRI Gateway with 4 PRI Ports

VoIP PRI Gateway with 4 PRI Ports

VoIP Protocol: SIP V2, SDP, RTP (RFC 2883)
• T1/E1 PRI Ports: 4
• SIP Trunks: 125
• No. of simultaneous calls: 120
• No. of Built-in VoIP Modules 2
• LAN Port: 1 X 10/100/1000 Mbps Gigabit
• WAN Port: 1 X 10/100/1000 Mbps Gigabit
• Power Supply: 12V DC, 2A

-20%

Matrix EON510 Premium Digital Keyphone With DSS

Matrix EON510 Matrix Digital Key Phone

Digital Key Phone

• Programmable Keys: 20 (4 Context Sensitive Keys, 16 DSS Keys)
• Display: 240x64 Pixels Graphical LCD with Backlit
• Color: Black
• Compatible PBX: All Variants of SARVAM & ETERNITY Series
Polyphonic Ringtone, Full Duplex Speaker Phone, Hold, Conference, Redial, Transfer, Message Wait Lamp, Ringer Lamp

SATATYA MIDR80FL36CWP 8MP IR Dome Camera with 3.6mm Lens with Audio

-20%

SATATYA MIDR80FL36CWP 8MP IR Dome Camera with 3.6mm Lens with Audio

All Products, Matrix Cameras, Matrix Product

8MP IR Dome Camera (2.8mm Lens) with Audio Support

1 / 2.8” SONY - CMOS (Exmor Technology - STARVIS Series)
8MP, 0Lux with IR LED ON
Horizontal Field of View: 101 degrees
IR Range of up to 30 meters
Video Analytics: Trip Wire, Intrusion Detection and Motion Detection
H.265/H.264/MJPEG Video Compression
PoE Support, NAS Storage, SD Card(512GB), Quad Stream Support, 1/1 Audio I/O
True WDR, 3D Noise Reduction, Adaptive Streaming, Smart Streaming and ROI, SNR > 70 dB

Available from 1st October, 2021

-10%

Matrix SATATYA MIDR50FL28CWS 5MP IR Dome Camera with 2.8mm Lens

All Products, Matrix Cameras, Matrix Product

5MP IR Turret Camera (2.8mm Lens)

1 / 2.8” SONY - CMOS 5MP Active Pixel
5MP, 0Lux with IR LED ON
Horizontal Field of View: 107 degrees
IR Range of up to 30 meters
Video Analytics: Motion Detection, Tamper Detection, Intrusion Detection, Tripwire
265/H.264/MJPEG Video Compression
NAS Storage, 4 Stream Support
True WDR, 3D Noise Reduction, Adaptive Streaming, Smart Streaming and ROI, SNR > 70 dB

Matrix SATATYA MIDR50FL28CWS

Better Images even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor
Proper Representation of Dark and Light Areas with True WDR 120 dB
Optimised Storage with H.265, H.264, MJPEG Video Compression
Extra Wide Field of View (HFOV 107.6°)
Night Vision (IR Range up to 30 meters)
512 GB SD card for Edge Recording
Dimensions (mm) : Diameter Φ126 x Length 100

Matrix SATATYA MIDR80FL36CWS 8MP IP camera

-16%
