Biometric Attendance System with Sim Card

Biometric Attendance System with Sim Card is required at sites with no internet connectivity. Biometric Attendance System with Sim Card are very easy to maintain. There is no need to connect the device with LAN cable. No need to connect the device with Wifi. We have sim based biometric machine in Face and Fingerprint.

  • Biometric Attendance Machine eSSL X990
  • uface 302 essl Face Attendance Machine
  • Matrix COSEC VEGA FAX

Biometric Attendance System with Sim Card helps in decreasing the maintenance cost of the Biometric Attendance Machines.

X990 GPRS sim based biometric machine

X990 GPRS Fingerprint Attendance Machine

Technical Specification
Storage capacity Fingerprints templates 10000
Card Storage 10000
Transaction storage 1,00,000
Card reader Inbuilt proximity card reader( optional Mifare,HID prox)
CPU 800 Mhz 32 bit Microprocessor
Biometric Fingerprint sensor 500 DPI Optical sensor
FAR <=0.0001%
FRR <=1%
Identification speed <0.5 sec
Algorithm Ver 10
Audio/Visual Display 3″ Color TFT
Keypad Yes
LED Indicator Green/Red
Schedule Bell/Speaker Mini Speaker
Communication Communication TCP/IP, USB, ( Optional : Wifi, GPRS, GPRS+ GPS)
Push data yes (support both static IP and domain server)
Standard features work code,SMS,DLST, Self service query, Status Switch
Power & environment Power Supply DC 12V: 1.5Amp
Operating Temperature 0oC to 45oC
Operating Humidity 20% -80%
Dimension 210x157x40
Access control Wiegand In & Out  both 26 or 34 bit (With or without site code)
Relay 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm Yes
Door Sensor Yes
Anti Passback Yes
Door Bell Yes
Exit Readers Support exit readers 101 HE , FR 1200, Push Button, KR500, Notouch, KR503
Optional Battery yes
Card readers Mifare/HID Prox/HID Iclass
Communication Wifi/GPRS
Sensor Mifare/HID Prox/HID Iclass
Compatibility Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Support External Printer
Compatible Software and SDK etime track lite desktop & web
SDK for desktop applications
Web based Device Manager/ePush server using Push data. Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications
Major Applications Time & Attendance , Canteen management, School attedance,
Production Management, Gym & clubs

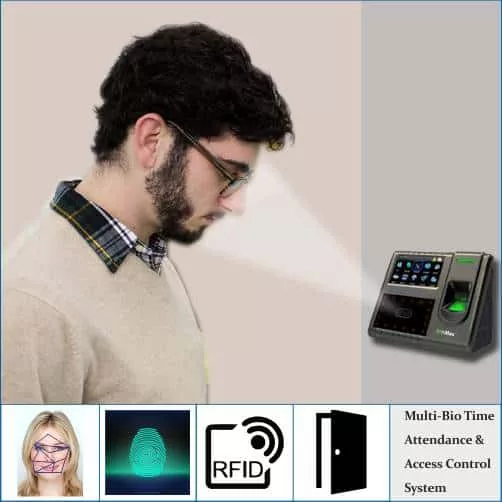

Face Attendance Machine

uface 302 Face Attendance Machine biometric attendance system with sim card

uface 302 Face Attendance Machine biometric attendance system with sim card

Multi-biometric Time Attendance & Access Control System
Storage capacity Face capacity 3000(1 :N), 3000(1:1)
Fingerprints templates 4000
ID Card Storage 10,000
Transaction storage 1,00,000
Push Data Yes
Communication  TCP/IP, RS232/485, USB Host, Wi-Fi, 3G
Display 4.3-Inch Touch Screen
Standard Functions Standard Functions Automatic Status Switch,
Self-Service Query, Work Code, SMS,
DST, T9 Input, 9 Digit User ID, Scheduled Bell,
Photo ID Access Control Interfaces for: 3rd Party
Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Output
Optional Functions Optional Functions MiFare Card, Wi-Fi, 3G,
2000 mAh Backup Battery
Power Supply Power Supply 12V 3A
Operating Temperature Temperature 0 °C- 45 °C
Operating Humidity Humidity 20%-80%
Dimensions Dimensions 193.6 x 165.2 x 86mm (Lx W x T)
Package Weight 1.6 kg
Features
High verification speed
Advanced and user-friendly UI
Easy to extend functions and customize client’s requirements
One face template is registered for one user only
