Inbio 260 is a two Door Controller which support Fingerprint from eSSL. 2 DOOR CONTROLLER Inbio 260 eSSL support 4 readers 2 locks. We also have 4 door controller access control system.

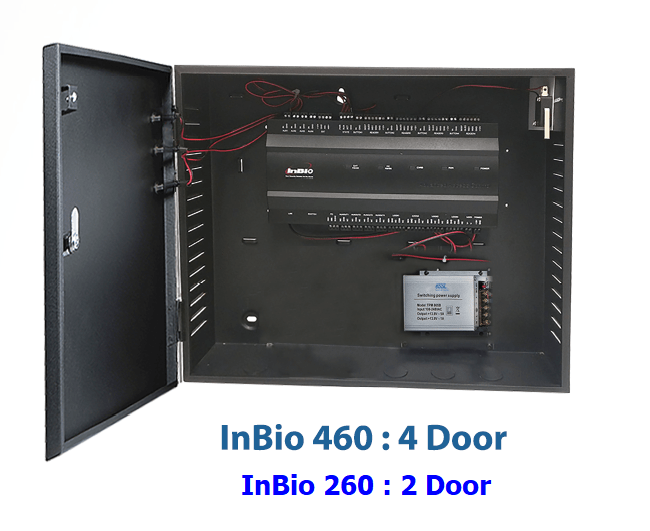

InBio 260 Controller
Multi-Door Controller
Two Door Multi-Door Access Control System. Type of System: RFID Access Control System Fingerprint Access Control System.
- Card Capacity : 30,000 | Fingerprint Capacity : 3,000 (20,000 Optional)
- Log Events Capacity : 1,00,000 | Available : 1 Door , 2 Door
- Communication : RS485, TCP/IP, WiFi Optional
- Numbers of readers supported : 12(8 RS-485 Reader, 4 wiegand reader)
- Types of readers supported : 26-bit Wiegand (others upon request) , RS- 485
- Number of Inputs : 12 (4 Exit Device, 4 Door Status, 4 AUX)
- Number of Outputs : 8 (4-From C Relay for Lock and 4-From C Relay for Aux Output)
essl 2 door controller
Features of Two Door Fingerprint Controller Inbio 260 eSSL
2 Door Controller by eSSL Inbio 260 Pro
- 256 time Zones, 256 access levels
- Anti-passback function, Interlock function, Linkage function, Multi-Card Opening function
- Remote door opening and closing
- 4 auxiliary inputs can be connected to infrared body detectors, Fire Panel/smoke detectors, etc.
- 4 auxiliary outputs can be connected to alarms/siron, Light indicator, door bells, etc.
- Data is preserved if power is lost, Controller continues to operate if data connection is interrupted
- Alarms and Events Noti cations through Email using Web Application
- Supports Video Integration & Visitor Management Module using Web Application
- Embedded Fingerprint verification and advanced access control function
- It can be installed easily on your network also support TCP/IP and RS485 communication
- 1/2/4 Door models can be mixed and matched in an optimized System Architecture
- Data is preserved if power is lost, Controller continues to operate if the data connection is interrupted Anti-Passback, Interlock,First-Card Opening, Multi-Card Opening
- Duress Password Entry and Auxilary Input/output linkages are inbuilt into controller firmware
Software Download for ESSL Inbio 260 Controller
- (1) Biosecurity 3.1.0.0(Web Version) database:- PGSQL / MS SQL
- (2) Access Security System 3.5 (Desktop Version) Database Type:- MS Access / MS SQL
ESSL Inbio 160 Single Door Fingerprint Access Control System
Email us at in**@am*********.com or call us at 9034757673, 9315441053 for pricing and installation of Two Door Controller.
