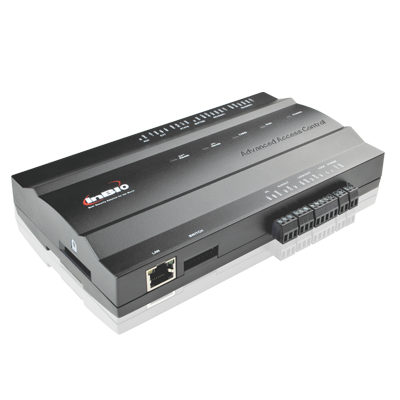

ESSL Inbio 160 Single Door Fingerprint Access Control System -

Description

ESSL Inbio 160 Single Door Fingerprint RFID controller. This controller can be used for boom barrier, single door physical access control, tripod turnstile, flap barriers, Swing barriers. It’s a single door access control system. Get the essl biometric access control system for your organization.

Access Control System

essl Fingerprint Access Control

MULTIDOOR ACCESS CONTROL – 1 DOOR

Number of doors controller: 1 Door,
Cardholders Capacity : 30000,
Fingerprint Capacity: 3000,
Log Events Capacity: 100000.

Technical Specifications of Inbio 160 Single Door Controller

Number of doors controller : 1 Door
Numbers of readers supported : 2(4 RS-485 Reader, 26-bit wiegand reader)
Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader
Card holders Capacity : 30000
Fingerprint Capacity : 3000
Log Events Capacity : 100000
Communication : TCP/IP and RS-485
Package Dimension : 350(L)×90(H)×300(W)mm
Package Weight : 3.6kg
CPU : 32 bit 400MHz CPU
RAM : 32M
Flash Memory : 128M
Power : 9.6V-14.4V DC
Operating Temp : 0 – 45 °C
Operating Humidity : 20% to 80%

Single Door Access Control System

Features of fingerprint access control system

Embedded Fingerprint verification and advance access control function
It can be installed easily on your network also support TCP/IP and RS485 communication
1/2/4 Door models can be mixed and matched in an optimised System Architecture
Data is preserved if power is lost, Controller continues to operate if data connection is interrupted Anti-Passback, Interlock,First-Card Opening, Multi-Card Opening
Duress Password Entry and Auxilary Input/output linkages are inbuilt into controller firmware.

Software Download for ESSL Inbio 160 Controller

(1) Biosecurity 3.1.0.0(Web Version) database:- PGSQL / MS SQL
(2) Access Security System 3.5 (Desktop Version) Database Type:- MS Access / MS SQL

Two Door Controller Fingerprint Inbio 260 eSSL

TECHNICAL SPECIFICATIONS

Number of doors controller : 2 Door
Numbers of readers supported : 8(4 RS-485 Reader, 26-bit wiegand reader)
Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader
Number of Inputs : 6( 2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs : 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Card holders Capacity : 30000
Fingerprint Capacity : 3000
Log Events Capacity : 100000
Communication: TCP/IP and RS-485
Package Dimension: 350(L)×90(H)×300(W)mm
Package Weight : 3.6kg
CPU : 32 bit 400MHz CPU
RAM : 32M
Flash Memory : 128M
Power : 9.6V-14.4V DC
Operating Temp : 0 – 45 °C
Operating Humidity : 20% to 80%

FEATURES

Embedded Fingerprint verification and advance access control function
It can be installed easily on your network also support TCP/IP and RS485 communication
1/2/4 Door models can be mixed and matched in an optimized System Architecture
Data is preserved if power is lost, Controller continues to operate if data connection is interrupted Anti-Passback, Interlock, First-Card Opening, Multi-Card Opening
Duress Password Entry, and Auxiliary input/output linkages are inbuilt into controller firmware
