Access Control Device SA32 eSSL

Standalone Access Control Device SA32 eSSL

Access Control System for Door

Password Protected eSSL SA32-E Access Control available at lowest price. Call us for your bulk orders.

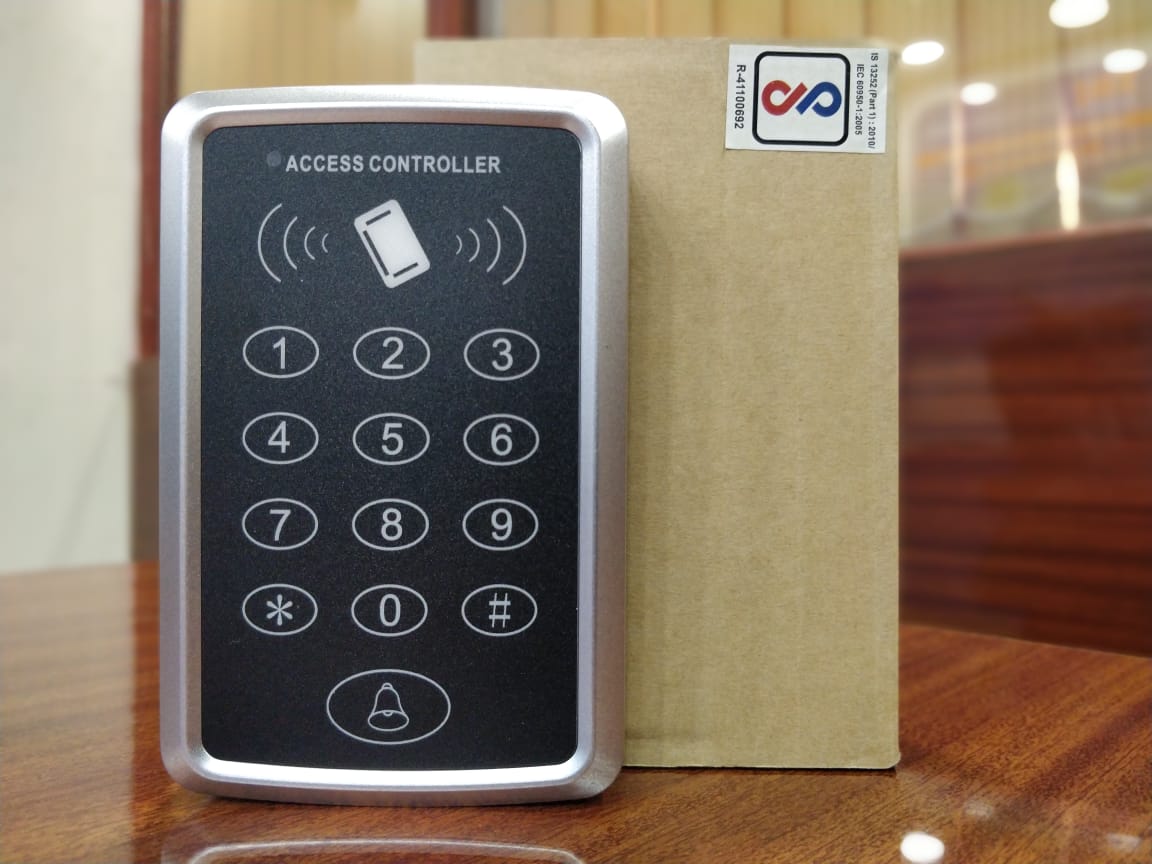

Access-Control-System-SA32

Access-Control-System-SA32

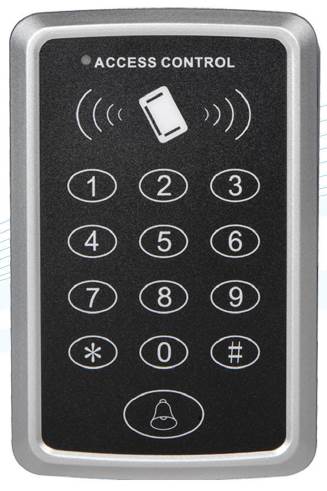

Standalone Access Control Device SA32 eSSL

Standalone Access Control Device SA32 eSSL

  • Access by Card, PIN, or Card + PIN
  • Has 1 Relay output and 1 PUSH (low) output
  • Has 1 door button Port and 1 doorbell Port

Quotation of Access Control System SA32

§  User Capacity : 1000 Proximity Card and PIN
§  Read Card Distance : More then 8CM
§  Read Card Type : EM Card
§  Open Door Mode : Card+PIN, Card & PIN
§  Supply Voltage : 12V DC
§  Lock Release time programmable
§  Bell Output : Single
§  Alarm Output : Single

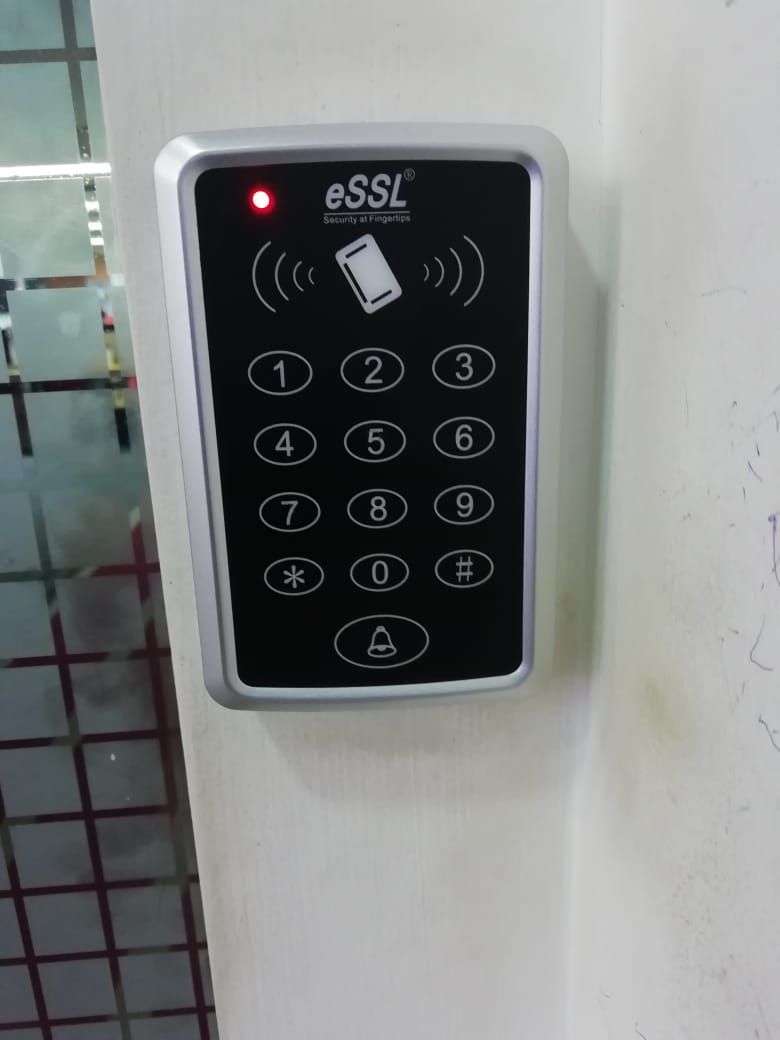

Door access control system for office

Door access control system for office

Door access control system for office

Get the best quality most reliable door access control system for offices in India. Office Door Access Control System restricts unauthorized access to your office premises and helps you safeguard your premisses.

STANDALONE ACCESS CONTROL DEVICE WITH CONTACT -LESS SMART CARD SA 32 E AmpleTrails

Manufacturers & Suppliers of Single Door Access Control

eSSL SA32 Single Door Access Control System

eSSL SA32 Single Door Access Control System

Technical Specification of eSSL SA32
Operating Voltage  DC 12V±10%
Operating Current <100mA
Dimensions 121×78×23mm
Weight 110g
Ambient Temperature 0°C – 60°C
Operating Humidity 20% – 80%
Card Storage 1000 users
Card type (alternative) EM(ID) card (IC card for options)
Card reading distance 1-15CM

Access control| Access control systems Standalone reader| Authorized entry| access control India

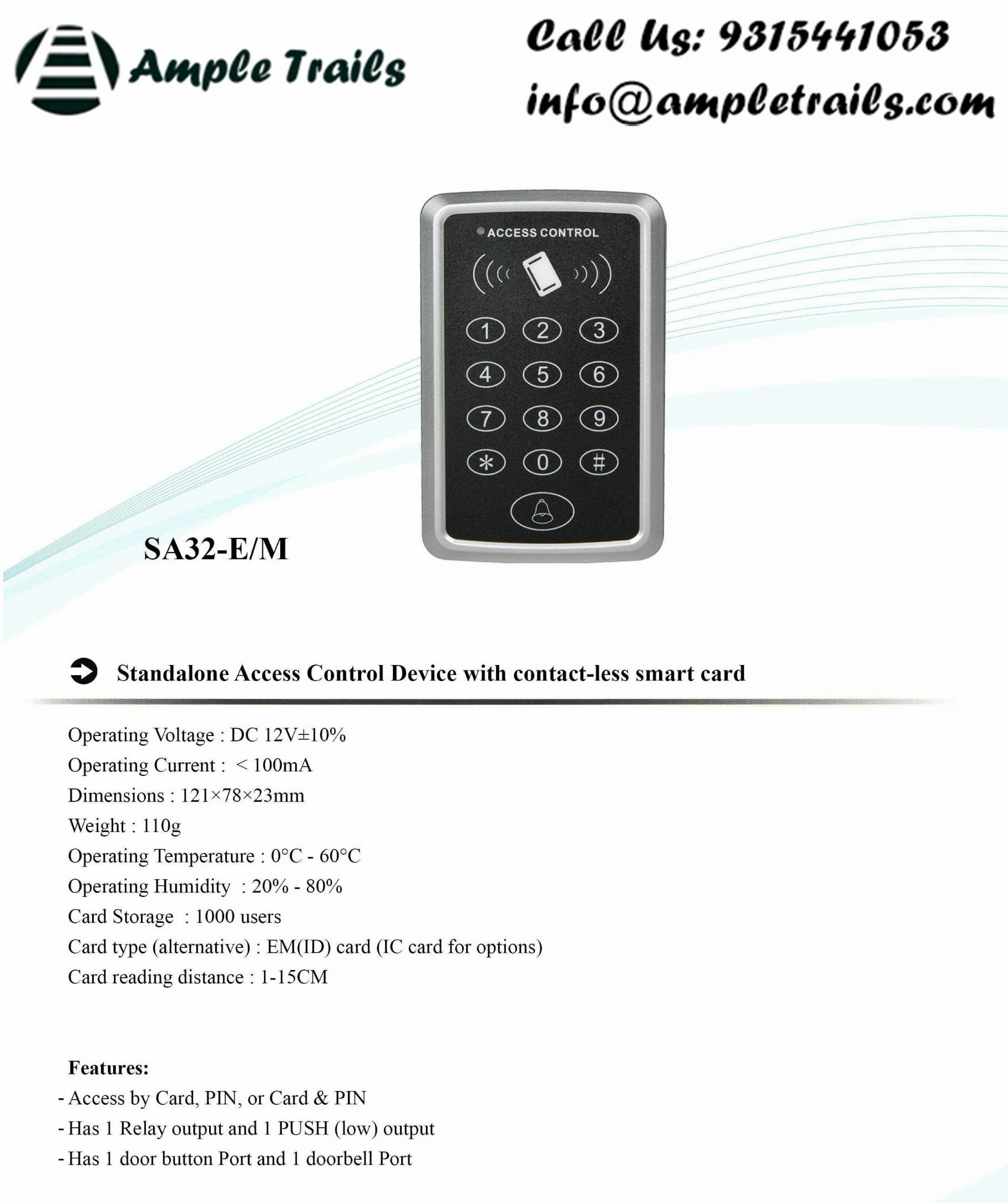

access control system for door

SA32 eSSL Single Door Access Control System

For more information contact us at 09034757673, 09315441078 or email us at info@ampletrails.com.

access control system for glass door

Access control system for glass door

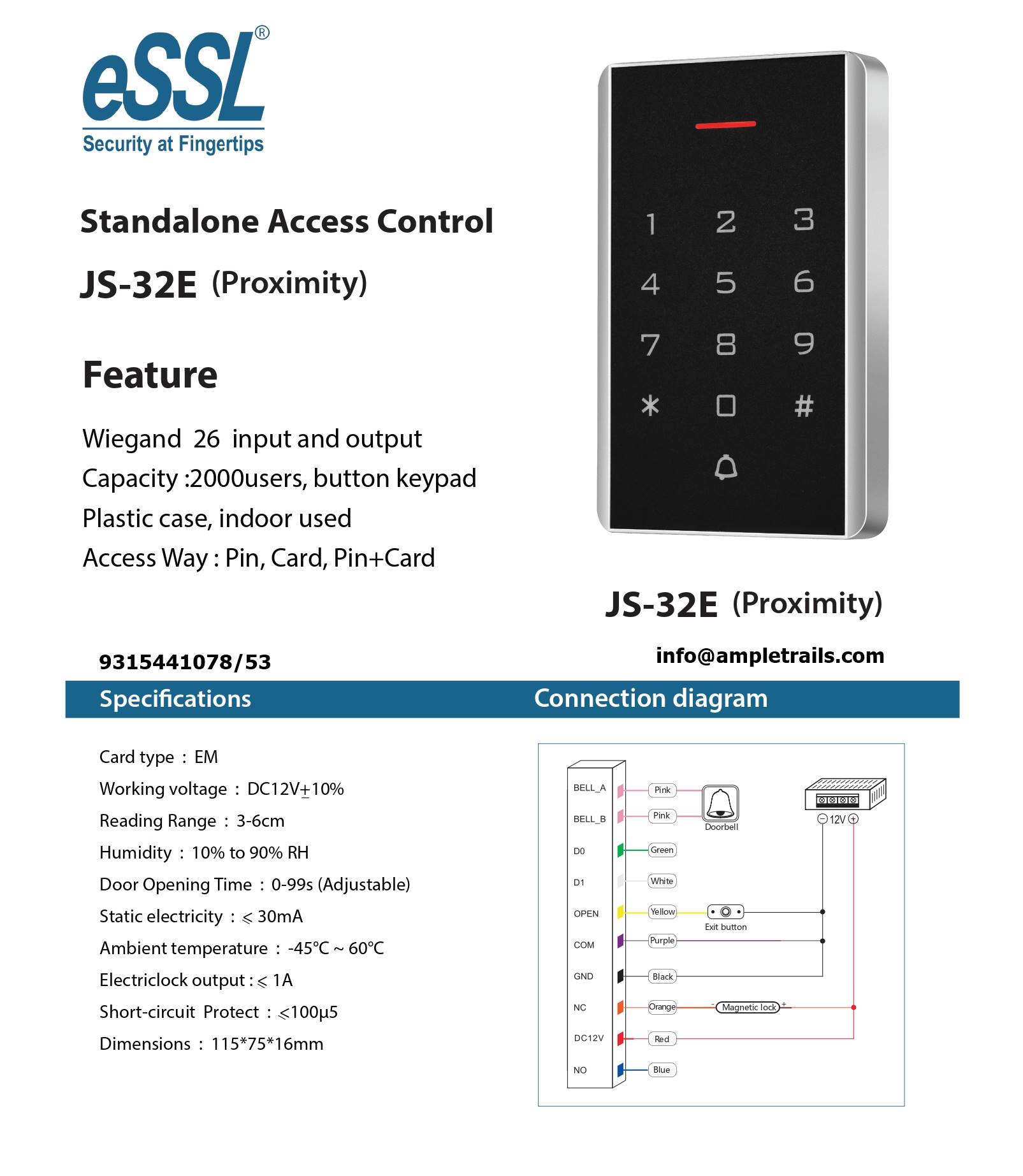

ESSL JS-32E (PROXIMITY) STANDALONE ACCESS CONTROL

PROXIMITY STANDALONE ACCESS CONTROL

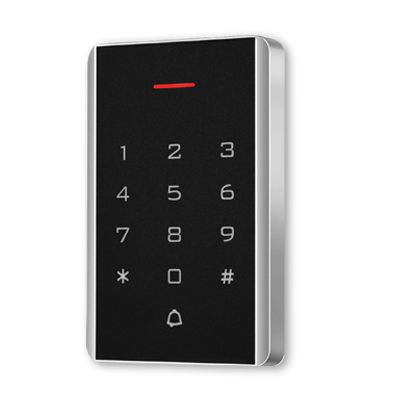

ESSL JS-32E PROXIMITY STANDALONE ACCESS CONTROL

ESSL JS-32E PROXIMITY STANDALONE ACCESS CONTROL

STANDALONE ACCESS CONTROL

Wiegand 26 input and output,
Capacity:2000users, button keypad Plastic case, indoor use,
Access Way: Pin, Card, Pin + Card

FEATURE of ESSL JS-32E (PROXIMITY) STANDALONE ACCESS CONTROL

  • Wiegand 26 input and output
  • Capacity :2000users, button keypad Plastic case, indoor used
  • Access Way : Pin, Card, Pin+Card

TECHNICAL SPECIFICATIONS ESSL JS-32E (PROXIMITY) STANDALONE ACCESS CONTROL

  • Card type : EM
  • Working voltage : DC12V+10%
  • Reading Range : 3-8cm
  • Working voltage : DC12V+10%
  • Reading Range : 3-6cm
  • Humidity : 10% to 90% RH
  • Door Opening Time : 0-99s (Adjustable)
  • Static electricity : < 30mA
  • Ambient temperature : -45°C ~ 60°C
  • Electric lock output : < 1A
  • Short-circuit Protect : < 100µ5
  • Dimensions : 115*75*16mm

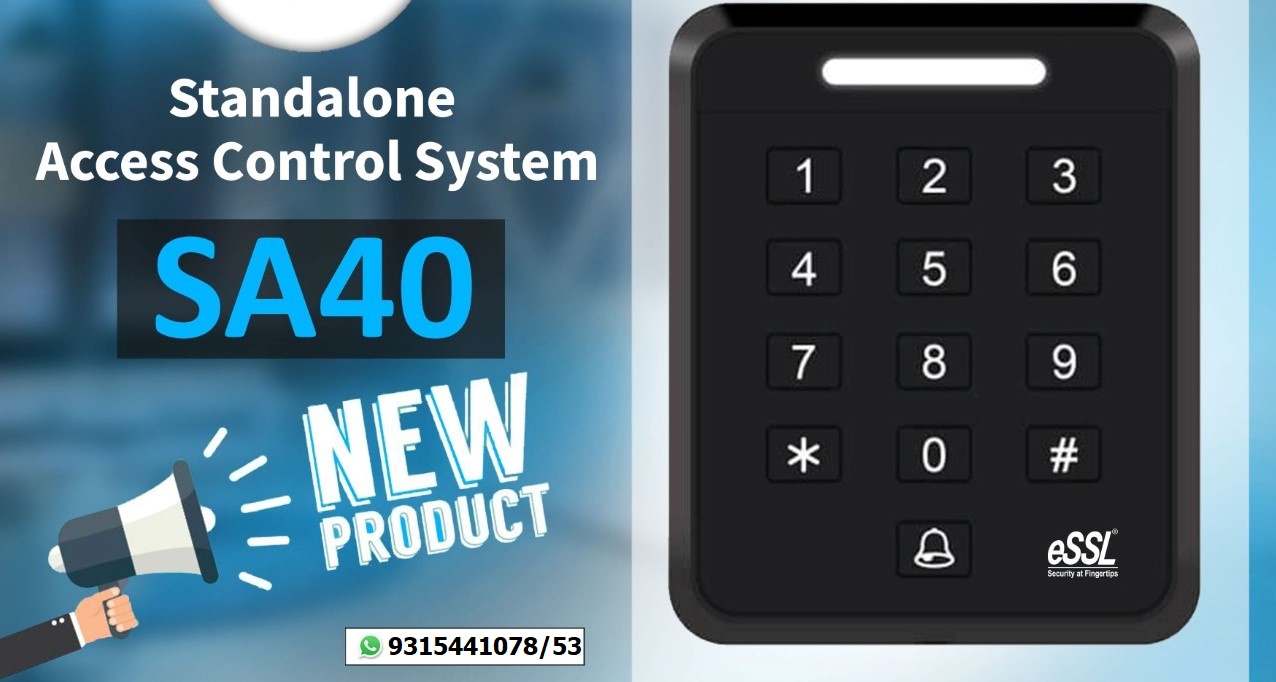

essl SA40

eSSL SA40

SA40 User Manual

SA40 STANDALONE ACCESS CONTROL DEVICE SUPPORTING RFID & PASSWORD SYSTEM

Features of SA40 Access Control Device.

User Capacity: 2,000 ,
Password Capacity : 2,000,
Password : 4 to 6 digits

TECHNICAL SPECIFICATIONS SA40 Access Control Device

  • User Capacity: 2,000
  • Password Capacity : 2,000
  • Password : 4 to 6 digits
  • Verification Modes : Card Only / Password Only / Card and Password1 Relay / 1 Door Sensor / 1 Exit Button / 1 Doorbell
  • Dimensions : (L*W*H) 103.5*86*19 (mm) (±3mm)
  • Operating Frequency : 125kHz / 13.56MHz RFID Type EM Card / IC Card, S50 S70 IC EV1
  • Operating Voltage : DC 9 to 15V
  • Operating Temperature : -20°C to 60°C
  • Storage Temperature : -20°C to 80°C
  • Operating Humidity : 15% to 90%
  • Storage Humidity : 15% to 90%

FEATURES

  • Password Length: 4 to 6 digits
  • RFID: 125kHz EM Card / 13.56MHz IC card, S50 S70, IC EV1
  • Operating Temperature: -20°C to 60°C
  • Humidity Storage: 15% to 90%

essl sa40 datasheet
eSSL SA40 AmpleTrails SA40 Access Control Device

User manual of eSSL SA40 RFID Card Reader
