Swing Barrier Gates eSSL SG-ES-3216 Supplier High Speed Swing Barrier
Original price was: ₹ 290,000.00.₹ 130,000.00Current price is: ₹ 130,000.00.
Size（L*W*H) : 1400*160*980mm,
Fuselage material : Top cover 1.2mm+body 0.9mm 304 brushed plate ,
Diaphragm material : 8mm clear acrylic,
Pass width : 600-900mm.

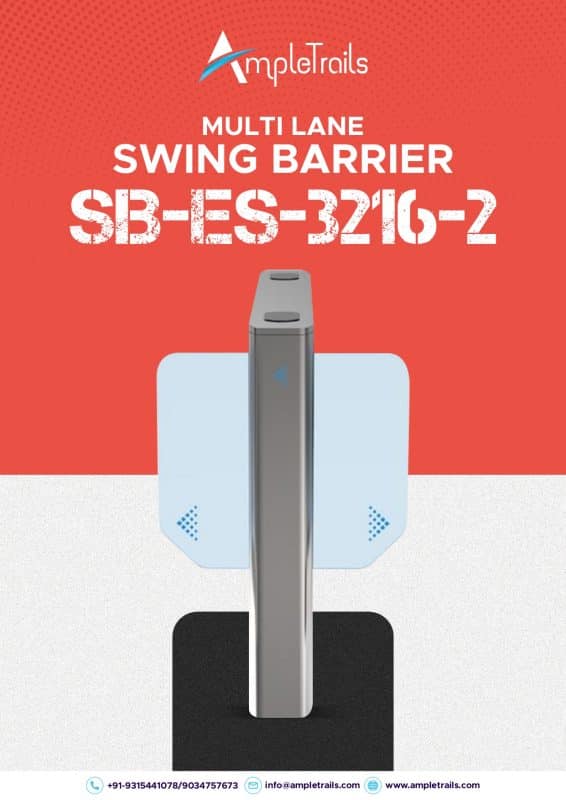

MULTI LANE SWING BARRIER SB-ES-3216-2
MULTI LANE SWING BARRIER SB-ES-3216-2 Specifications
SWING BARRIER SB-ES-3216
The AmpleTrails Swing Barrier is a smart entrance gate that automatically controls access to busy areas. It lets in authorized people and keeps out those who aren’t allowed. This is perfect for places like exhibitions, hotels, public transportation, museums, airports, train stations, ferry terminals, schools, and other businesses and industries. You can choose if you want the barrier to work in both directions or just one, depending on what you need.
SWING BARRIER SB-ES-3216

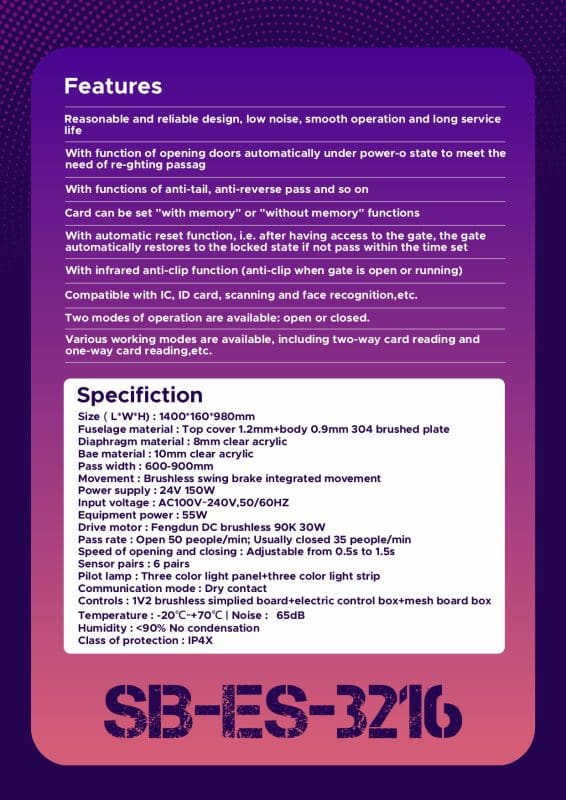

Automatic ESSL SB-ES-3216 Swing Barriers

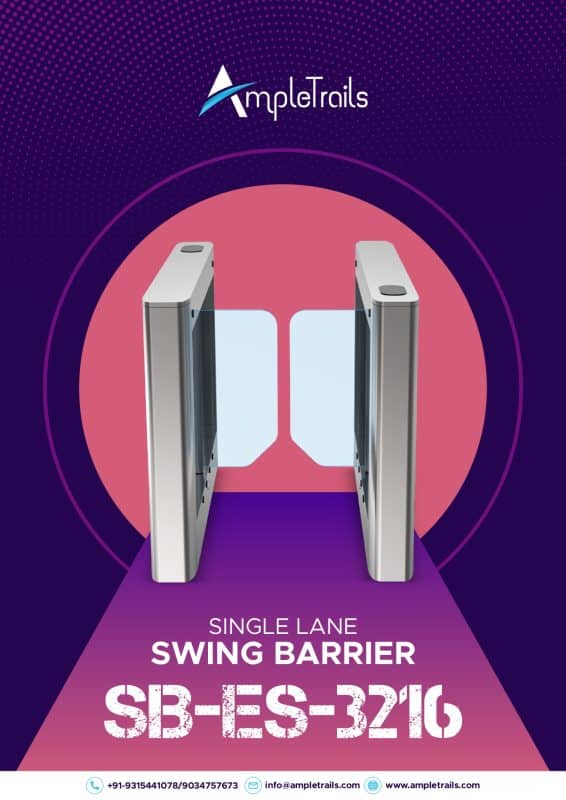

Single Lane SWING BARRIER SB-ES-3216
Supplier of High Speed Swing Barrier India
Swing Barrier Gates eSSL SG-ES-3216 Supplier High Speed Swing Barrier

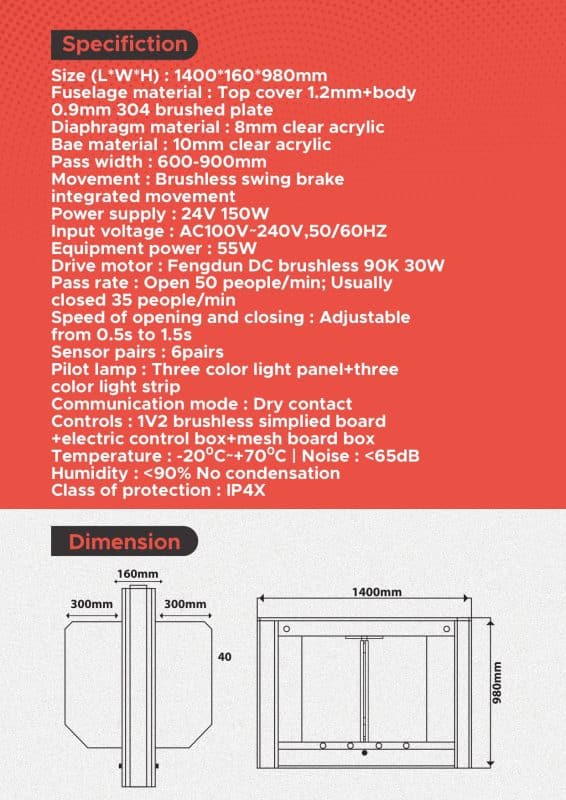

Technical Specifications

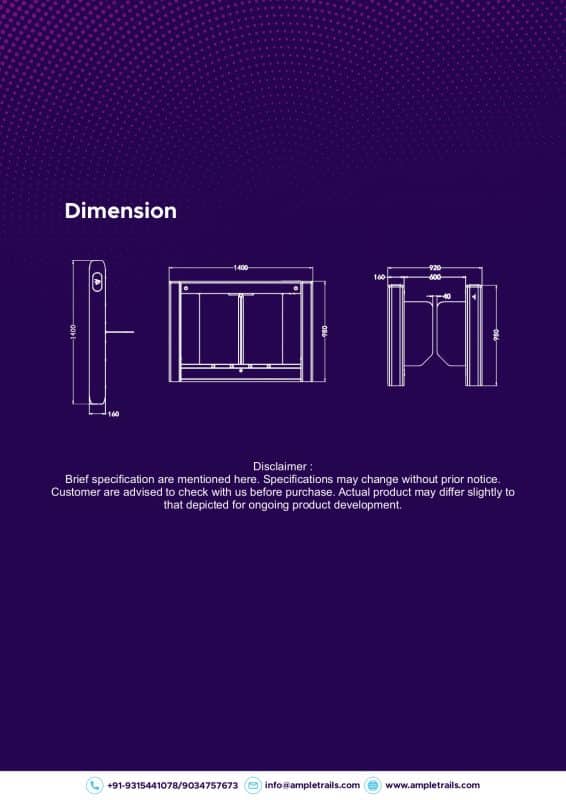

Dimensions
Size (L*W*H): 1400mm x 160mm x 980mm
Materials
Fuselage: Top cover (1.2mm) + Body (0.9mm) 304 brushed plate
Diaphragm: 8mm clear acrylic
Baffle: 10mm clear acrylic
Specifications
Passage Width: 600mm – 900mm
Mechanism: Brushless swing brake integrated movement
Power Supply: 24V, 150W
Input Voltage: AC 100V~240V, 50/60Hz
Power Consumption: 55W
Drive Motor: Fengdun DC brushless motor, 90K 30W
Passage Speed: Open mode: 50 people/min; Closed mode: 35 people/min
Opening/Closing Speed: Adjustable (0.5s to 1.5s)
Sensors: 6 pairs
Indicators: Three-color light panel + three-color light strip
Communication Mode: Dry contact
Control System: 12V brushless board + electric control box + mesh board box
Operating Conditions: Temperature: -20°C to +70°C; Noise: ≤65dB; Humidity: ≤90% (no condensation)
Protection Rating: IP4X
Features
– Efficient Design: Quiet operation, smooth performance, and long-lasting durability.
– Emergency Function: Automatically opens doors during power outages to allow safe passage (fire safety compliant).
– Security Features: Anti-tailgating, anti-reverse passing, and infrared anti-clipping for safety.
– Customizable Card Settings: Configurable with or without memory.
– Automatic Reset: Gate locks again if the user does not pass within the set time after access is granted.
– Multi-Compatibility: Works with IC cards, ID cards, scanners, and face recognition systems.
– Flexible Modes: Two-way or one-way card reading; Open or closed operational settings.
