Swing Barrier Gates eSSL SG-ES-3215 Supplier of High Speed Swing Barrier India

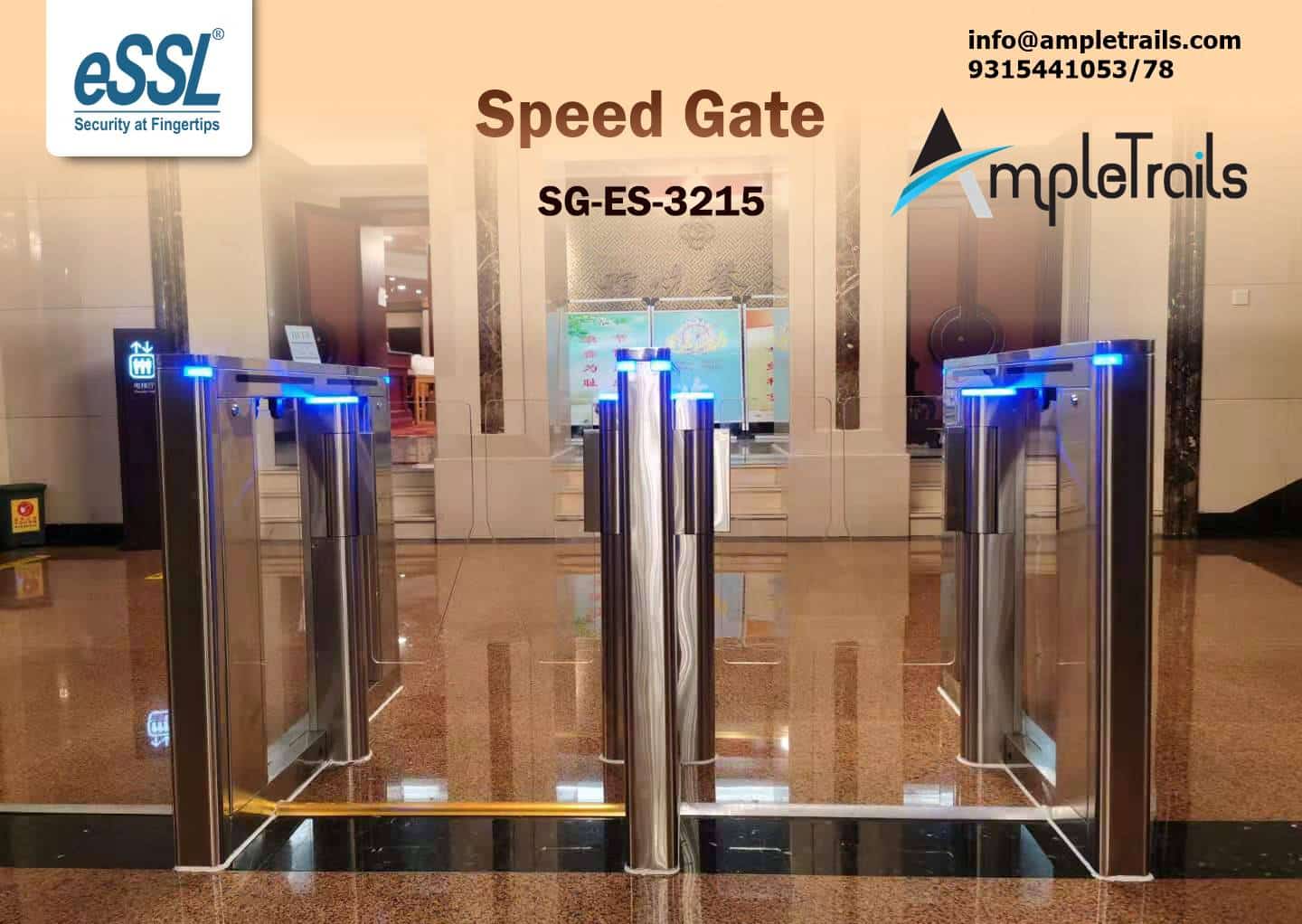

Swing Barrier Gates eSSL SG-ES-3215

The AmpleTrails Swing Barrier is a smart entrance gate that automatically controls access to busy areas. It lets in authorized people and keeps out those who aren’t allowed. This is perfect for places like exhibitions, hotels, public transportation, museums, airports, train stations, ferry terminals, schools, and other businesses and industries. You can choose if you want the barrier to work in both directions or just one, depending on what you need.

Single Lane Swing Barrier SB-ES-3215

Size (L*W*H): 1400*160*980mm

Fuselage material: Top cover 1.2mm+body 0.9mm 304 brushed plate

Diaphragm material: 8mm clear acrylic

Pass width: 600-900mm

Supplier of High Speed Swing Barrier India

Technical Specifications

Size (L*W*H): 1400*160*980mm

Fuselage material: Top cover 1.2mm+body 0.9mm 304 brushed plate

Diaphragm material: 8mm clear acrylic

Baffle material: 10mm clear acrylic

Pass width: 600-900mm

Movement: Brushless swing brake integrated movement

Power supply: 24V 150W

Input voltage: AC100V~240V,50/60HZ

Equipment power: 55W

Drive motor: Fengdun DC brushless 90K 30W

Pass rate: Open 50 people/min; Usually closed 35 people/min

Speed of opening and closing: Adjustable from 0.5s to 1.5s

Sensor pairs: 6 pairs

Pilot lamp: Three color light panel + three color light strip

Communication mode: Dry contact

Controls: 12V brushless simplified board + electric control box + mesh board box

Temperature: -20℃~+70℃ | Noise: ≤65dB

Humidity: ≤90% No condensation

Class of protection: IP4X

Features

Reasonable and reliable design, low noise, smooth operation and long service life

With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage

With functions of anti-tail, anti-reverse pass and so on

Card can be set “with memory” or “without memory” functions

With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set

With infrared anti-clip function (anti-clip when gate is open or running)

Compatible with IC, ID card, scanning and face recognition, etc

Two modes of operation are available: open or closed

Various working modes are available, including two-way card reading and one-way card reading, etc.
