Fingerprint Sensors eSSL9500
Fingerprint Sensor
eSSL9500 (USB Fingerprint Scanner)
Fingerprint scanner online
Fingerprint Sensor is an elegant, powerful fingerprint identity machine. With an executive-class look and feel, Perfect power users, and shared environments. Its design is sleek and compact to conserve valuable desk space but it says right where you put it because of its nice and special undercoating. Fingerprint Sensor is easy to install and use. The Fingerprint Sensor is Fingerprint Reader is a USB device, built on the latest optical fingerprint reader technology. Its compact and attractive design conserves desk space in enterprises, its professional modern appearance looks elegant in point-of-service environments, and its ability to read a fingerprint from any angle makes it ideal for applications.

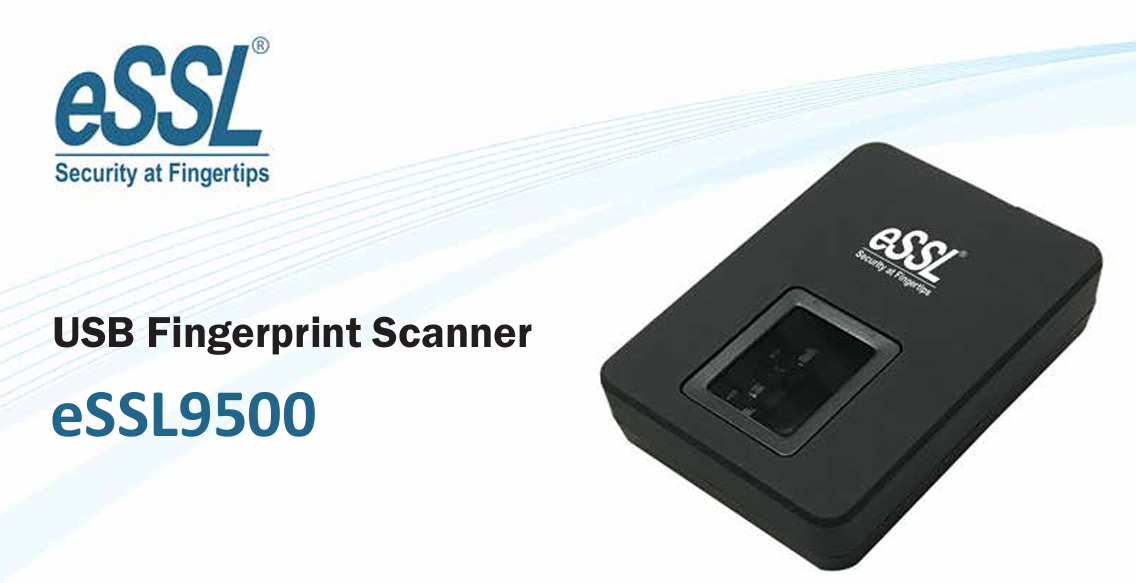

ESSL9500 USB FINGERPRINT SCANNER
USB Fingerprint Scanner
The optical fingerprint sensor is durable, has a good advantage, consists of a structure including the light source and the optical sensor has a configuration in which the optical sensor detects the user’s fingerprint by detecting the light emitted from the light source.
If you have any query or want to place an order please contact us now at 9315441078 WhatsApp 9315441053, 9034757673 or email us at in**@*********ls.com
Fingerprint DP Sensor 4500
Fingerprint Sensors zk5000
Fingerprint Sensors zk7500
Fingerprint Sensors eSSL9000
Fingerprint Scanner Morpho MSO 1300 E3
Fm220 Fingerprint USB Based Reader Fm220
Fingerprint Sensors Lumidigm Venus
Email us at in**@*********ls.com or call us at 9034757673 for pricing and installation of this machine.
| Feature | Specification |
|---|---|
| Scanner Type | Optical |
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS |
| Image Quality | 2-megapixel CMOS |
| Encrypted Fingerprint Data | Yes |
| Sunlight Operation | Must, dark field & automatic gain/exposure |
| Water Splash | No damage and normal operation is ensured |
| Dry, Wet or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA scanning; 5V:60mA idle(waiting for finger) |
| Live Fingerprint Detection | Yes |
| LED | White |
| Product Certifications | FCC, CE, RoHS |
| Power Voltage | 5V |
| Power Current | 200mA |
| Communication | USB 2.0/USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 (mm) |
| Image Size | 300 * 400 pixels (FAP20) |
| Dimensions | 75 * 51* 19.5mm (L*W*H) |
| Image Formats | RAW, BMP, JPG |
| Algorithm | Finger V10.0 |
| Grayscale | 256 |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
