Fingerprint Lock eSSL SL-R7
Make your fingerprint as your key. SR–R7 is an electronic access control system. Its cable-free lock and keyless diverse collection of designs, colors, and finishes to complement any property’s style and door type. Its ultra-slim body makes it the perfect choice for premium homes.
Smart Fingprint Door Lock
SL-R7 : Slim Fingerprint Password Lock |
Electronic System Parameters |
Input |
6.4-8.4 Li battery |
|
Static State |
≤60 μA |
|
Battery Life |
Continuous opening ≥300 times |
|
Low power alarm |
≤ 7.0V ± 0.1V |
|
Working Temperature |
-25°C to 55°C |
|
Relative Humidity |
5% to 95% |
|
Atmospheric Pressure |
86kPa-106kPa |
Password |
User Password Combination |
8 digits |
|
Password Capacity |
30 group user password |
|
Password Protection |
Automatically gets locked upon entering wrong password 3 times continuously |
|
Vague input Password |
Can add 12 digit irrelevant password before correct password |
Accessibility Function |
Chinese & English exchange |
Integrated chip for convenient Chinese & English voice switch |
|
Fingerprint |
Checks every fingerprint position |
|
Remote control/card |
Can add upto 10 groups remote control (App can add upto 99 pcs cards) |
|
Alarm |
Low power, Illegal opening, Fake alarm |
Fingerprint |
Anti-static electricity capacity |
≤ ± 15kV |
|
Fingerprint sensor |
Semi-conductor |
|
Fingerprint Collection Area |
19 mm X 19 mm |
|
Resolution Ratio |
508 dpi |
|
Angle Identification |
360° |
|
Fingerprint capacity |
95 user fingerprints + 5 administrator fingerprints |
|
Comparison mode |
1:N |
|
Verification comparison time |
Maximum 3s (fingerprint collection, testing, lock signal output time combination) |
|
FRR |
1% |
|
FAR |
0.001% |
Lock body parameter |
Left & Right exchange function |
Universal lock body |
|
Size (in mm) |
240 X 96 X 24 |
|
Middle Hole Distance (in mm) |
60 X 68 |
|
Material |
SUS 304 + depends |
|
Front plate dimensions (in mm) |
479.8 X 86 |
|
Back plate dimensions (in mm) |
479.8 X 86 |
Executive Standard |
GA394 |
2019 |
|
GA701 |
2007 |
|
GB21556 |
2008 |
|
GA73 |
1994 |
Power Supply |
Working Current |
≤600 mA |
|
Supply Power |
5V power bank |
|

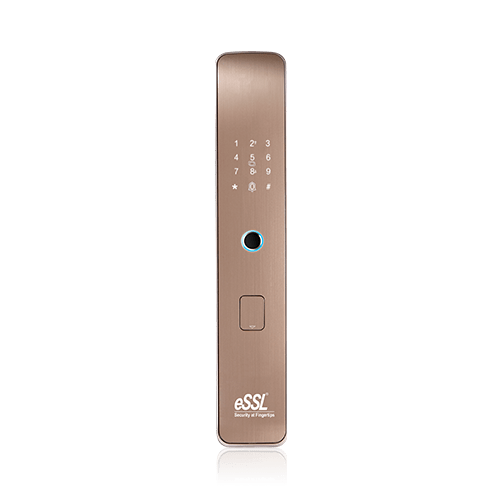

Fingerprint door lock SL-R7
