Access Control Multi door AC Inbio-460 inBIO 460 is the most advanced access control panel which can provide biometric security for any door when connected with biometric readers and software. These panels are versatile and can connect with RS485 or Weigand connectivity to the panels. With the help of eSSL access software, the user will get the flexibility and scalability to program the access control system. The software is web-based and hence can be accessed from any computer with the help of a web server.

essl 4 door controller

Multi door access controller essl

IP-Based Biometric Access Control Panel InBio460

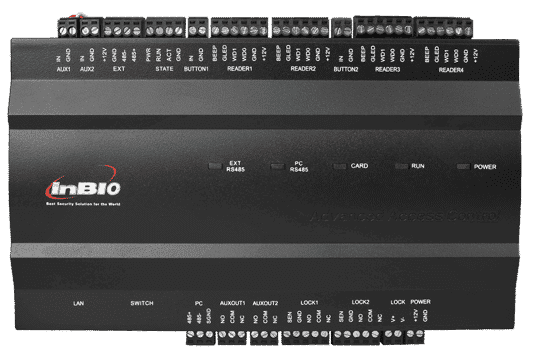

Fingerprint four door controller eSSL

Fingerprint four-door controller eSSL

  • Card Users : 30,000
  • Fingerprint Users: 3,000
  • Event Buffer : 1,00,000 Transactions
  • Number of Readers Supported: 4
  • Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX)
  • Number of Output: 8 (4 – Form C Relay for Lock and 4 – Form C Relay For AUX Output)
  • Communication : RS485 / TCP/IP
  • Indicator : Communication, Power, Status
  • Operating Temperature : 32-113 F (0-45 C)
  • Operating Humidity : 20% to 80%
  • Power Supply : 12V DC 3A
Multi Door Access Control InBio 460

Multi Door Access Control InBio 460

Multi Door Access Controller eSSL INBIO 460

Access control systems are very important no matter it’s a small, medium to large-sized business. These can be used to grant access to multiple doors. There are standalone systems as well as multi-door access control systems. This surveillance system help in maintaining high-end security.

IntroductionFeaturesDocuments
  • CPU: 32bit MIPS CPU
  • RAM: 32Mb
  • Flash Memory: 128Mb
  • Fingerprint Capacity: 3000
  • Card Capacity: 30,000
  • Event buffer: 100,000
  • Power / Current: DC 9.6V – 14.4V , Rated Max 1A
  • Wiegand Reader Port: 4ea (26/34 bit Wiegand , 4/8bit for PIN
  • RS485 Reader Port: 1no. extended RS485 Port
  • Communication: RS485 , TCP/IP
  • Baud Rate: 38,400bps (recommended) / 9600bps , 19,200 bps , 57,600 bps (selectable)
  • Input Port: 8ea (exit button #1 , exit button #2 , button #3 , button #4 , Door Sensor #1 ,
  • Door Sensor #2 , Door Sensor#3 , Door Sensor #4)
  • Output Port: 4ea (4 Form-C Relay Output, SPDT 5A@36VDC / 8A@30VAC) ,
  • 4ea ( 4 Aux FORM-C Relay Output , SPDT 2A@30VDC)
  • Operating Temperature: 0°C to +55°C
  • Operating Humidity: 10% to 80 % RH non condensing
  • Dimension (HxWxD): 226 x 106 x 36 mm (single board),
  • Metal Cabinet (HxWxD): 400 x 330 x 90.5 mm
  • Supports F12 (RS485) Fingerprint Reader
  • 256 time zones, 256 access levels
  • Anti-passback function
  • Interlock function, Linkage function
  • Multi-Card opening function, Remote door opening, and closing
  • Real-time monitoring via a web browser
  • Video server integration
  • 4 auxiliary output may be connected to alarms, cameras, doorbells, etc
  • Supports: eSSL5000/7500 for fingerprint registration

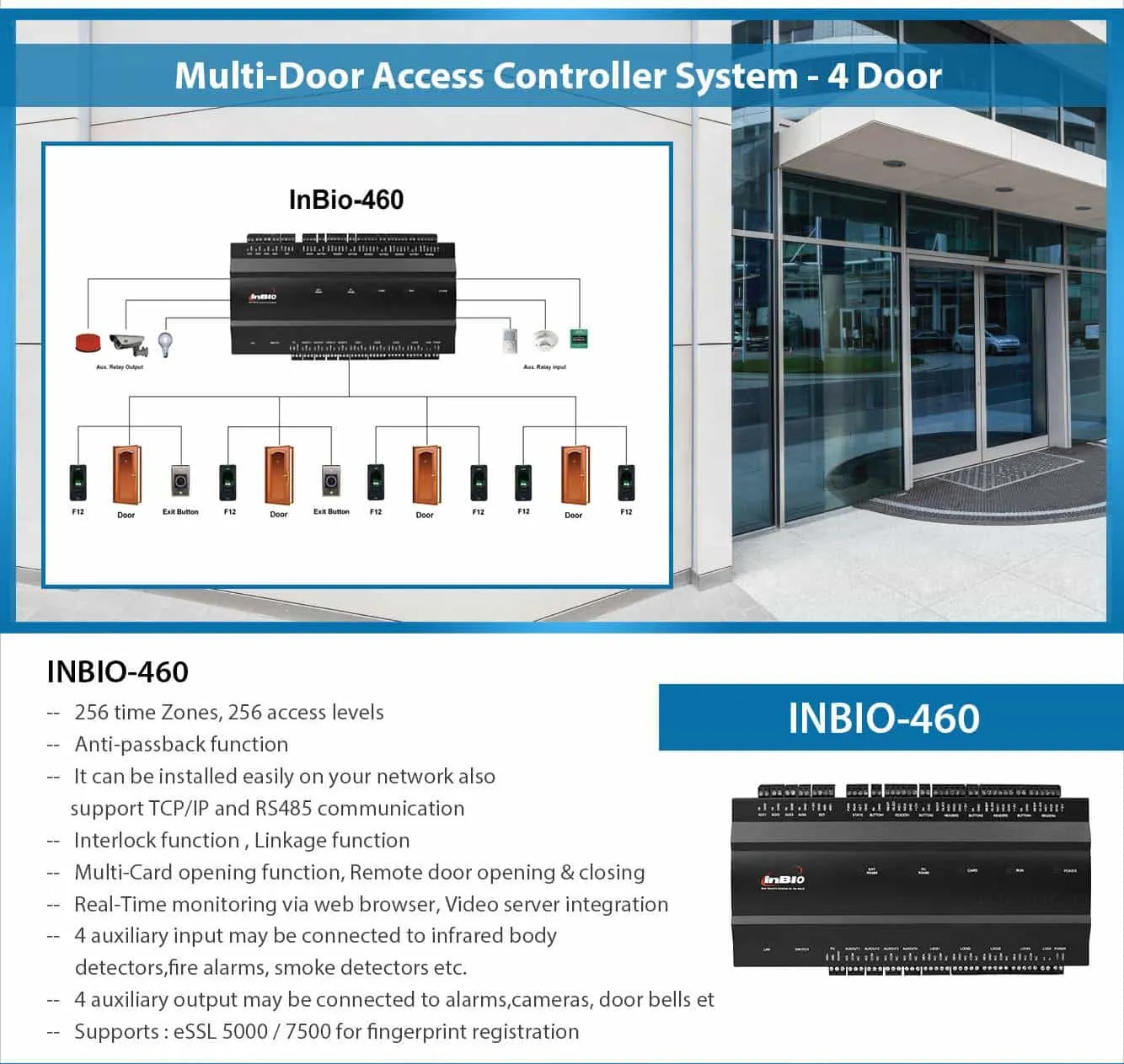

Inbio 460 4 Door Fingerprint Controller

Inbio 460 4 Door Fingerprint Controller

If you have any queries or want to place an order please contact us now at 9315441078 WhatsApp 9315441053, 9034757673, or email us at in**@am*********.com or fill the below Inquiry Form.

Software Download for ESSL Inbio 460 Controller

Multi door access controller essl download.
