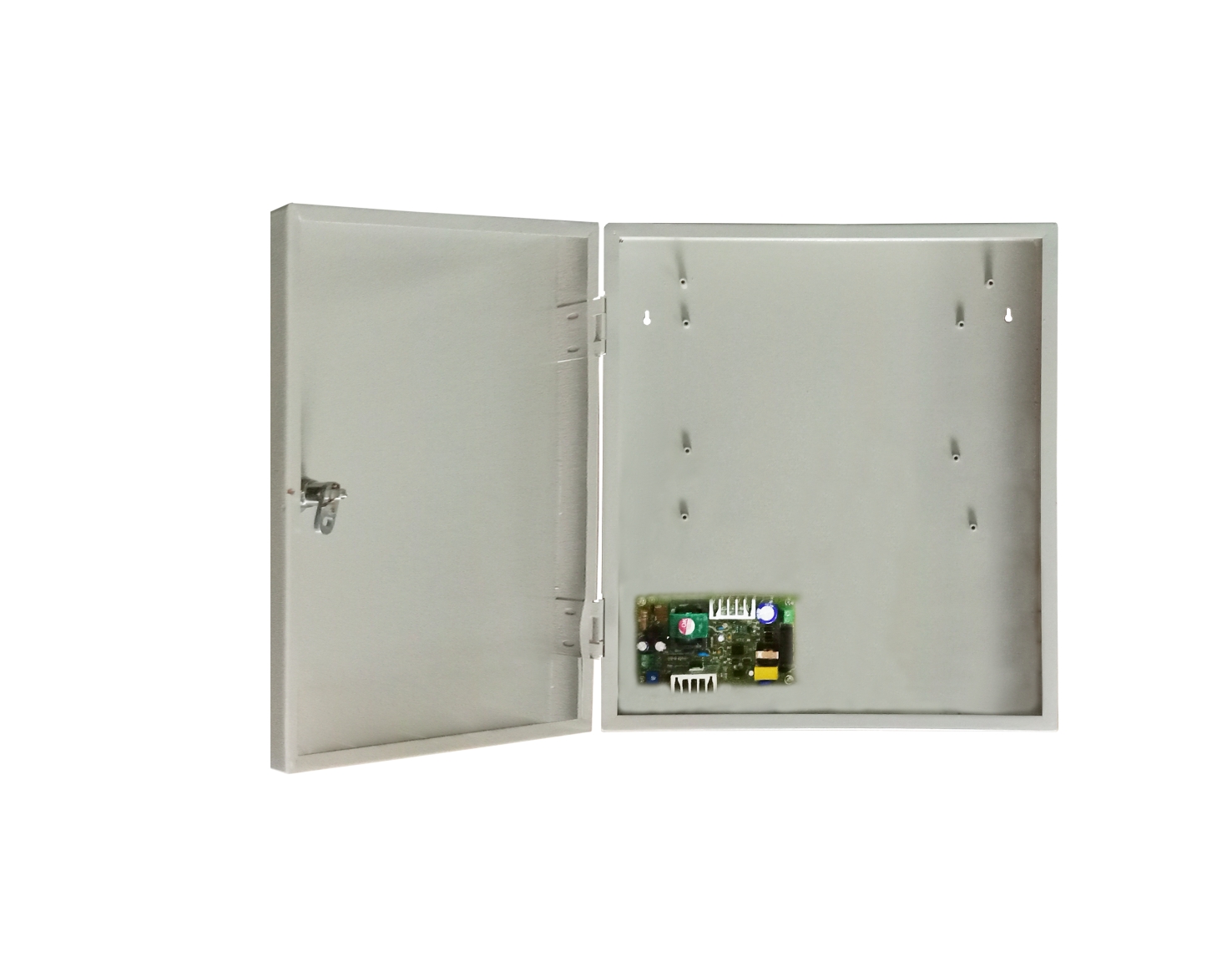

SMPS POWER SUPPLY IN METAL ENCLOSURE
We also have option to attach battery of 7 AH in this. Please confirm before placing the order.
Download Brochure.
As discuss on call, Please find the price as below :
ITEM DESCRIPTION | PRICE | ||
PS0512CPSMSC 12V, 5 Amp. SMPS with rechargeable Circuit. and Battery provision MS Enclosure. |
2346 | ||
PS0512N 12V, 5 Amp. SMPS with MS Box |
1910 | ||
ACCESS CONTROLLER SMPS & ENCLOURE | 2550 |
GST extra.
PS0512CPSMSC
12V, 5 Amps SMPS with rechargeable Circuit and battery provision MS enclosure.
Description
The PS0512CPSMSC is a fully regulated switch mode power supply providing 12 Volts DC at 5 Amps along with the facility of charging the battery for back up. The high frequency action enables it to work smoothly on a very wide AC input Voltage range from 120 to 280 Volts with comparatively low power losses, high efficiency,small size and lesser weight.
TECHNICAL SPECIFICATIONS
Input Voltage | 120-280V AC |
Input Frequency | 45~55Hz |
Output Voltage | 12V DC |
Output Current | 5 Amps. Max |
Charging Current | 500 mAh |
Output Voltage adjustment | +-10% |
Efficiency @ full load & 230 V AC | >85% |
Operating Temperature | 0~55 °C |
Line Regulation | <1% |
Load Regulation | <1% |
Ripple | <50mv p-p |
Isolation Between Input & Output | 3000V AC |
Input & Earth | 1500V AC |
Output & Earth | 1500V AC |
Dimensions: L*W*H | 235*180*72 (size are in mm) |
Weight | 1.330 Kg |
PS0512N
12V, 5 Amps SMPS with MS Box
Description
The PS0512N is a fully regulated switch mode power supply providing 12 Volts DC at 5 Amps. The high frequency action enables it to work smoothly on a very wide AC input Voltage range from 120 to 280 volts with comparatively low power losses, high efficiency small size and lesser weight.
TECHNICAL SPECIFICATIONS
Input Voltage | 120-280V AC |
Input Frequency | 45~55Hz |
Output Voltage | 12V DC |
Output Current | 5 Amps. Max |
Efficiency @ full load & 230 V AC | >85% |
Operating Temperature | 0~55 °C |
Line Regulation | <1% |
Load Regulation | <1% |
Ripple | <50mv p-p |
Isolation Between Input & Output | 3000V AC |
Input & Earth | 1500V AC |
Output & Earth | 1500V AC |
Dimensions: L*W*H | 210*105*52 (size are in mm) |
Weight | 750 gm. |
