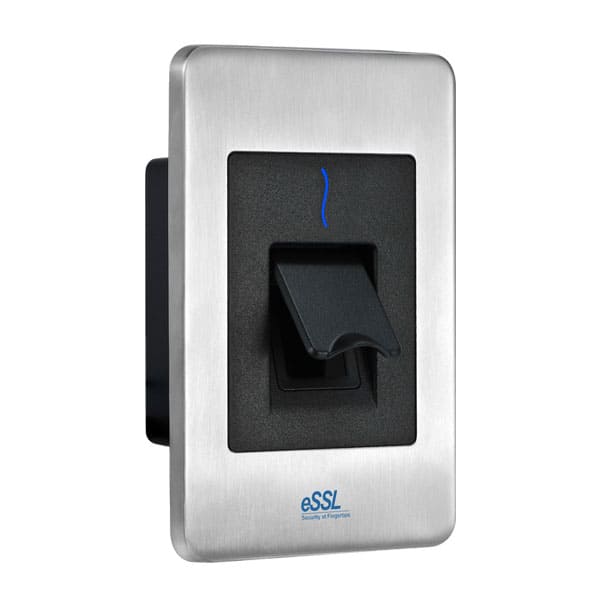

Fingerprint Reader FR1500 Flush-Mounted RS-485

Fingerprint Reader FR1500 Flush-Mounted RS-485



Best Fingerprint Reader

fingerprint reader for X990, F18, ZK Controller InBio 460

Fingerprint Reader FR1500 Flush-Mounted RS-485

Fingerprint Reader FR1500 Flush-Mounted RS-485

Fingerprint Reader FR1500

Features of biometric fingerprint reader FR1500.
Physical Access Control Systems

  • Single gang Standard junction box installation.
  • Flush-Mounted Design for the neat installation.
  • RS-485 Communication Interface.
  • SilkID Fingerprint Sensor and Support Live Finger Detecting.
  • Stainless Steel Front casing.
  • Optional Fingerprint Protective Cover.
FR1500 – Flush-Mounted RS-485 Fingerprint Slave Reader
Additional InfoWorking Temperature-10°C to 45°C
Working Humidity20%-95%
Dimensions121.3X77.3X38mm
CommunicationCommunicationRS485
Power SupplyOperating Voltage12VDC
Stand by mode Power Consumption12V X 60mA=0.72W
Peak Current of Fingerprint Scanning140mA
HardwareSensorSilk ID Sensor
1.0 GHz CPU
Buzzer Prompt
Three-color Indicator Light
CompatibilityinBio/inBioPro Controllers
Standalone Fingerprint Devices
Optional FeaturesOptional125KHz RFID Card
125KHz HID Prox Card
13.56MHz Mifare card(S50 / S70)
13.56MHz HID Iclass Card
  • Single gang Standard junction box installation
  • Flush-Mounted Design for neat installation
  • Silk-ID Fingerprint Sensor
  • RS-485 Communication Interface
  • Stainless Steel Front casing
  • Fingerprint Protective Cover
  • Waterproof

Fingerprint Reader eSSL FR1500 Flush-Mounted RS-485 Brochure

  • Single gang Standard junction box installation
  • Flush-Mounted Design for neat installation
  • SilkID Fingerprint Sensor
  • RS-485 Communication Interface
  • Stainless Steel Front casing
  • Fingerprint Protective Cover
  • Waterproof

Fingerprint Reader eSSL FR1500 Flush-Mounted RS-485 Installation Guide

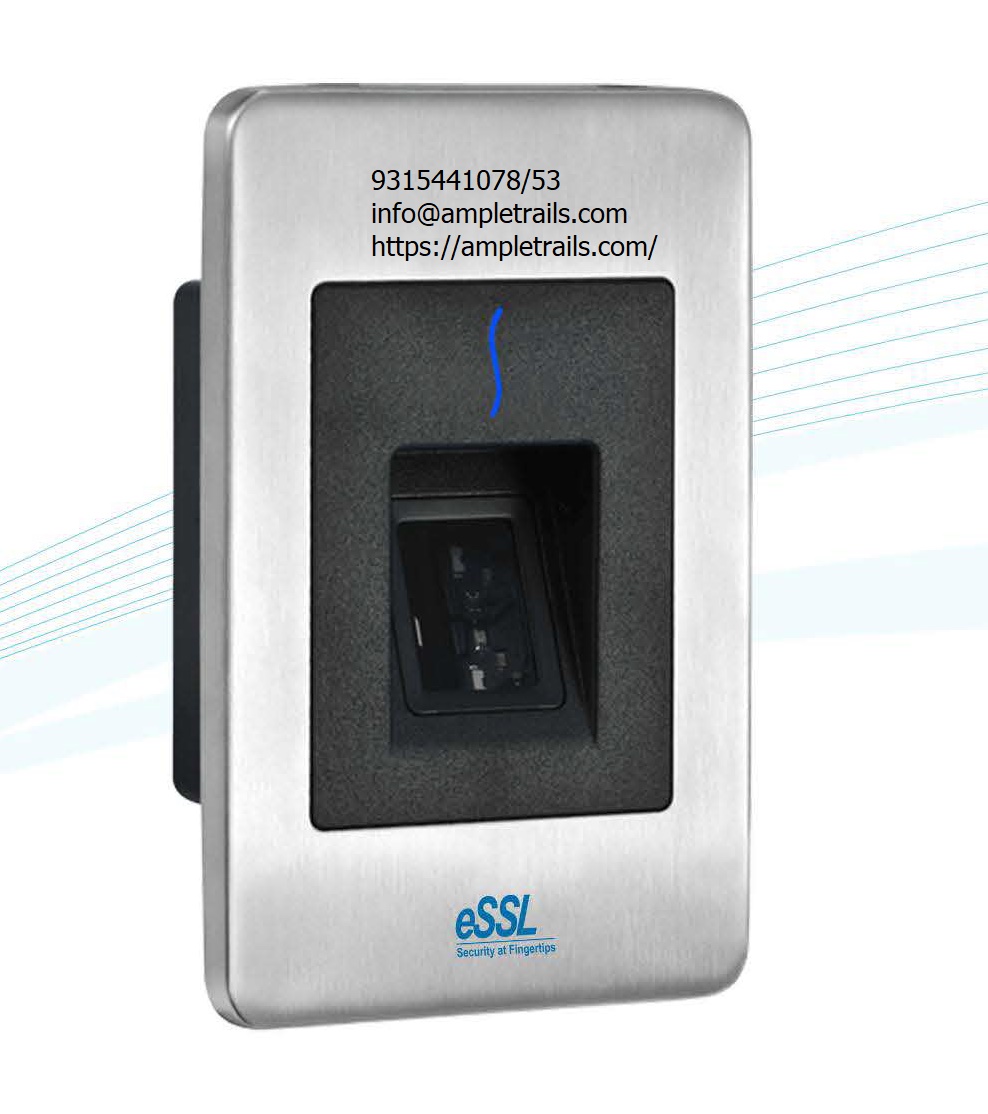

FR1500 eSSL Fingerprint RFID Card Reader Access Control System

FR1500 eSSL Fingerprint RFID Card Reader Access Control System

FR1500 Fingerprint Reader

FR1500 WP RFID Fingerprint Reader

For more information about FR 1500 Fingerprint Reader, call us now at 9315441078 WhatsApp 9315441053, 9818390836. Email us regarding your Physical Access Control requirements at info@ampletrails.com.
