Entrance Control System Flap Barrier FB-TL-2000

Pedestrian management system Flap barrier.(FB-TL-2000)

Flap barrier Gates

BOQ for Physical Access Control System with RFID Cards collector.

FB–TL–2000(Left & Right) for single lane
Access control:- C3-200 (1No) (PCB)
RFID READER :- KR503-E (2Nos)
Card Type :- proxy card
Card collector (1No) P-CC-Collector
Fabrication

Flap barrier FBE2216

While inserting a card, other person will have to wait at least 5-10 seconds to insert the second card.

Before inserting a card, person has to make sure that card must be in dry condition.

Due to wet cards, if the system gets water damage, that will not be covered under warranty.

Due to water, Turnstile might get rusty. In case of rust, the system will not be considered in warranty.

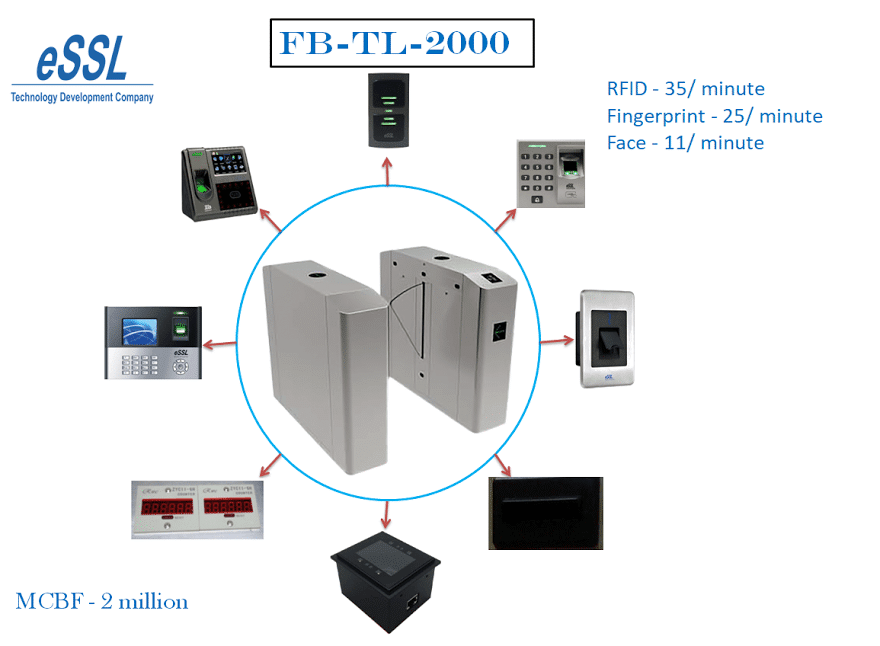

Entrance control system with FB-TL-2000

Entrance Automation Flap Barriers

A flap Barrier is a pedestrian barrier installed in conjunction with any access control system that provides valuable assistance to security personnel at any monitored entrance. AmpleTrails being a leading trader, importer, supplier, and provider of Entrance Automation solutions has come up with superior quality Flap Barriers for entrance automation to secure the inner premises. These Flap Barriers are capable of Single as well as Dual Lane Entry/Exit with Acrylic and Glass LED wings to be used with Card Reader and Finger Print Device for accessing authorized people only. These Flap Barriers/Gates are highly recommendable for entering and exiting in industrial units, offices, corporate houses, shopping malls, banks, hospitals, warehouses, hotels, etc.

Best Entrance Control System

Features of Entrance control system with FB-TL-2000:-

[su_list]

Motorized entrance gates for building interiors
Sophisticated sensor system to prevent unauthorized access
Compatible with card readers, keypads, Finger prints, Bar codes and biometric devices (Optional)
Bidirectional passage – people can pass through the gate one or two ways
Double anti-clipping function, photocell anti-clipping, and mechanical anti-clipping
Inbuild Counter for in and out logs 9 no’s Pass modes (CN,CF,CC,NF,NC,NN,FN,FC,FF)

[/su_list]
C=with authorization (Card, Finger, Face)
N=No Entry
F=Free

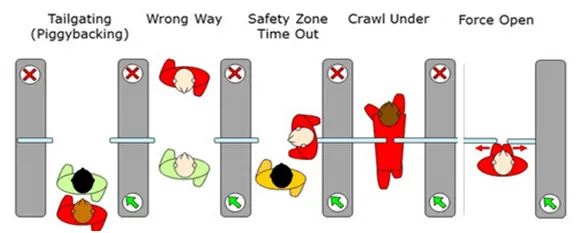

Flap Barrier Terminology – Flap Barrier Fraud

Flap barriers / Flap Gates, Swing Barrier Gates For Entrance / Exit | India
Application:-
1. MNC’s, small offices
2. Factories and Govt. organizations
3. Metros & Shopping malls
4. Gyms

[su_youtube url=”https://youtu.be/b__WPVHYTGI”]

For Further clarification feel Free to Contact in**@*********ls.com 9315441053.

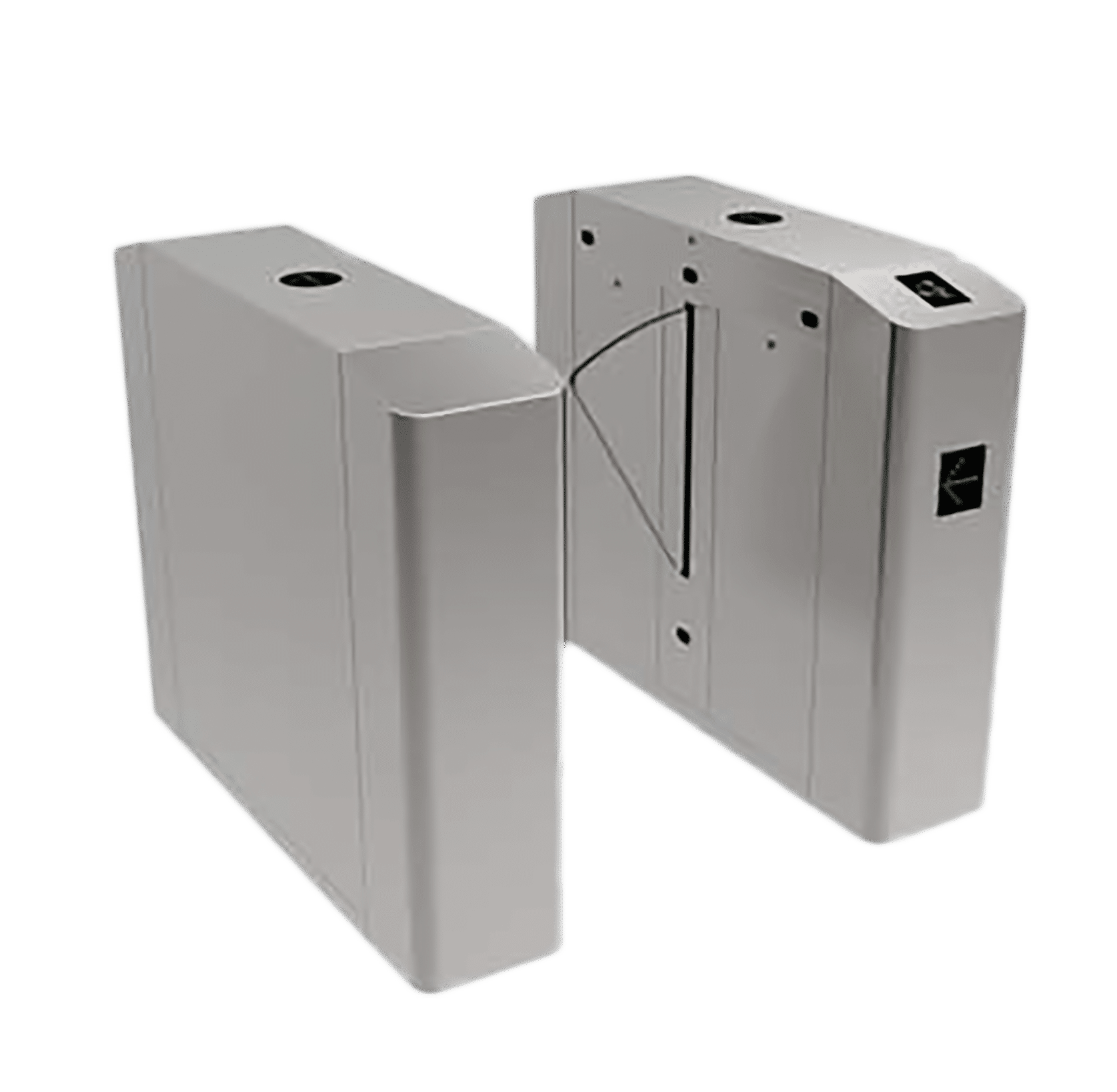

Flap Barrier: FB-TL-2000

Power Requirements: AC100~120V/200~240V, 50/60Hz

Working Temperature: -28°C to 60°C

Working Humidity: 5%~80%

Working Environment: Indoor/outdoor (if sheltered)

RFID: Maximum 35/minute

Fingerprint: Maximum 25/minute

Face: Maximum 11/minute

Vein: Maximum 23/minute

Lane width: 550 mm

Input: Dry Contact

Unlock Time: 0.2 sec

Dimensions (L x W x H): 1200 mm x 280 mm x 980 mm

Net Weight: 100 kg

LED Indicator: Yes

Cabinet Material: SUS304 Stainless Steel

Lid Material: SUS304 Stainless Steel

Barrier Material: Acrylic

Barrier Movement: Retracting

Emergency Mode: Yes

Security Level: Medium

MCBF: 3 million

Motor Specification

Type: DC Motor

Output: 30W

Speed: -1800rpm

Voltage: -24V

Current: -1.7A
