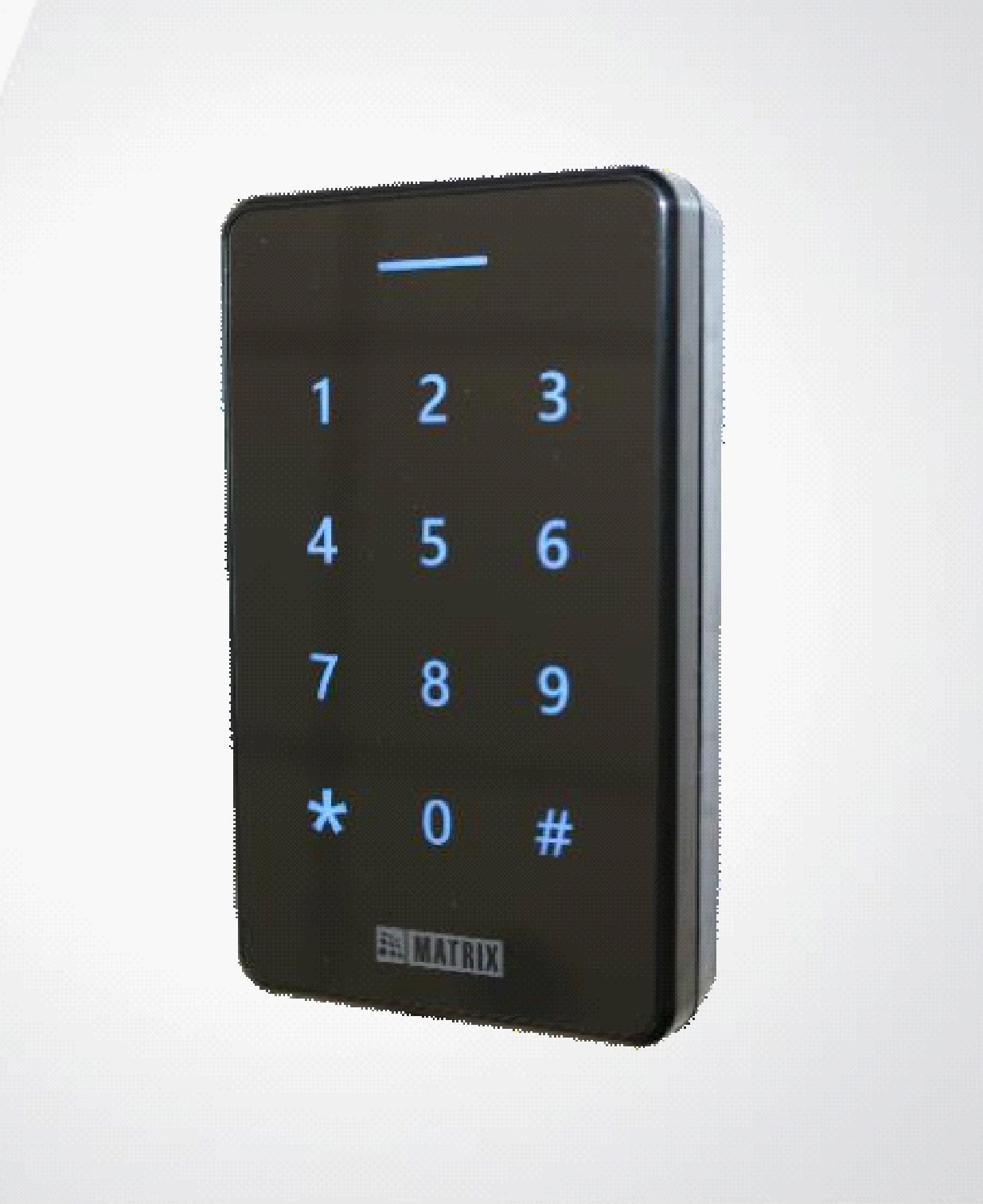

COSEC ATOM RD100K
RFID Card, PIN, and Bluetooth based Reader
RFID Card, PIN and Bluetooth based Reader
| COSEC ATOM RD100K
RFID Card, PIN, and Bluetooth based Reader GENERAL |
|
| Credential Support | BLE, PIN, and Card |
| RF Option | ATOM RD100KM: MIFARE Classic, DESFire EV1 and
EV2(Read/Write) |
| ATOM RD100I: HID iClass Card Support (Read/Write), Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) | |
| COMMUNICATION | |
| Inbuilt Bluetooth | Yes |
| INTERFACE | |
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Weigand | Yes |
| RS – 485 | Yes (Compatible with ARC DC200P) |
| HARDWARE | |
| Dimensions (H X W X D) | 101mm X 60 mm X 19mm |
| Weight | 140grms (0.30 Lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Nordic 32 Bit |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Piezoelectric buzzer) |
| LEDs | Yes (Tri-Color) |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (Ik) | Yes (IK06) |
| Keypad | Yes |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| CERTIFICATES | |
| Certificates | CE, FCC, UL, ROHS, BIS |
