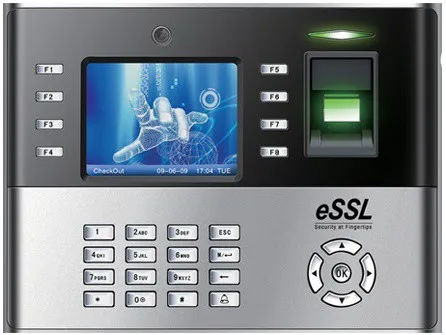

Biometric Attendance Machine eSSL (ICLOCK 990)

Attendance Machine I clock990- Attendance machine with maximum Fingerprint capacity.  I clock 990 is an industrial grade Biometric Time Attendance Machine. One of the best models of biometric time and attendance machine is “I Clock 990”.  This machine does not require any other device for its functioning.  It is a standalone fingerprint Time and Attendance + Access Control system.  It records IN and OUT status of registered users.  It could store 50,000 fingerprint templates and 2,00,0000 transaction records.  It is designed very perfectly and is available at very cheap prices.  Its low cost does not affect its quality and functioning. This machine is very helpful in bringing punctuality to your employees and other staff as it keeps the record of their timings of coming in the side and going outside of the organization.  Attendance machine with the maximum user capacity and storage capacity.  So, don’t wait to call us or write us we are always available for you to provide best solutions.  Call us at 9818390836, 9034757673 or email us at info@ampletrails.com

Fingerprint Time Attendance Machine for Enterprises

Push Data Technology provides the leverage of using a single central-server for multiple locations. It is easy to implement and the maintenance complications are completely waived-off. This technology provides a faster retrieval rate. All the registered data records are directly pushed into the central-server and hence can be easily fetched from the same server when needed. iClock990 is having a big 3.5-inch TFT screen Time Attendance & Access Control Terminal with largest Finger template capacity up to 50,000 Fingerprints. Adopting the new user-friendly firmware and latest core-board, it improves performance, accelerates identification speed and more extendable for various customization requirement. What’s more, the user-friendly interface gives you a new experience.

Fingerprint Attendance System with Access Control

It has standard functions like TCP/IP, USB-host, camera, T9 input. It also has access control interfaces for Wiegand-in, Wiegand-out, Door lock, Alarm and Doorbell.

Iclock990 eSSL Fingerprint Time Attendance Machine for Enterprises

SpecificationsFeatures of iclock 990 esslIclock 990 Datasheet
  • Users: 40,000 Fingerprints
  • Card Capacity: 40,000
  • Transactions: 8,00,000 Logs
  • Sensor: 500 DPI Optical Sensor
  • CPU: 32 bit Microprocessor – 800 MHz
  • Display: 3.5” TFT
  • Identification Speed: <=1 sec
  • FAR: <= 0.0001%
  • FRR: <=1%
  • Communication: RS232, RS485 , TCP/IP
  • USB-host & Client 2.0 Port
  • Function keys: 8
  • Power: 12V DC, 400mA
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 20% – 80%
  • Dimension(W x H x D): 212 x 159 x 45 mm
  • Access Control Interface:
  • Supports Exit Reader: KR 500, KR503, 101HE and F12
  • 50 time zones, 5 groups, 10 time combinations
  • Wiegand I/O: 26 bit
  • Remarkable User Experience
  • Intuitive and stunning UI designed with the
  • most popular and internationalized element
  • Interface operation adopts modularized hierarchical design. Simpler, better and more logical
  • Great user interactivity
  • User validity setting
  • Multi-languages
  • Data backup and retrieve
  • Advanced User ID consisted of letters and numbers
  • Chip encryption for firmware protection
  • Wiegand in and out, door lock, sensor connection, alarm
  • Easy to extend functions and customize customers’ requirements



Iclock990 eSSL Fingerprint Time Attendance Machine for Enterprises

Iclock 990 eSSL Fingerprint Time Attendance Machine for Enterprises

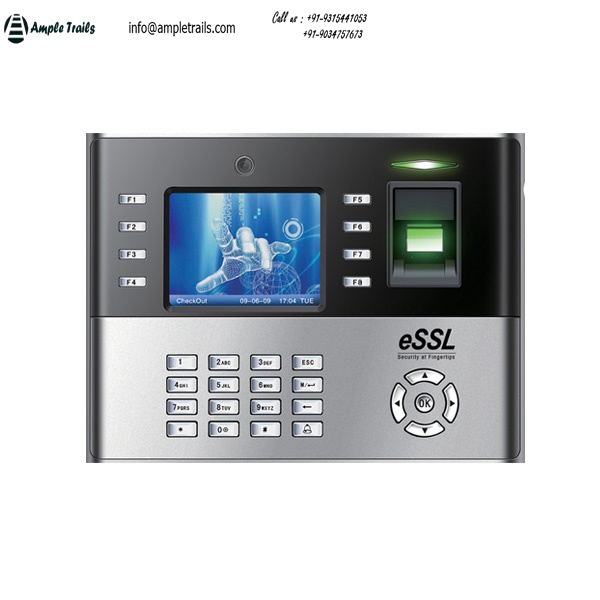

essl Iclock 990 Biometric System

Technical Specification
Storage capacity Users 40,000
Fingerprint Capacity 40,000
Card Storage 40,000
Transaction storage 8,00,000
Card reader Yes
CPU 32 bit Microprocessor
Biometric Fingerprint sensor 500 DPI Optical sensor(Optional Secugen STQC certified sensor)
FAR <=0.0001%
FRR <=1%
Identification speed <1 sec
Algorithm Ver 10
Audio/Visual Display 3.5″ Color TFT
LED Indicator Green/Red
Schedule Bell/Speaker Mini Speaker
Communication Communication TCP/IP, USB, ( Optional : Wifi, GPRS+ GPS)
Push data Inbuilt
Standard features work code,SMS,DLST, Self service query, Status Switch
Power & environment Power Supply DC  12V: 3Amp
Operating Temperature 0oC to 45oC
Operating Humidity 20% – 80%
Dimension 210 x 157 x 40mm
Access control Wiegand In & Out  both 26 or 34 bit (With or without site code)
Relay 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm Yes
Door Sensor Yes
Anti Passback Yes
Door Bell Yes
Exit Readers Support exit readers 101 HE, (Optional FR 1200), Push Button,
Optional Battery yes
Card readers Yes
Communication WiFi/GPRS
Card Type Mifare/HID Prox
Compatibility Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Support External Printer (Optional)
Compatible Software and SDK etime track lite desktop & web
SDK for desktop applications
Web based Device Manager/ePush server using Push data. Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications
Majorr Applications Time & Attendance , Canteen management, School attedance,
Production Management, Gym & clubs
