RFID Based Automated Parking Gate Solution

RFID Based Automated Parking Gate Solution

Automatic Boom Barrier Manufacturers, Suppliers

RFID Based Automated Parking Gate Solution

RFID Based Automated Parking Gate Solution RFID Based Automated Parking Gate Solution

Types of boom barrier

  • Semi-Automatic
  • Automatic
  • Manual.

Key features of RFID Based Automated Parking Gate Solution :

  • Maximum length of boom: 6m (Optional 3m/4m)
  • Arm Material: Aluminium
  • Input Interface for Photocell, Air Switch, Loop detector
  • Optional Interface: Access control panel, Standalone Access Control, Control button (Eg: X990)
  • Remote Control: Up to 25 meters
  • Mode: Automatic/Manual
  • Designed for heavy-duty operation
  • The Boom arms of different length allow traffic barrier to meet any particular requirement
  • Easy to operate through push button/ Remote control
  • PB100 can be easily integrated with C3 200 (Card based access control) & in bio 260 (Card & Finger)
  • It is suited for applications requiring high volume access and medium levels of security.

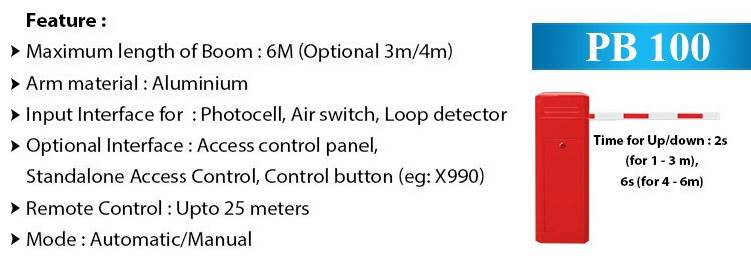

Features of RFID Based Automated Parking Gate Solution

Features of RFID Based Automated Parking Gate Solution

Parking Management system with BOOM BARRIER-PB100

With enriched industrial experience and knowledge, we are involved in offering a wide range of Boom Barrier in the market. Offered boom barrier is a parking management system provides security at the exit and the entry point of factories, office complexes, condominiums, parking lots where medium to heavy traffic is expected.



MODEL NO. OPENING &CLOSING TIME BOOM ARM LENGTH CABINET MATERIAL
PB100 2-6sec 3.8M to 6M Power coated steel

IP 54

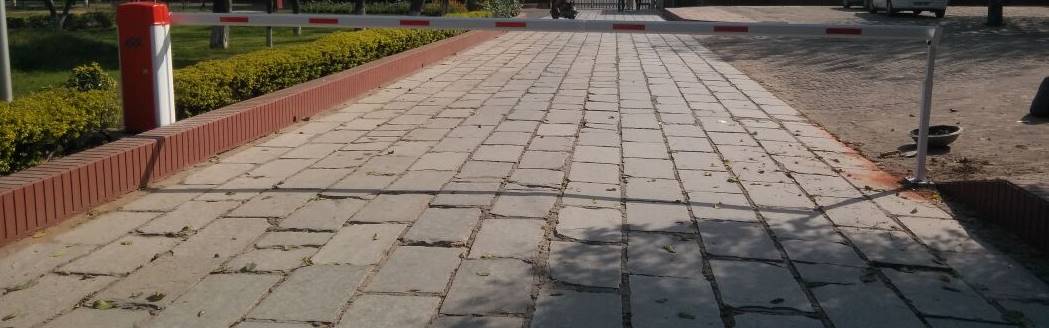

Boom Barrier Supplier India

Boom Barrier Supplier India

Modes of Operation:-
1. Manually using Button
2. Using IR Sensor Auto closing (optional)
3. Fully automatic (optional)
4. Using X990 (optional)
5. Using UHF (optional)
6. Anti-collision with bounce back (optional)

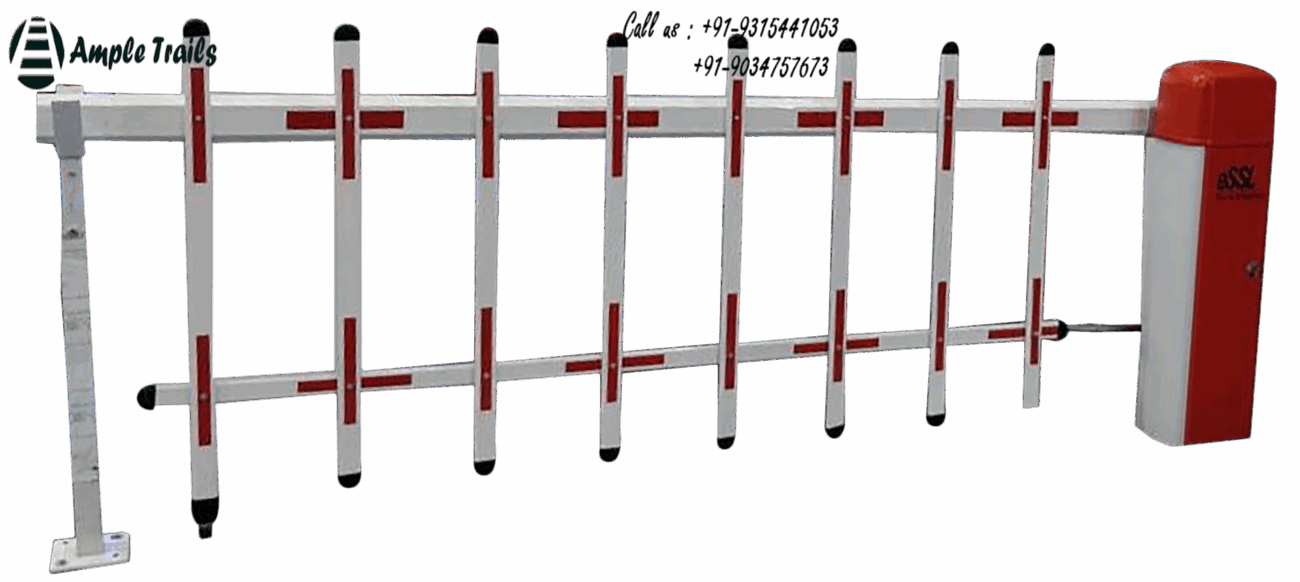

7. Fencing (optional)

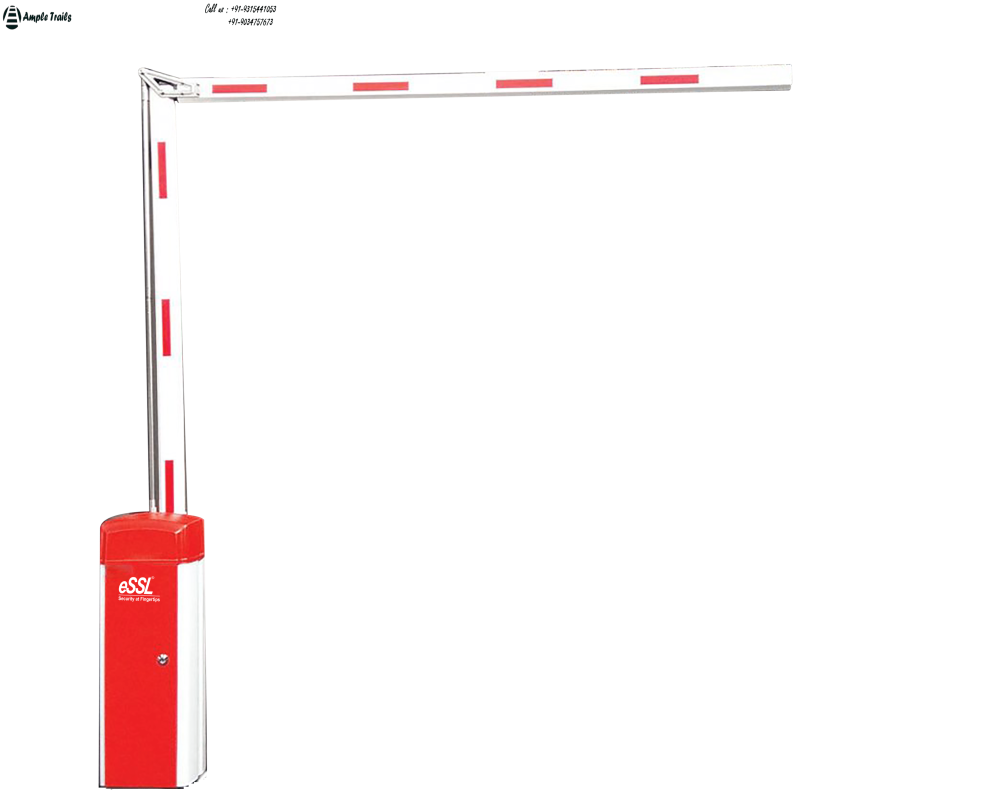

8. Bending (optional)

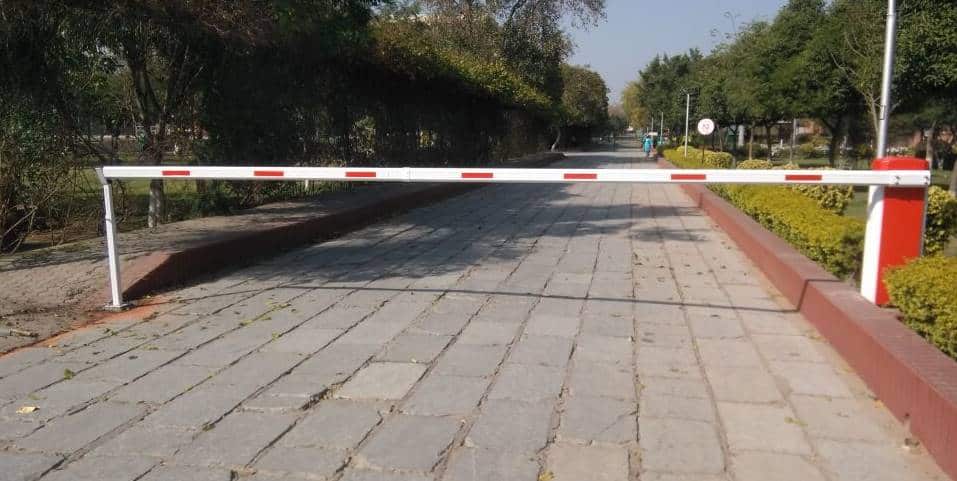

Boom Barrier Manual

Boom Barrier Manual

Features:-
1. Powder coated stainless steel (IP54).
2. Operation in manually and automatic.
3. Automatic operation using Photosensor.
4. It has extendable telescopic boom
5. Dual speed of barrier ensures opening & closing of the barrier with soft landing
6. Motor crank to lift the boom in the case of power failure
7. Easy to operate through push button/ remote control system/magnetic loop detector
8. DIP switch operation (Using dip switch we can go for auto-closing option & we can connect LED also)

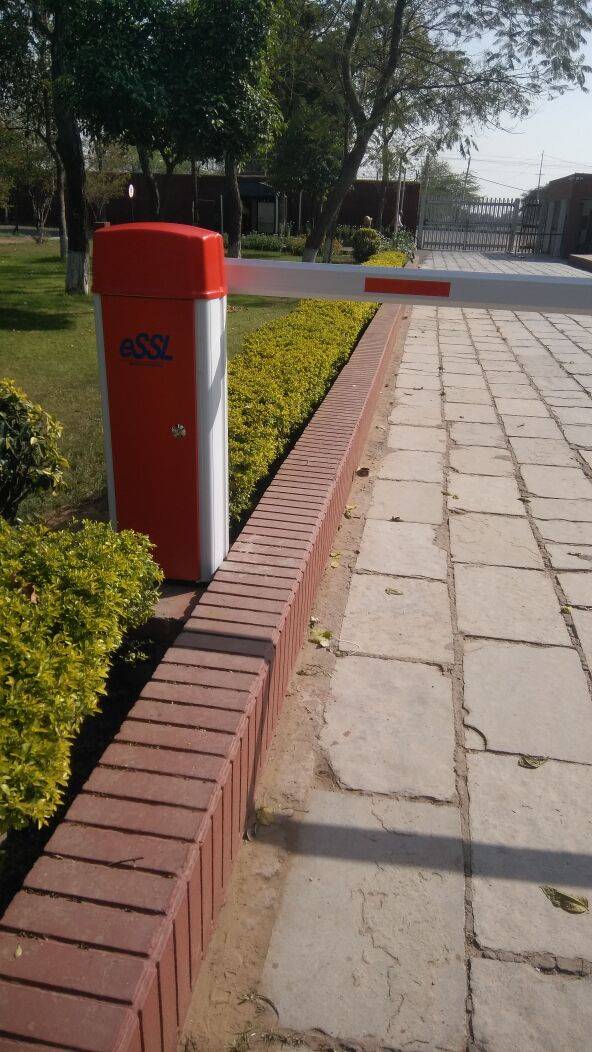

eSSL Boom Barrier

eSSL Boom Barrier

With enriched industrial experience and knowledge, we are involved in offering a wide range of Boom Barrier in the market. Offered boom barrier is a parking management system provides security at the exit and the entry point of factories, office complexes, condominiums, parking lots where medium to heavy traffic is expected. You can contact us if you are looking for Automatic Boom Barrier Manufacturers, suppliers.

Boom Barrier

Boom Barrier



MODEL NO. OPENING &CLOSING TIME BOOM ARM LENGTH CABINET MATERIAL
PB100 2-6sec 3.8M to 6M Power coated steel

IP 54

boom barrier specification
Basic Maximum length of Boom 5.8 up to 8m
Arm material Aluminium
Boom Rest Stand Yes
Boom Barrier Time for Up/down 8sec
Input control signal Dry Contact
Ingress protection Degree IP54
Features Input Interface for 1.  Photocell
2. Air switch
3. Loop detector(Optional)
Output interface for Lamp (Optional)
Optional Interface Access control panel,
Standalone Access Control, Control button (eg: X990)
Remote Control Upto 25 meters
Mode Automatic/Manual
Incorporated control panel with 3 push buttons (stop/up/Down) to control the motor
Bumping bounce back Yes
Auto closing time 1 – 80s
General Specification SMPS – Input AC 220V / 110V,  50Hz / 60Hz
Motor power 90W, 220V AC
Dimension(mm) 268 X 348 X 1050
Operating Temprature -20oC to +50oC

Modes of Operation:-

  1. Manually using Button
  2. Using IR Sensor Auto closing (optional)
  3. Fully automatic (optional)
  4. Using X990 (optional)
  5. Using UHF (optional)
  6. Anti collision with bounce back (optional)
  7. Fencing (optional)
  8. Bending (optional)

Low Cost Attendance and access control

Features:-

  1. Powder coated stainless steel (IP54).
  2. Operation in manually and automatic.
  3. Automatic operation using Photosensor.
  4. It has extendable telescopic boom
  5. Dual speed of barrier ensures opening & closing of the barrier with soft landing
  6. Motor crank to lift the boom in the case of power failure
  7. Easy to operate through push button/ remote control system/magnetic loop detector
  8. DIP switch operation (Using dip switch we can go for auto-closing option & we can connect LED also)
PB100:  Parking Barrier Automated Boom Gate
Basic Maximum length of Boom 6M (Optional 3m/4m)
Arm material Aluminium
Boom Rest Stand Yes
Boom Barrier Time for Up/down 2s (for 1 – 3 m), 6s (for 4 – 6m)
Input control signal Dry Contact
Ingress protection Degree IP54
Features Input Interface for 1.  Photocell
2. Air switch
3. Loop detector(Optional)
Output interface for Lamp (Optional)
Optional Interface Access control panel,
Standalone Access Control, Control button (eg: X990)
Remote Control Upto 25 meters
Mode Automatic/Manual
Incorporated control panel with 3 push buttons (stop/up/Down) to control the motor
Bumping bounce back (Optional) Yes
Auto closing time 1 – 80s
General Specification SMPS – Input AC 220V / 110V,  50Hz / 60Hz
Motor power 90W, 220V AC
Dimension(mm) 268 X 348 X 1050
Operating Temperature -20oC to +50oC

Boom barriers are used to regulating traffic manage access control, or impose high security and they are typically found at level crossings, parking place,
Checkpoints, drawbridges, and entrance to restricted areas. eSSL PB100 boom barrier utilizes reliable electromechanical Machinery to guarantee satisfaction in quality & stability. It is suited for applications requiring high volume access & medium levels of security. Our parking entry systems offer high-security features, privacy & traffic control.

We offer an array of parking gate barriers to look after all your parking. We are the biggest suppliers of boom barrier suppliers. Boom Barriers offer efficient security at the entry and exit points of factories, office complexes, condominiums, parking lots, toll tax plazas. We are offering boom barrier, which is designed using optimum quality material and advanced machines. Leading Supplier of Boom barrier. We have the wide range of products inquiry now. We provide fast installation. We offer the widest range of automatic boom barriers.

Automatic Boom Barriers PDF Brochures

Boom Barrier Price

Email us at info@ampletrails.com or call us at 9315441053, 9818390836 for boom barrier price.
