Access Control Multi door AC C3-400 access systems are built on flexibility, and open technology to provide management, real-time monitoring, and control of your access control system. Essl 4 door controller model number is C3-400.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location.

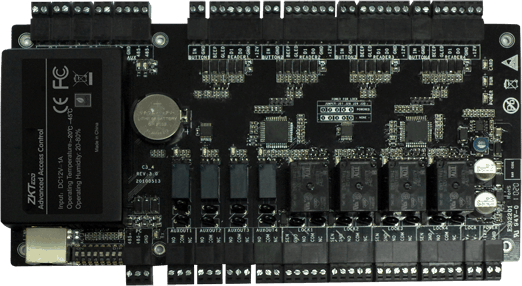

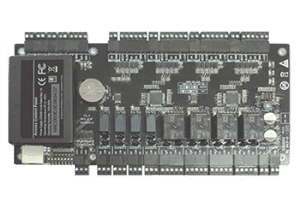

IP-based Door Access Control Panel C3-400
- C3-400’s versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-400 can communicate at 38.4kbps via RS485 configuration or Ethernet TCP/IP networks.
- It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

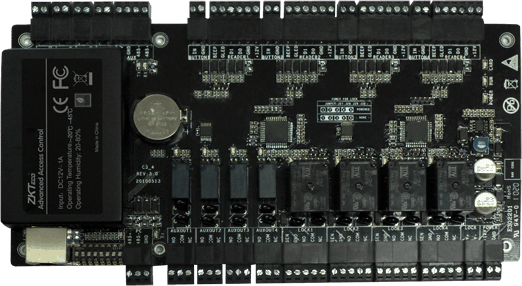

4 door controller access control system
Access control systems are very important no matter it’s a small, medium to large-sized business. These can be used to grant access to multiple doors. There are standalone systems as well as multi-door access control systems. This surveillance system help in maintaining high-end security.
- User Capacity: 30,000
- Event Buffer: 1,00,000
- CPU: 32bit MIPS CPU
- RAM: 32 MB
- Flash Memory: 256 MB
- Power/Current: DC 9.6V – 14.4V, Rated Max. 1A
- Communication: RS485, TCP/IP
- LED Indicator: Yes, LED indication for communication,
- power status and punch card
- Baud rate: 38400 BPS (Recommended),
- 9600 BPS, I9200 BPS (Selectable)
- Operating Temperature: 0°C – 45°C
- Operating Humidity: 10% – 80%
- Dimension(mm): 218(W) x 106(H) Single board)
- 345(W) x 275(H) x 70(D) (With power supply and metal box)
- Support: Proximity / Mifare / HID Readers
- Weigand Readers – 4
- RS 485 Readers – 8
- 256 time zones, 256 access levels
- Anti-passback function
- Interlock function, Linkage function
- Multi-card opening function, Remote door opening and closing
- Real-Time monitoring via web browser
- Video server integration
- 4 auxiliary input may be connected to infrared body detectors, fire alarms, smoke detectors etc
- 4 auxiliary output may be connected to alarms, cameras, door bells etc

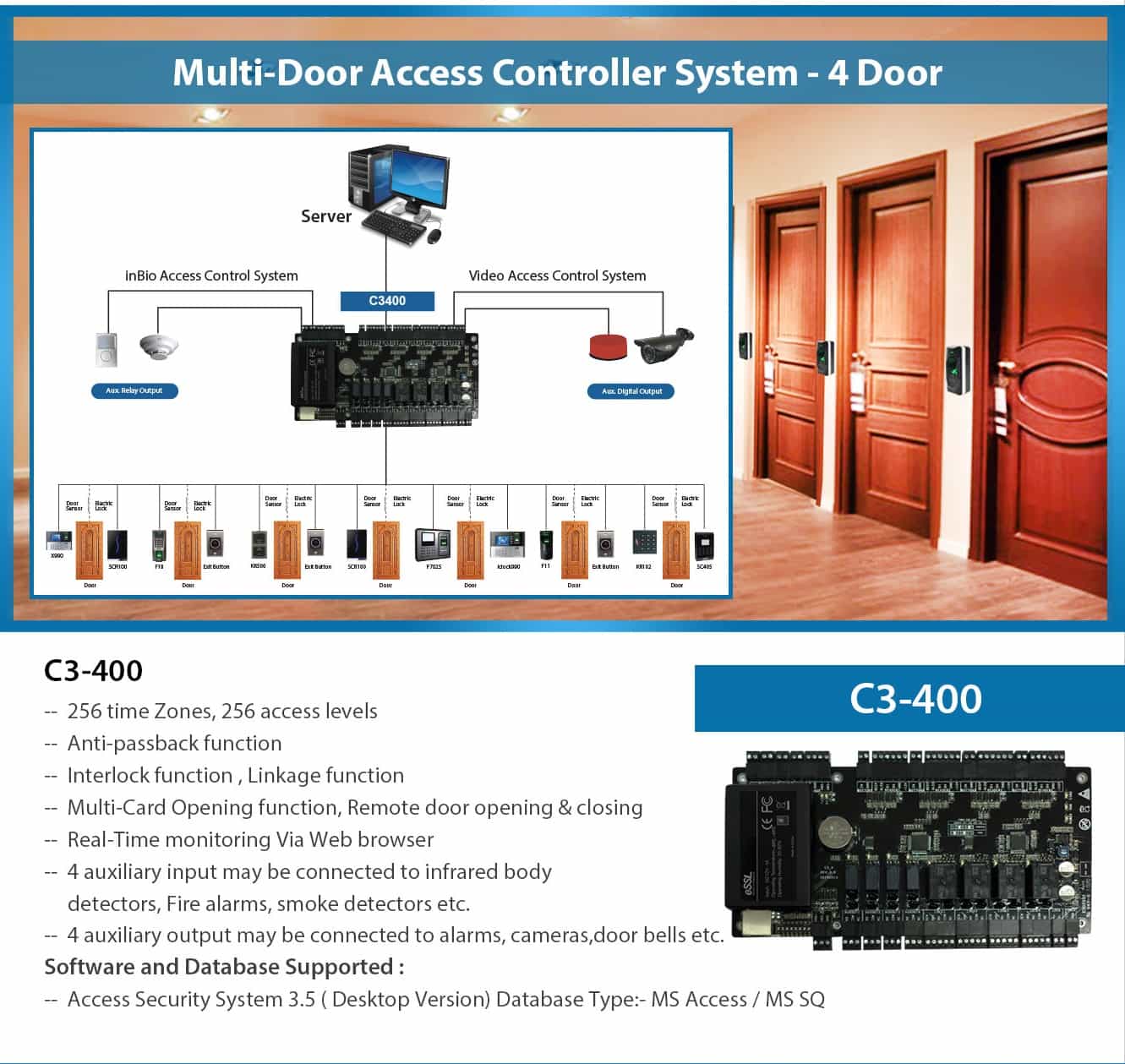

Multi- Door Access Controller System – 4 Doors C3-400
- –256 time Zones, 256 access levels
- –Anti-passback function
- –Interlock function, Linkage function
- –Multi-Card Opening function, Remote door opening & closing
- –Real-Time monitoring Via Web browser
- –4 auxiliary inputs may be connected to infrared body detectors, Fire alarms, smoke detectors etc.
- –4 auxiliary output may be connected to alarms, cameras, doorbell etc.
- Software and Database supported:
- –Access Security System 3.5 ( Desktop Version) Database Type:- MS Access / MS SQL

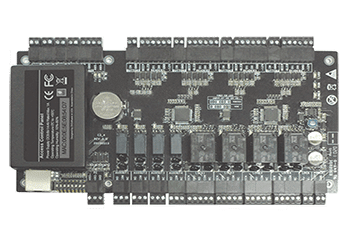

Specifications of eSSL Multi Door Controller
- Users : 30,000
- Event Buffer : 1,00,000 transactions
- Number of Readers Supported : 4
- Number of Inputs : 12 (4 Exit Device, 4 Door Status, 4 AUX)
- Number of Output: 8 (4 – Form C Relay for Lock and 4 – Form C Relay For AUX Output)
- Communication : RS485 / TCP/IP
- Indicator : Communication, Power, Status and Prox Card
- Operating Temperature : 32-113 F (0-45 C)
- Operating Humidity : 20% to 80%
- Power Supply : 12V DC 1.5A
