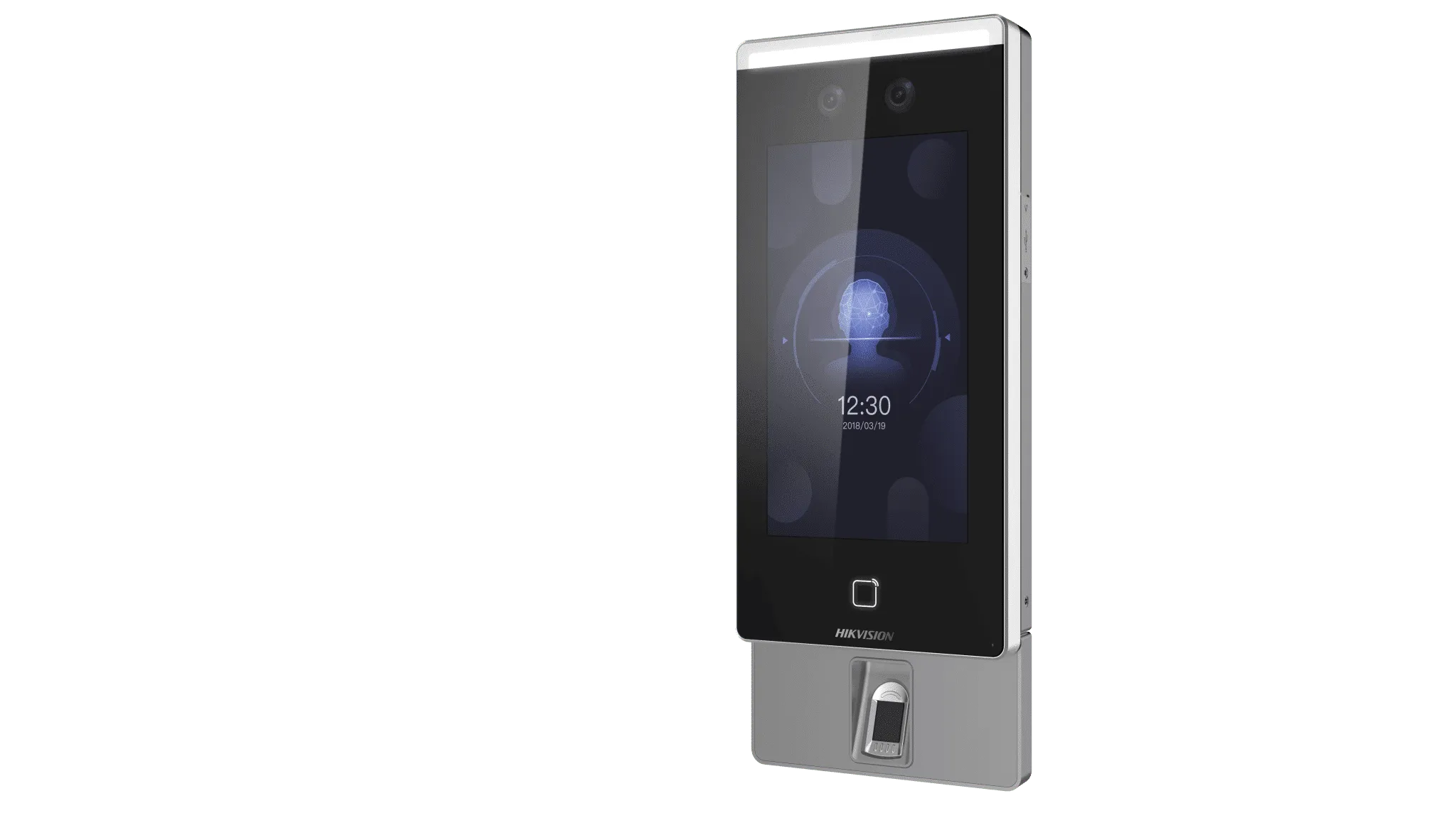

Ultra Series Wall-Mounted Face Recognition Terminal DS-K1T607TEF

Ultra Series Wall-Mounted Face Recognition Terminal DS-K1T607TEF

Ultra Series Wall-Mounted Face Recognition Terminal

Supports Vanadium Oxide uncooled sensor to measure target’s temperature ● Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C without black body calibration ● Recognition distance: 0.3 to 2 m ● Fast temperature measurement mode: Detects face and takes skin-surface temperature without identity authentication. ● Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc. ● Face mask wearing alert If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid. ● Forced mask wearing alert If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed. ● Displays temperature measurement results on the authentication page ● Triggers voice prompt when detecting fever ● Configurable door status (open/close) when detecting fever ● Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software ● Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99% ● 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity ● Suggested height for face recognition: between 1.4 m and 1.9 m ● Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out. Watchdog design and tamper function ● Audio prompt for authentication result ● NTP, manually time synchronization, and auto synchronization ● Connects to external access controller or Wiegand card reader via Wiegand protocol ● Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed ● Imports and export data to the device from the client software * Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.

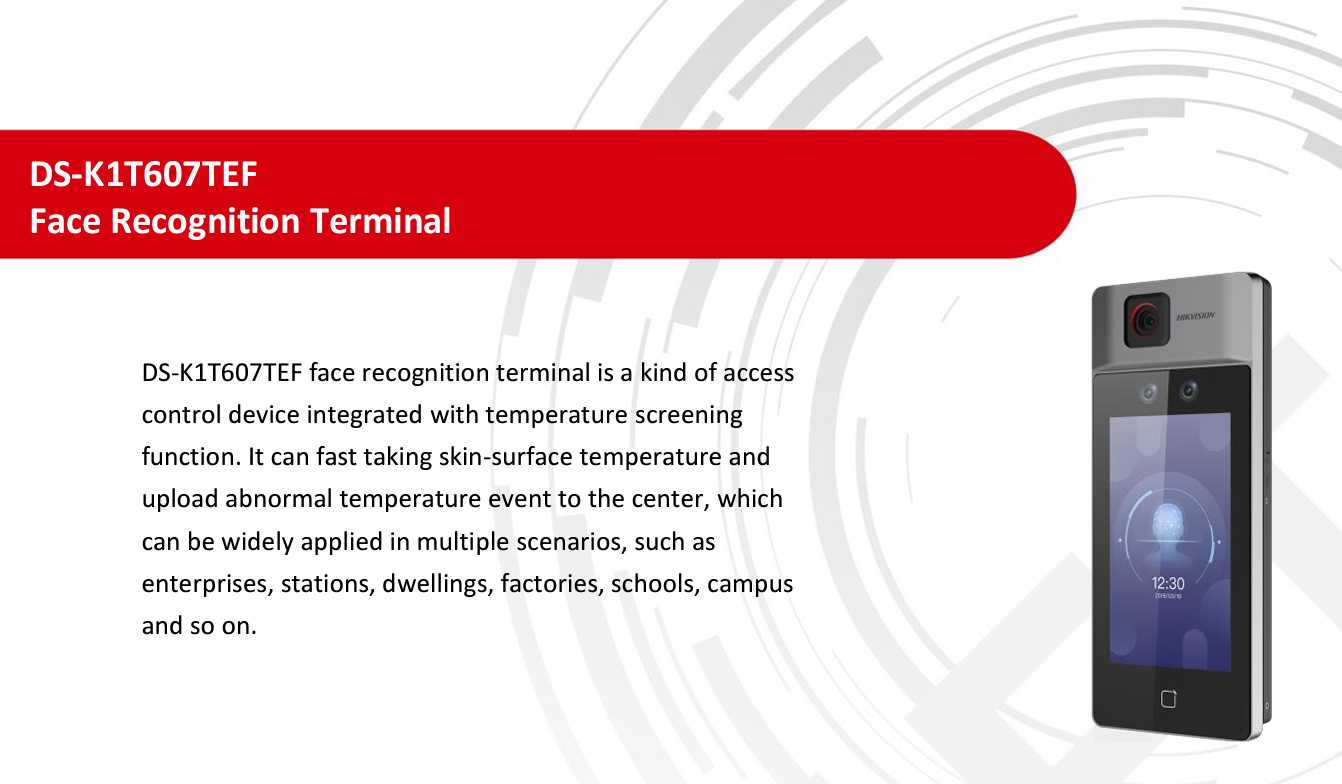

DS-K1T607TEF face recognition terminal is a kind of access control device integrated with temperature screening function. It can fast taking skin-surface temperature and upload abnormal temperature event to the center, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on.

• Face recognition terminal
• 7-inch touch screen, 2 Mega pixel wide-angle lens
• Built-in card reader for EM card
• Deep learning algorithm
• 20,000 faces, 50,000 cards, 5,000 fingerprints, 50,000 events storage
• TCP/IP communication, IP65
• Anti-spoofing detection
• Face recognition in dark environment
• Multiple time attendance status
• Face Recognition Accuracy Rate > 99%
• Face Recognition Duration(1:N) ≤ 0.5s
• Face Recognition Distance: 0.3m ~ 1.5m

• System Parameters
• Camera2 MP dual-lens camera, with IR supplement light, WDR
• 1:N Face Recognition Duration＜ 0.5 s per person
• Face Picture Capacity20,000
• Event Capacity50,000

• General
• Fingerprint Capacity5000
• Card Reading Response Duration＜ 1 s
• Card Reading ModeEM card
• Card Reading Distance0 to 3 cm
• Wi-FiNot support
• Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity0 to 90% (No condensing)
• Protection LevelIP65
• Tamper-ProofSupport

• General
• Operation SystemLinux
• Card Capacity50,000

Call on 9315441078 to place the order.
