UHF Reader

eSSL UHF Reader

[su_highlight]Features of UHF Reader[/su_highlight]
[su_list]

• Read range up to 12 meters (adjustable)
• Read Sensitivity: Line polarization read mode
• Wiegand 34-Bit (Can change to 26-Bit via software)
• Comes with the mounting plate
• Weatherproof (IP66)
• Two working mode: Trigger read & Always read
• Maximum Cable Distance: 100m
• Multiple label recognition

[/su_list]

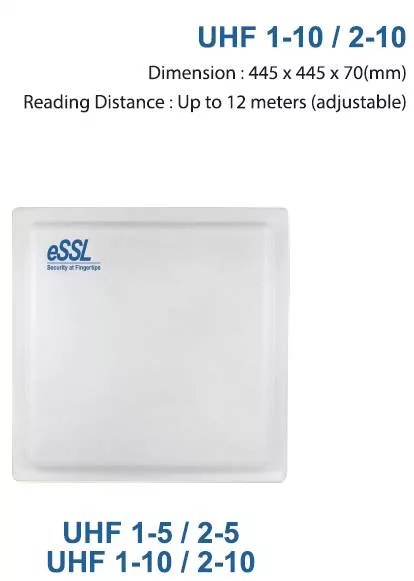

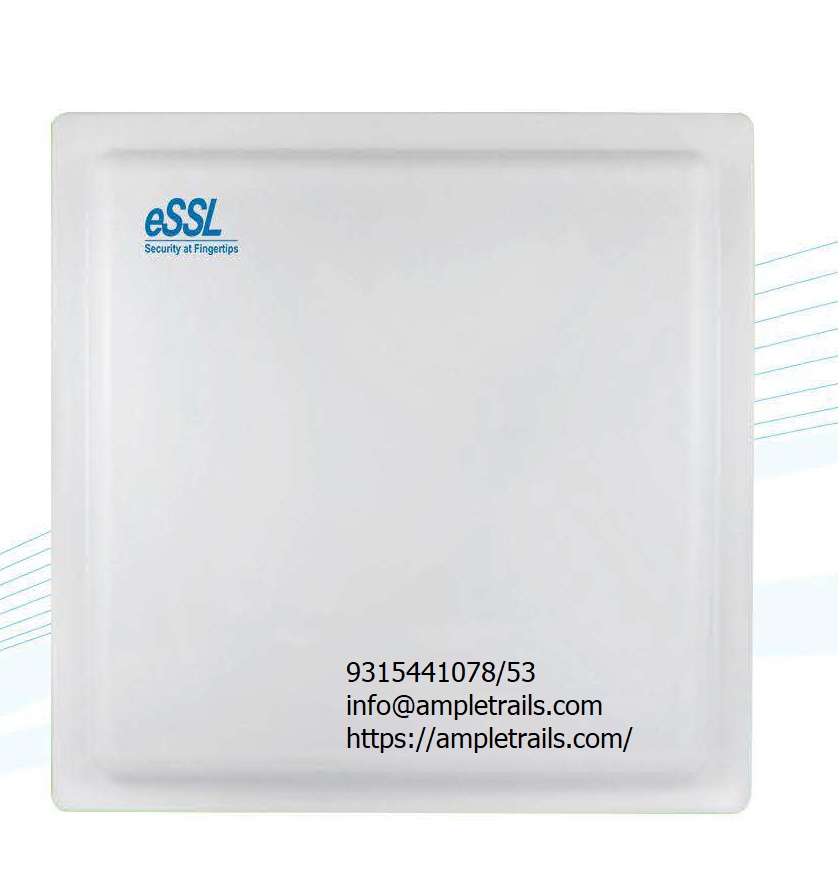

eSSL UHF Reader Long Range Reader

[su_list]

• Dimension 445 x 445 x 70(mm)
• Reading Distance Up to 12 meters (adjustable)
• Communication Interface Wiegand 34(Default) / Wiegand 26, USB
• Frequency 902Mhz–928Mhz, 865MHz–868MHz
• Shell Material Die-casting aluminum shell, Antenna panel with engineering plastics
• Voltage 9~12V DC
• Temperature -20°C to 60°C
• Interface Protocol EPC global UHF Class 1Gen 2/ISO 18000-6c
• Multiple Tags Identification >50
• Multiple Tags Identification Speed >50 Per second
• Working Mode Always read/Trigger read
• I/O Interface Supports external trigger
• Maximum power consumption <3W (RF output 26dBm,multiple tags)
• <2W (RF output 26dBm,Sigle tags)

[/su_list]

[su_document url=”https://ampletrails.com/wp-content//uploads/2017/12/UHF-Reader.pdf” width=”1000″ height=”1600″]

UHF1-10_2-10 eSSL UHF Reader Long Range Reader
