SF-300 IP Based Fingerprint Access Control Time Attendance

Technical Specifications SF-300 IP Based Fingerprint Access Control Time Attendance

Small Size Biometric Fingerprint Access Control System Touch Screen

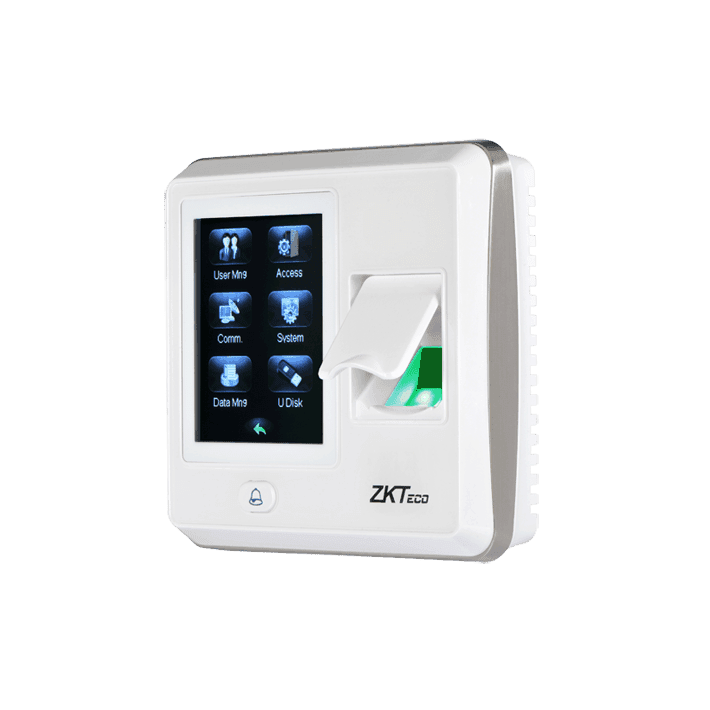

SF-300 IP Based Fingerprint Access Control & Time Attendance

SF-300 IP Based Fingerprint Access Control & Time Attendance

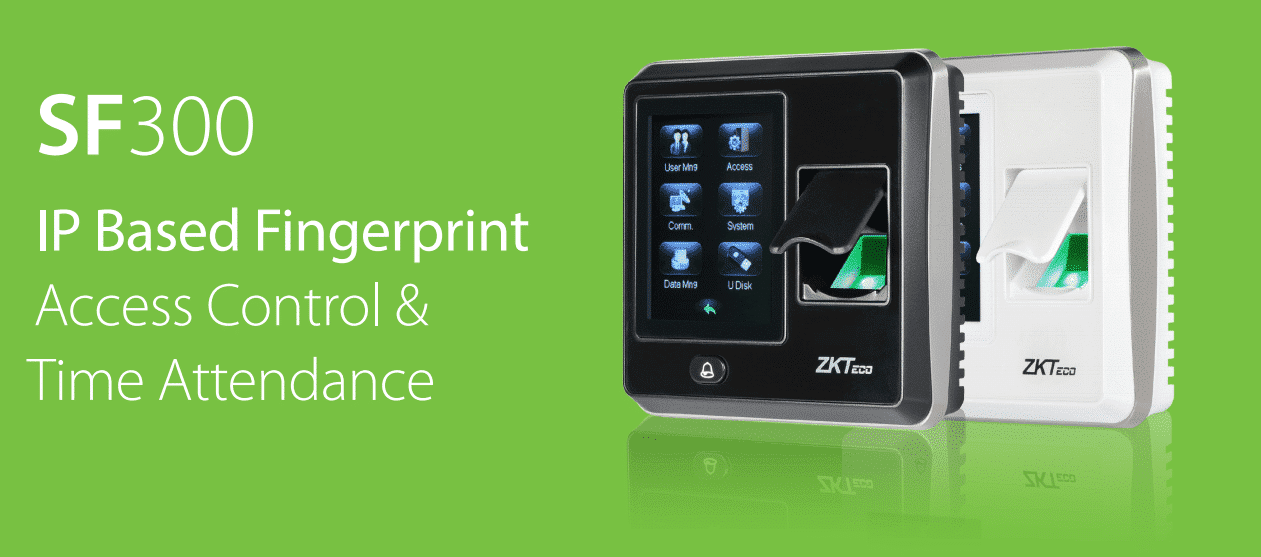

The SF300 is an IP based fingerprint terminal, which operates in both network mode and standalone mode. it can connect with ZKAccess3.5, eSSL Smart Office software for access control and time attendance management.

Fingerprint Time Attendance System & Biometric access control

Time Attendance Solutions

Time Attendance Solutions

Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, Wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.

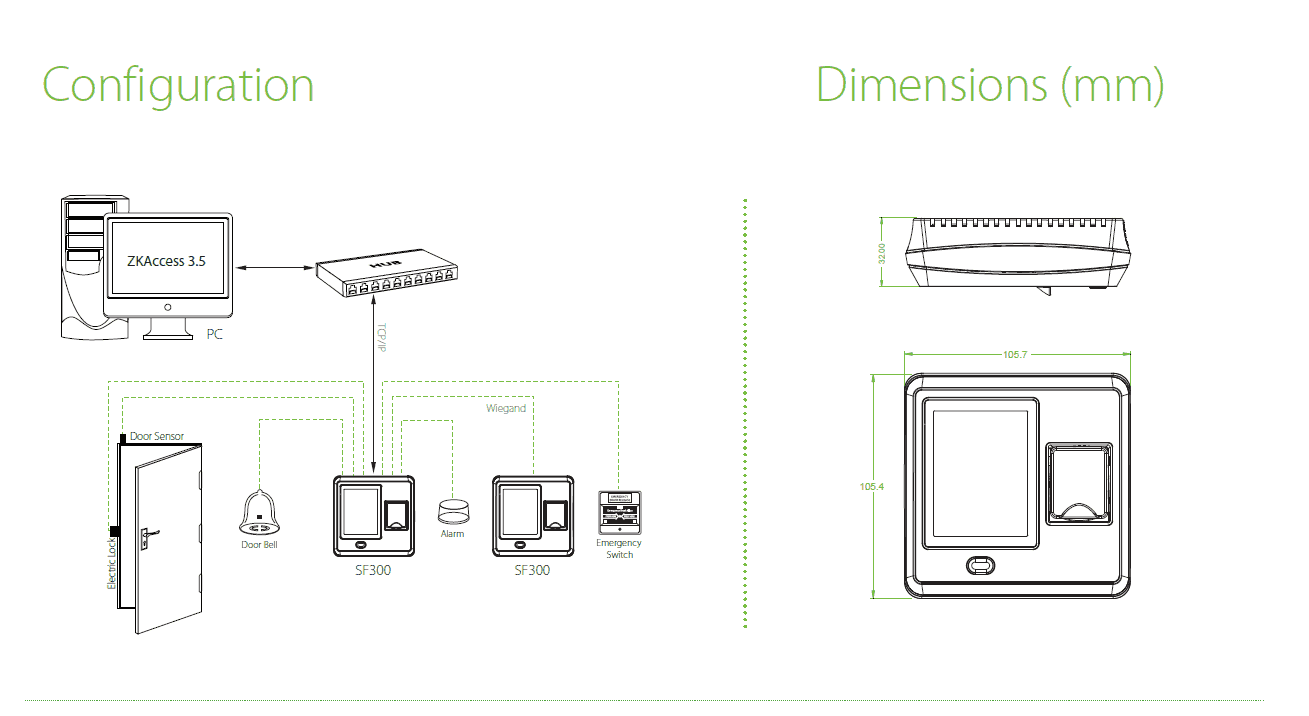

Configuration Dimensions of ZKTeco SF 300

Configuration Dimensions of ZKTeco SF 300

Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

Specifications of Small Size Biometric Fingerprint Access Control System Touch Screen

  • Fingerprint Capacity: 1,500
  • Card Capacity (Optional) : 5,000 (EM/Mifare)
  • Record Capacity : 80,000
  • LCD : 2.4-inch TFT (320 x 240) Color Screen
  • Communication: TCP/IP, RS485, USB Host
  • Power Supply: DC 12V 3A
  • Operating Temperature : 0 ~ 45°C (32°~113°F)
  • Operating Humidity: 20 ~ 80%
  • Fingerprint Sensor: ZK Optical Sensor (500DPI)
  • Algorithm Version: ZKFinger VX10.0

Features of Small Size Biometric Fingerprint Access Control System Touch Screen

Technical Specifications

Model

SF300

LCD

2.8-inch resistive touchscreen

Fingerprint Sensor

ZK Optical Sensor (500DPI)

Algorithm Version

ZKFinger VX10.0

Communication

TCP/IP, RS485, USB Host

Fingerprint Capacity

1,500

Card Capacity (Optional)

5,000 (EM/Mifare)

Records Capacity

80,000

Access Control Interface

Electric lock, Door sensor, Alarm, Exit button, Door Bell

Wiegand Signal

Wiegand input & output

Aux. Input

1ea for linkage function

Power Supply

DC 12V/3A

Operating Temperature

0 ~ 45°C (32°~113°F)

Operating Humidity

20 ~ 80%

Dimension(L x W x H)

105 x 105 x 32mm

  • • 2.8-inch touch screen, color display with graphical UI for easy operation
  • • Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
  • • Prompt audio acceptance or rejection signals for valid or invalid fingers
  • • Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
  • • TCP/IP or RS485 communication for various networking environments
  • • Supports USB flash drive for offline data management
  • • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • • Up to 15 multi-verification methods to enhance security level
  • • Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
  • • Duress Alarm offers effective protection against duress by threats
  • • Tamper-proof switch and multiple alarm outputs
  • • Multi-languages display available on quest

Fingerprint Access Control Time Attendance

Fingerprint Access Control Time Attendance

Fingerprint Access Control Time Attendance

Email us at info@ampletrails.com or call us at 9818390836 for pricing and installation of this machine. Fill the following form to get in touch with one of our experts to buy ZKTeco SF 300 IP Based Fingerprint Access Control & Time Attendance,
