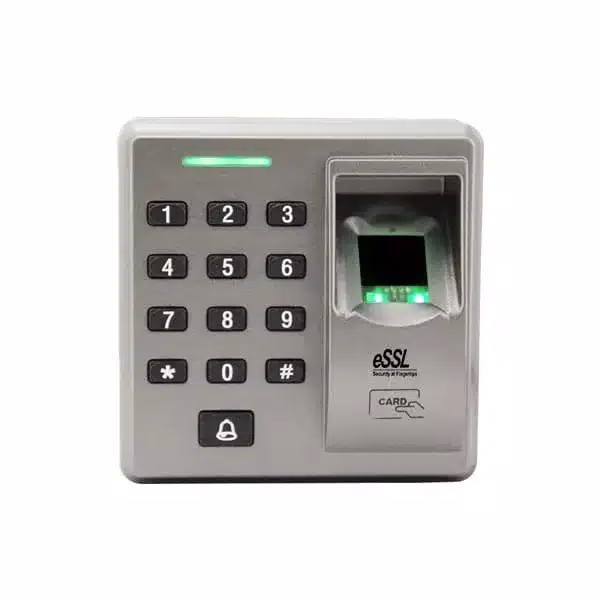

FR 1300 Fingerprint Keypad Reader

FR 1300 Fingerprint Keypad Reader

FR-1300 Fingerprint Keypad Reader

FR-1300 Fingerprint Keypad Reader

FR1300 is an indoor slave reader with an RS485 interface that works with master controllers from AmpleTrails, for example, inBIO series biometric control panels. As a value-added slave reader, FR1300 provides the most secure and cost effective access control solution for small and medium enterprises.

  • Energy-saving, auto-sleep ZK infrared fingerprint sensor
  • Built-in RFID card reader
  • Supports password when working with inBIO series control panels
  • LED and Buzzer prompt
  • With doorbell function
  • 86cmx86cm socket installation, easy operation

RS485 Slave Reader Reads Fingerprint, RFID, and Password

  • Sensor Infrared Optical Sensor
  • Communication RS485
  • Built-in Card Reader 125 kHz EM card reader, Optional Mifare card reader
  • Optional Function Mifare Card Module
  • Power Supply DC 12V
  • Operating Temperature 0°C ~ 45°C
  • Operating Humidity 20% ~ 80%
  • Dimension 88mm×88mm×33.6mm

FR1300: RS485 Slave Reader: Reads Fingerprint, RFID, and Password

Specification
CommunicationRS485
Built-in Card Reader125 kHz EM card reader
Optional Mifare card reader
Optional FunctionMifare Card Module
Power SupplyDC 12V
Operating Temperature0°C to 45°C
Operating Humidity20% – 80%
Dimension88mm x 88mm x 33.6mm
Features
Energy-saving, auto-sleep infrared fingerprint sensor
Built-in RFID card reader
Supports password when working with
inBIO series control panels
LED and Buzzer prompt
With doorbell function
86cm x 86cm socket installation, easy operation

For more information about FR 1300 Fingerprint Keypad Reader, biometric face and RFID Time Attendance and Access Control Machine call us now at 9315441078 WhatsApp 9315441053, 9818390836. Email us regarding your face Attendance Machine requirements at info@ampletrails.com.
