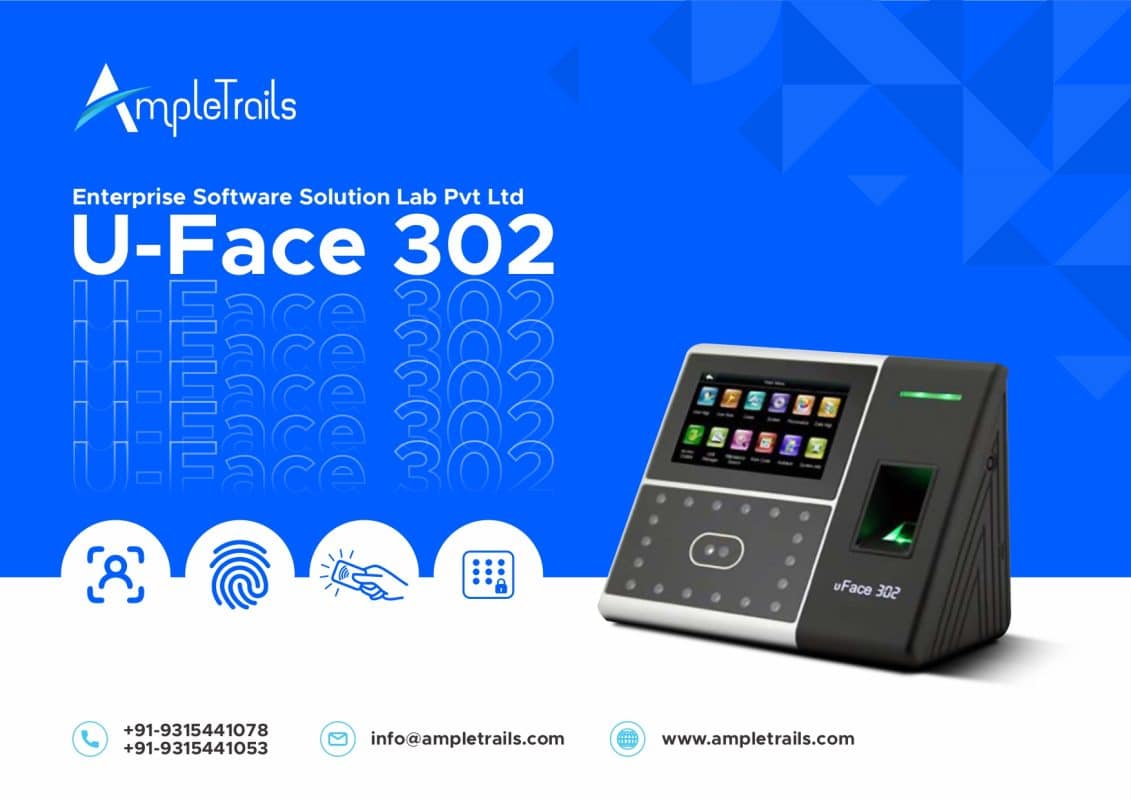

Face Recognition iface 302 Simple access

iface 302- Simple accessFace Recognition iface 302- Simple access

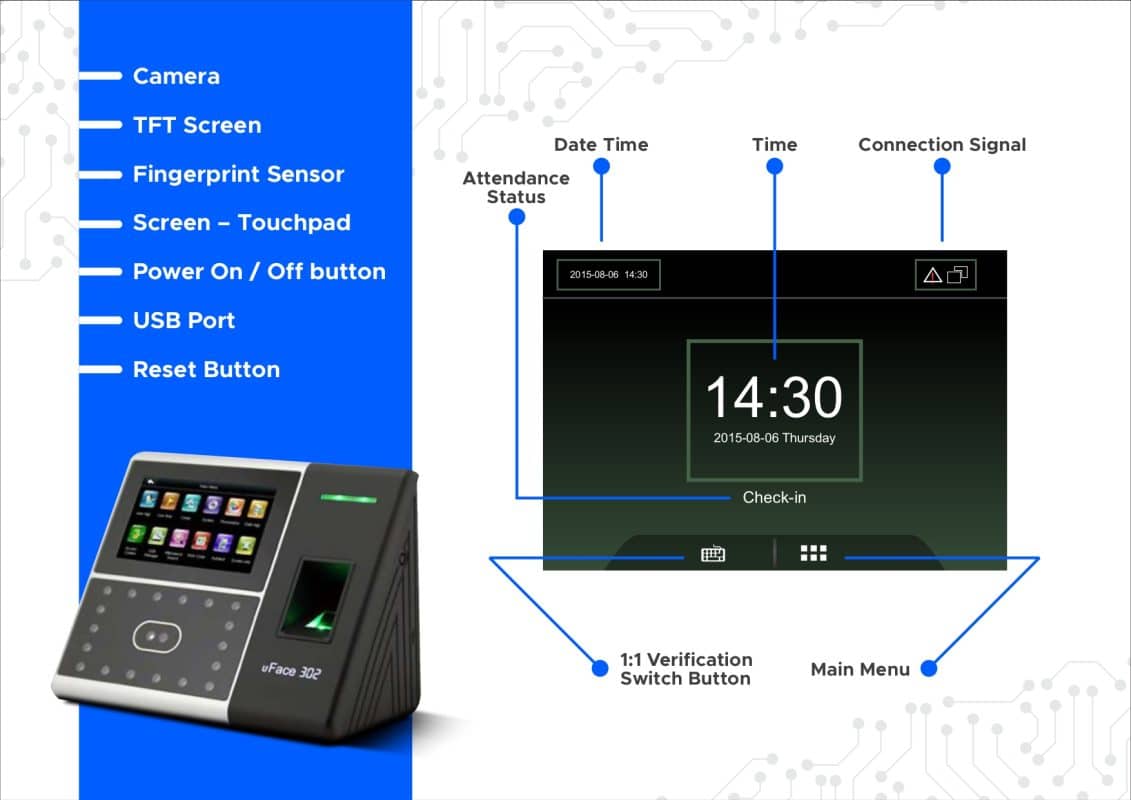

With iFace 302, users can identify or verify themselves either by face, finger, ID card or PIN/password. The TFT color touch screen of iFace 302 provides ease of use and a rich user experience. The iFace 302 uses state of the art 3D imaging technology while also providing hygienic 100% touch-free biometric authentication.

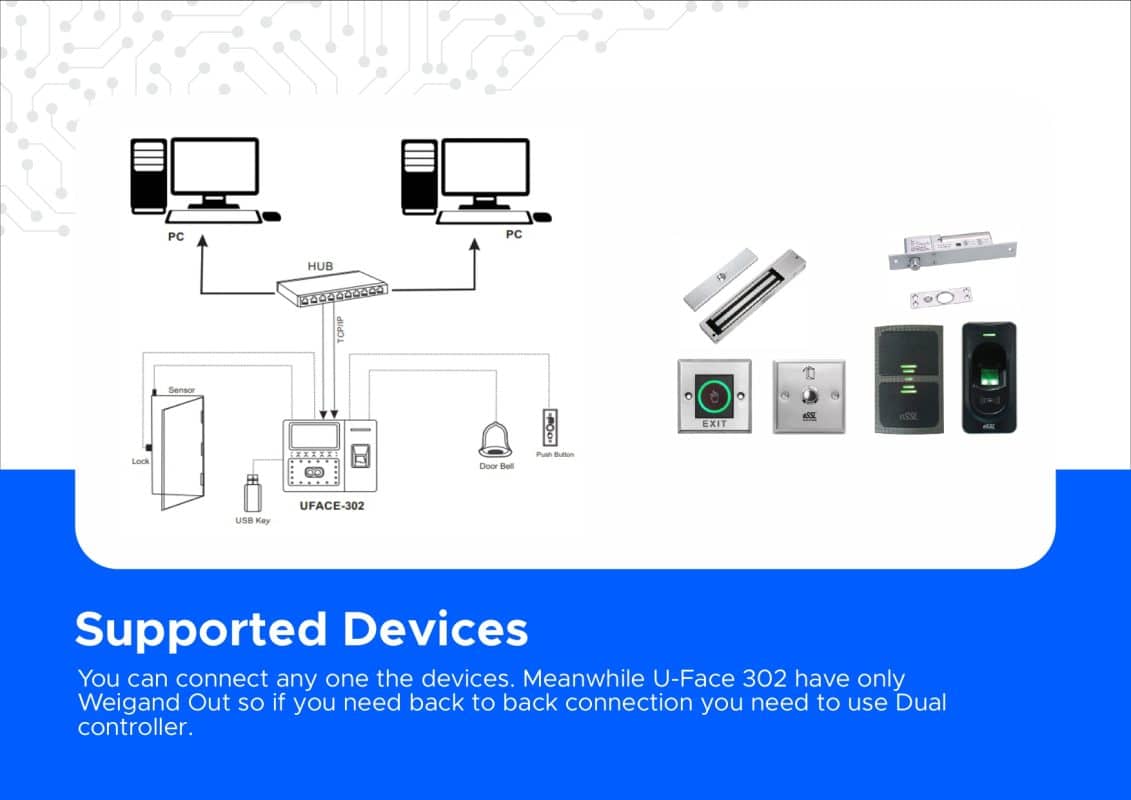

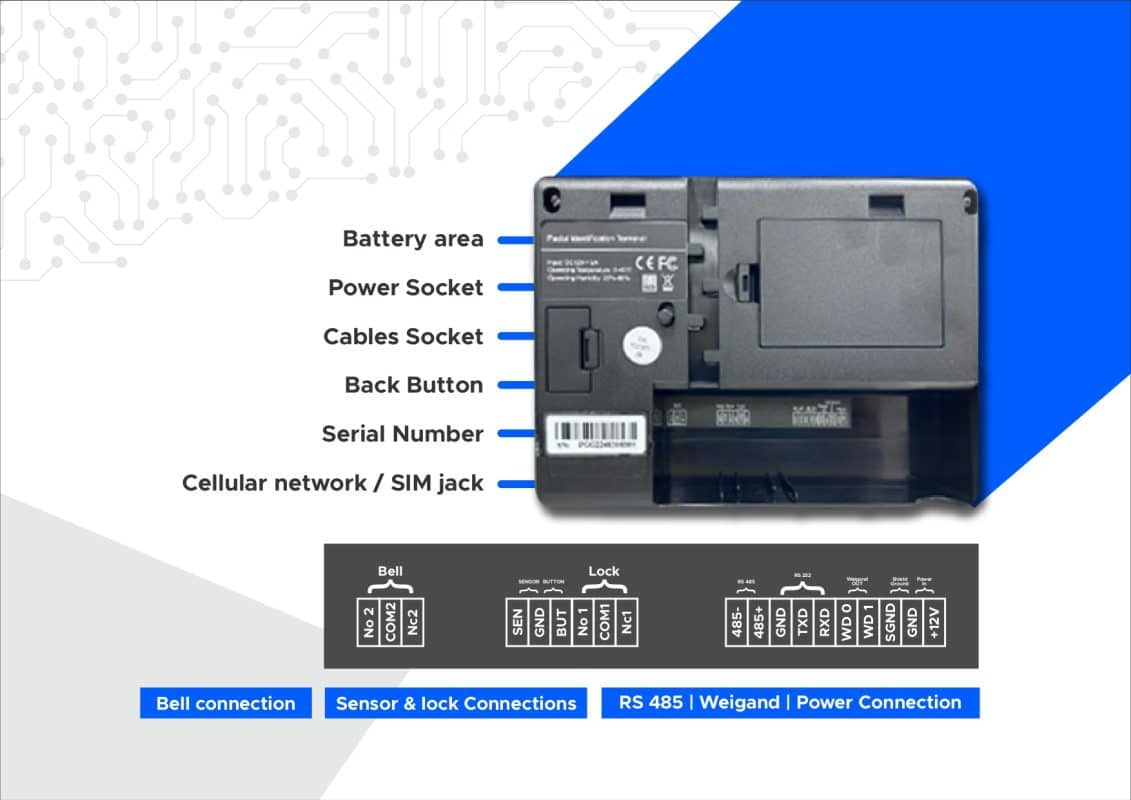

The iFace 302 can be used as a stand-alone access control reader by connecting a door lock, exit switch, alarm and door sensor to the relay contacts. The Wiegand IN and OUT ports can be used to connect 3rd party access control panels and peripherals. It also has a USB-port for offline data backup/management.

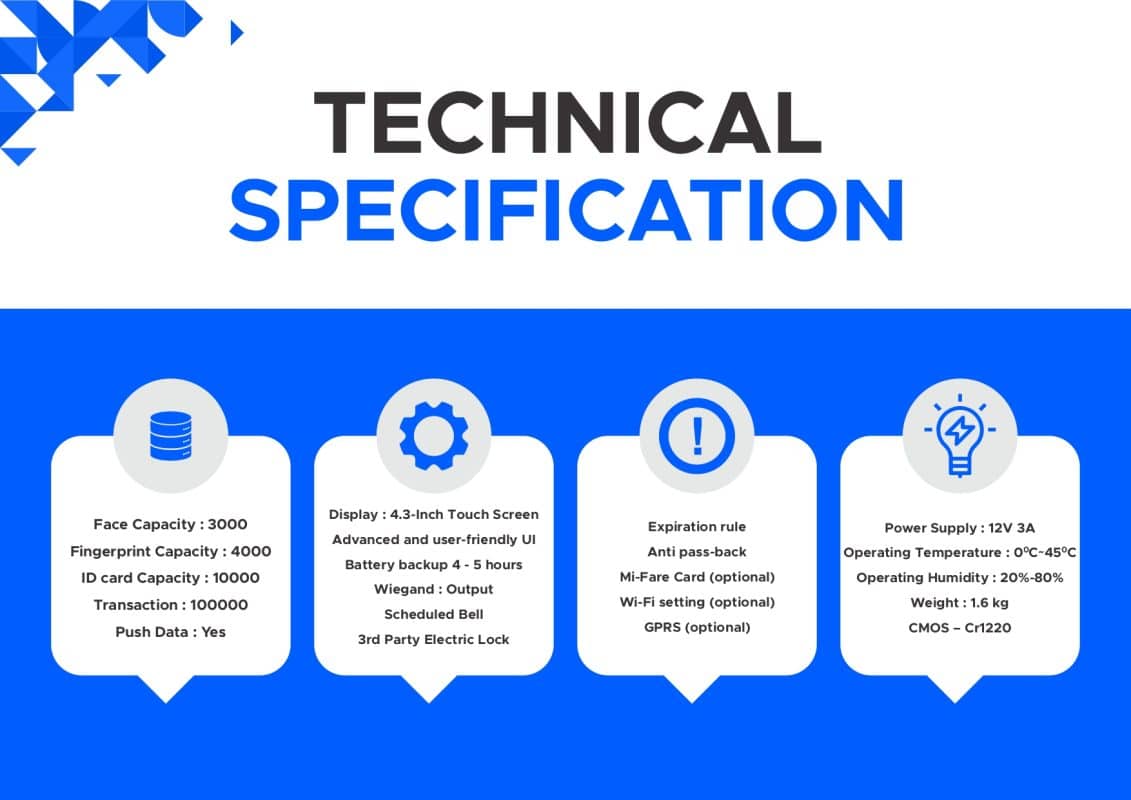

CPU: Multi-Bio CPU 800 MHz
Memory: 256M Flash, 64MB SD RAM
Camera: High Resolution Infrared Camera
Display: 4.3’’ TFT touch screen
Algorithm Version: Face 7.0, Finger 10.0 version
Fingerprint Sensor: 500 DPI Optical Sensor
Fingerprint Capacity: 2000
Face Capacity:  3000 (1:N)
Transaction Capacity:1,00,000
Inbuilt Proximity Card Reader
Communication: TCP/IP, RS232/485, Two USB-host

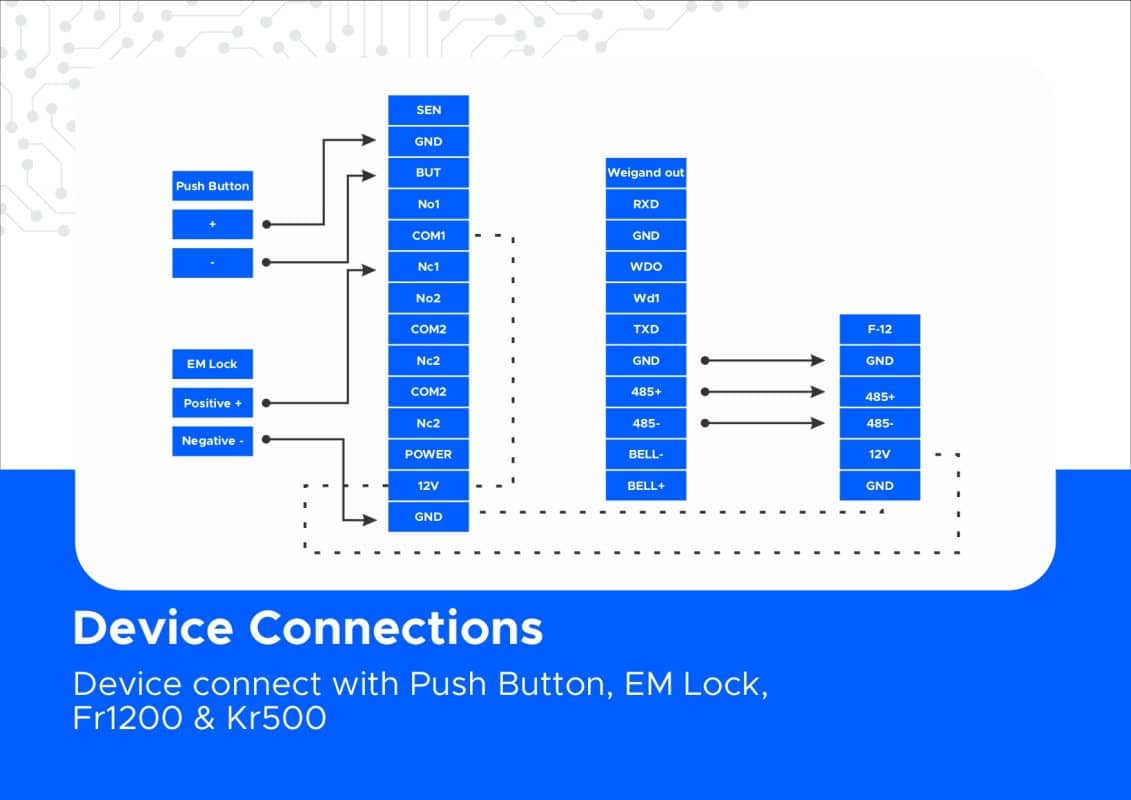

Access Control Interface: Supports EM Lock, Exit button

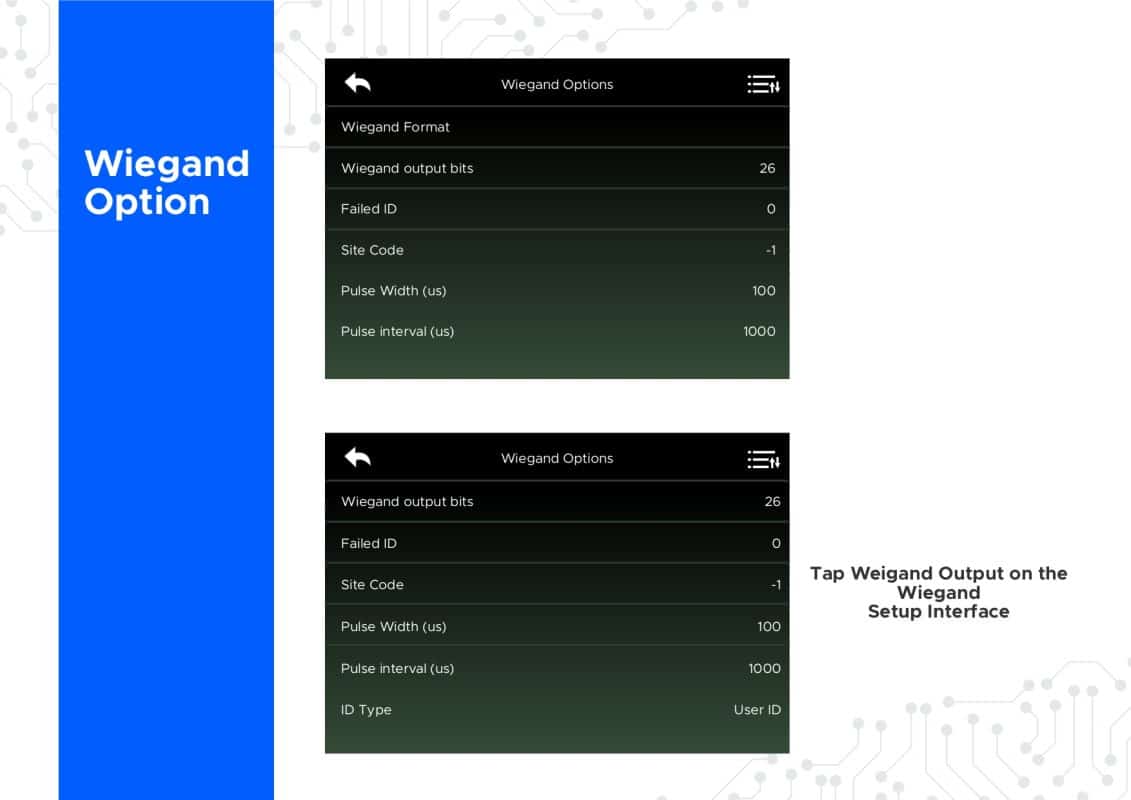

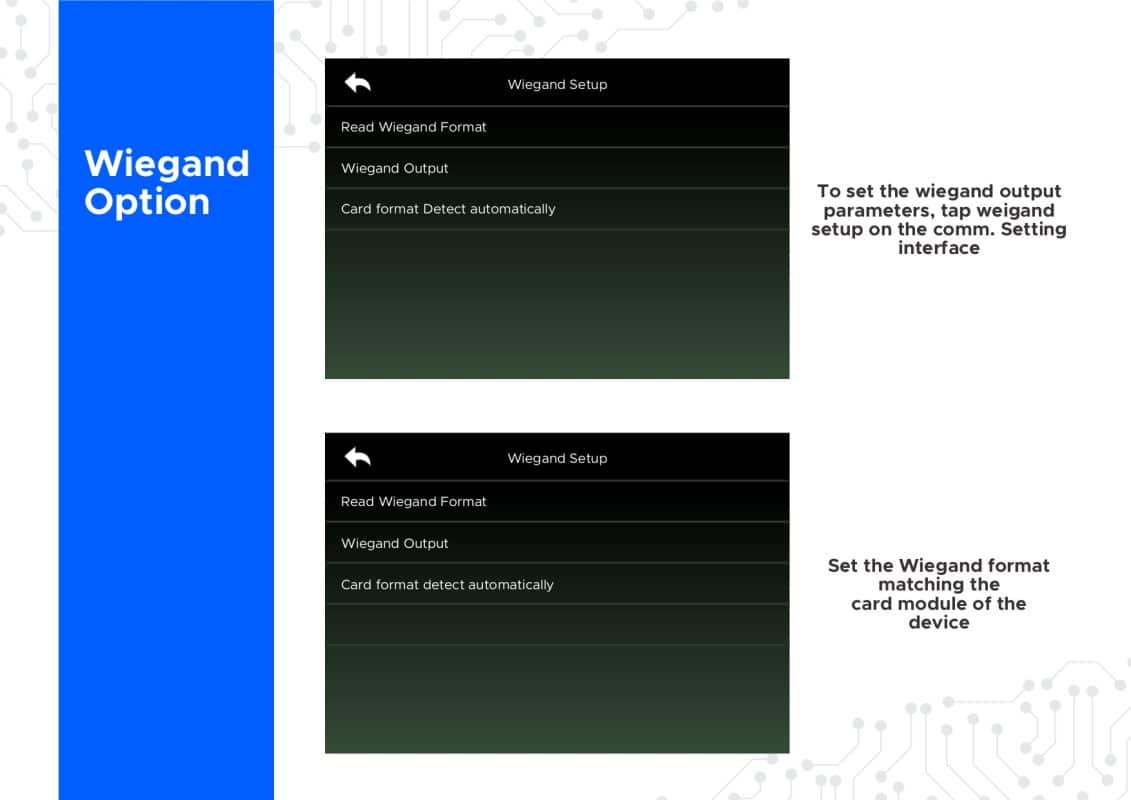

Wiegand Signal: Output
Power Supply: 12V, 3A
Verification Speed: ≤2 sec
Operating Temperature: 0°C – 45°C
Operating Humidity: 20% – 80%
Dimension (LxWxT): 193.6 x 146.8 x 111 mm

Standard Functions:

Self Service Query
9 digit user ID
Automatic Status Switch
T9 Input

Optional Features:

Mifare Card

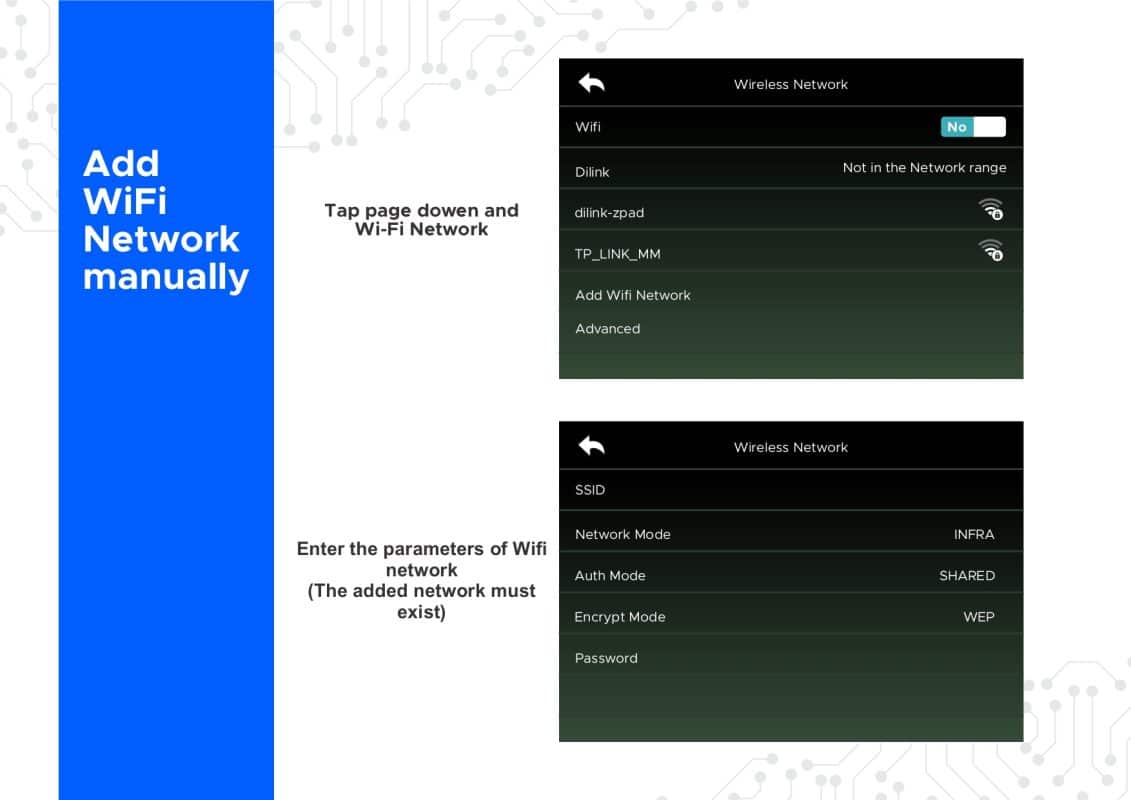

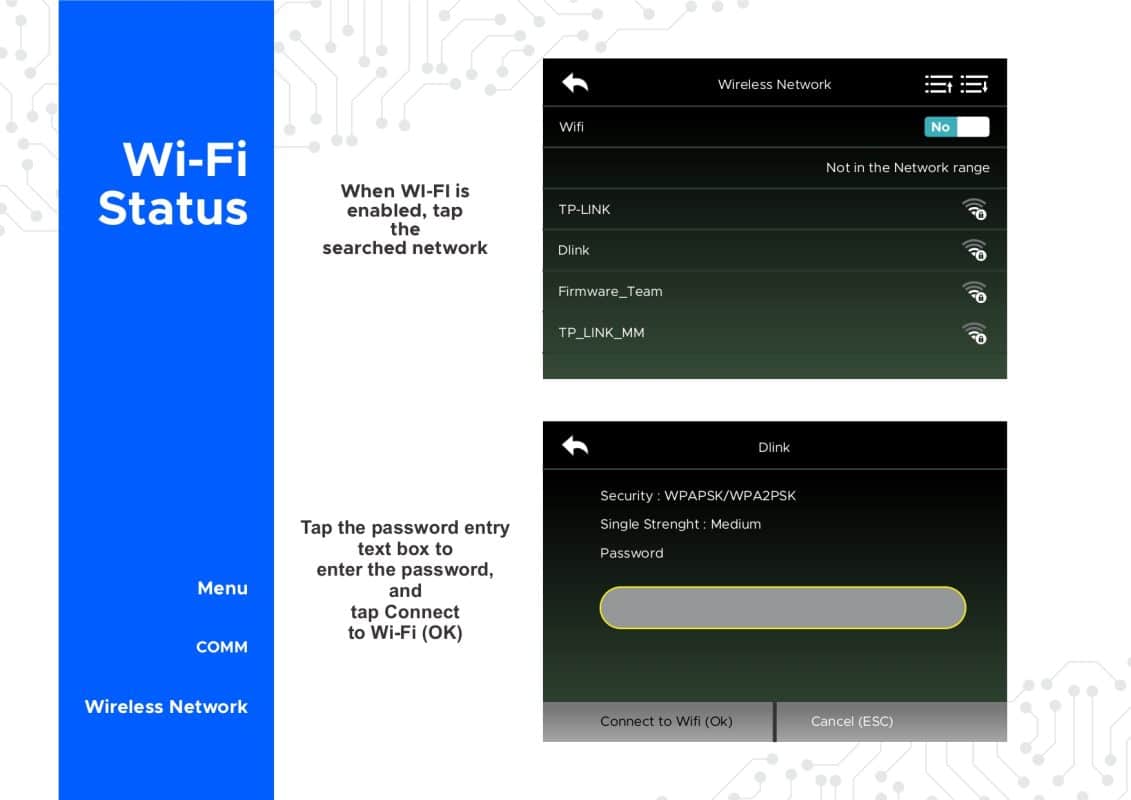

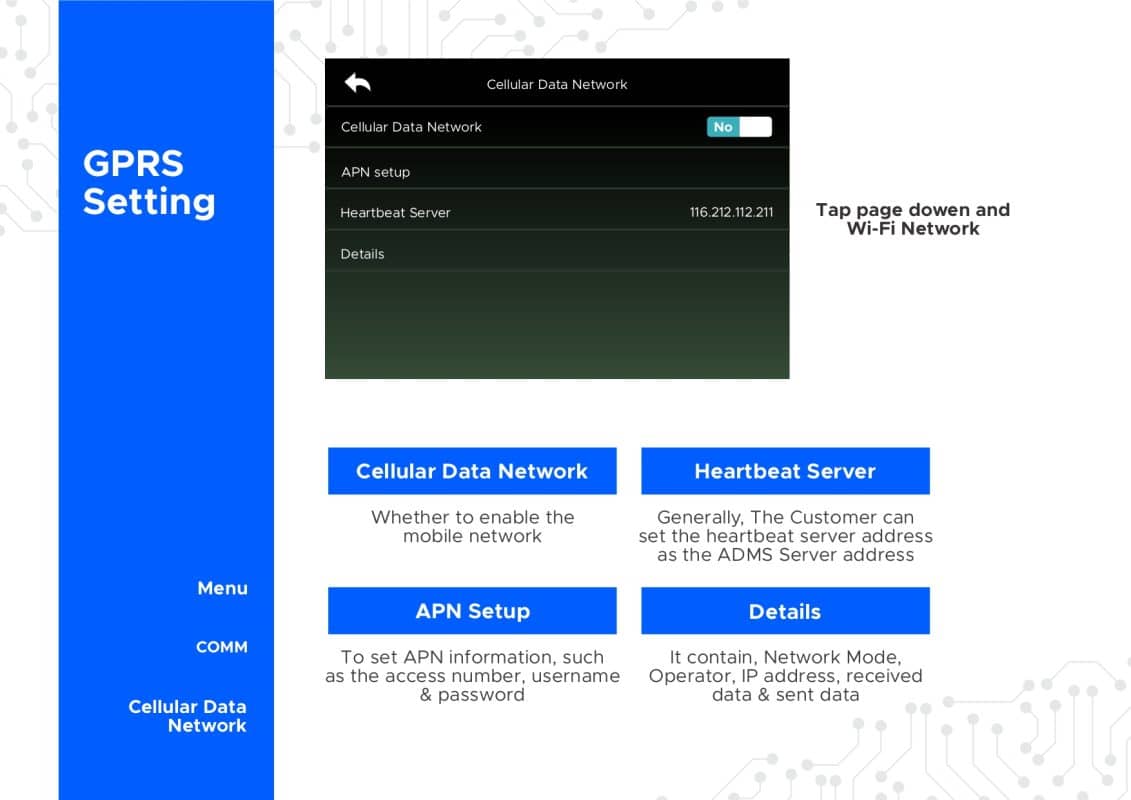

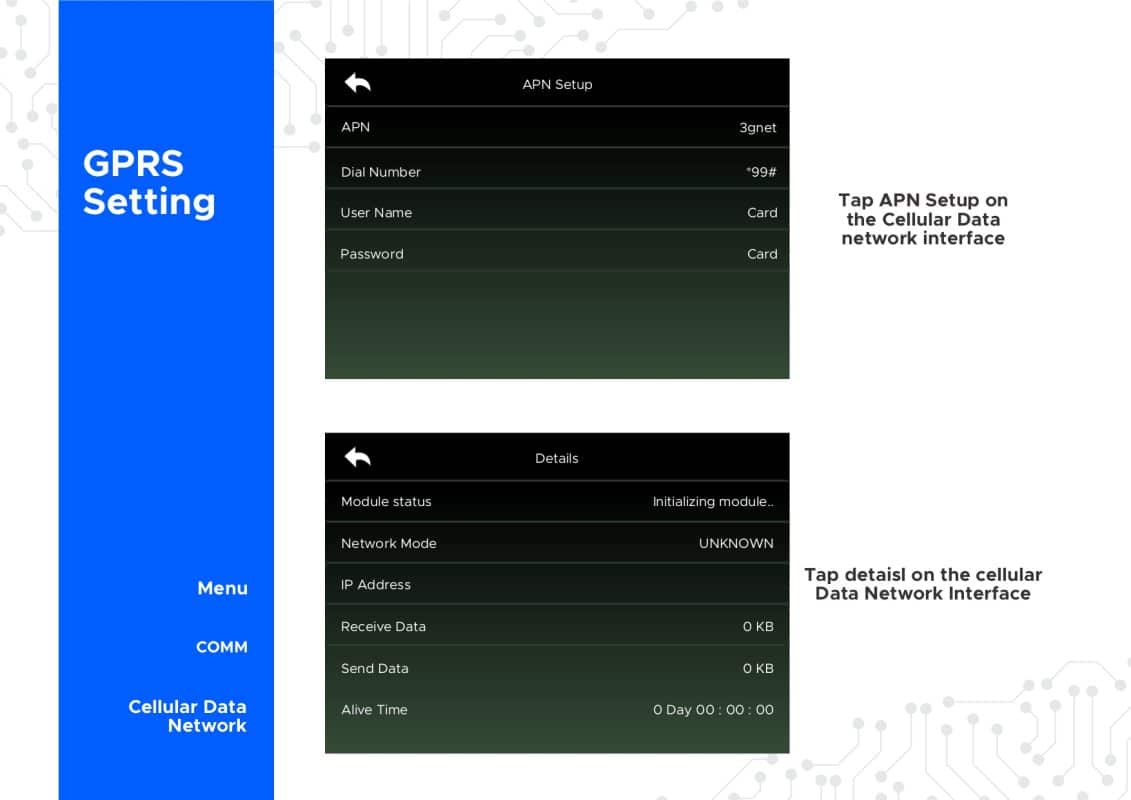

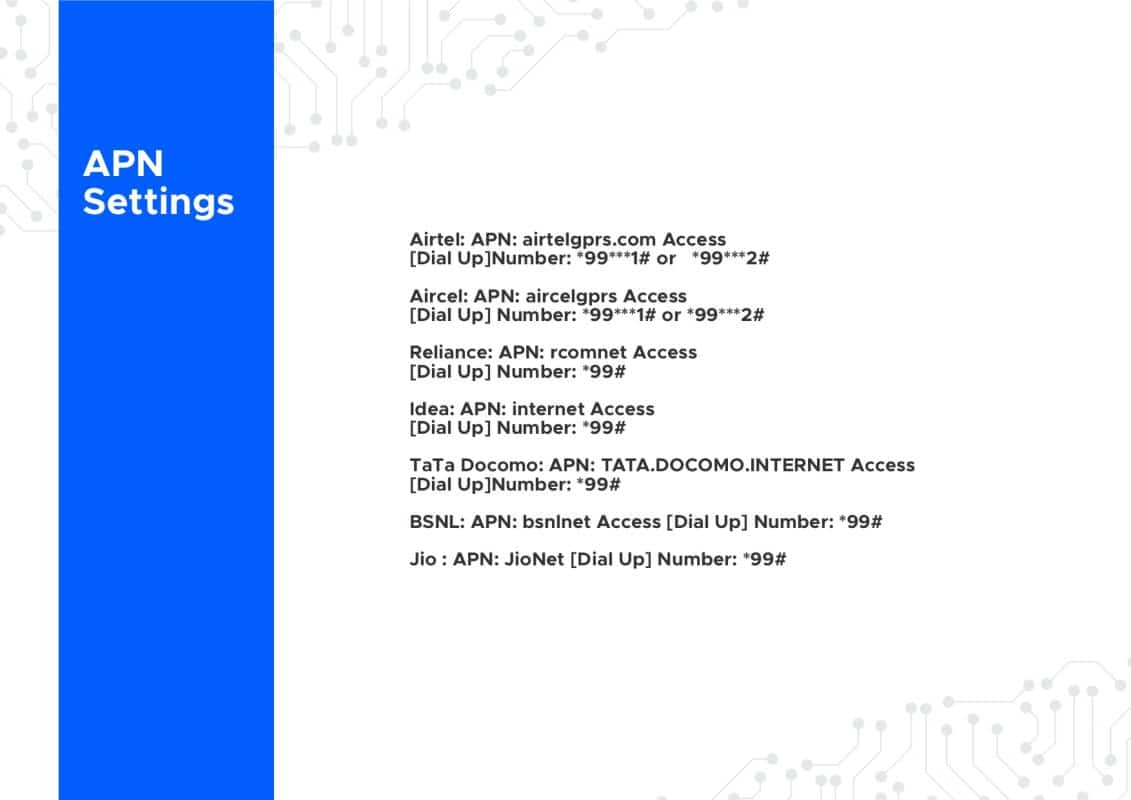

Wi-Fi / Web-server / GPRS
Short Message
