Face biometric attendance machine with body temperature scanning
face biometric attendance machine with body temperature scanning
AI Face Recognition Terminal
based on the person’s facial texture, shape, and movement.
- Functions
- Face Capacity: 50,000
- Max User : 50,000
- Logs Capacity : 10,00,000
- Accuracy: 99.27%
- Living body detection: Support
- Sensor: IR array Sensor
- Stranger detection: Support
- Recognition distance configuration: Support
- UI interface configuration: Support
- Remote update: Support
- Deployment: Public network, LAN
- Display
- Display screen : 5-inch IPS LCD touch screen
- Resolution : 480 * 854
- System parameters
- Operating system : Linux
- CPU : Dual-core ARM Cortex-a7@900MHz
- Storage : 512MB RAM, 8GB ROM
- Product
- Interfaces
- Relay output : 1-way (DOOR_NO, DOOR_COM, DOOR_NC)
- Network interface : 1-way Ethernet (RJ45, 100M)
- TTL serial port : Embedded with our card plate
- Wi-Fi : Standard: IEEE 802.11b/g/n
- Wiegand Output : Yes
- Reset interface : Reset button
- USB interface : 1-way Type-A
- General parameters
- Power : DC 12V/2A
- Device Working Temp. : -10°C~50°C
- Environment for Temp. Measurement : 22°C ~ 32°C
- Temp. Measurement Distance : 30cm
- Temp. Measurement Range : 35.5°C~42°C (95.9°F~107.6°F)
- Working humidity : 10%~90%
- Power consumption : Running: Max. 15W
- Dimension 216.00 x 90 x 25 mm

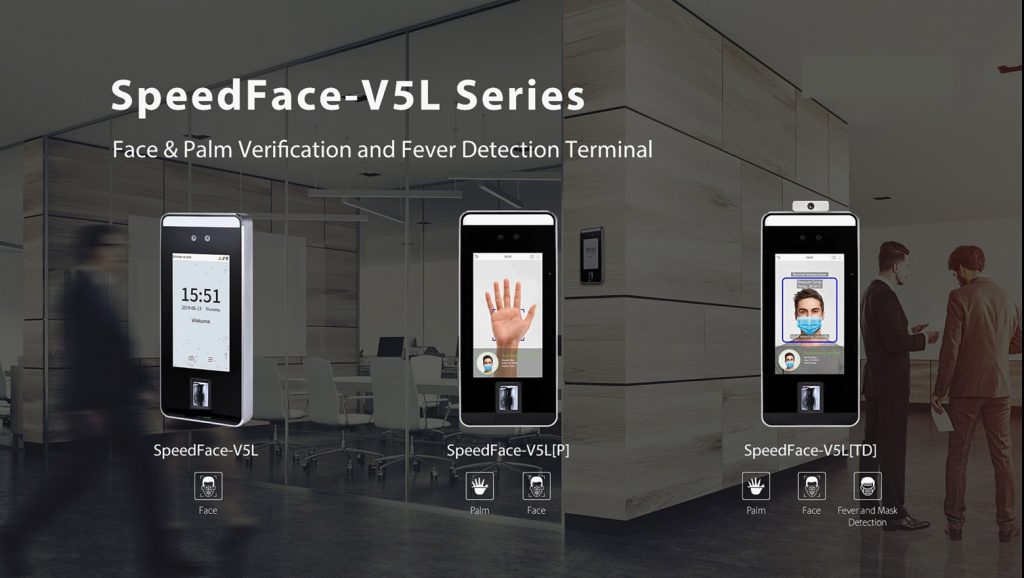

Face Palm Verification Fever Detection Machine
SpeedFace-V5L Series is a fully upgraded version of the SpeedFace-V5L visible face recognition terminal, using intelligent engineering facial recognition algorithms and the latest computer vision technology, it supports both face and palm verification with large capacity, fast recognition speed, and improved security performance in all aspects. Human Body Temperature Measuring Thermal Imaging Camera with attendance and Access Control System. This device can help you save money you have to spend on monitoring attendance and access control.
A huge effort is made to incorporate new features to its latest security and facial recognition devices to allow not only palm and facial recognition, but also facial recognition with mask detection and body temperature measuring. 3-in-1 Facial recognition-based attendance and access control system with in-built temperature monitoring and mask detection compliant device. The device is backed by a secured cloud platform (AWS/Azure) with real-time customizable dashboards.

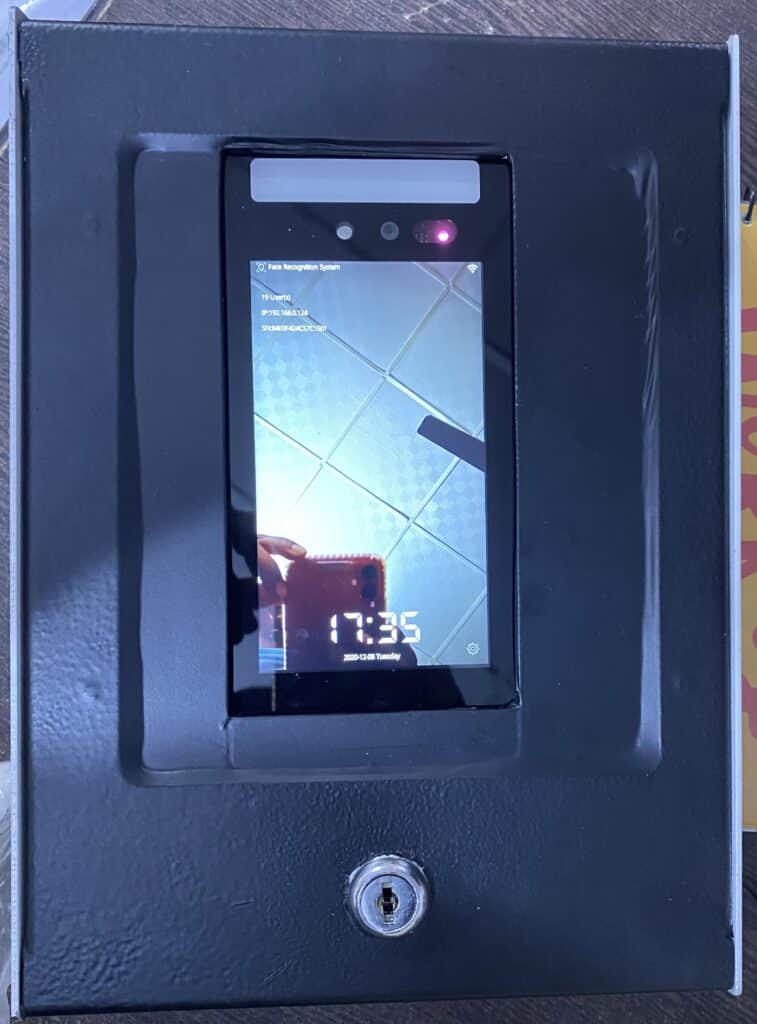

Speedface Attendance Machine with Metal Enclosure
We hope these new products and features can help prevent exposure and contribute to protecting the public:
✔ ProFace X [TD] | Face, Palm-vein, Mask and Fever Detection
✔ ZK-D3180S [TD] | Walk Through Metal Detector with Fever Detection
✔ SpeedFace-V5L [TD] | Face, Palm-vein, Mask and Fever Detection
✔ ZN-T1 | Thermal Security Network Camera.
Face verification body temp Detection system
The terminal with temperature and mask detection will be a perfect choice to help reduce the spread of germs and help prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the recent global public health issue with its fast and accurate body temperature measurement and masked individual identification functions during facial and palm verification.
SpeedFace+ Body-Temperature Reader Demonstration
Fever detection and facial recognition systems
- The high-speed biometric access control terminal
- Face and Palm Recognition
- Body temperature measurement
- Proactive Facial Recognition
- Enhanced Visible Light Facial Recognition with Deep Learning built-in
Fever detection and facial recognition systems
Fever detection and facial recognition systems
The series updates with the touchless recognition technology and the new functions namely fever detection and masked individual identification can eliminate hygiene concerns effectively. And then, the facial recognition technology in the series also has the ultimate anti-spoofing algorithm against almost all types of fake photos and videos attack.
Palm-based attendance and access control are safe and assured technology with better hygiene. Palm recognition technology comes with deep learning World-class algorithm that gives better performance and high accuracy. No need to fear corona but we have to protect ourselves from the corona.

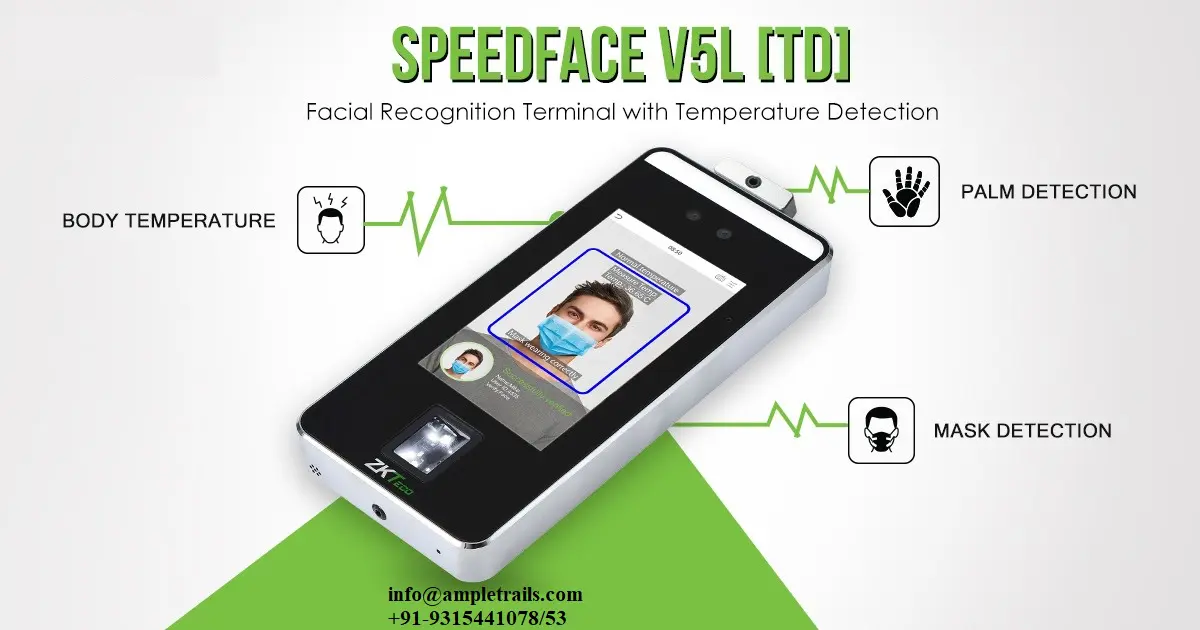

Specifications | SpeedFace-V5L[TD] |
Display | 5-inch Touch Screen |
Face Capacity | 6,000 |
Palm Capacity | 3,000 |
Fingerprint Capacity | 6,000 (Standard); 10,000 (Optional) |
Card Capacity | / |
Transactions | 200,000 |
Operation System | Linux |
Standard Functions | Except for ID Card, else functions is the same as the left. |
Hardware |
900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjustable Light Brightness LED
|
Communication | TCP/IP, WiFi (Optional), Wiegand input / output, RS485 |
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
|
Optional Function | / |
Facial Recognition Speed | ≤1s |
Biometrics Algorithms | ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0 |
Power Supply | 12V 3A |
Operating Humidity | 10% – 90% |
Operating Temperature | -10 °C – 45 °C |
Dimensions (W*H*D) | 91.93*220*22.5mm |
SpeedFace-V5L[TD] DataSheet
Touch-less biometric solution (for access control), that can Identify users with pneumonia symptoms. The solution has 3 highlighted features of Fever Detection, Masked Face, and Computer Vision 3-in-1 Palm Recognition for access point security.
Biometric Attendance Fever Detection System Facial
- Enhanced Visible Light Facial Recognition with Deep Learning built-in.
- Multiple verifications with Fingerprint, RFID, and Facial Recognition.
- Body temperature measurement
- 5-inch touch LCD.
- Dual-camera for real-time face detection.
- 6,000 face templates capacity.
- Recognition distance: 0.3 – 3 m.
- Compatible with external RS232, RS485, and Wiegand reader.
- TCP / IP, Wi-Fi communication.
Biometric with Fever Detection
Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print, and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired can be compared with a maximum of 3,000 palm templates.
Face Recognition Thermometer
In summary, the fevers identification and mask detection supported by this series of devices should be a perfect choice during outbreaks of infectious and contagious diseases, Because it enables fast and accurate body temperature measurement and masked individual identification during facial and palm verification at all access points, which is extremely helpful in fighting the spread of disease outbreaks especially in hospitals, factories, schools, commercial buildings, stations, and other public areas. can get the best from it.
A huge effort made to incorporate new features to its latest security and facial recognition devices to allow not only palm and facial recognition, but also facial recognition with mask detection and body temperature measuring.
✔ ProFace X [TD] | Face, Palm-vein, Mask and Fever Detection
✔ ZK-D3180S [TD] | Walk Through Metal Detector with Fever Detection
✔ SpeedFace-V5L [TD] | Face, Palm-vein, Mask and Fever Detection
✔ ZN-T1 | Thermal Security Network Camera.
Face Recognition Thermometer
Features Face Recognition Thermometer:
- Touchless for Better Hygiene and fever detection and masked individual identification
- Visible Light Facial Recognition
- Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
- Multiple Verifications: Face /Palm/ Fingerprint / Card / Password
- Card module with SpeedFace-V5L / SpeedFace-V5L[P]: 12.5 KHz EM card/13.56MHz IC card (MF)

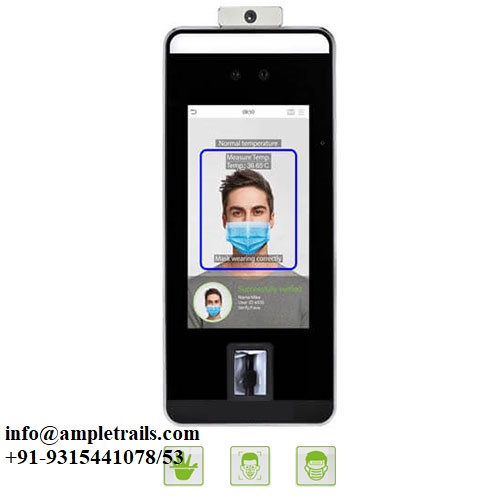

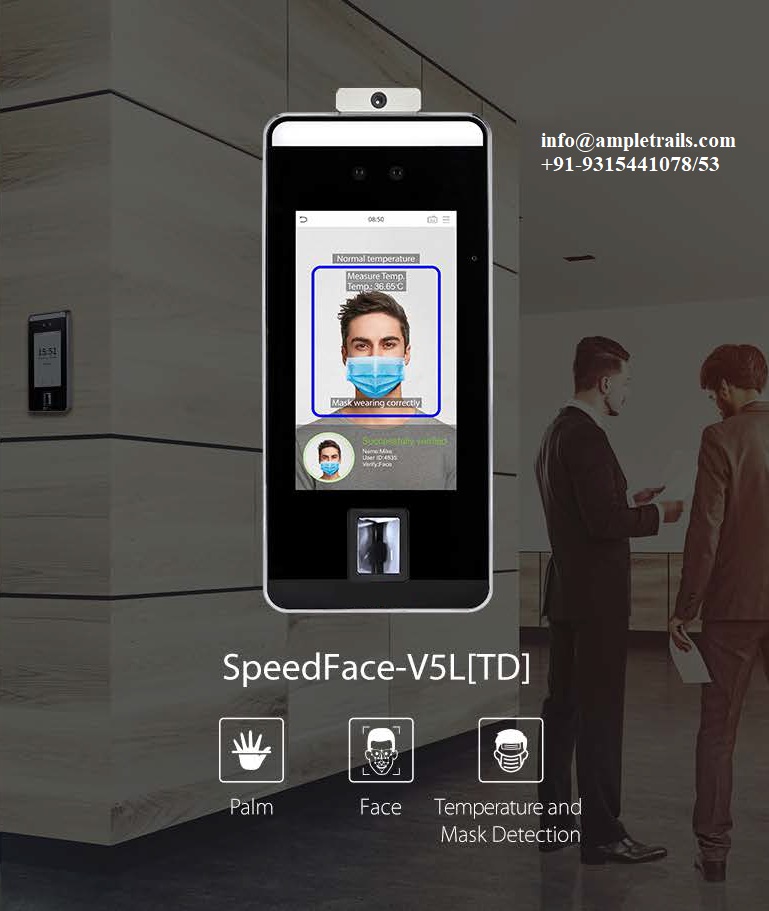

SpeedFaceV5L Face Palm vein Mask Body Temperature Detection
Anti-epidemic Functions:
- Wore mask detection
- Body temperature detection (only with SpeedFace-V5L[TD])
- Measurement Distance 30~50CM (1~1.64ft)
- Measurement Accuracy ±0.3
- Measurement Range 34°C~45°C
Specifications Fever detection and facial recognition systems:
SpeedFace-V5L | SpeedFace-V5L[P] | 5-inch Touch Screen | |
Display | 5-inch Touch Screen | ||
Face Capacity | 6,000 | ||
Palm Capacity | / | 3,000 | |
Fingerprint Capacity | 10,000 | ||
Card Capacity | 10,000 (Optional) | / | |
Transactions | 200,000 | ||
Operation System | Linux | ||
Standard Functions | ADMS, T9 Input, DST, Camera, 9-digit User ID, Acess Levels, Groups, Holidays, Anti- passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes. | ||
Hardware | 900MHz Dual Core CPU Memory 512MB RAM / 8G Flash 2MP WDR Low Light Camera Adjustable Light Brightness LED | ||
Communication | TCP/IP, WiFi (Optional), Wiegand input / output, RS485 | ||
Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input | ||
Optional Function | 13.56MHz IC Card (MF) | / | |
Facial Recognition Speed | ≤1s | ||
Power Supply | 12V 3A | ||
Operating Humidity | 10%-90% | ||
Operating Temperature | -10 °C- 45 °C | ||
Dimensions (W*H*D) | 91.93*202.93*21.5mm | 91.93*220*22.5mm | |
Face Recognition Temperature Measuring Access Control Machine For Identification Fever Person
Body temperature scanner machine in India
AmpleTrails provides time attendance and access control products that are based on fingerprint and other biometric recognition and security systems. We welcome you as a preferred customer and commit our long-standing guarantee of providing you with the highest quality products, better support (Before & after-sales).
We look forward to a wonderful relationship together and success for all concerned, request you to please do revert for any kind of query.
AmpleTrails biometric identification solution is a provider to different segments like big projects in the government or private sector, legal and commercial enterprises, authorized distributors, and dealers in Indian Market.
Body Temperature scanner machine in India
ZkTeco product brochure download link.
Email us at in**@am*********.com or call us at 9034757673, 09034757673, 9315441078 9315441053 for the pricing and installation of this solution.
Find more about Face Attendance Machine with Temperature Detection
