Electric Bolt Glass Door EM Lock | Glass Drop Bolt Lock

Glass Door Bolt Lock mounts to your point of entry. With no moving parts, it’s maintenance-free and provides superior performance and durability. Mounted with stainless steel plate against the weather. These are easy to use and are highly demanded by the clients for their excellent results.

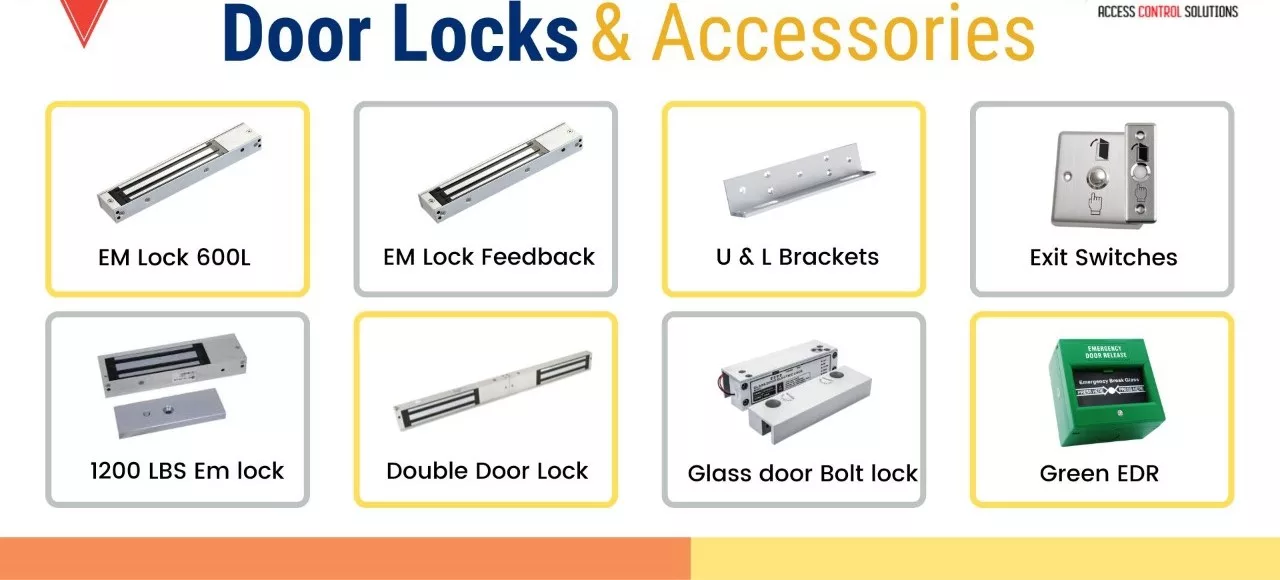

Access Control Accessories

Dead Bolt Lock

Power Requirement : DC12V / DC 24V
Power Consumption : Working, 580mA / Stand by, 200mA
Door status range sensing range : within 15mm
Material : Out body – Aluminum / Bolt-Stainless Steel
Dimensions : 150(L) X 34(W) X 28(H) mm

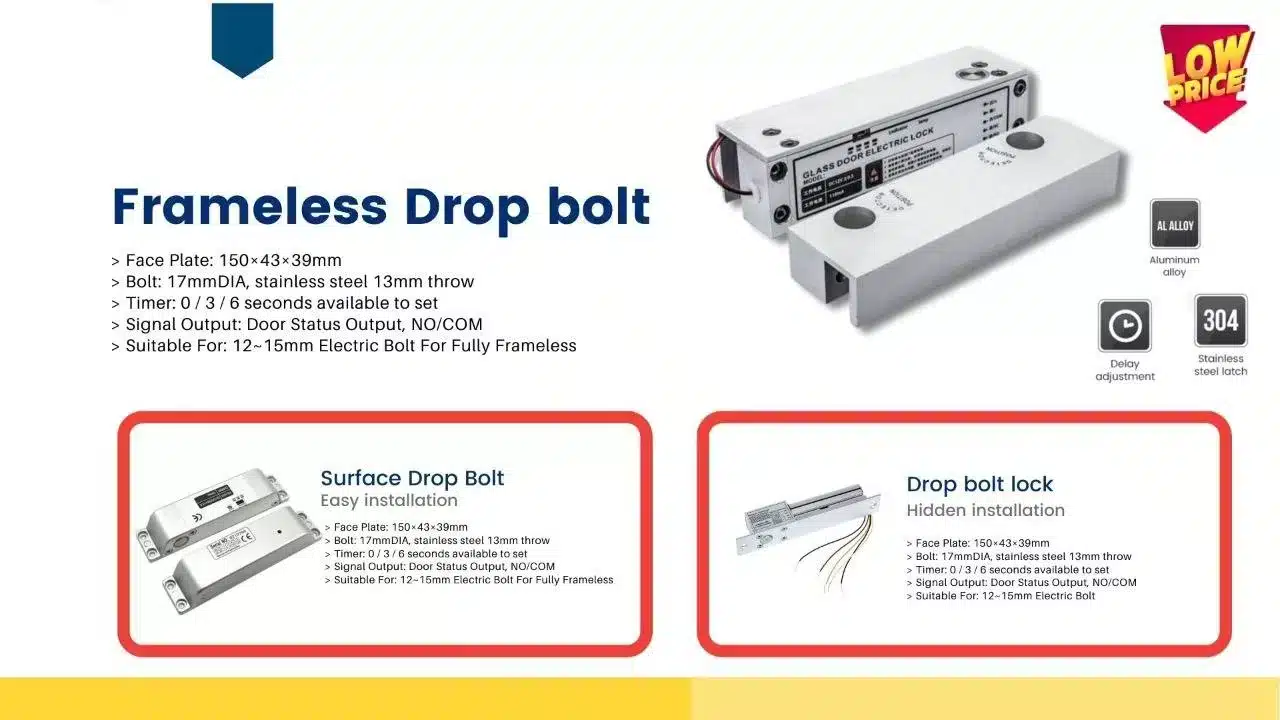

Glass Drop Bolt Lock

Fail Safe Type Dead Bolt Lock

Power Requirement : DC12V
Power Consumption : Working, 900mA / Stand by, 00mA
Output relay : Door status sensing (COM,NO,NC)
Weight : 0.68Kg
Material : Aluminum, Stainless Steel
Wiring : Red(+12V), Black(Ground), Gray(COM)
Green(N.O), Yellow(OPEN)
Dimensions : 200(L) X 24(W) X 38(H) mm

Glass Drop Bolt Lock BL99-7

Glass Drop Bolt Lock

We provide free consultation and quotes by visiting your site and analyzing your requirements in NCR and in all most all parts of India. If you have any queries or want to place an order please contact us now at 9315441078 WhatsApp 9315441053, 9034757673, or email us at in**@*********ls.com.

[su_tabs]
[su_tab title=”Introduction Glass Drop Bolt Lock”]
Current Draw: (Start) 950 mA, (Standby) 120 mA
Dual Voltage: 12V DC
Bolt: 15.5 mm diameter Stainless Steel, Out throw 15mm
Holding Capacity: 600 lbs
Temperature: 10°C – 55°C
LED: Magnetic bond sensor
Dimension: Cutout( LxW) : 212 x 35 mm
Bracket( LxWxH): 90 x 25 x 3 mm
Net Weight: 0.9 kg
Optional Accessories: L Bracket, U Bracket ,
ZL Bracket, U Bracket for Glass Door
[/su_tab]
[su_tab title=”Features Glass Drop Bolt Lock”]

[/su_tab]
[su_tab title=”Documents Glass Drop Bolt Lock”]
Electric Bolt Glass Door EM Lock

[/su_tab]
[/su_tabs]
Email us at in**@*********ls.com or call us at 9034757673 for pricing and installation of this machine.
