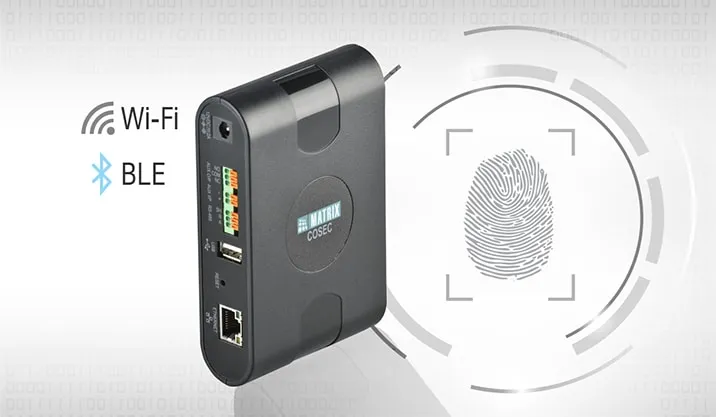

Site Controller for Multiple Door Controllers

Site Controller for Multiple Door Controllers

Inbuilt Wifi Module (IEEE 802.11 b/g/n), Inbuilt Bluetooth

25+ Advanced Access Features

  • Man Trap
  • Dead Man Zone
  • Anti-Pass Back
  • 2-Person Rule
  • First-In User
  • Guard Tour
  • Elevator Access Control
  • Access Route

Gain Full-fledged Access Control for Standalone Operations as well as Multi-Locations

Multiple Communication Options

  • Built-in Bluetooth
  • Wi-Fi
  • USB
  • Ethernet
  • RS-485

Use Existing IT Infrastructures to Meet Future Needs

Better Control and Higher Storage Capacity

  • Controls up to 255 Doors
  • Stores up to 25,000 User Profiles
  • Event Log Capacity of 5,00,000

Features Matrix COSEC PANEL200P Access Control Panel For Advanced Security

  • Secured Communication: Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof.
  • IP to Door: Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology.
  • Plug and Play: Simplify installation and management with built-in web software and plug-n-play capability with no need of additional servers.
  • Auxiliary Devices Interface: Allow seamless connection of fire alarm as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware.
  • Compact Design: Features an innovative, compact design that seamlessly integrates above the door on a false ceiling, ensuring aesthetic appeal and a neat installation.
  • Device Push/ Pull API: Enable seamless communication with third party softwares, allowing customers for better control.
  • Controls Up to 255 Door Controllers or IO Controllers
  • Ethernet, RS-485, USB, Wiegand Out, Aux Input, and Aux Output Port
  • Works in Two Operation Modes:
    Standalone Mode with Built-in Software
  • Network Mode with COSEC CENTRA
  • Inbuilt Wifi Module (IEEE 802.11 b/g/n), Inbuilt Bluetooth
  • 25,000 Users Capacity and 500,000 Events Storage
  • 800MHz Cortex A8 Processor, 512MB RAM, 256MB Flash, and 4GB SD Card
  • Secured Socket Layer Certified

The COSEC PANEL200P is an access control panel with the following technical specifications:

Capacity:

  • Door Controllers on Ethernet: 255
  • Door Controllers on RS-485: 32
  • Max Users Capacity: 25,000
  • Events Buffer: 5,00,000

Communication:

  • Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n)
  • Inbuilt Bluetooth
  • Ethernet: 10/100 Mbps
  • Rs 485
  • USB Port (for Data Transfer and for 2G-3G-4G /Wi-Fi Dongle)
  • SD Card: 8GB

Interface:

  • Aux-In (4 states-short, open, activated & non-activated)
  • Aux-Out: Form C and SPDT Relay

Hardware:

  • CPU: Cortex A8 800 MHz
  • Flash Memory: 256 MB
  • RAM Memory: 256 MB (DDR3 SDRAM @ 800Mhz)
  • Operating system: Linux based OS
  • Communication Port: Ethernet & RS-485
  • Tamper Detection: Yes
  • RTC: Yes

Audio Visual:

  • Tricolor LED (Power, Status and Alarm)
  • Buzzer: 12V

Environmental:

  • Operating Temperature: -10°C to + 55°C (14°F to 131°F)
  • Humidity: 5% to 95% RH Non-condensing

Power:

  • Input Power: External Power Adapter 12VDC @ 2A

Mechanical:

  • Dimensions (L x H x D): 125.25mm X 81.5mm X 30.5mm (4.93″ x 3.20″ x 1.20″)
  • Weight: 140gm (0.308 Lbs)
  • Enclosure Material: ABS V0 grade

Certificates:

  • FCC, CE, and RoHS

Compatibility:

  • API For Software Integration
  • Network Architecture – With COSEC CENTRA/VYOM
  • Standalone Architecture

Other Details:

  • Mounting: Wall Mounting or Table Top
  • Packaging Content: Main unit, Adaptor (12VDC, 2A), SD Card (8GB)

Ready to experience the future of access control? Contact Ampletrails today!

Email: in**@*********ls.com

Phone: +91 9315441053 / +91 9315441078
