COSEC DOOR FMX

Lumidigm Biometric Fingerprint Scanner

Condition	Usage Area	Industry/Target Audience
Dry	Deserts	Construction, Manufacturing
Wet or Oily	Humid, Rainy	Gym, Chemical, Manufacturing
Dirty	Dusty Regions, Outdoor Application	Manufacturing, Mines, Transportation
Bright Light	Outdoor Application	Construction
Variable Pressure	Children and Aged Users	Education, Club, Health Care

[su_heading]APPLICATIONS[/su_heading]
[su_table]

Time Attendance	Access Control
Visitor Management	Cafeteria Management
Contact Workers Management

[/su_table]
[su_heading]KEY FEATURES[/su_heading]

Superior Design which Enhances the Look of your Premises[su_list icon=”icon: star”]

Well-engineered Product
4.3″ Touch-screen Capacitive Display

[/su_list]

Better Capacity[su_list icon=”icon: star”]

Multispectral Fingerprint Controller with 50,000 Users Capacity
500,000 Events Storage Capacity

[/su_list]

Select Credential as per Requirement[su_list icon=”icon: star”]

Fingerprint, RFID Card and PIN
Proximity and Smart Cards
EM Prox, HID Prox, Mifare and HID iCLASS

[/su_list]

Multiple Connectivity Options[su_list icon=”icon: star”]

Wired Options: Ethernet, PoE
Wireless Options: Wi-Fi, 3G/4G

[/su_list]

Convenient Operation and Installation[su_list icon=”icon: star”]

User Friendly UI
Standalone and Network Operation
Easy Mounting on a Back Plate
Leverage Existing Network Infrastructure
Minimum Wiring

[/su_list]

Various Interfaces to Control Various Applications[su_list icon=”icon: star”]

Door Relay and Door Sense
Auxiliary Input and Output Ports
Exit Reader and Exit Switch

[/su_list]

Saves Time by Quick Fingerprint Identification[su_list icon=”icon: star”]

Identification in Less than One Second
1:1 and 1:N Verification

[/su_list]

Perform functions faster from the Device itself[su_list icon=”icon: star”]

Patented Lumidigm Biometric Fingerprint Sensor
User Enrolment from Device
Perform Attendance Functions
Fetch the Event Data via USB

[/su_list]

Perform Applications using APIs[su_list icon=”icon: star”]

Communication with Third Party Software
Integration using Device API
Device and User Configuration, Enrolment, Transfer of Commands and Events

[/su_list]

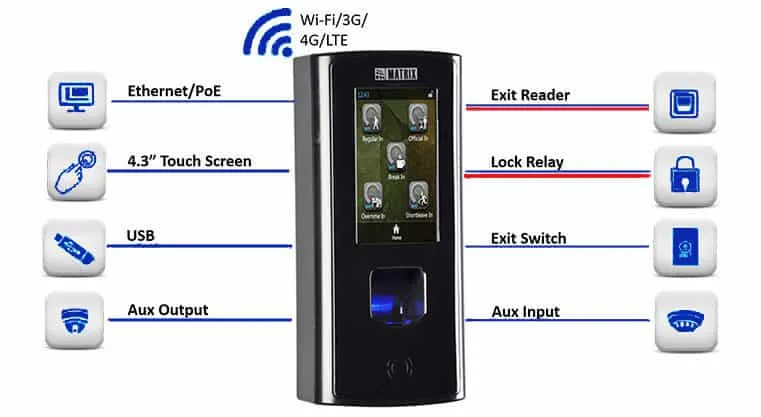

[su_heading]INTERFACE DIAGRAM[/su_heading]

[su_heading]TECHNICAL SPECIFICATIONS COSEC DOOR FMX[/su_heading]
[su_table]

Credential Support	Fingerprint, RFID Card and PIN
Display	4.3″ Capacitive Touch Screen
User Capacity	1000 (1:N) and 50,000 (1:1)*
Template Capacity	1000 (1:N) and 100,000 (1:1)
Cards Per User	Up to 2
Types of Cards Support	EM Prox, HID Prox, HID iClass and Mifare (COSEC CPM Module Required)
Event Buffer	500,000
Communication	Ethernet, PoE, Wi-Fi and Mobile Broadband (3G/4G)
Exit Switch	Yes
Door Status Sense	Programmable NO, NC and Supervised
Door Lock Relay	Form C and SPDT Relay (Max 2A@30 VDC)
Door Lock Power	12VDC @ 1A (for Adaptor Supply Mode) 12VDC @ 0.5A (For PoE Supply Mode)
Aux-IN	Programmable NO, NC and Supervised
Aux-OUT	Form C and SPDT Relay (Max 2A@30 VDC)
Reader Interface types	RS 232 and Wiegand In Only
USB	2 (1 for Data Transfer and 1 for Broadband Dongle)
CPU	800 MHz ARM Cortex A8 based Processor
Flash Memory	256MB Flash
RAM Memory	512 MB DDR3 RAM
Micro SD Card	Yes (Inbuilt 4 GB)
Input Power	12VDC @ 2A
Battery Backup	No Internal Battery Backup and External through Power Supply Battery Backup (PSBB)
Dimensions (WxHxD)	100mm x 220mm x 56mm (3.9″ x 8.7″ x 2.2″)
Weight	0.6kg (1.32 lbs)
Humidity	5% to 85% RH Non-condensing
Operating Temperature	0°C to + 50°C (32°F to 122°F)
System Integration	API for Software Integration
Operational Mode	Direct Door with COSEC CENTRA Server
Tamper Detection	Yes
Sensor Technology	Multispectral Lumidigm Sensor with LFD
Sensing Area	27mm x 30mm x 41mm

[/su_table]
Get the COSEC DOOR FMX Access Control System for your organization. For more information fill the following form contact us at 91-9315-4410-53, +91-9315-4410-78WhatsApp 9315441053 or email us at in**@*********ls.com.
