4 Floor Video Door Phone Panasonic is available at best price with onsite installation.

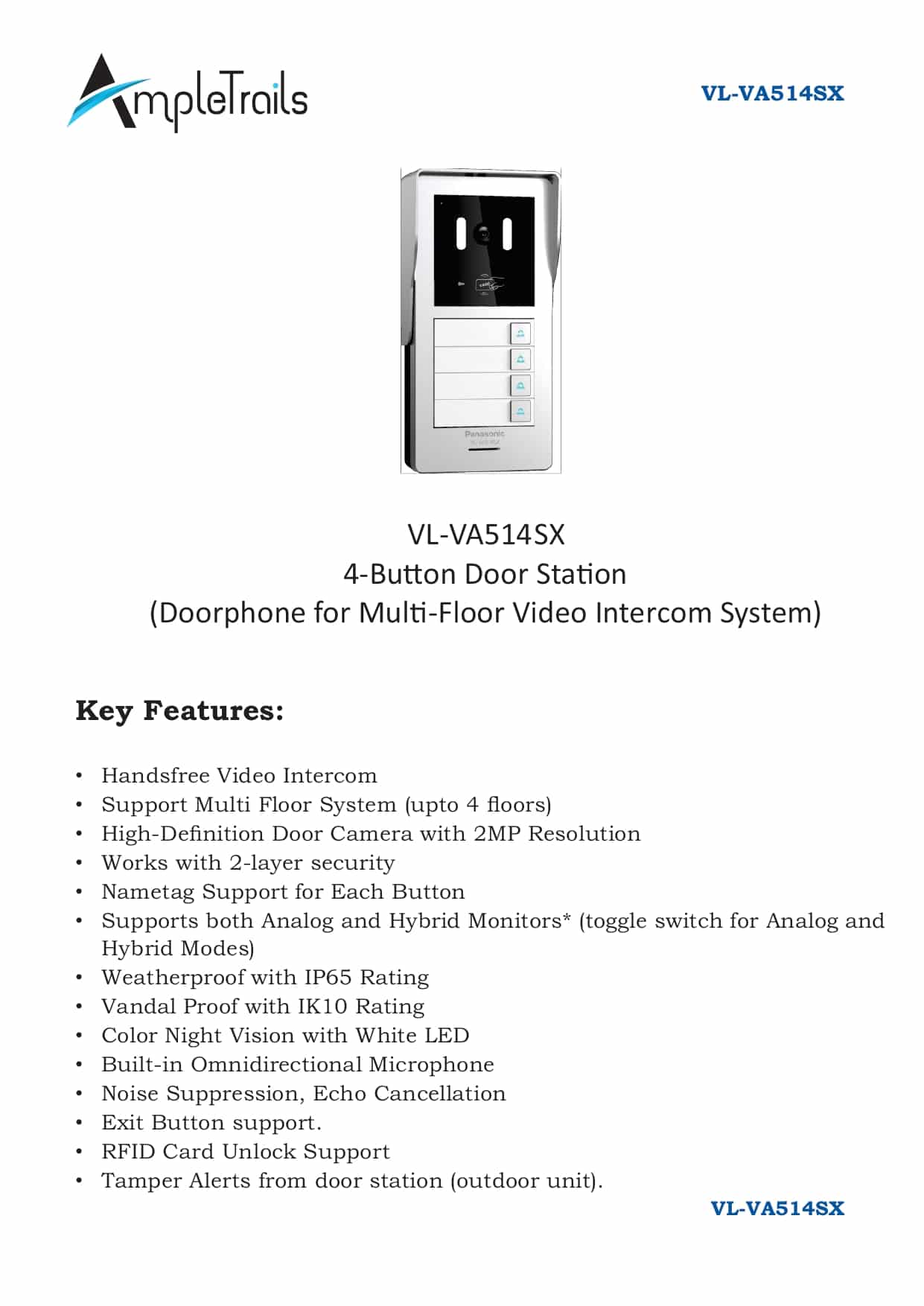

VL-VA514SX 4-Button Door Station (Doorphone for Multi-Floor Video Intercom System) Key Features: • Handsfree Video Intercom • Support Multi Floor System (upto 4 floors) • High-Definition Door Camera with 2MP Resolution • Works with 2-layer security • Nametag Support for Each Button • Supports both Analog and Hybrid Monitors* (toggle switch for Analog and Hybrid Modes) • Weatherproof with IP65 Rating • Vandal Proof with IK10 Rating • Color Night Vision with White LED • Built-in Omnidirectional Microphone • Noise Suppression, Echo Cancellation • Exit Button support. • RFID Card Unlock Support • Tamper Alerts from door station (outdoor unit).
Multi Apartment Video Door Phone from Panasonic. Get Multi Apartment Video Door Phone in Delhi, Gurugram India with onsite installation and support at the lowest price. Multi villa video door phone support RFID card access.
4 Floor Video Door Phone Indoor Unit
- Handsfree video intercom
- Support Multi Floor System (upto 4 floors)
- High-Definition Door Camera with 2MP Resolution
- Works with 2-layer security
- Nametag Support for Each Button
- Supports both Analog and Hybrid Monitors*
- (toggle switch for Analog and Hybrid Modes)
- Weatherproof with IP65 Rating
- Vandal Proof with IK10 Rating
- Color Night Vision with White LED
- Built-in Omnidirectional Microphone
- Noise Suppression, Echo Cancellation
- Exit Button support.
- RFID Card Unlock Support
- Tamper Alerts from door station (outdoor unit)
WBHMA4 4 Button wide-angle view door camera with inbuilt Access control Power Supply and Distributor included
WBHVDPM7W Ultra-thin design7 INCH screen with intuitive user interface simplifies and intuitive menu style high-resolution display
2 Wire Four Apartment Door Station
VL-VA514SX
*Terms and conditions apply.
Note: Product design specifications and colors are subject to change without notice to improve reliability, function, or design. Errors and omissions excepted. Images displayed are for illustration purposes only; actual product may vary.
Product Details
Model: VL-VA514
Package Includes: VL-VA514 x 1
Specifications
Power Source: DC 14.5V 1A, 50/60 Hz
Power Consumption: Standby: <3.0 W, Operating: <10.0 W
Dimensions: 182 x 91 x 43 mm (Excluding protruding sections)
Weight: 351 g
Environmental Conditions
Operating Temperature: -20°C to +70°C
Humidity: 10% to 90% (non-condensing)
Features
Tamper Support: Yes
Supported Monitors: VL-SA71SX, VL-SA72SX, VL-SA611SX*
(*Use toggle switch to choose AHD or Analog Monitor)
Analog/Hybrid VDP Support: Toggle switch button for choosing AHD and Analog model monitor
Talking Method: Hands-free
Audio Quality: Noise Suppression, Echo Cancellation
Audio Input: Built-in Omnidirectional Microphone
Camera
Viewing Angle: Diagonally: 155°, Horizontally: 120°, Vertically: 60°
Resolution: 1/3″ CMOS with 2MP Lens
Stream Resolution (Video): CVBS: 720 x 576 / AHD: 1024 x 600
Stream Resolution (Image): CVBS: 720 x 288 / AHD: 1024 x 600
Installation
Method: Surface Mount / Flush Mount
Lock Connection Relay: 1 Relay (No Com NC)
Minimum Illuminance: 1 lx (within approx. 50 cm from the camera lens)
Lighting Method: White LED
IP/IK Rating: IP65 / IK10
Dimensions (H x W x D)
182 mm x 91 mm x 43 mm

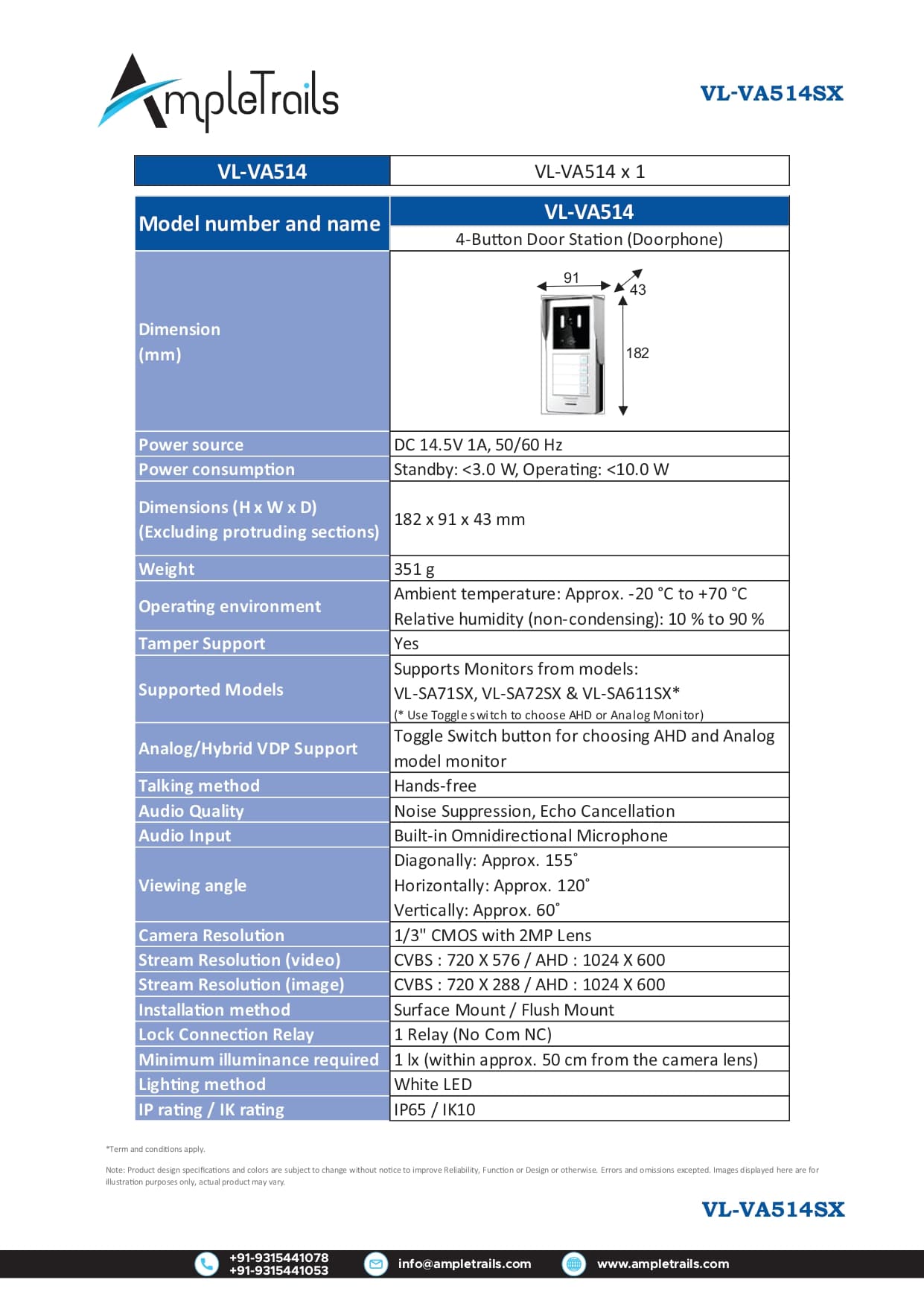

| Model number and name | VL-VA514 4-Button Door Station (Doorphone) |
|---|---|
| Power source | DC 14.5V 1A, 50/60 Hz |
| Power consumption | Standby: <3.0 W, Operating: <10.0 W |
| Dimensions (H x W x D) | (Excluding protruding sections) 182 x 91 x 43 mm |
| Weight | 351 g |
| Operating environment | Ambient temperature: Approx. -20 °C to +70 °C Relative humidity (non-condensing): 10 % to 90 % |
| Tamper Support | Yes |
| Supported Models | Supports Monitors from models: VL-SA71SX, VL-SA72SX & VL-SA611SX* (* Use Toggle switch to choose AHD or Analog Monitor) |
| Analog/Hybrid VDP Support | Toggle Switch button for choosing AHD and Analog model monitor |
| Talking method | Hands-free |
| Audio Quality | Noise Suppression, Echo Cancellation |
| Audio Input | Built-in Omnidirectional Microphone |
| Viewing Angle | Diagonally: Approx. 155˚ Horizontally: Approx. 120˚ Vertically: Approx. 60˚ |
| Camera Resolution | 1/3″ CMOS with 2MP Lens |
| Stream Resolution (video) | CVBS : 720 X 576 / AHD : 1024 X 600 |
| Stream Resolution (image) | CVBS : 720 X 288 / AHD : 1024 X 600 |
| Installation method | Surface Mount / Flush Mount |
| Lock Connection Relay | 1 Relay (No Com NC) |
| Minimum illuminance required | 1 lx (within approx. 50 cm from the camera lens) |
| Lighting method | White LED |
| IP rating / IK rating | IP65 / IK10 |
