Card-based Door Controller with PoE and IP65

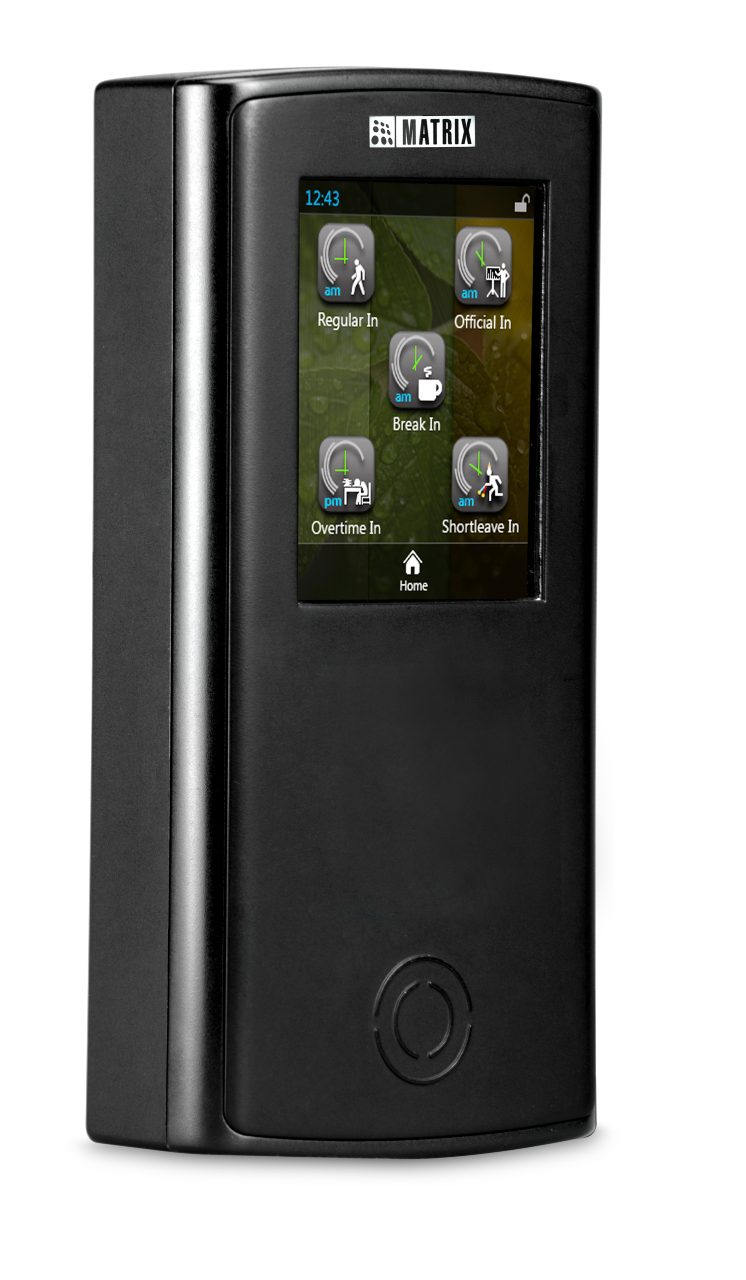

RFID Card based Door Controllers – Matrix COSEC
COSEC VEGA series door controllers are engineered with a careful blend of aesthetic, size, connectivity, reliability, and ease of use. Its IP65, PoE, Wi-Fi, touchscreen, Fingerprint, and RFID Card offer foolproof access control and time-attendance solution for modern enterprises.
COSEC door controllers are the front-end terminals that people use during entry and exit. Door controllers read biometric credentials – fingerprint and palm vein or RFID cards to log each entry/exit and control door locks. Door controllers are connected with the COSEC or site controller. These automatic door controllers can monitor and control additional readers, doors, and auxiliary input and output ports. They store all user access information and send entry-exit details to the COSEC in real-time.
Manual Attendance Card Punching Machine

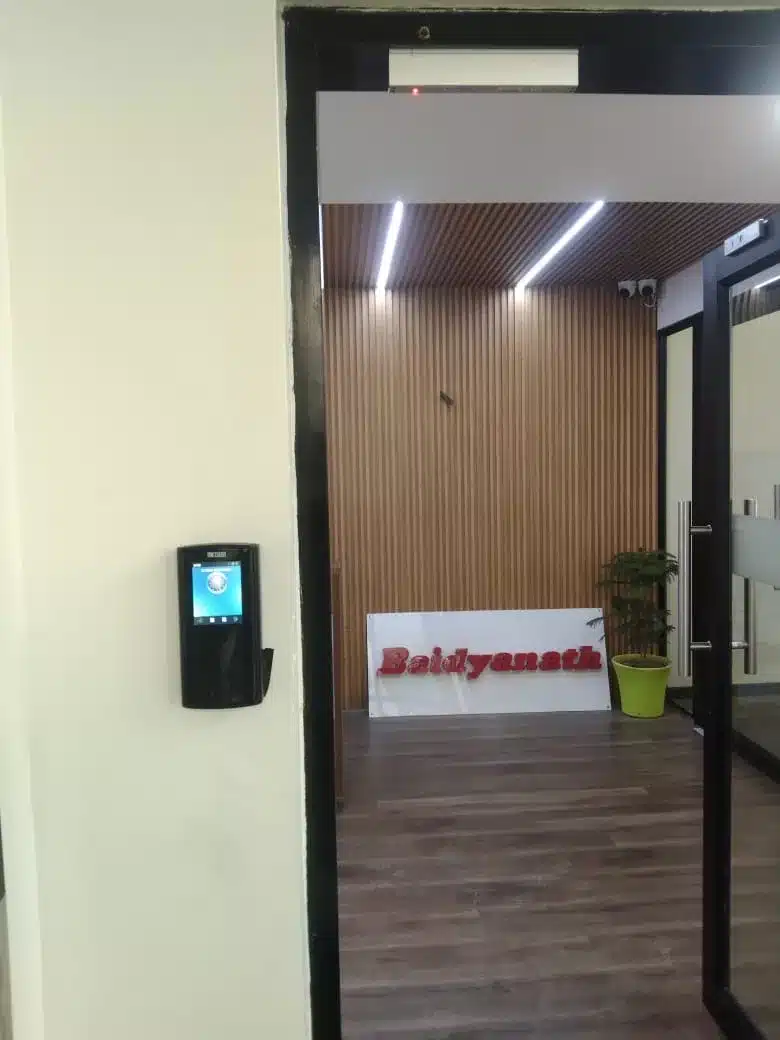

cosec vega cax door controller – Matrix Access Control
Now instead of Manual Attendance Card, Punching Machine is replaced by electronic Attendance Card Punching Machines. Featuring Ethernet, Wi-Fi, and 3G/4G connectivity, COSEC door controllers offer extra flexibility in designing a security solution while reducing installation and maintenance costs. These advanced door controllers have multi-functional supervised auxiliary input and output ports to control various applications. Input devices such as motion detectors, fire alarm panels, video surveillance, etc., and external devices like video recorders, sirens, etc. can be connected to these ports.
RFID Biometric Attendance System
Modules such as Time-Attendance, Access Control, Cafeteria Management, Visitor Management, Contract Workers Management, and Field Visit Management are supported by these door controllers. Hence, COSEC door controllers are futuristic and versatile devices designed for reliability, modularity, and high performance.
COSEC VARIANTS
- ARGO Series
- VEGA Series
- DOOR Series
- PATH Series
- ARC Series
COSEC VEGA Series
Technical_Specification_COSEC_VEGA_CAX
Features of COSEC VEGA CAX
| GENERAL | |
| Credential Support | Bluetooth(BLE), RFID Card and PIN |
| IP Rating | Yes (IP65 Design) |
|
RF Option |
Proximity (EM Prox, HID Prox) and
Smart Cards (Mifare, NFC Tag and HID iCLASS) (COSEC CPM Module Required) |
| CAPACITY | |
| Max. Users | 50,000 |
| Event Buffer | 500,000 |
| Cards per User | Up to 2 |
| COMMUNICATION | |
| Wi-Fi | Yes (802.11 b/g/n) |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| Mobile Broadband | Yes |
| Wiegand | Wiegand IN, Wiegand OUT Available |
| USB | 1 USB Port (Data Transfer and 2G-3G Dongle) |
| INTERFACE | |
| Exit Switch | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | 30 V DC @ 1 A, Form C, SPDT Relay |
| Door Lock Power | Internal 12V DC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised |
| Aux-Out | 30V DC @ 1 A, Form C, SPDT Relay |
| Reader Interface Types | RS-232, and Wiegand IN/OUT |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 Based Processor |
| Memory | 256 MB Flash + 512 MB DDR3 RAM |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Size | 320mm x 240mm (12.59” x 9.44”) |
| Size of Wallpaper | 512Kb |
| Micro SD Slot | Yes (Inbuilt 8GB) |
| Buzzer | Yes |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
| Humidity | 5% to 85% RH Non – Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from COSEC VEGA CAX)
30V DC @1 A (Power to lock from External Adaptor) |
| Dimensions (W x H x D) | 91mm x 186mm x 38mm (3.58″x7.32″x1.49″) |
| Weight | 0.54 Kgs (1.19 lbs.) |
| CERTIFICATES | CE, FCC, BIS, ROHS, IP65, Shock and Vibration Proof |
| COMPATBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL LITE V2 |
APPLICATIONS
- Access Control
- Time-Attendance
- Visitor Management
- Contract Workers’ Management
- Cafeteria Management
- Job Processing and Costing
TECHNICAL SPECIFICATIONS
