Matrix SATATYA NVR0801X

8 Channel NVR with 4K Support and 1 HDD Slot

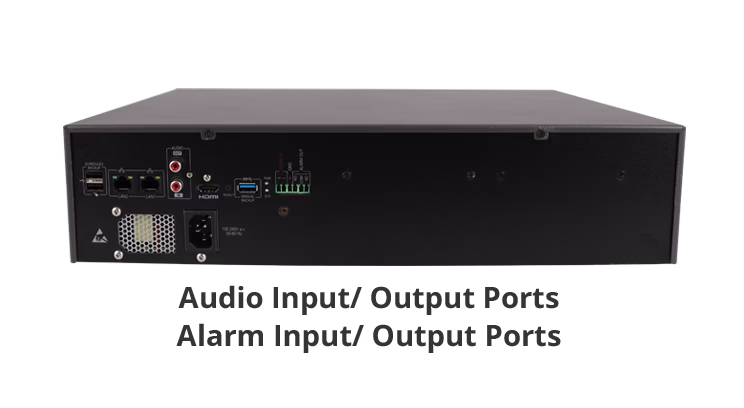

• 8 IP Channel Inputs; HDMI, 1/1 Audio I/O and 2/1 Alarm I/O
• 12MP, 8MP, 5MP, 4MP, 3MP, 2MP, 720p, D1 & CIF Recording Resolution
• 5x 4K, 16x 8MP, 24x 1080p, 54x 720p, 64x D1 Local Decoding
• 1 SATA HDD Support (10TB Capacity, Hard Disk Not Included)
• Save Storage Space with Adaptive Recording & Camera-wise Recording Retention
• SMS & Email Notification, Video Pop-up, Alarms and Calling from Mobile Application
• 512Mbps Throughput – 256 Uplink, 256 Downlink
• Cascading: Manage Multiple Matrix NVRs
• ONVIF and Major Camera Brands Support

8 Channel NVR with 1 SATA Port

Made in India.

Adaptive Recording, Automatically Reduces the Number of Frames Captured Per Second Where There is No Motion, Thereby Saving Storage Space.

8 Channel Extreme Series NVR with 1 SATA Port

SATATYA PARAM NVR0801X

360Mbps Throughput – 180 Uplink, 180 Downlink
Ultra HD (4K) Decoding and Smooth Streaming
Huge Inbuilt Storage for Better Recording Retention
12 MP Resolution Recording Capacity
Allows Cascading of up to 20 Devices
Proactive Actions Based on Various Events
Dimensions (mm): Width 320 (without clamp) × Height 45.5 x Depth 195.5

Matrix Network Video Recorders (NVRs) – 8 Channel Extreme Series NVR with 1 SATA Port is loaded with amazing features like ultra HD (4K) decoding and H.265 compression technology for smooth streaming and efficient storage of video footage.

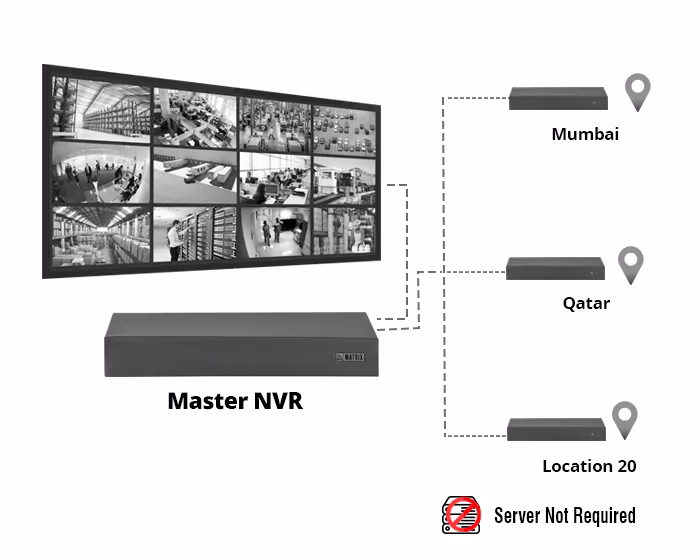

The cascading feature offered by Matrix NVR allows simultaneous local and remote monitoring of offices across different locations. Additionally, it offers a huge storage capacity for better image storage and evidence gathering. Matrix NVR comes with advanced security features to detect threats and send instant notifications for real-time security.

Compression: H.265
Decoding: 4K
Channel: 8 Channels
Storage: 1 SATA Port (10TB)

Matrix NVRs are packed with high-end processors to deliver functionalities like recording images of high resolution, playback, local and remote monitoring, and many more. The images captured can be stored for a higher number of days. Furthermore, these latest NVRs are also backed with intelligent software to detect threats and send instant notifications for real-time security. All in all, these comprehensive, flexible, reliable, integrated NVRs provide a proficient, persistent, and preventive security solution suitable for enterprises and multi-location offices.

H.265 Compression
4K Decoding
12MP Recording
Cascading
Adaptive Recording
Camera-wise Recording Retention

TECHNICAL SPECIFICATIONS

VIDEO

Input: 8 IP Channels
Output: HDMI (2.0) – 1 Port (Main)
Compression: H.265/H.264/Motion JPEG

AUDIO

Input: 1 Channel, RCA Port (2.0Vp-p), Range (-2dBu to 22dBu)
Output: 1 Channel, RCA Port Mono, Unbalanced output, (2.0Vp-p), Range (-2dBu to 22dBu)
Compression: G.711µ
Two Way Audio: Yes

THROUGHPUT

Downlink Throughput: 180Mbps
- Cameras Streaming to Device
- Cameras of Cascaded Devices being Viewed on Local
- Streaming from NAS for local/Web Client
Downlink Throughput: 213 Mbps
- Cameras Streaming to Device
- Cameras of Cascaded Devices being Viewed on Local
- Recording in Local HDDs, No NAS connectivity
Uplink Throughput: 180Mbps
- Cameras Streaming to Web Client
- Storage or Backup to NAS
Uplink Throughput: 205 Mbps
- Cameras Streaming to Web Client
- NVR streaming to cascaded NVRs/VMS
Simultaneous Log-in: 9+1 (Admin)

DISPLAY

Split (Through LAN/HDMI): 1×1, 2×2, 3×3, 4×4, 1+5, 1+7, 3+4, 2+8, 1+12, 1©+12, 1+9, 4+9, 2+12, 5×5, 6×6 and Sequential
Local Decoding: 2x 4K/8x 1080p/16x 720p/ 36x D1 @ 30FPS
Digital Zoom on Live: Yes (Scroll Zoom)
Snapshot: Yes (JPEG)
Multiple Camera Viewing Through Cascading: (up to 20 devices)
OSD: Channel Number and Name, Status, Video Loss, Recording and Disabled Channel (As per camera support)

RECORDING

Image Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 2MP, 720p, D1, CIF
Pre-Record: Up to 30 Sec
Post-Record: 10-300 Sec
Snapshot Format: JPEG
Recording Format: AVI, Native
Recording Types: Scheduled, Manual, Alarm, and COSEC

STORAGE AND BANDWIDTH OPTIMIZATION

Adaptive Recording: Reduces Frames Captured Per Second when there is No Motion
Bandwidth Optimization: Optimized Resolution on Local Display through HDMI

PLAYBACK AND BACKUP

Synchronous Playback: 16-channel
Search Mode: Date and Time, Camera, Recording Type, Recording Drive
Playback Modes: Fast Forward, Slow Forward, Slow Reverse, Fast Reverse at Different Speed Control, Next-Previous Frame
Backup: Manual Backup over USB and NAS, Scheduled Backup over USB, NAS, and FTP Scheduled Backup over USB through USB 2.0 interface Manual Backup over USB through USB 3.0 interface Quick Backup over USB, NAS, and Local PC
Configuration Backup: Yes
