Name: Matrix SATATYA MIBR80FL28CWS 8MP Bullet Camera 2.8mm Lens
SKU: 25094
Price: 12627.00 INR
Availability: InStock

Matrix SATATYA MIBR80FL28CWS 8MP Bullet Camera 2.8mm Lens

8MP IR Bullet Camera (2.8mm Lens)

1/2.8” SONY – CMOS (Exmor Technology – STARVIS Series)
8MP, 0Lux with IR LED ON
Horizontal Field of View: 9° & IR Range of up to 30 meters
Video Analytics: Trip Wire, Intrusion Detection and Motion Detection, Tamper Detection
265/H.264/MJPEG Video Compression
PoE Support, NAS Storage, SD Card(512GB), Quad Stream Support
True WDR, 3D Noise Reduction, Adaptive Streaming, Smart Streaming and ROI
IP66, BIS, CE, FCC and RoHS

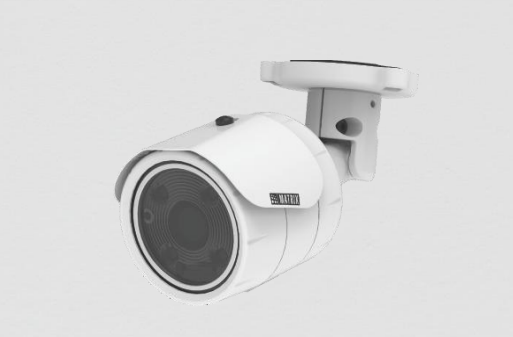

Matrix SATATYA MIBR80FL28CWS 8MP IR Bullet Camera with 2.8mm Lens

Matrix Professional Series IP Cameras are built using superior components such as Sony STARVIS sensor and higher MTF lens to offer unmatched image quality especially during the low light conditions. Powered by True WDR algorithm, these cameras offer consistent image quality even in highly varying lighting conditions. Built in intelligent analytics including Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic Motion based Frame Rate Reduction save bandwidth and storage up to 50%.

IMAGE SENSOR
Resolution	8 MP (3840 x 2160)
Sensor Type and Size	1/2.8″ SONY – CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Minimum Illumination	Color – 0.01 Lux @F1.2 (AGC ON) Monochrome – 0 Lux
Focal Length	2.8mm
Focus Range	0.3m to infinity
Field of View (FOV)	HFOV-106.9° VFOV-56.9° DFOV-127.9°
Lens Mount	M12
Focus	Fixed focus
Aperture (F#)	F 1.6
Iris Type	Fixed
IR Range	Up to 30m
IR Led Wavelength	850nm
IR Switching	Auto/Manual

HARDWARE SPECIFICATIONS
SD Card Support	Up to 512GB
Camera Adjustment Angle	Pan: 0° to 360° Tilt: 0° to $90^{\circ}$ Rotate: 0° to $360^{\circ}$
IMAGE AND VIDEO
No of Stream Profiles	4
Stream Profiles	Profile 1: 4K @30fps (H.265/H.264) Profile 2: D1 @30fps (H.265/H.264) Profile 3: 3MP @10fps (H.265/H.264/MJPEG) Profile 4: 2MP @15fps (H.265/H.264/MJPEG)
Available Resolutions	$3840\times2160,3200\times1800,2592\times1944,2592\times1520,2048\times1536$, 1920 x 1080, 720p, D1, VGA, 2CIF, CIF
Max Resolution	$3840\times2160$
Bitrate	128 kbps-16Mbps
Bitrate Type	CBR, VBR
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps

ALERTS
Shutter Speed	1/15s 1/100000s
Adaptive Streaming	Yes
ONVIF Profiles	S, G and T
Alarm Recording	Pre and Post
Motion Recording	Yes
Video Parameters	Snapshot, Region of Interest (ROI), BLC, Day/Night Settings, Dynamic FPS, Forensics/Smart IR
Privacy Masks	8
WDR	True WDR (120dB)
SNR	73dB
Image Enhancement	Saturation/ Contrast/Sharpness/Brightness/Auto Exposure/ HVS
DNR	2D &3D
Video Analytics	Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion
IP Conflict	Yes
Network Disconnect	Yes
Storage Full	Yes
Time Triggered	Yes
EVENTS AND ACTIONS
Upload Image	SD, NAS, FTP
Upload Clip	SD, NAS, FTP
Notifications	E-mail, SMS, TCP
PROTOCOLS SUPPORTED
Supported protocols	TCP/IP, HTTP, HTTPS, ARP, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP, UDP, 802.1x, SNMP, UPnP, Bonjour, UDP
Web Viewer	Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Browser	IE, Chrome, Mozilla

OPERATING PARAMETERS
Power Supply	12V (DC); 802.3af (PoE)
Power Consumption	Maximum 8W
Operating Humidity	Less than 95% RH (non-condensing)
Operating Temperature	$-30^{\circ}C$ to $60^{\circ}C$
Storage Temperature	$-30^{\circ}C$ to $60^{\circ}C$

PHYSICAL PARAMETERS
Communication interface	10Base-T/100BaseTX Ethernet (RJ-45)
Weight	500gms
Color	Infinity White
Dimensions	$155\times75$ (Length x Width)
Storage	NAS
Certifications	BIS, CE, FCC Part-15 Subpart – B, ONVIF S & G T, IK10, IP67
