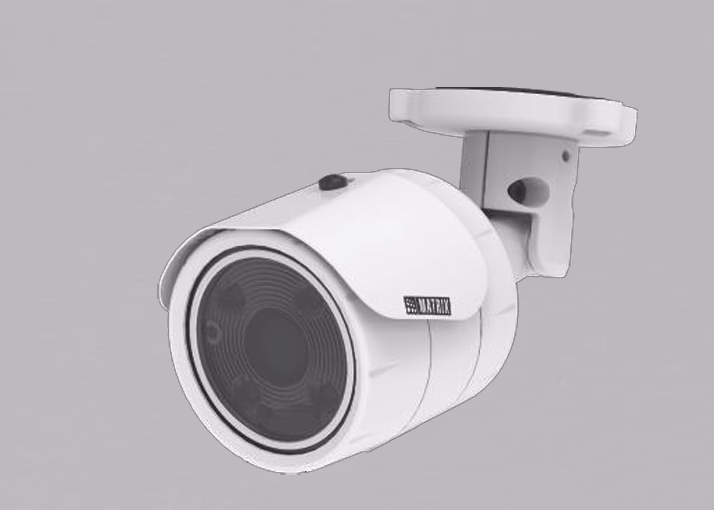

Name: Matrix SATATYA MIBR20FL28CWP 2MP IR Bullet Camera with 2.8mm Lens with Audio
Brand: Matrix
SKU: 25101
Price: 7500.00 INR
Availability: InStock

Matrix SATATYA MIBR20FL28CWP 2MP IR Bullet Camera with 2.8mm Lens with Audio

2MP IR Bullet Camera (2.8mm Lens) with Audio Support

1 / 2.8” SONY – CMOS (Exmor Technology – STARVIS Series)
2MP, 0Lux with IR LED ON
Horizontal Field of View: 101 degrees
IR Range of up to 30 meters
Video Analytics: Trip Wire, Intrusion Detection and Motion Detection
H.265/H.264/MJPEG Video Compression
PoE Support, NAS Storage, SD Card(512GB), Quad Stream Support, 1/1 Audio I/O
True WDR, 3D Noise Reduction, Adaptive Streaming, Smart Streaming and ROI, SNR > 70 dB

High-Definition 2MP IR Bullet Camera with 2.8mm Lens and Audio: Matrix SATATYA MIBR20FL28CWP

Matrix Professional Series IP Cameras are built using superior components such as Sony STARVIS sensor and higher MTF lens to offer unmatched image quality especially during the low light conditions. Powered by True WDR algorithm, these cameras offer consistent image quality even in highly varying lighting conditions. Built in intelligent analytics including Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic Motion based Frame Rate Reduction save bandwidth and storage up to 50%.

Matrix SATATYA MIBR20FL28CWP 2MP IR Bullet Camera with 2.8mm Lens with Audio

SATATYA MIBR20FL28CWP 2MP IR Bullet Camera with 2.8mm Lens with Audio

The SATATYA MIBR20FL28CWP is a high-performance 2MP IR bullet camera designed for superior surveillance in various lighting conditions. Manufactured by Matrix, a leader in security and telecom solutions, this camera is built using top-tier components to ensure unmatched image quality, especially in low light scenarios.

Key Features:

Image Sensor:
- Resolution: 2 MP (1920 x 1080)
- Sensor Type and Size: 1/2.8″ SONY CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
- Minimum Illumination: Color – 0.01 Lux @F1.2 (AGC ON), Monochrome – 0 Lux
Lens:
- Focal Length: 2.8mm
- Focus Range: 0.3m to infinity
- Field of View (FOV): HFOV – 106.9°, VFOV – 56.9°, DFOV – 127.9°
- Lens Mount: M12
- Focus: Fixed focus
- Aperture (F#): F 1.6/ F2.0
- Iris Type: Fixed
- IR Range: Up to 30m
- IR Led Wavelength: 850nm
- IR Switching: Auto/ Manual
Audio Interface:
- Audio IN: 1
- Audio OUT: 1
- Two-way Audio: Supported
- Audio Compression: G.726 and G.711µ
Hardware Specifications:
- SD Card: Up to 512GB
- Camera Adjustment Angle: Pan – 0° to 360°, Tilt – 0° to 75°, Rotate – 0° to 180°
Image and Video:
- No of Stream Profiles: 4
- Stream Profiles:
  - Profile 1: 1920x1080p(2MP) @30fps (H.265/ H.264)
  - Profile 2: D1 @30fps (H.265/H.264)
  - Profile 3: 1920x1080p(2MP) @5fps (MJPEG)
  - Profile 4: 720p @30fps (H.265/H.264/MJPEG)
- Available Resolutions: 1920 x 1080, 720p, D1, VGA, 2CIF, CIF
- Max Resolution: 1920 x 1080
- Bitrate: 128 kbps-8Mbps
- Bitrate Type: CBR, VBR
- Video Compression: H.265, H.264, MJPEG
- Frame Rate: 1-30fps
- Shutter Speed: 1/15s – 1/100000s
- Adaptive Streaming: Yes
- ONVIF Profiles: Both S and G
- Edge Recording: Yes
- Alarm Recording: Pre and Post
- Motion Recording: Yes
- Time Triggered: Yes
- Video Parameters: Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
- Privacy Masks: 3
- WDR: True WDR (120dB)
- SNR: 71dB
- Image Enhancement: Rotation/ Saturation/ Contrast/ Sharpness/ Brightness/ Hue/ White Balance
- DNR: 2D & 3D
- Video Analytics: Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
Alerts:
- IP Conflict: Yes
- Network Disconnect: Yes
- Storage Full: Yes
Events and Actions:
- Upload Image: SD, NAS, FTP
- Upload Clip: SD, NAS, FTP
- Notifications: E-mail, SMS, TCP
Protocols Supported:
- TCP/IP, HTTP, ARP, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP, 802.1x, SNMP, UPnP, Bonjour, UDP
Web Viewer:
- Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
- Browser: IE, Chrome, Mozilla
Operating Parameters:
- Power Supply: 12V (DC); 802.3af (PoE)
- Power Consumption: Approximately 5.5W
- Operating Humidity: Less than 95% RH (non-condensing)
- Operating Temperature: -30°C to 60°C
- Storage Temperature: -30°C to 60°C
Physical Parameters:
- Communication Interface: 10Base-T/100BaseTX Ethernet (RJ-45)
- Weight: 500gms
- Color: Infinity White
- Dimensions: 155 x 75 mm (Length x Width)
- Storage: NAS, SD Card
- Certifications: BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S & G, IK10
