Matrix COSEC ATOM RD300SFI
Original price was: ₹ 35,000.00.₹ 33,000.00Current price is: ₹ 33,000.00.
HID iCLASS Card based Reader with Fingerprint & Bluetooth
HID iCLASS Card, PIN and Bluetooth Support
Connect with Third-party Control Panel/Controller over Wiegand Interface
Open Door over BLE from User’s Mobile
Compatible with COSEC ARC over RS-485 and COSEC PATH V2 DCXX, COSEC VEGA and COSEC ARGO over RS-232
Tamper Detection
Tri-color LED
CE, FCC, ROHS, BIS Certifications
Description

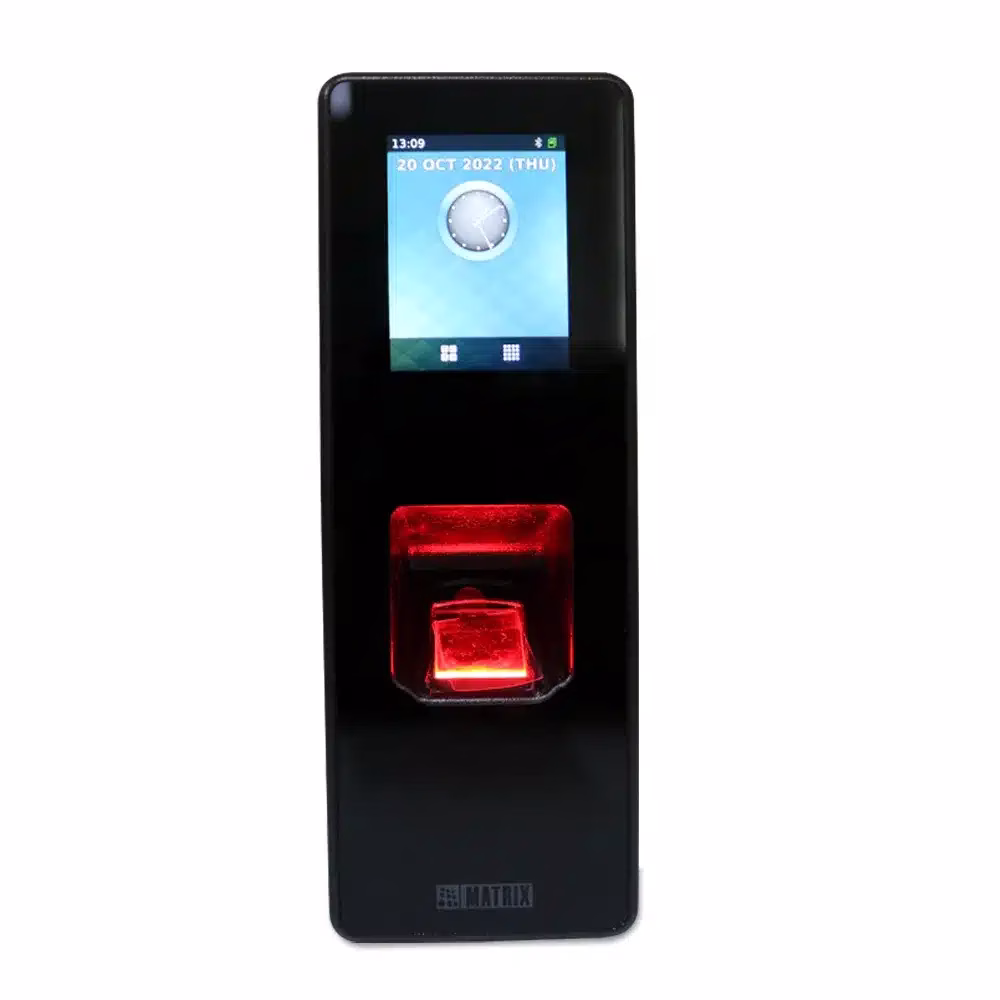

Matrix COSEC ATOM RD300SFI
HID iCLASS Card based Reader with Fingerprint & Bluetooth
General
-
Credential Support: Fingerprint, BLE, PIN, and Card
-
RF Options:
-
ATOM RD300SFE: EM Proximity Card
-
ATOM RD300SFM: Mifare Classic®/Desfire EV1 & EV2, Combo cards, NFC Tag
-
ATOM RD300SFI: HID iCLASS, MIFARE®, Desfire, Combo cards
-
Communication
-
Inbuilt Bluetooth: Yes
-
Wi-Fi: Yes (802.11 b/g/n)
Interface
-
RS-232: Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2)
-
Wiegand: Yes
-
RS-485: Yes (Compatible with ARC DC200P)
Hardware
-
Display: 2” Touch screen Display
-
Display Resolution: 320 x 240 Pixel
-
Dimensions (H x W x D): 153mm x 56mm x 37mm
-
Weight: 330 grams (0.72 lbs)
-
Gorilla Glass: Yes (Gorilla Glass 3)
-
CPU: AM3352
-
Tamper Detection: Yes
-
Buzzer: Yes (12V Magnetic buzzer)
-
LEDs: No
-
Ingress Protection (IP): Yes (IP65)
-
Vandal Proof (IK): Yes (IK06)
Environmental
-
Operating Temperature: -20°C to +55°C
-
Humidity: 5% to 95% RH Non-Condensing
Fingerprint Sensor
-
Sensor Type: Optical
-
Sensor Name: SFM6030-OC6
-
Sensor Surface: Scratch Free
-
Resolution: 500 DPI
-
Sensing Area: 16.0mm x 18.0mm
Installation
-
Installation Options: Wall Mount & Flush Mount
