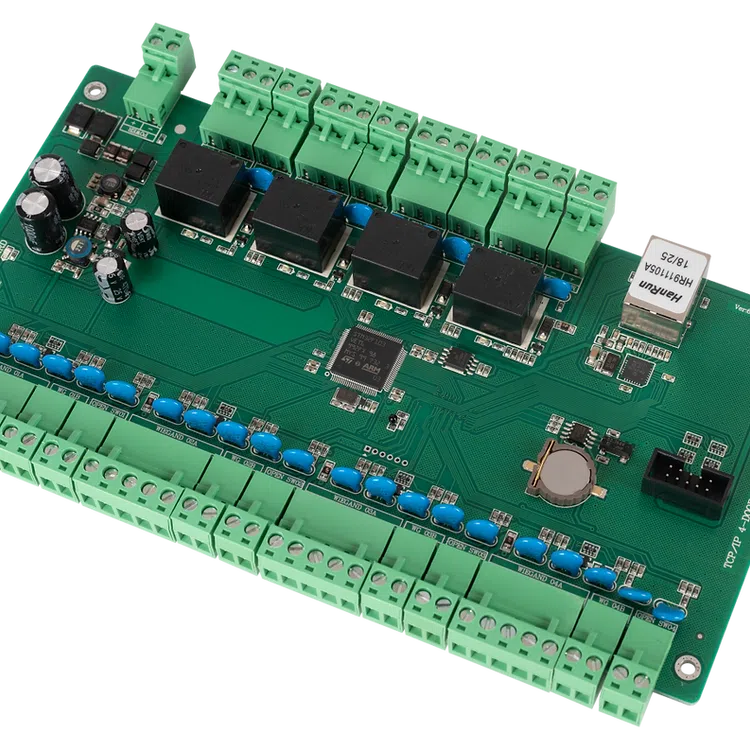

2 Door 4 Readers Controller Syrotech SY-AC4
SY-AC4 four door access control board is a new generation of intelligent network access control products. It uses super network processor and mass memory to realize real network data exchange, high-speed data operation and super large user data management.

Specifications of SY-AC4

Working Current: < 300mA
Door Control: 2 doors
Temperature Range: 0°C-70°C
Exit Button: 2 groups
Door Sensor Interface: 2 groups
Working Voltage: DC 9V-14V
Humidity: 10-90% RH
Number of Readers: 4
Relay: 2 groups
Alarm Extension: 4 enter and 4 exit
Size: 157mm x 130mm x 20mm
Register Cards Capacity: 42,000 (extendable)
Wiegand Distance: 100m (suggested 80m)
Record Capacity: 200,000 (extendable)
Communication Type: TCP/IP
Reading Protocol: Wiegand 26, Wiegand 34, Wiegand 66
Communication Distance: TCP/IP (100m)

The SY-AC4 controller can be used in various applications where secure access control and monitoring are essential. Some potential applications include:

Office Buildings: because it helps manage access to different areas, ensuring only authorized personnel can enter specific zones.
Educational Institutions: because it controls access to classrooms, labs, and administrative offices, enhancing security for students and staff.
Residential Complexes: because it regulates entry to common areas, parking garages, and individual buildings.
Industrial Facilities: because it restricts access to sensitive areas such as production floors, warehouses, and data centers.
Hospitals and Healthcare Facilities: because it secures entry to patient rooms, laboratories, and medication storage areas.
Government Buildings: because it controls access to secure zones, offices, and archives.
Financial Institutions: because it manages entry to vaults, teller areas, and server rooms.
Retail Stores and Shopping Centers: because it secures stockrooms, cash offices, and restricted areas.
Airports and Transportation Hubs: because it monitors and controls access to restricted areas, enhancing overall security.
Data Centers: because it ensures only authorized personnel can access server rooms and sensitive data storage areas.
