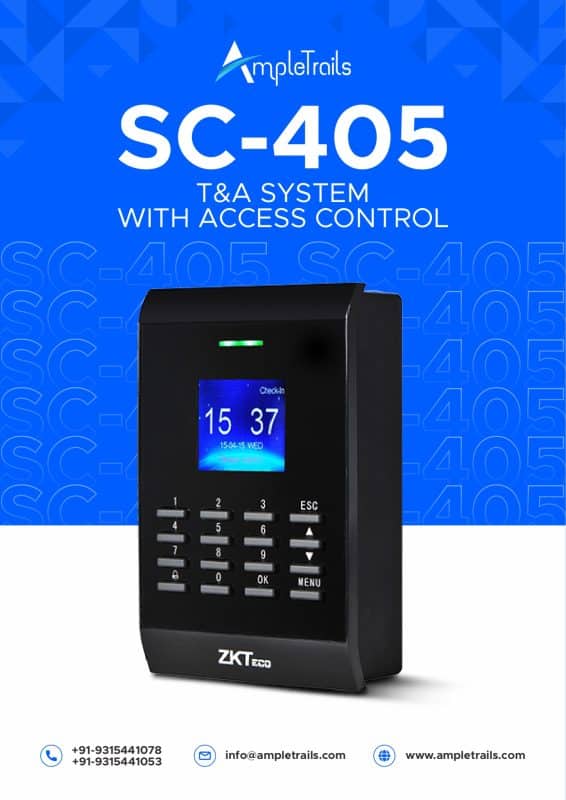

Proximity MIFARE Card Reader SC 405

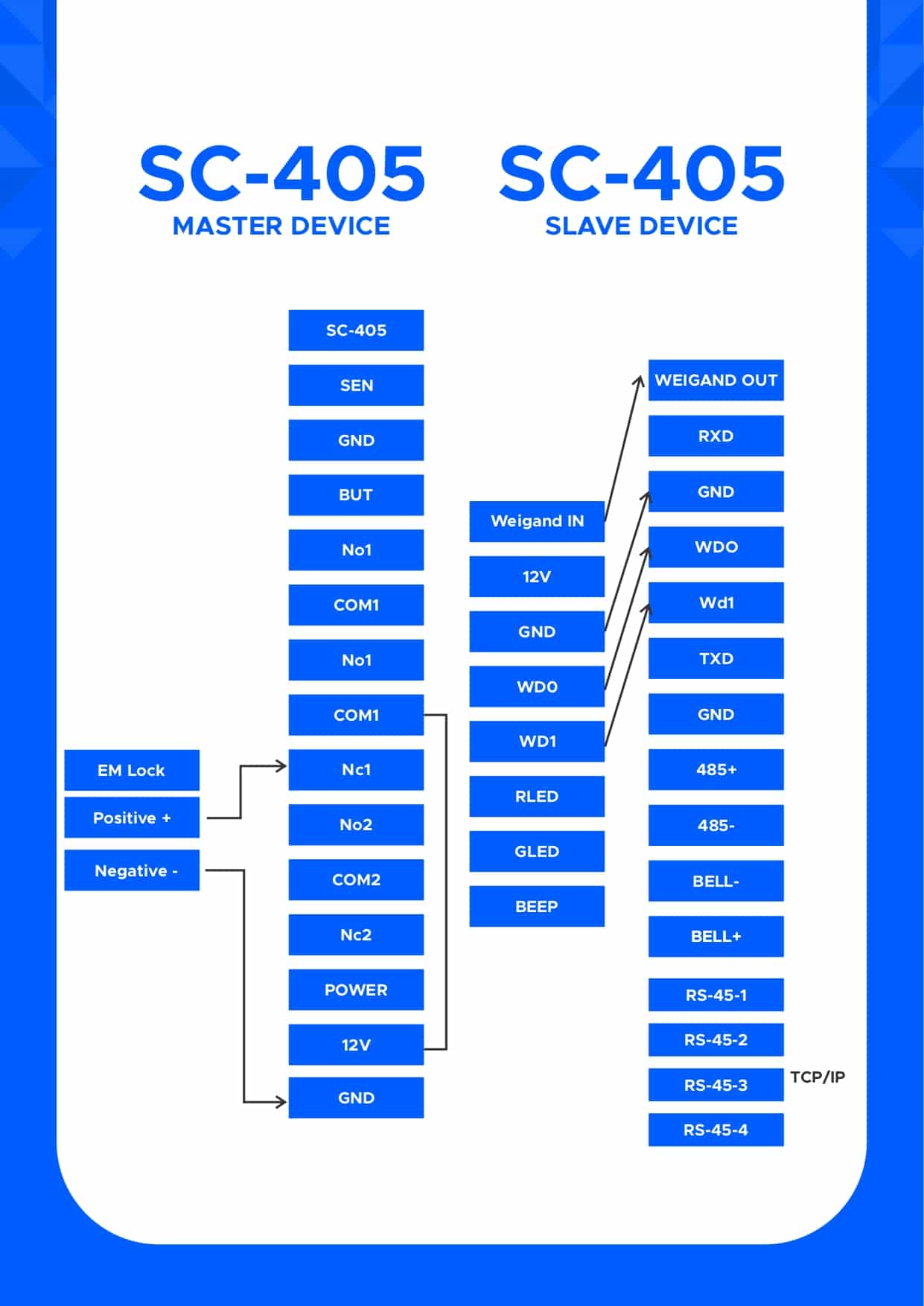

Proximity and mi-fare cards SC 405 is an RFID identification T&A and access control terminal which has a capacity of 10,000 cards and 1, 00,000 transaction logs with fastest identification speed of less than or equal to 0.1 seconds. The Wiegand-in interface is used to connect the external reader to construct master and slave system. Multi-model communications consisting of RS232/485, TCP/IP, USB host and Wi-Fi/GPRS (optional) allow an extremely easy data management.  It also has optional Wi-Fi and GPRS connectivity. The USB-host is used for data download and upload, including user template and record etc. Optional built-in 2000 mAh battery eliminates the trouble of power failure. It enables the enterprise to manage more employees with less cost.

SC405 essl Card Based Attendance Machine

SC405 essl Card Based Attendance Machine

Download Brochure of PROXIMITY TIME ATTENDANCE SYSTEM WITH ACCESS CONTROL SC403 AmpleTrails

RFID Attendance System Suppliers

We are the top in industries who are RFID attendance system suppliers. SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch.

IntroductionFeaturesDocuments

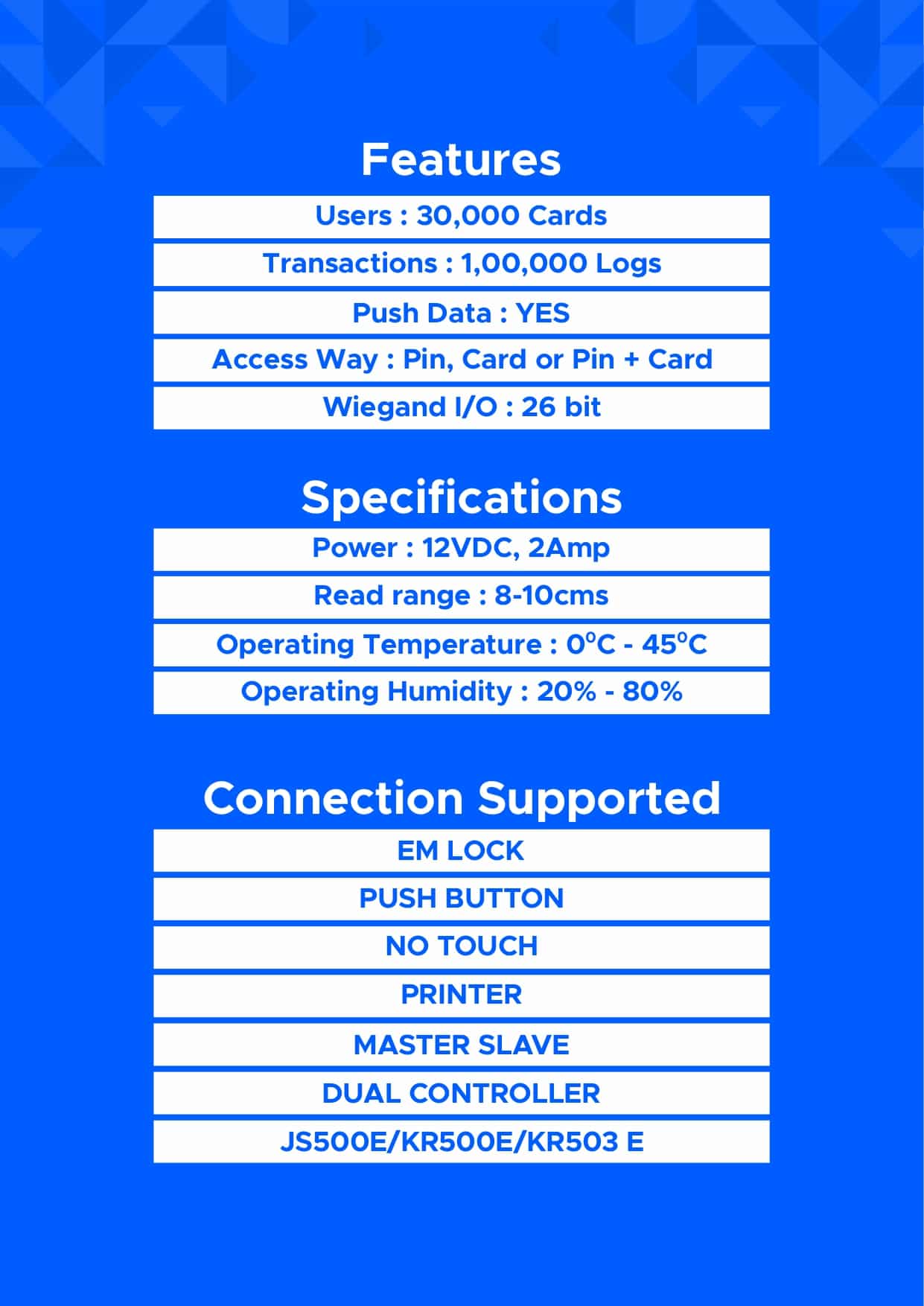

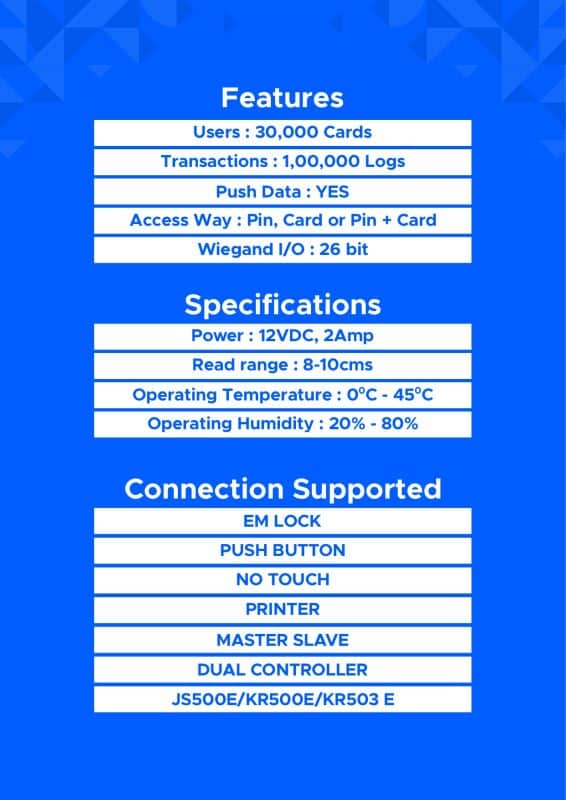

  • Technical Details:
  • • Card Capacity : 30,000
  • • Transaction Storage : 50,000
  • • Card Reader : Yes (EM/Mifare – Optional)
  • • CPU : 32 bit High End Microprocessor
  • • FAR : <=0.0001% / FRR : <=1%
  • • Identification Speed : <= 0.1sec
  • • Display : Black & White
  • • Keypad : 4 x 4 Keypads
  • • LED Indicator : Green/Red
  • • Schedule Bell/Speaker : Mini Speaker

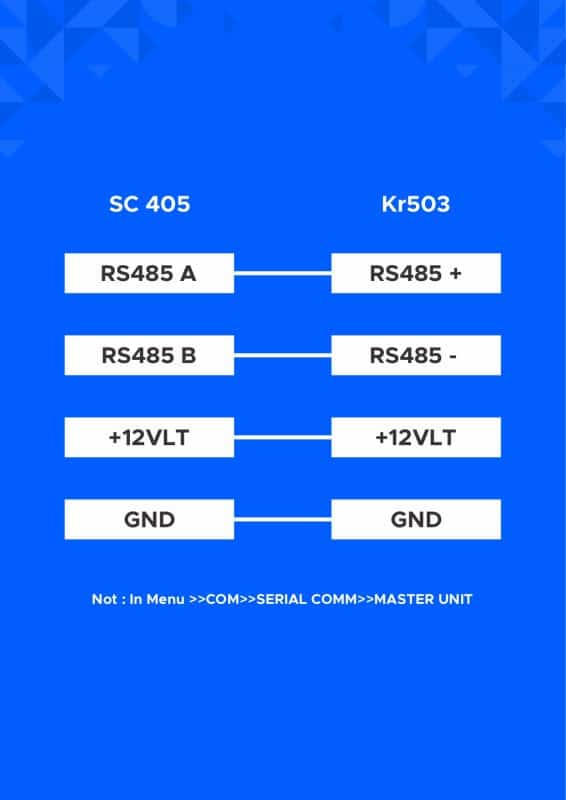

  • • Communication : TCP/IP, USB, RS 232, RS485
  • • Power Supply : 12 V DC, 2Amps
  • • Operating Temperature : 0°C to 45°C
  • • Operating Humidity : 20% – 80%
  • • Dimension : 143 x 95.5 x 39.5 mm
  • Special Features:

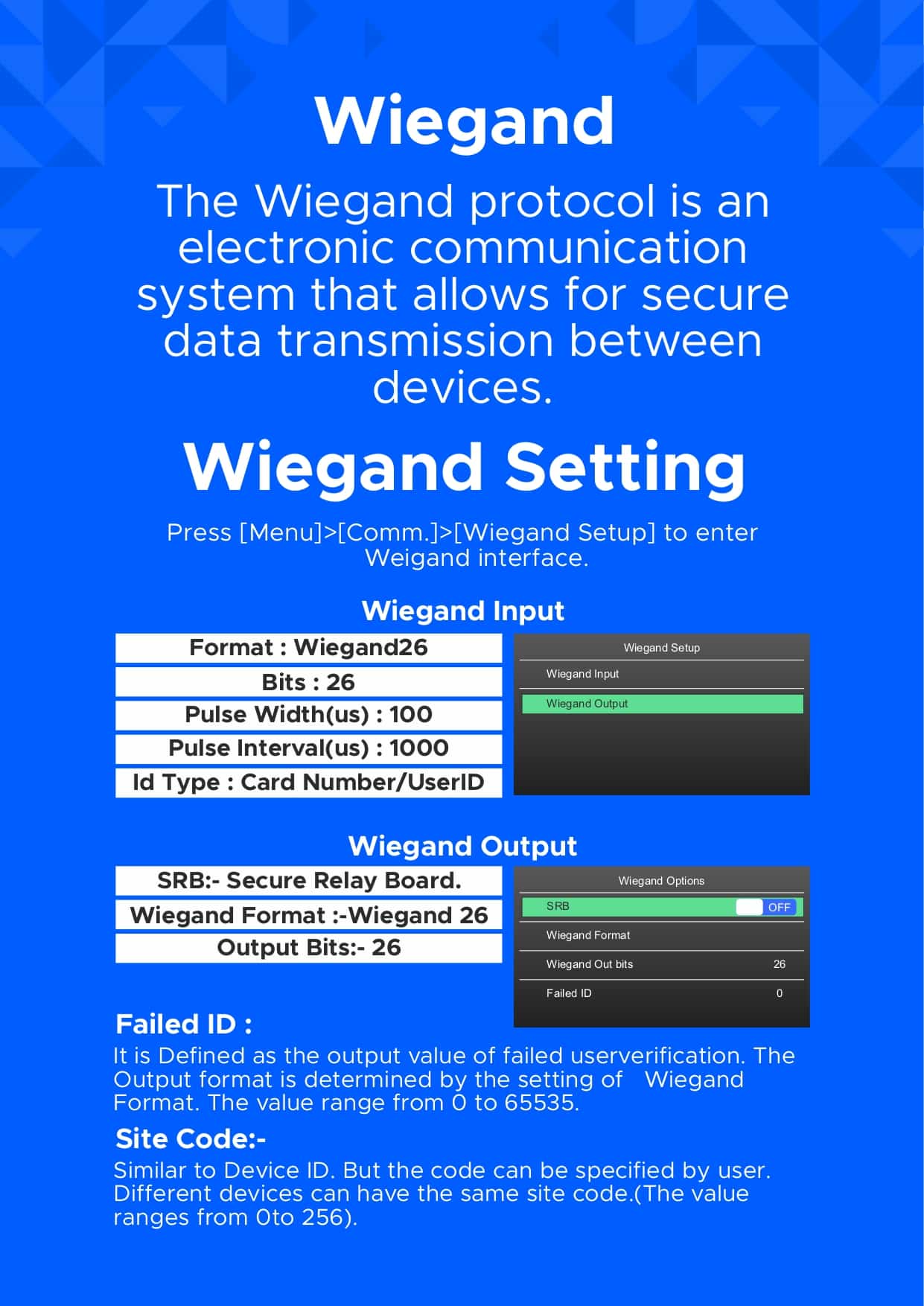

  • • Wiegand : In & Out

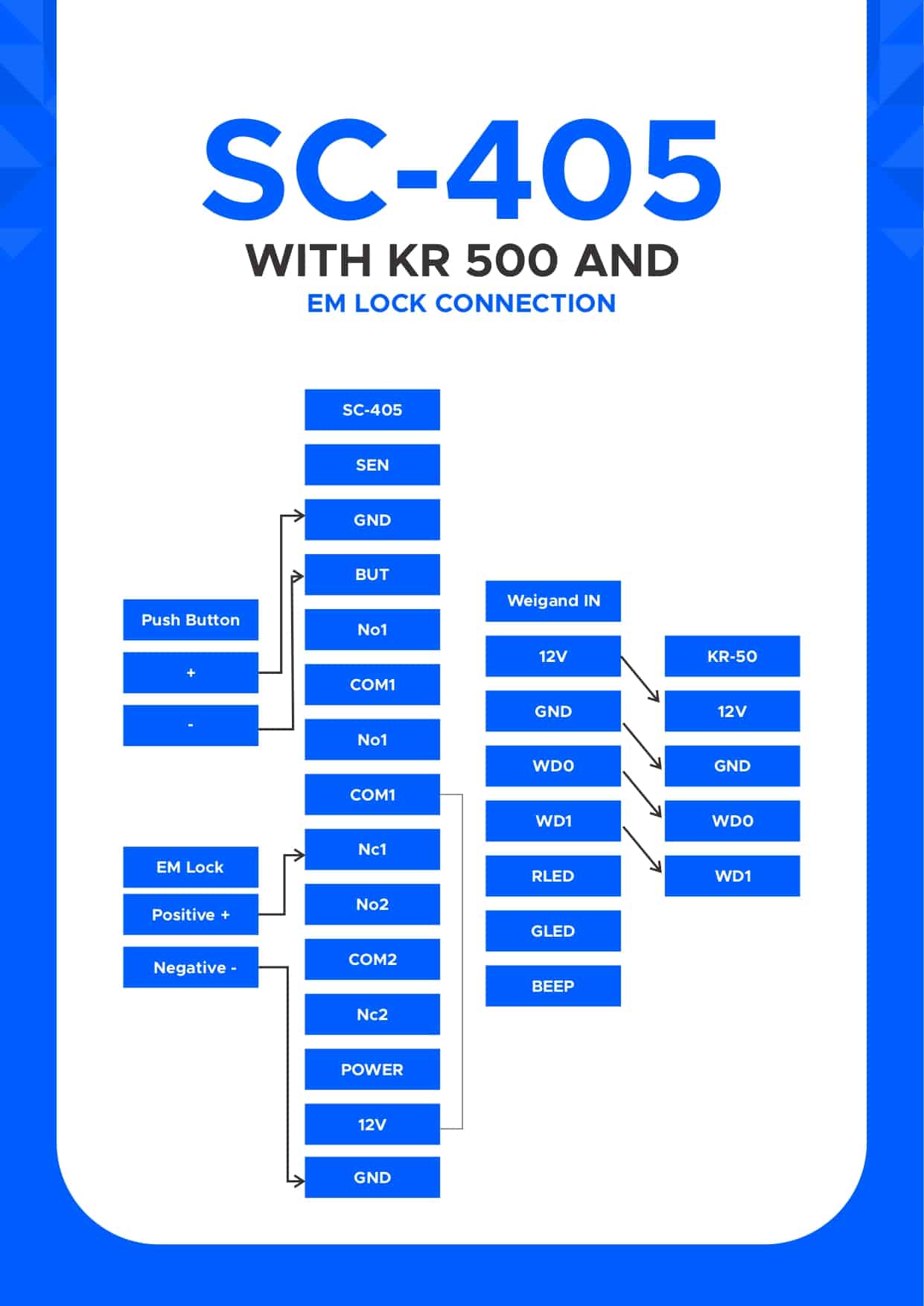

  • • Relay : Inbuilt relay to communicate with
  • locks,Alarms & Door Sensors
  • • Support Fire Alarm : Yes / Door Sensor : Yes
  • • Anti Pass back : yes / Door Bell : Yes
  • • Support exit reader : KR 500E / Exit Button
  • 50 time zones, 5 Groups,10 time combinations
  • Compatibility :
  • • Compatible with Multi Door controllers via
  • weigand
  • • External Speaker output available (Optional)
  • • External Bulb output available (Optional)
Optional Features

Push Data Technology
GPRS
Web Server
Wi-Fi
Battery back up
Mifare / HID Prox

Email us at info@ampletrails.com or call us at 9818390836 for pricing and installation of this machine.

  • • 2.0-inch color display with graphical UI for easy operation
  • • Up to 24 user-defined schedules that can be activated on a daily bell alert
  • • Prompt audio acceptance or rejection signals for valid or invalid cards
  • • TCP/IP or RS485 communication for various networking environments
  • • Supports USB flash drive for offline data management
  • • Built-in auxiliary input with enhanced flexibility to link with a wired detector or emergency switch
  • • Multi-verification methods to enhance the security level
  • • Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
  • • Duress Alarm offers effective protection against duress by threats
  • • Tamper Proof Switch and multiple alarm outputs
  • • Multi-languages

Technical Specifications

ID card Capacity 30,000
Transaction Capacity 80,000
Communication TCP/IP, RS485, USB-Host
Access Control Interface for 3rd party electric lock, door sensor, exit button, alarm, doorbell
Auxiliary Interface 1ea for linkage function
Wiegand Signal Output & Input、SRB
Standard Functions Anti-passback
Optional Functions Mifare、Print Function
Display TFT LCD Color Screen
Power Supply DC 12V
Operating Temperature 0°C ~ 45°C
Operating Humidity 20% ~ 80%
Dimension(L×W×H) 143mmx96mmx42mm
SDK Standalone SDK
