Wiegand RFID Card Reader

Wiegand RFID Card Reader

Best Contactless Card Reader | Contactless RFID access control reader available in Proximity and Mifare.

eSSL JS-500E

Wiegand RFID Card Reader

Proximity Card / Mifare Card Readers

JS-500E (Proximity) & PROXIMITY CARD READERS

JS-500M (Mifare) MIFARE CARD READER

Feature

ABS case

Waterproof 1P68

Multi-function RFID reader, WG26, 34 output



Wiegand RFID Card Reader Specifications

  • Card type : EM/HD
  • Working voltage : DC12V+10%
  • Reading Range : 3-8cm
  • Humidity : 10% to 90% RH
  • Door Opening Time : 0-99s (Adjustable)
  • Static electricity : < 30mA
  • Ambient temperature : -45°C — 60°C
  • Electriclock output : < 3A
  • Short-circuit Protect : 1001.15
  • Dimensions : 109*47*20mm

MIFARE Wiegand RFID Card Reader

eSSL JS 500 E Brochure
eSSL JS 500 M Brochure Mifare Reader

Wiegand RFID Card Reader

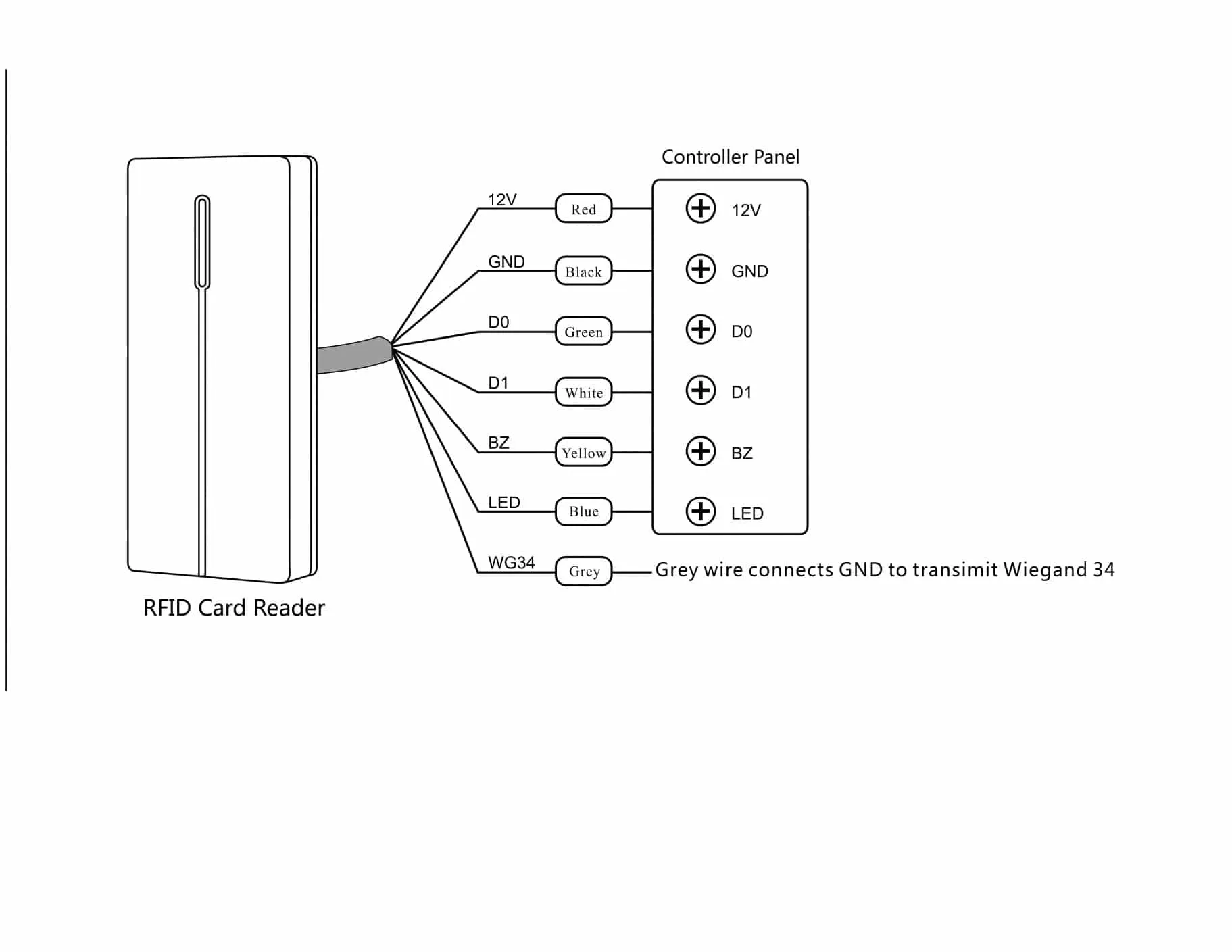

Connection Diagram of Wiegand RFID Card Reader
