Video Door Phone KIS202

Video Door Phone KIS202

Video Door Phone KIS202

Video Door Phone KIS202

Villa Analog Kit
Analog Kit for villa or house, only one call button

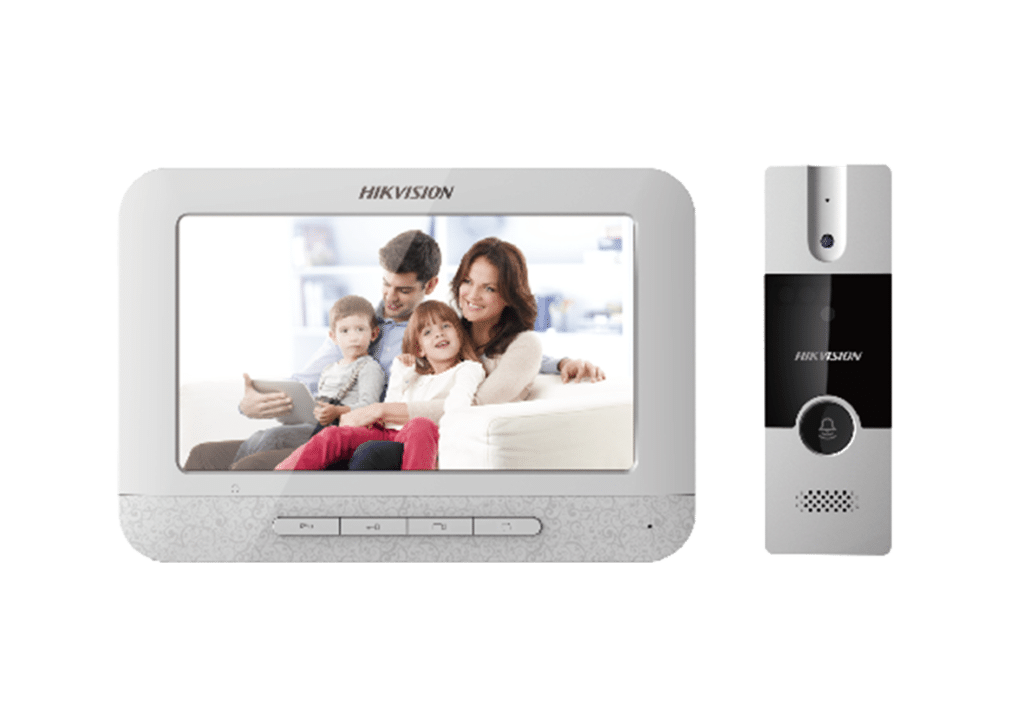

DS-KIS202 Hikvision

DS-KIS202 Hikvision

Kit including DS-KB2411-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories
European power supply adaptor included (please mark for other standards when you order)

  • Door Station/Video Parameters
  • Camera1/4″ CMOS
  • Resolution720 × 576
  • Video Frame RatePAL: 25 fps
  • Door Station/Audio Parameters
  • Audio InputBuilt-in Omnidirectional Microphone
  • Audio OutputBuilt-in Loudspeaker
  • Audio QualityNoise Suppression and Echo Cancellation
  • Door Station/Light Supplement
  • Light Supplement ModePhotosensitive IR Supplement, IR Range: 2 Meters
  • Door Station/Device Interfaces
  • Four-Wire Interface1 Four-Wire Interface (1-ch Video-Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)
  • IO Output1 Relay Output
  • Door Station/General
  • MaterialAluminum Alloy
  • Power consumption max. 3W
  • Working Temperature-30° C to +60° C (-22° F to 140° F)
  • Working Humidity10% to 90%
  • Dimension (L X W X H)128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″)
  • Indoor Station/Display Parameters
  • Display Screen7-Inch Colorful TFT LCD
  • Display Resolution800 × 480
  • Operation MethodPhysical Button
  • Indoor Station/Audio Parameters
  • Audio InputBuilt-in Omnidirectional Microphone
  • Audio OutputBuilt-in Loudspeaker
  • Audio QualityNoise Suppression and Echo Cancellation
  • Indoor Station/Device Interfaces
  • Four-Wire Interface4 Four-Wire Interfaces 1-ch Video-Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding
  • Indoor Station/General
  • Power Supply12 VDC
  • Power Consumption≤5 W
  • Working Temperature-10° C to + 55° C (14° F to 131° F)
  • Working Humidity10% to 90%
  • Dimension (L X W X H)195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)



If you have any queries or want to place an order please contact us now at 9315441078 WhatsApp 9315441053, 9818390836 or email us at [email protected] or fill the below Inquiry Form.

    Please visit our Products section Here.
