Two Door Controller Fingerprint Inbio 260 eSSL

Inbio 260 is a two Door Controller which support Fingerprint from eSSL. 2 DOOR CONTROLLER Inbio 260 eSSL support 4 readers 2 locks. We also have 4 door controller access control system.

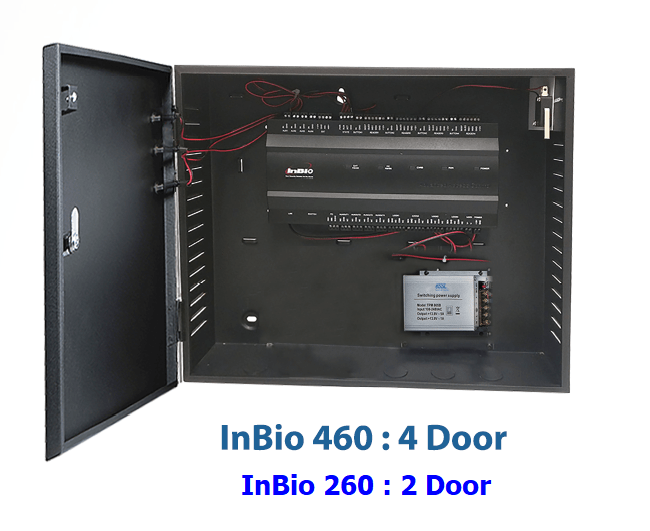

InBio 260 Controller

InBio 260 Controller

Multi-Door Controller

Two Door Multi-Door Access Control System. Type of System: RFID Access Control System Fingerprint Access Control System.

  • Card Capacity : 30,000 | Fingerprint Capacity : 3,000 (20,000 Optional)
  • Log Events Capacity : 1,00,000 | Available : 1 Door , 2 Door
  • Communication : RS485, TCP/IP, WiFi Optional
  • Numbers of readers supported : 12(8 RS-485 Reader, 4 wiegand reader)
  • Types of readers supported : 26-bit Wiegand (others upon request) , RS- 485
  • Number of Inputs : 12 (4 Exit Device, 4 Door Status, 4 AUX)
  • Number of Outputs : 8 (4-From C Relay for Lock and 4-From C Relay for Aux Output)

essl 2 door controller

 Features of Two Door Fingerprint Controller Inbio 260 eSSL
2 Door Controller by eSSL Inbio 260 Pro

2 Door Controller by eSSL Inbio 260 Pro

  • 256 time Zones, 256 access levels
  • Anti-passback function, Interlock function, Linkage function, Multi-Card Opening function
  • Remote door opening and closing
  • 4 auxiliary inputs can be connected to infrared body detectors, Fire Panel/smoke detectors, etc.
  • 4 auxiliary outputs can be connected to alarms/siron, Light indicator, door bells, etc.
  • Data is preserved if power is lost, Controller continues to operate if data connection is interrupted
  • Alarms and Events Notications through Email using Web Application
  • Supports Video Integration & Visitor Management Module using Web Application
  • Embedded Fingerprint verification and advanced access control function
  • It can be installed easily on your network also support TCP/IP and RS485 communication
  • 1/2/4 Door models can be mixed and matched in an optimized System Architecture
  • Data is preserved if power is lost, Controller continues to operate if the data connection is interrupted Anti-Passback, Interlock,First-Card Opening, Multi-Card Opening
  • Duress Password Entry and Auxilary Input/output linkages are inbuilt into controller firmware

Software Download for ESSL Inbio 260 Controller

ESSL Inbio 160 Single Door Fingerprint Access Control System

Email us at or call us at 9034757673, 9315441053 for pricing and installation of Two Door Controller.
