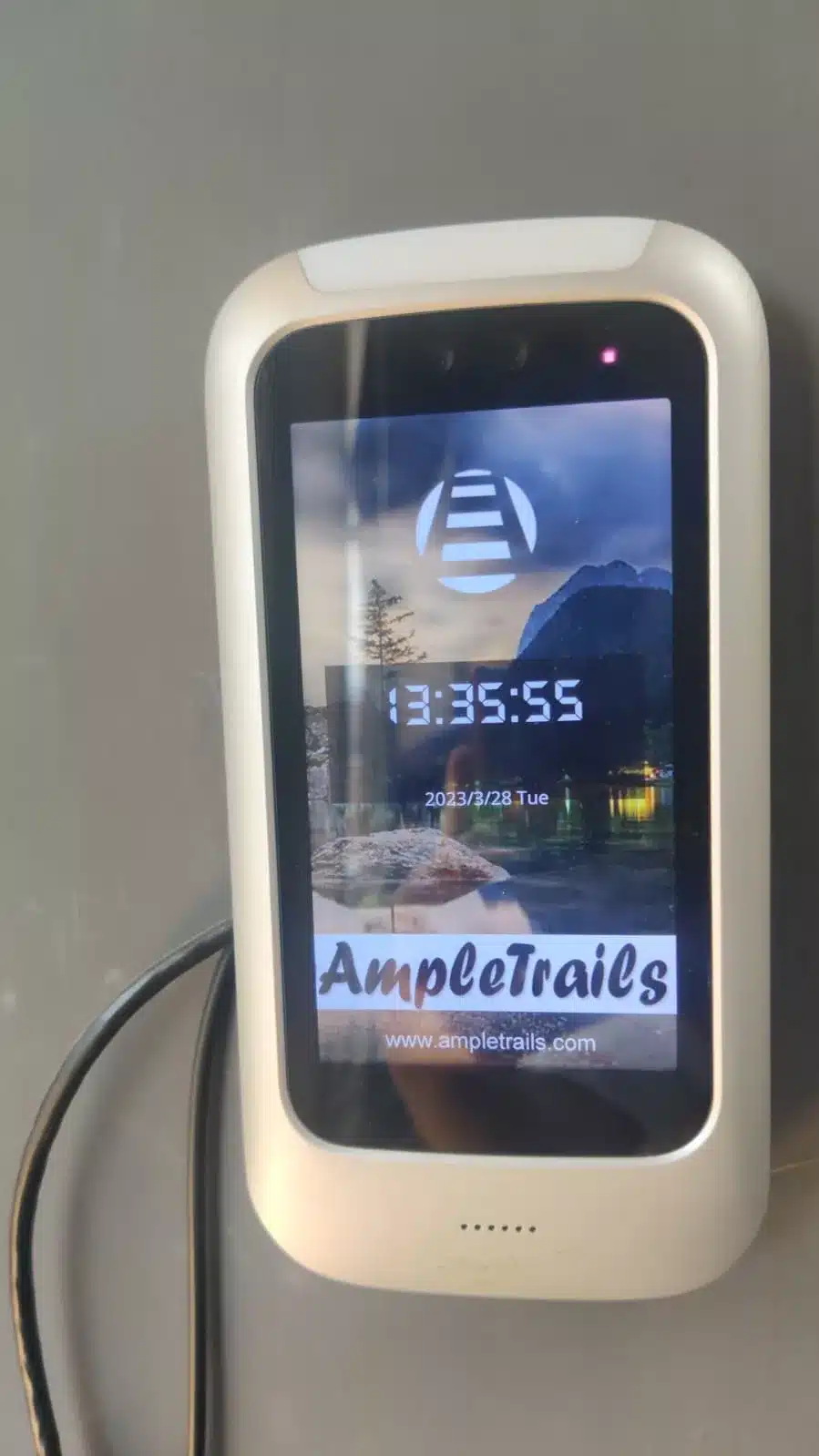

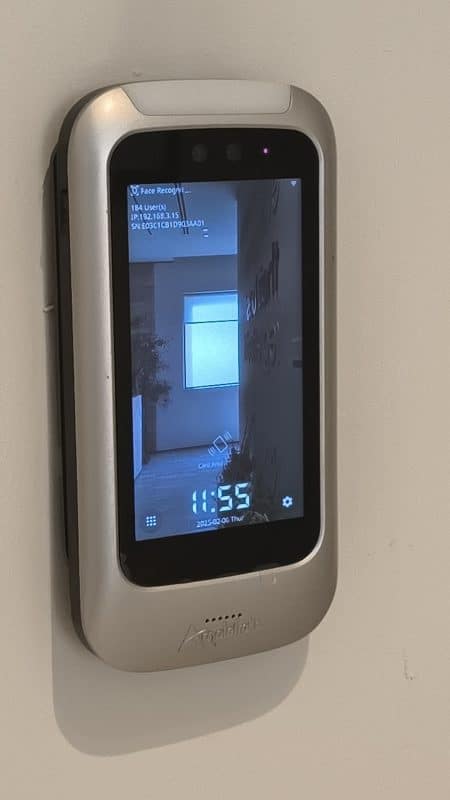

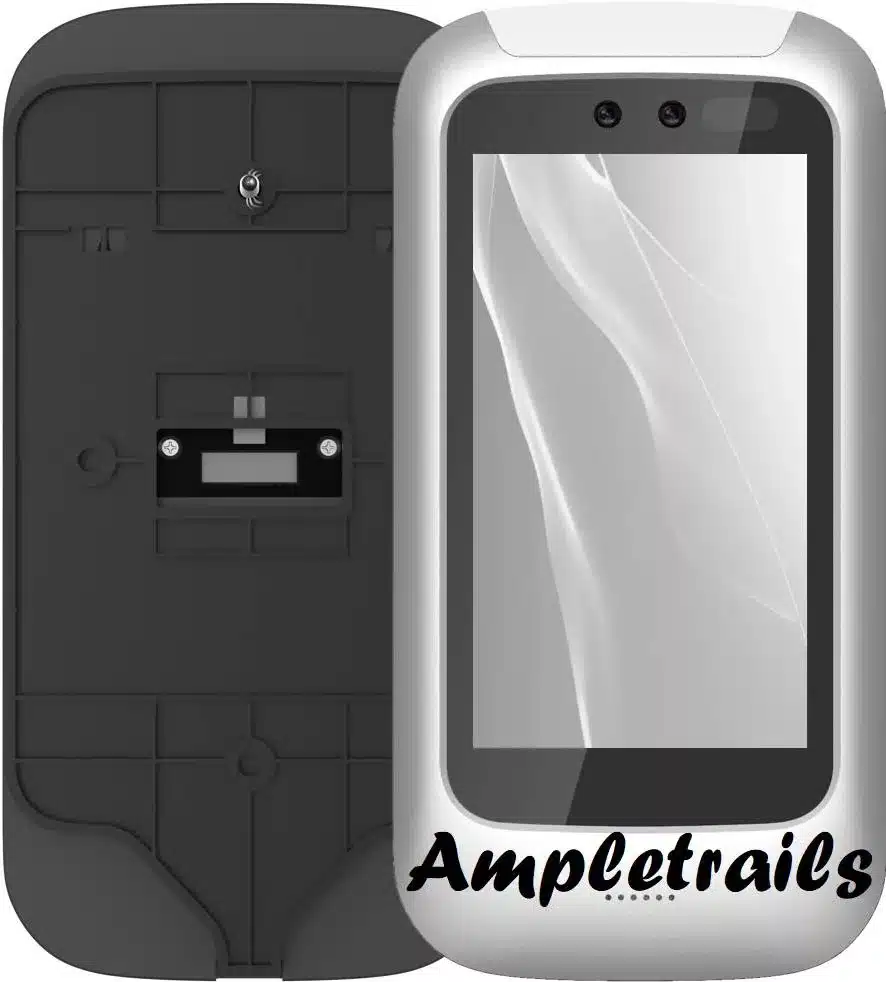

Description

AI Face Recognition Terminal SpeedFace 5 is the face recognition product with high performance and high reliability, which depends on the deep learning algorithm, also having the characteristics of quick recognition speed and high accuracy. This product supports 1:1 and 1:N mode, with an embedded card reader.

The test method for 99.99% recognition accuracy is: to compare the face in the database (each person has multi images in the database) with other faces, the person with the highest score is the one to be identified or not, if he is, then the recognition is accurate.

Functions

•Face Capacity : 3,000
• Card Capacity : 3,000
• Max User : 3,000
• Logs Capacity : 50,000
• Face detection : Detect and track 5 people meanwhile
• Accuracy : 99.99%
• Living body detection : Support
• Capacity : 3000 (Max. 3000) pieces of face images
• Stranger detection : Support
• Recognition distance configuration : Support
• UI interface configuration : Support
• Remote upgrade : Support
• Deployment : Public network, LAN

General parameters

• Protection grade : IP54
• Power : DC 12V/2A
• Working temperature : -10°C~50°C
• Storage temperature : -20°C~60°C
• Working humidity : 10%~90%
• Power consumption : Max.15W
• Dimension : 190.00 mm * 87.53 mm * 17.00 mm

Display

• Display screen : 5-inch IPS all-sight LCD touch screen
• Resolution : 480 * 854Interfaces
• Serial communication interface : 1-way RS-232
• Relay output : 1-way door-opening signal output
• Wiegand output : 1-way Wiegand 26/34
• Signal input 2 ways, 1-way door magnetic signal input, 1-way door button input
• Network interface : 1-way 100M Ethernet
• Reset interface : 1 Reset button
• Card reader : module 1 compatible 1443 protocol type A/B card
• USB interface : 1-way Type-A
• Audio output : Not support
• Video output : Not support
• Speaker : 1 built-in speaker
• Alarm interface : 2-way alarm input
• Tamper button : 1
• Heat module : Not supportSystem parameters
• Operating system : Linux
• CPU : Dual-core ARM Cortex-A7 at 900MHz
• Storage 512M RAM, 8GM ROM

Email us at [email protected] or call us at 9034757673, 9315441053 for pricing and installation of this machine.
