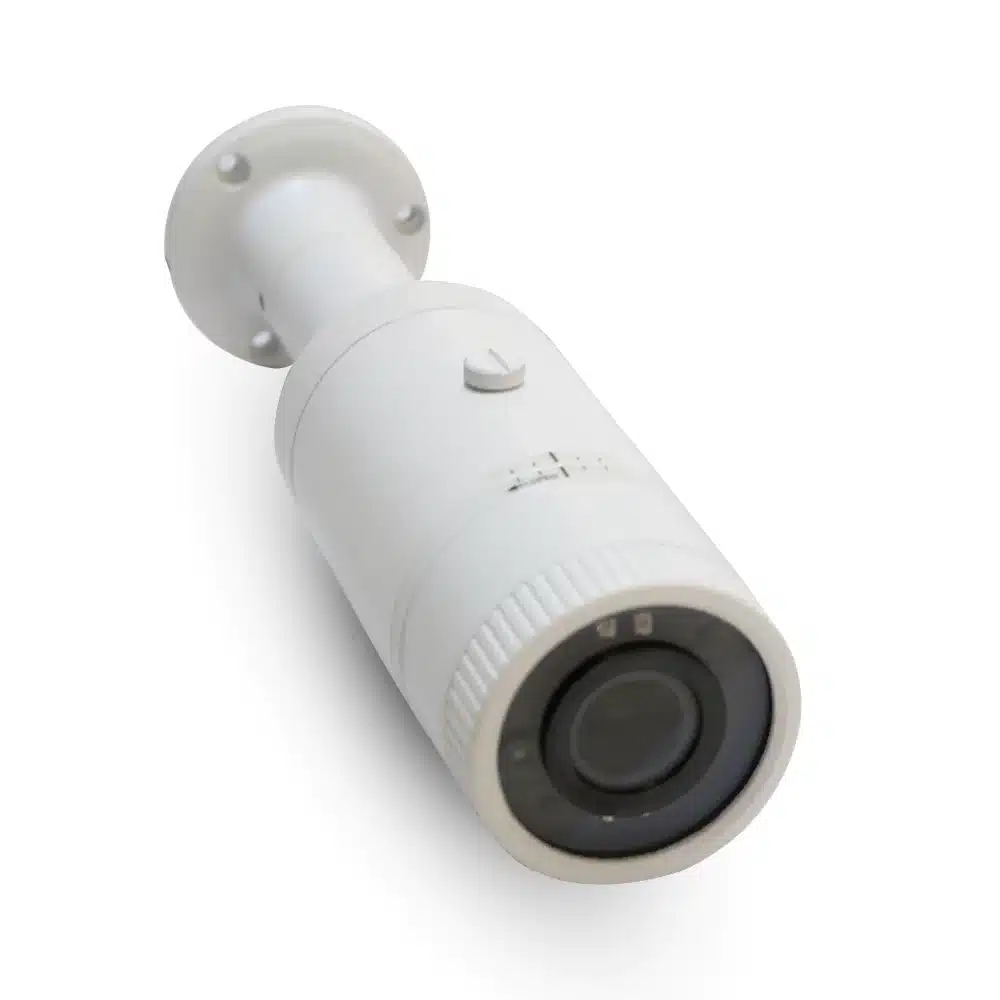

SATATYA CIBR50FL28CWP Matrix Camera

Sale!

SATATYA CIBR50FL28CWP Matrix Camera

16,000.00

20 in stock

Description

Features of SATATYA CIBR50FL28CWP

  • SONY STARVIS Sensor
  • H.265 Compression
  • True WDR (120dB)
  • Smart Streaming and Adaptive Streaming
  • On-board storage (512GB)
  • High Signal-to-Noise Ratio (>70dB)

Matrix SATATYA CIBR50FL28CWP Camera

CCTV SATATYA CIBR50FL28CWP

SATATYA CIBR50FL28CWP



CIBR50FL28CWP-5mp-ir-bullet-fixed-2dot8mm-lens-with-audio

More about SATATYA CIBR50FL28CWP

5MP IR Bullet Camera with 2.8 mm Lens

Previously, most surveillance cameras were bulky, sturdily built devices that often looked out of place in a professional business landscape. These days, however, things have changed. It is now totally possible to have both, a functional security product and one that is aesthetically pleasing at the same time.

Matrix Professional Series Bullet IP Cameras are designed specifically to blend in with the minimalistic business aesthetics of modern enterprises. Our robust and discreet range of Professional Series Bullet IP Cameras can harmonize seamlessly with your business design, making it an unobtrusive form of surveillance.

With Sony STARVIS series sensors, and resolutions as high as 5MP, these cameras give exceptional quality images in the most challenging environments. Apart from the latest compression technique of H.265 that reduces storage space, these cameras have built-in video analytics like Motion Detection, Intrusion Detection, and TripWire to ensure real-time security.

These Cameras are best suited for SOHO and Medium-scale Enterprises and have variants in different focal lengths in 5MP, 3MP, and 2MP resolutions.

TECHNICAL SPECIFICATIONS of SATATYA CIBR50FL28CWP
IMAGE SENSOR
Resolution 5 MP (2592 x 1944)




Sensor Type and Size

1/2.8″ SONY – CMOS 5MP Active Pixel

Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology – STARVIS Series)

LENS


Minimum Illumination

Colour – 0.01 Lux @F1.2 (AGC ON)

Monochrome – 0 Lux

Focal Length 2.8mm
Focus Range 0.3m to infinity




Field of View (FOV)

HFOV – 104°

VFOV – 75°

DFOV – 129°

Lens Mount M12
Focus Fixed focus
Aperture (F#) F 1.8
Iris Type Fixed
IR Range 50m
IR Led Wavelength 850nm
IR Switching Auto/ Manual
AUDIO INTERFACE
Audio IN 1
Audio OUT 1
Two-way Audio Supported
Audio Compression G.726 and G.711
Alarm In Yes
Alarm Out Yes
HARDWARE SPECIFICATIONS
SD Card Up to 512GB
Camera Adjustment Angle Pan: 0° to 180°

Tilt: 0° to 180°

Rotation: 0° to 360°

IMAGE AND VIDEO
No of Stream Profiles 3




Stream Profiles

Profile 1: 2592X1944 @30fps (H.264/H.265)

Profile 2: VGA @30fps (H.265/H.264)

Profile 3: 2048×[email protected] (MJPEG)



Available Resolutions

2592 X 1944, 2592 X 1520, 2048 X 1536, 1920 X 1080, 720p, D1, 2CIF,

VGA, CIF, QCIF

Max Resolution 2592 x 1944
Bitrate 128kbps-16Mbps
Bitrate Type CBR, VBR
Video Compression H.265, H.264, MJPEG
Frame Rate 1-30fps
Shutter Speed 1/25-1/59000
Adaptive Streaming Yes
ONVIF Profiles S and G
Edge Recording Yes
Alarm Recording Pre and Post
Motion Recording Yes
Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks 3
WDR True WDR (120dB)
SNR 73db
Image Enhancement Saturation/Contrast/Sharpness/Brightness/Auto Exposure
DNR 2D &3D




Video Analytics

Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, IP Conflict, Network Disconnect, Audio Exception, Storage full, Time triggered
EVENTS AND ACTIONS
Upload Image SD, NAS, FTP
Upload Clip SD, NAS, FTP
Notifications E-mail, SMS, TCP
PROTOCOLS SUPPORTED


Supported protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0




Plugins

IE: Matrix ActiveX

Chrome: VLC plugin (2.0.4) and Quicktime(7.7.5)

Mozilla: VLC plugin (2.0.4) and Quicktime(7.7.5)

OPERATING PARAMETERS
Power Supply 12V (DC); 802.3af (PoE)
Power Consumption <7W
Operating Humidity Less than 90% RH (non-condensing)
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
PHYSICAL PARAMETERS
Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
Weight 880 gm
Colour Pantone 7527C
Dimensions 301.6 x 84 x 92.5 (Length x Height x Width)
Storage NAS, SD Card
Certifications CE, FCC, ROHS, BIS, IP66, IK10, UL



DOWNLOADS – TECHNICAL SPECIFICATIONS
