eSSL C3-100 Single Door Controller

eSSL C3-100 Single Door Controller

Single Door Controller

  • Number of Door : 1 Door
  • Card Holders Capacity : 30000
  • Log Events Capacity : 100000
  • Communication : TCP/IP and RS-485
  • Number of Readers Supported : 2 ( 26-bit Wiegand reader)
  • Types of Readers Supported : 26-bit Wiegand, others upon request
  • Number of Inputs :2( 1 Exit Button, 1 Door Sensor)
  • Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
  • Weight : 7.4lbs (3.35kg)
  • Enclosure : Powder Coated Aluminum
  • Mounting : Wall Mount
  • Recommended Power Supply : 12V DC, 1.5A
  • Dimensions (Bundle Only) : 380mm(L)X80mm(W) X 280mm(H)
  • Dimensions ( Board Only) : (160mm×106mm)

Description

eSSL C3-100 Single Door Controller can be used as a Boom barrier controller.  It’s a card-based controller.  It can store up to 3,000 cards.  Its log events capacity is 1,00,000.  It has TCP/IP and RS-485 communication.

PDF CATALOGUE

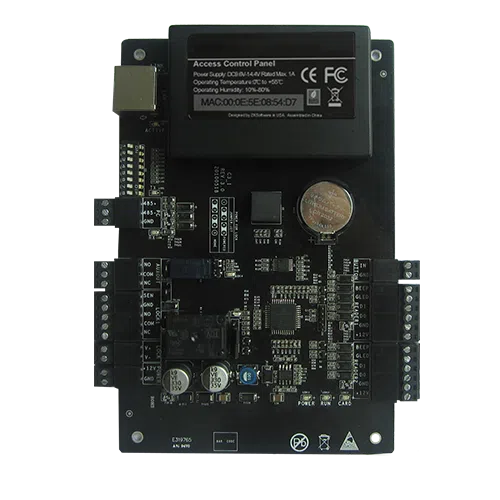

Door Entry Systems

Access Control Systems | Door Access Control System

zkteco c3-100 door controller 1 door

eSSL c3 100 Single Door Controller

TECHNICAL SPECIFICATIONS of eSSL C3-100 Single Door Controller

  • Number of Door: 1 Door
  • Card Holders Capacity: 30000
  • Log Events Capacity : 100000
  • Communication : TCP/IP and RS-485
  • Number of Readers Supported : 2 ( 26-bit Wiegand reader)
  • Types of Readers Supported : 26-bit Wiegand, others upon request
  • Number of Inputs :2( 1 Exit Button, 1 Door Sensor)
  • Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
  • Weight : 7.4lbs (3.35kg)
  • Enclosure : Powder Coated Aluminium
  • Mounting : Wall Mount
  • Recommended Power Supply : 12V DC, 1.5A
  • Dimensions (Bundle Only) : 380mm(L)X80mm(W) X 280mm(H)
  • Dimensions ( Board Only) : (160mm×106mm)

FEATURES of eSSL C3-100 Single Door Controller

  • TCP/IP and RS485 communication
  • Built-in Auxiliary input and Output
  • Access Control Functions
  • Support full range of card readers

Software Download for ESSL C3-100 Controller

Two Door Controller Fingerprint Inbio 260 eSSL

Email us at info@ampletrails.com or call us at 9034757673, 9315441053 for pricing and installation of this Single Door Controller.

Group Label Description
Dimensions ( Board Only) 6.3in.×4.17in
Number of Doors Controlled 1 Door
Number of Readers Supported 2(26-bit Wiegand reader)
Types of readers supported 26-bit Wiegand, others upon request
Number of Inputs 2 (Exit Device and Door Status, AUX)
Number of Outputs 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
Card Capacity Cardholders Capacity 30,000
Storage Capacity Log Events Capacity 1,00,000
Communication Communication TCP/IP, RS-485 and WiFi optional
Enclosure Powder Coated Aluminium
Operating Humidity Operating Humidity 20% to 80%
Weight 7.4lbs (3.35kg)
Mounting Wall Mount
CPU CPU 32 bit 400MHz CPU
RAM RAM 32M
Flash Memory Flash Memory 128M
Recommended Power Supply 12V DC, 1.5A
Operating Temperature 0 – 45 °C
Dimensions (Bundle Only) 15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H)
Dimensions ( Board Only) 6.3in.×4.17in. (160mm×106mm)
